#920021 22-Oct-2013 22:07

That would work and all, but it would also give grounds for cpe arguments. Which are visionstreams favorite.

I certainly considered it... Or an accidental snip of a wire so they had to fix things. Still that goes in the basket with tractoring conklins in the hope of an upgrade basket ..

End of the day, going 17a is a bigger concern for me, wish it was a case of flicking a switch.

I can post graphs when I get home, but it's interesting .. 8am till 8pm I average 11 db snr, otherwise, 12.

Looking at graphing that, then going from there ... As a dodgy joint possibility with the temperatures.

May need to prod the likes of runningman for a bit more information on this for arguing purposes though.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#920309 23-Oct-2013 12:05

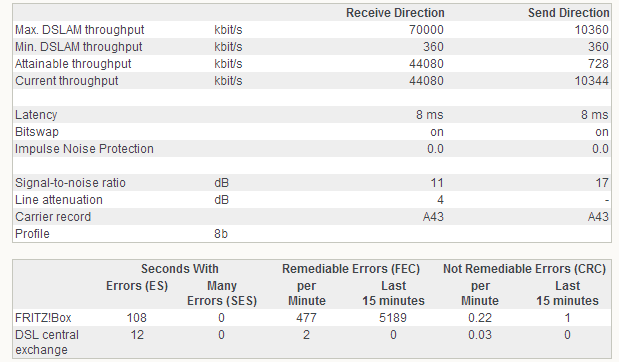

so, forced a resync last night..

looks like the error rate has dipped right down, but then i question if what im actually seeing here is a move to DLM-4..

also back down to 4db attenuation.. from the 6db it keeps jumping up to..

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#920757 23-Oct-2013 23:55

soo, for my playing tonight, i decided ild toy with something different.. anything to procrastinate projects right? lol..

Phonebook Aware growl notifications!

so, anyone who wants to attempt this, take care.. you can break things...

could say this was a bit of a hack to get working perfectly though..

you need to do everything via telnet..

cd /var/ && wget http://hio77.com/fritz/calllog
cd /var/media/ftp/ && wget http://hio77.com/fritz/gntp-send
chmod +x gntp-send

you will need to edit the ip in the calllog script..

have a play if you wish.. as far as im aware, you will need to move the file to the flash to save it over reboots. im yet to test that (who wants to reboot their fritz very oftern?)

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

HiTM4N

256 posts

Ultimate Geek
+1 received by user: 22

Trusted

#920782 24-Oct-2013 07:53

So after 9 days of the most stable line I've ever had, i got a resync. Since then I've had huge errors and it's even resynced again because the line got so bad. Sadly if this keeps up I'll lose my DLM-1

Love of all phones, computers and gadgets

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#920866 24-Oct-2013 10:40

Your snr bouncing can't be helping .. any chance it just rained or dried up?

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

HiTM4N

256 posts

Ultimate Geek
+1 received by user: 22

Trusted

#921111 24-Oct-2013 17:34

Both sadly. Hot yesterday, rained overnight, hot/dry again today

Love of all phones, computers and gadgets

New World

Shop on-line at New World now for your groceries (affiliate link).

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#921113 24-Oct-2013 17:41

mhm, i question if your issue is temperature/weather related.. without knowning the weather where you are, im seeing the same sorts of patterns in your connection that im noticing in mine..

this is simply a random thought though..

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

HiTM4N

256 posts

Ultimate Geek
+1 received by user: 22

Trusted

#921126 24-Oct-2013 18:06

Oh i've believed for a while that the weather greatly affects my line.
I'm in chch so hit 26C today O.o

Love of all phones, computers and gadgets

gabesmith

46 posts

Geek
+1 received by user: 6

Trusted

#921268 25-Oct-2013 00:18

HiTM4N: Oh i've believed for a while that the weather greatly affects my line.
I'm in chch so hit 26C today O.o

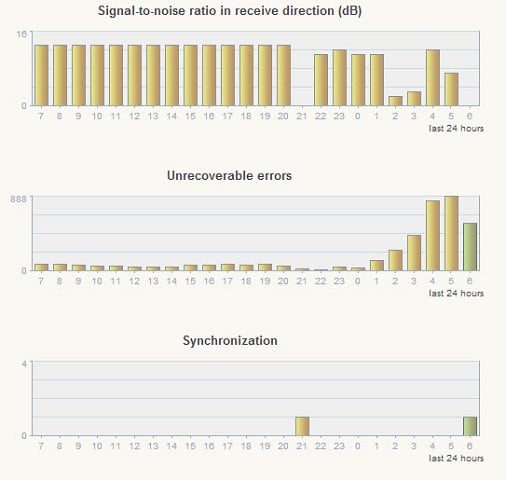

The wind in Wellington was definitely affecting my line stability and stats. I diagnosed this using a cordless phone plugged onto the line and traced it back to the chorus grey post thing outside my house listening for crackling noise when movement occured. It took a bit of convincing but Snap got Chorus to come and fix a loose connection in the grey post and hey presto much better line stats and stability. I have a the before and after stats pic from the fritz which shows the effect of the line fix.

loosing SNRM and re-syncs occasionally are classic symptoms of a loose connection in my experience.

Good luck.

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#921278 25-Oct-2013 00:38

gabesmith:
HiTM4N: Oh i've believed for a while that the weather greatly affects my line.
I'm in chch so hit 26C today O.o

The wind in Wellington was definitely affecting my line stability and stats. I diagnosed this using a cordless phone plugged onto the line and traced it back to the chorus grey post thing outside my house listening for crackling noise when movement occured. It took a bit of convincing but Snap got Chorus to come and fix a loose connection in the grey post and hey presto much better line stats and stability. I have a the before and after stats pic from the fritz which shows the effect of the line fix.

loosing SNRM and re-syncs occasionally are classic symptoms of a loose connection in my experience.

Good luck.

this is what im currently trying to prove myself..

a cordless phone you say.. might be worth a try

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

Paul1977

5171 posts

Uber Geek
+1 received by user: 2192

#921786 25-Oct-2013 16:52

hio77: who was it that had the high FECs that were killing their line? thinking i might be able to use some of their experience to put another fire under chorus...

That might have been me.

Was stuck on DLM-7 for ages, redid my internal wiring to try to improve, asked for a DLM reset and quickly went to DLM-8. I was getting zero CRC errors but FEC errors sometimes into the million per 15min.

However I was never getting disconnects or spontaneous resyncs, just crazy high latency and 5 Mb/s less that I should have been getting.

Snap tested Fritz and found no problem. Chorus tested line and said it was fine, however Snap disagreed with their findings. They were goiung to dispute it with Snap, but suggested I downgrade to .22 first.

Being a bit lazy I hadn't gotten arround to downgrading and one afternoon my CRCs went through the roof, router spontaneously resynced, and then my FECs were down into normal levels and CRCs were gone.

After the FEC errors had remained stabled for a couple of days I asked for a DLM reset and have been on DLM-1 ever since.

I really don't know what changed, as it came right at least a week after the last time I had spoken with Snap. My guess is either Snap followed up with Chorus and something was done at the cabinet, or Chorus was doing something else in the cabinet that just happened to sort my problem.

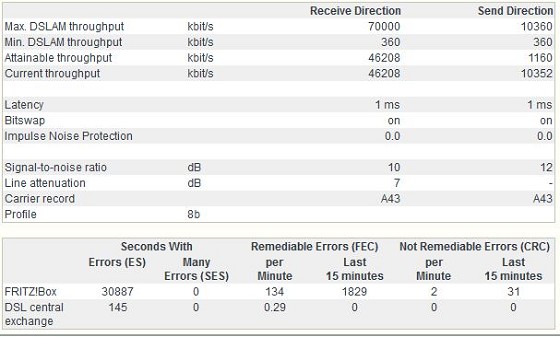

This is where I am sitting now with 11 days sync last resync:

I'm getting CRC errors now which I never got on the higher DLM profiles, but I assume that normal because of the lack of intyerleaving and INP. However they are sitting stable at 2/min, so I'm happy with that.

Not sure what sort of cable I have coming into the property, it's an overhead line that externally looks like two black cables twisted around each other.

I don't know that any of this has been helpful to you, but what I took from it is just because Chorus say the line is fine, doesn't necessarily make it so!

Geekzone support

Support Geekzone with one-off or recurring donations Donate via PressPatron.

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#921789 25-Oct-2013 17:07

oh, i know its not fine, but its to the point where i have been having techs out, almost every day, sometimes two times a day even!

ima be calling snap tonight, maybe tomorrow considering i have a assignment to hand in, get them to question chorus..

pretty clear, DLM wasnt reset on my line like the say it was - a VERY common occurrence im dealing with is lies from techs..

that is why im giving up on it..

cable into my place is a normal 049 cable, was *apparently* repaired, but once again, no record of this work. and im confident in myself, that i would have noticed my connection dropping while a cable was being repaired.. or noise in the line while they were messing with it.

the fact that really rides on me though, both snap AND chorus have agreed there is a problem in the line, but chorus have ruled it not worth looking into due to lack of errored seconds..

im still convinced my issue is a dodgy joint/connection alone the way, possible temperature related..

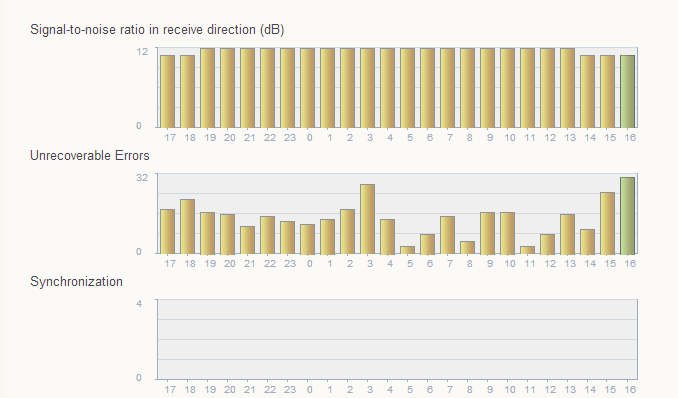

this trend is pretty regular, hot days, code days, tends to reverse it.. FECs also have a bit of a tend like this, but rather hard to graph accurately..

just need to find the correct route to get things sorted.. hopefully were the same supervisor doesnt come out again (all hes interested in is sync speeds and wasnt willing to discuss it at all - i think i may have upset him a tad.. AH well.)

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

stevehodge

393 posts

Ultimate Geek
+1 received by user: 52

#921816 25-Oct-2013 18:12

Paul1977:

I'm getting CRC errors now which I never got on the higher DLM profiles, but I assume that normal because of the lack of intyerleaving and INP. However they are sitting stable at 2/min, so I'm happy with that.

Yes, it's normal. Even very good lines usually have some errors on DLM-1. My line has never really shown errors on any of the the higher levels but is currently sitting on 2/min. I think that rate is fine.

Paul1977

5171 posts

Uber Geek
+1 received by user: 2192

#923383 29-Oct-2013 09:21

Not complaining, my line is stable on DLM-1 at 46Mb/s with no tweaking. But am curious if anyone knows what would cause my SNR to often sit down at 10?

SamF

1598 posts

Uber Geek
+1 received by user: 252

Trusted

#923389 29-Oct-2013 09:30

That's normal line condition fluctuations, happens to the best of lines.
