#939723 24-Nov-2013 02:52

Your stats & like look pretty good. I'd recommending downgrading your firmware to v.22 however, that will give you better speeds and less issues.

BTW, you can post pictures directly to this forum; either copy and paste, or upload and link :)

JayADee

2148 posts

Uber Geek

#939748 24-Nov-2013 08:24

This morning's
https://www.dropbox.com/s/js2thmkqci6pm8o/2013-11-24%2008.19.15.png
https://www.dropbox.com/s/7bkm9xa0pjg5m8c/2013-11-24%2008.21.12.png
https://www.dropbox.com/s/o8zrmhxhac1lv2g/2013-11-24%2008.21.37.png

Oh thanks didn't know I could copy and paste.

I can't seem to downgrade, I tried a number times.
First time as typical, second time with redownloaded image, third time first from same version firmware image (5.51) from download site, then to downgrade firmware.

Same error every time- this firmware is older than current, try again or reboot to keep same. Retry gets same error.
I've given up on it for now. First time I've ever run into a refusal by router firmware.

I'm downloading image files from the same site everyone is. Kind of weird. I've double checked they're the correct image files.

SamF

1578 posts

Uber Geek

Trusted

#939788 24-Nov-2013 10:00

Hmm, I've not tried this myself, perhaps someone else on the forum may be able to assist?

Did you try the firmware link on the first post of this thread (down the bottom)?

Snap can probably assist as well, they officially recommend downgrading.

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#939891 24-Nov-2013 15:13

snap could do it, otherwise we might be able to help remotely or something.

your not trying to downgrade it via the ipad are you?

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

JayADee

2148 posts

Uber Geek

#939917 24-Nov-2013 16:05

Lol no, my laptop where the image file is. I don't think I'm doing it incorrectly, I think the firmware is not allowing it. I've done this plenty of times on other routers.

SamF

1578 posts

Uber Geek

Trusted

#939926 24-Nov-2013 16:28

I believe that there's 2 types of firmware files - the standard upgrade one and a special 'downgrade' one.

There are links to the downgrade versions on the first post (sorry if you tried before and it didn't work, looks like the files were moved - corrected now).

Give that file a try and see how you go.

JayADee

2148 posts

Uber Geek

#939984 24-Nov-2013 20:33

This is the site I originally used:
ftp://service.avm.de/Downgrade/FRITZ!Box_Fon_WLAN_7390/english/FRITZ.Box_Fon_WLAN_7390.en-de-es-it-fr.84.05.22.image
Your link:
ftp://service.avm.de/Downgrade/FRITZ!Box_Fon_WLAN_7390/english/FRITZ.Box_Fon_WLAN_7390.en-de-es-it-fr.84.05.22.image

Good guess though! So weird. My attempts at downgrading takes about the right amount of time to apparently load up the new image, then rejects it as an older version. I'll have a google around and see if anyone has the same issue but I'm in no hurry.

Sharesies kids

Free kids accounts - trade shares and funds (NZ, US) with Sharesies (affiliate link).

SamF

1578 posts

Uber Geek

Trusted

#940026 24-Nov-2013 22:52

Hmm, OK weird. At this point I'd speak To snap if I were you as they have done heaps of these.

JayADee

2148 posts

Uber Geek

#940077 25-Nov-2013 06:58

Thanks, I'll leave it for the time being and get back to it eventually.

stevehodge

393 posts

Ultimate Geek

#940181 25-Nov-2013 11:20

JayADee: I still think my line attenuation is a bit high (13 when Chorus said it was 5 to 6 on the test to see if I could get VDSL)

I'm pretty sure prequal attenuation is measured at 300kHz which is pretty low frequency for DSL. Attenuation increases with frequency so I'd expect prequal attenuation to be equal to or lower than ADSL attenuation and a lot lower than VDSL attenuation as reported by the Fritz. In my case my ADSL attenuation was 2db and my VDSL attenuation was 4-5db (on an 8b profile). I don't think 6db -> 13db is obviously a problem.

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#940355 25-Nov-2013 14:14

seems DLM isnt making much moves to jump back up in sync speeds unfortunately..

i might give it a kick in the pants if it does nothing tomorrow, see if its not just a bad sync

still does seem funny though, DLM move to DLM-1 cleared up my FECs something crazy..

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

Psilan

856 posts

Ultimate Geek

#940737 25-Nov-2013 22:49

Just thought i'd post screenshots since my connection has stayed fast and strong since fixing my cabling.

And downloading BF4 tonight :>

Voyager referral - https://refer.voyager.nz/68QKJ8XKK

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#940739 25-Nov-2013 22:51

thoses FECs are pretty distasteful, but not bad line..

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

HiTM4N

256 posts

Ultimate Geek

Trusted

#940757 25-Nov-2013 23:45

Dairusire: Well, I just swapped out the Fritz!box 7390 for a newer modem from NetComm

Officially name the NF4V, it can do ADSL/VDSL/Fibre, dedicated Gigabit Wan port, 4x gigabit ethernet ports, Dualband wireless 2.4Ghz and 5Ghz and USB 3.0 ports and VoIP.

So with this swap I noted down I was getting between 46-47 maybe even 48mb/s sync on my line. As soon as I dropped this Netcomm in the sync speed rose upto 51.4mb/s and 51.6mb/s down.

Does it support pass-thru?

Love of all phones, computers and gadgets

JayADee

2148 posts

Uber Geek

#941412 27-Nov-2013 06:39

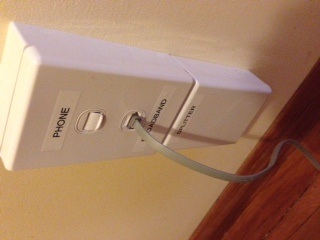

Here's a picture of the tidy install by my Chorus guy.

It's right in the centre of my house to maximise wifi coverage. The fritz!box has terrible wifi coverage compared to my last two router/modems which had external antennas and would cover 50 metres in all directions. It's adequate though unless I need to wander down the driveway.

I sent my installer a thank you text for the nice job he did as I wasn't personally at home at the time.

Sorry, I don't know why in the post the picture comes up sideways.
