VDSL Performance & Tuning

Forums › New Zealand Broadband › VDSL Performance & Tuning

1 | ... | 191 | 192 | 193 | 194 | 195 | 196 | 197 | 198 | 199 | 200 | 201 | ... | 285

904 posts

Ultimate Geek
+1 received by user: 336

Trusted

#970372 21-Jan-2014 01:04

Shouldn't be, but it is. Central splitter + dedicated cat5 to the modem installed by Chorus.

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#970373 21-Jan-2014 01:05

Lorenceo: Shouldn't be, but it is. Central splitter + dedicated cat5 to the modem installed by Chorus.

odd. my attention used to shift around too.. took about 4 weeks of moaning at chorus to get it fixed..

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

insane

3325 posts

Uber Geek
+1 received by user: 1006

ID Verified

Trusted

2degrees

Subscriber

#970374 21-Jan-2014 01:09

Well after a year of being pegged on 8b DLM1, BOOM!

70/10, oh yeah!

============================================================================
VDSL Training Status: Showtime
VDSL Profile: Profile 17a
Traffic Type: PTM Mode
Link Uptime: 0 day: 20 hours: 55 minutes
============================================================================
VDSL Port Details Upstream Downstream
Line Rate: 10.426 Mbps 70.094 Mbps
Actual Net Data Rate: 10.342 Mbps 69.993 Mbps
Trellis Coding: ON ON
SNR Margin: 17.0 dB 14.9 dB
Actual Delay: 0 ms 0 ms
Transmit Power: -11.7 dBm 14.3 dBm
Receive Power: 1.1 dBm 9.3 dBm
Actual INP: 0.0 symbols 0.0 symbols
Total Attenuation: 0.2 dB 4.9 dB
Attainable Net Data Rate: 19.768 Mbps 86.280 Mbps
============================================================================
VDSL Band Status U0 U1 U2 U3 D1 D2 D3
Line Attenuation(dB): N/A 7.4 19.8 N/A 4.3 9.3 - 3.9
Signal Attenuation(dB): N/A 7.2 18.3 N/A 4.3 9.3 N/A
SNR Margin(dB): N/A 17.1 17.0 N/A 14.3 15.5 N/A
Transmit Power(dBm): N/A -24.0 -12.0 N/A 13.3 7.6 N/A
============================================================================

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#970375 21-Jan-2014 01:14

what an insane sync rate too, not really gonna get any closer to 70/10 with that!

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

insane

3325 posts

Uber Geek
+1 received by user: 1006

ID Verified

Trusted

2degrees

Subscriber

#970376 21-Jan-2014 01:22

hio77: what an insane sync rate too, not really gonna get any closer to 70/10 with that!

Somewhat ironic as I'll be getting a 'test' UFB connection put in shortly. Cabinet is at the end of my driveway, think I should log a ticket asking them to find my missing 0.007mbps sync rate :p

Eskem0

13 posts

Geek
+1 received by user: 8

#971802 21-Jan-2014 18:44

Hi guys! Just a quick question. Got VDSL installed not to long ago, waited for the 10 day period.
Playing around with it now.. If I remove the master splitter and just hard wire into the modem I get a attenuation of 9db. with the filter its 11db.

I don't have any phones to install. So should I just keep it hardwired ? I know the filter will "clean up" the line but the SNR and sync rate stays the same just attenuation is effected.

Mighty Ape

Shop now at Mighty Ape (affiliate link).

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#971816 21-Jan-2014 18:48

sounds like a defected filter.

a clean cat5 from the ETP to the single socket will certainly count out any harm of a defective part or inflictions from other jackpoints.

lack of a filter will not do any harm. chorus like to know its there to be able to say yes the line should be perfect persay.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

Damager

2125 posts

Uber Geek
+1 received by user: 37

#972479 22-Jan-2014 20:51

hio77: yes, it is. the underuse of the upload spectrum is a topic thats been bought up here a few times..

moreso with 17a, since it adds two upload bands.

Interesting! What's the highest possible attainable upload speed?

- Telstra HTC Touch Pro2 - Energy ROM WM6.5.5 20 Oct/Cyanogen Mod Froyo 2.2 - R.I.P
- AT&T Galaxy S Captivate 16GB on XT (now with brother)
- Samsung Galaxy S2 on XT- Runs ICS 4.0.3 Resurrection Remix 9.2
- Business Hours - Work In The Electricity Industry, After Hours - DJ/Turntablist - Will Scratch Vinyl For Free'
- What's next??? S3?

Lorenceo

904 posts

Ultimate Geek
+1 received by user: 336

Trusted

#972503 22-Jan-2014 22:10

100mb down and 50 up on 17a, but Chorus have artificially limited it to a max of 70mb down and 10 up.

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#972504 22-Jan-2014 22:11

Damager:
hio77: yes, it is. the underuse of the upload spectrum is a topic thats been bought up here a few times..

moreso with 17a, since it adds two upload bands.

Interesting! What's the highest possible attainable upload speed?

10mbit. 10360Kbit to be exact.

take a look at your Max. DSLAM throughput values if your modem shows them.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

HiTM4N

256 posts

Ultimate Geek
+1 received by user: 22

Trusted

#972696 23-Jan-2014 11:00

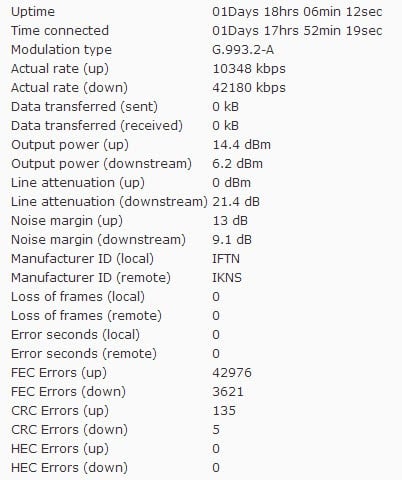

Been a while so thought i'd post an update...

Made a few changes, swapped to a telecom business router (dont ask why i have it) and also installed a brand new ETP with filter and Cat5 to jack.

Love of all phones, computers and gadgets

New World

Shop on-line at New World now for your groceries (affiliate link).

SamF

1598 posts

Uber Geek
+1 received by user: 252

Trusted

#972792 23-Jan-2014 12:33

Are you getting a 42mbit downstream sync with an attenuation of 21dB!!??

What is your DLM profile currently?

HiTM4N

256 posts

Ultimate Geek
+1 received by user: 22

Trusted

#972957 23-Jan-2014 16:15

SamF: Are you getting a 42mbit downstream sync with an attenuation of 21dB!!??

What is your DLM profile currently?

DLM3

Love of all phones, computers and gadgets

Downhillnz

62 posts

Master Geek
+1 received by user: 6
Inactive user

#972962 23-Jan-2014 16:21

HiTM4N: Been a while so thought i'd post an update...

Made a few changes, swapped to a telecom business router (dont ask why i have it) and also installed a brand new ETP with filter and Cat5 to jack.

Cos I fixed that sheeet

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#972964 23-Jan-2014 16:22

Downhillnz:
Cos I fixed that sheeet

huh?

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.
