Geek
+1 received by user: 3

#1577355 20-Jun-2016 18:58

stevehodge:

bmentink:

Yeah, I wondered about replacing the cable from ETP to modem, but how do you fit CAT6 cable to the phone jack style connector in the back of the modem? .. or do you mean just to the wall socket?

From the ETP to a wall socket, though the Fritz has an RJ45 on the input so wall socket to modem is also cat6. In my case it's actually ETP->cat6->19" patch panel->patch cable->19" patch panel->cat6->RJ45 cat6 wall socket->cat6->modem. I'm very close to the cabinet though (100m), for a more marginal connection it might be worth trying to avoid so many connectors.

Your Fritz must be different than mine, I don't have an RJ45 for the SDL line in to the modem, only a smaller analog style phone plug socket ... (my FritzBox is a 7490) ..

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#1577357 20-Jun-2016 19:02

bmentink:

stevehodge:

bmentink:

Yeah, I wondered about replacing the cable from ETP to modem, but how do you fit CAT6 cable to the phone jack style connector in the back of the modem? .. or do you mean just to the wall socket?

From the ETP to a wall socket, though the Fritz has an RJ45 on the input so wall socket to modem is also cat6. In my case it's actually ETP->cat6->19" patch panel->patch cable->19" patch panel->cat6->RJ45 cat6 wall socket->cat6->modem. I'm very close to the cabinet though (100m), for a more marginal connection it might be worth trying to avoid so many connectors.

Your Fritz must be different than mine, I don't have an RJ45 for the SDL line in to the modem, only a smaller analog style phone plug socket ... (my FritzBox is a 7490) ..

Certainly looks like a RJ45 there, would seem strange for them to drop the better standard!

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

stevehodge

393 posts

Ultimate Geek
+1 received by user: 52

#1577358 20-Jun-2016 19:02

bmentink:

Your Fritz must be different than mine, I don't have an RJ45 for the SDL line in to the modem, only a smaller analog style phone plug socket ... (my FritzBox is a 7490) ..

Are you sure? Mine's also a 7490 and it's definitely got an RJ45 (as does my old 7340).

bmentink

48 posts

Geek
+1 received by user: 3

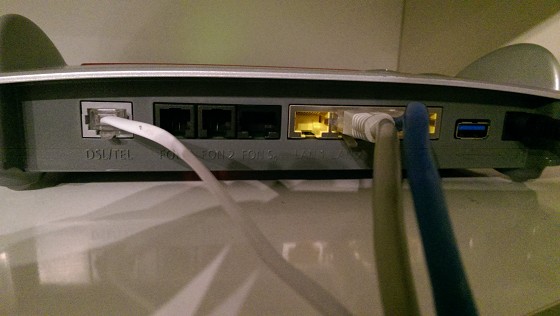

#1577361 20-Jun-2016 19:25

Yep, most certainly is not the same ... maybe the New Zealand version market is different ..

stevehodge

393 posts

Ultimate Geek
+1 received by user: 52

#1577365 20-Jun-2016 19:33

bmentink:

Yep, most certainly is not the same ... maybe the New Zealand version market is different ..

Pretty sure that's an RJ12 cable inserted into an RJ45 socket! (Which is not recommended but almost certainly not going to cause any problems in practice)

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#1577366 20-Jun-2016 19:37

stevehodge:

bmentink:

Yep, most certainly is not the same ... maybe the New Zealand version market is different ..

Pretty sure that's an RJ12 cable inserted into an RJ45 socket! (Which is not recommended but almost certainly not going to cause any problems in practice)

Much the same conclusion myself, even went as far as to measure the port sizing from the photo against the rj45s and rj12 ports there.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

Quic Broadband

Move to New Zealand's best fibre broadband service (affiliate link). Free setup code: R587125ERQ6VE. Note that to use Quic Broadband you must be comfortable with configuring your own router.

bmentink

48 posts

Geek
+1 received by user: 3

#1577367 20-Jun-2016 19:39

stevehodge:

bmentink:

Yep, most certainly is not the same ... maybe the New Zealand version market is different ..

Pretty sure that's an RJ12 cable inserted into an RJ45 socket! (Which is not recommended but almost certainly not going to cause any problems in practice)

Ok, that is what came with the modem ...

But that is good if it is an RJ45 socket, makes life easier .... does anyone have the correct pins to wire the two lines to on the RJ45 connector?

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#1577370 20-Jun-2016 19:43

bmentink:

stevehodge:

bmentink:

Yep, most certainly is not the same ... maybe the New Zealand version market is different ..

Pretty sure that's an RJ12 cable inserted into an RJ45 socket! (Which is not recommended but almost certainly not going to cause any problems in practice)

Ok, that is what came with the modem ...

But that is good if it is an RJ45 socket, makes life easier .... does anyone have the correct pins to wire the two lines to on the RJ45 connector?

Two inner ports are DSL (blue pair/4&5)

The PSTN line is the next two pins (Orange/green pairs depending on A/B - 3&6)

The PSTN is buggy though in my experience, it does not handle CID properly leading to inconsistent responses.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

bmentink

48 posts

Geek
+1 received by user: 3

#1577371 20-Jun-2016 19:46

Many Thanks. I will only use the DSL lines, as I don't have any analog phones (Naked Broadband)

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#1577372 20-Jun-2016 19:48

bmentink:

Many Thanks. I will only use the DSL lines, as I don't have any analog phones (Naked Broadband)

Fair enough, just helps to know why they choose to go with a full rj45 apart from the obvious!

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

Shrapz

128 posts

Master Geek
+1 received by user: 16

ID Verified

#1580203 25-Jun-2016 16:11

Just got VDSL connected in my new place, connection / stats seem pretty good. Interesting that the SNR is 0, would that influence a speed increase once DLM does its thing or does that solely look at attenuation?

Quic Broadband

Move to New Zealand's best fibre broadband service (affiliate link). Free setup code: R587125ERQ6VE. Note that to use Quic Broadband you must be comfortable with configuring your own router.

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#1580285 25-Jun-2016 18:58

snr 0 looks to be a mistake, although given the upstream rate and the distance it does seem actually plausible. Expect it to resync lower.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

Shrapz

128 posts

Master Geek
+1 received by user: 16

ID Verified

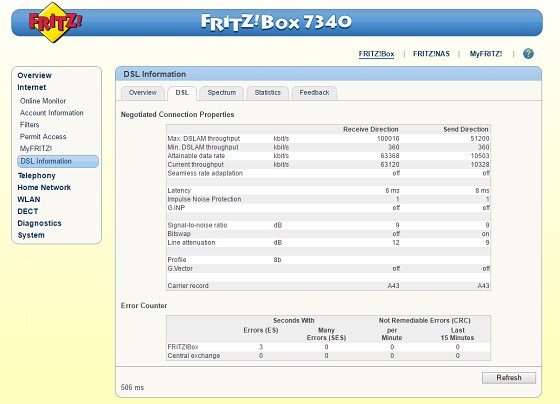

#1581321 27-Jun-2016 18:04

hio77:

snr 0 looks to be a mistake, although given the upstream rate and the distance it does seem actually plausible. Expect it to resync lower.

Yup you were right on the SNR, has corrected itself to 9

Stats look a bit better though, upstream has increased which i am happy about

bmentink

48 posts

Geek
+1 received by user: 3

#1586142 5-Jul-2016 09:20

Hi All,

An Update: I tidied up my phone line so that there was the minimal cable possible, and removed all the extensions.

Now I have 24Mb down and 1Mb up ..... still disappointed in the up link speed, but happy with the download speed ..

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#1586420 5-Jul-2016 13:24

bmentink:

Hi All,

An Update: I tidied up my phone line so that there was the minimal cable possible, and removed all the extensions.

Now I have 24Mb down and 1Mb up ..... still disappointed in the up link speed, but happy with the download speed ..

Thats sounding much better. would love to see the dsl info and specturm on it.
