VDSL Best for SOHO Cloud

Forums › New Zealand Broadband › VDSL Best for SOHO Cloud

JohnButt

361 posts

Ultimate Geek
+1 received by user: 38

Trusted

Subscriber

Topic # 110543 11-Oct-2012 10:03

This story is all about upload speeds. The majority of New Zealand will not have access to UFB for some time, but VDSL is available now to most broadband users. To use the cloud efficiently, upload is critical and ADSL is too slow at under 1Mb/s.

VDSL upload at 6+Mb/s is competitive with basic cable service - 15/2 and if priced well is a very nice product.

See our article here:

https://www.truenet.co.nz/articles/vdsl-best-soho-cloud

truenet.nz

Panelist migration to Fibre has reduced DSL coverage, especially ADSL. To assist by volunteering see our FAQ page

tonyhughes

Hawkes Bay
8477 posts

Uber Geek
+1 received by user: 4

Mod Emeritus

Trusted

Subscriber

Reply # 699535 11-Oct-2012 10:25

JohnButt: VDSL is available now to most broadband users

Wheres the figures and sources to back up this statement about most broadband users having VDSL available to them at this point in time? Seems like a non-factual throwaway statement to me, but I'd be happy to be proven wrong.

I would have thought that with VDSLs limited reach along the copper, combined with only a select few ISPs offering it, that it would be available only to a very small percentage of people.

sidefx

3014 posts

Uber Geek
+1 received by user: 817

Trusted

Reply # 699550 11-Oct-2012 10:37

57% was the coverage at the beginning of 2009 with 84% targets by the end of the cabnetisation project according to this:

http://www.nzherald.co.nz/small-business/news/article.cfm?c_id=85&objectid=10554319

(one would hope those are official figures from Telecom\Chorus)

I would guess they're pretty close to those figures these days, though it would be good to see some official figures that are more recent.

ISPs not offering it hardly seems like an issue - people can change ISPs.

tonyhughes

Hawkes Bay
8477 posts

Uber Geek
+1 received by user: 4

Mod Emeritus

Trusted

Subscriber

Reply # 699554 11-Oct-2012 10:42

57% was customers with access to Telecoms 'Next Generation Network', it didn't mention that figure as VDSL specific accessibility.

The rest of the VDSL talk in the article was future plans.

Does anyone have any data to support the original posters claim?

sidefx

3014 posts

Uber Geek
+1 received by user: 817

Trusted

Reply # 699556 11-Oct-2012 10:49

http://www.geekzone.co.nz/sbiddle/7872

The installation of these cabinets means that the distance of the local loop (the copper cable that runs between the exchange and the premises) was reduced significantly, with close to 50% of premises being less than 500m from a cabinet, and 80% within 1km of a cabinet.

Which is I believe from a Chorus press release, though I can't find the original, though it's quoted in multiple places.

sbiddle

24991 posts

Uber Geek
+1 received by user: 4880

Moderator

Trusted

Biddle Corp

Subscriber

Reply # 699583 11-Oct-2012 11:14

I believe that VDSL2 is available to around 45% of lines in total. I haven't heard an exact number, this is merely a figure told to me around 18 months ago and could have changed as the target dB level has changed several times.

In a cabinetised area this % is way higher as the vast majority of lines are within 1km. Off an exchange these nearby get service, but exchange coverage areas also extend beyond the cabinetised footprint so the total % is dragged down significantly.

sbiddle

24991 posts

Uber Geek
+1 received by user: 4880

Moderator

Trusted

Biddle Corp

Subscriber

Reply # 699584 11-Oct-2012 11:17

sidefx: http://www.geekzone.co.nz/sbiddle/7872

The installation of these cabinets means that the distance of the local loop (the copper cable that runs between the exchange and the premises) was reduced significantly, with close to 50% of premises being less than 500m from a cabinet, and 80% within 1km of a cabinet.

Which is I believe from a Chorus press release, though I can't find the original, though it's quoted in multiple places.

It was a figure from Chorus. In an NBR story Mark Ratcliffe put that figure even higher. Since I don't work for Chorus I obviously can't give an exact figure.

http://www.nbr.co.nz/article/chorus-half-way-through-fibre-roll-out-now-comes-hard-bit-122413

Chief executive Mark Ratcliffe said today that more than 50% of customers connected to our cabinets are within 500m and 90% are within 1km

sidefx

3014 posts

Uber Geek
+1 received by user: 817

Trusted

Reply # 699614 11-Oct-2012 12:06

sbiddle: I believe that VDSL2 is available to around 45% of lines in total. I haven't heard an exact number, this is merely a figure told to me around 18 months ago and could have changed as the target dB level has changed several times.

Interesting. Perhaps a bit lower than I would have thought based on their targets for Cabnetisation coverage (80%) and the 50% 500m/90% 1km figures. Or is that percentage also likely to be dragged down by equipment (DSLAMs etc) not supporting VDSL2?

openmedia

1840 posts

Uber Geek
+1 received by user: 102

Trusted

Subscriber

Reply # 699631 11-Oct-2012 12:33

Just with Orcon would offer me VDSL. I'm pretty much on the border of the 1KM zone and even if I don't get full upload speeds I'd be very happy to have more than my current ADSL2 link

Down 14Mbs
Up 900Kbs

Generally known online as OpenMedia, now working for Red Hat New Zealand as a Solution Architect for all things Linux, Virtual and of course Cloud. Still playing with MythTV and digital media on the side.

eXDee

4025 posts

Uber Geek
+1 received by user: 1076

Trusted

Reply # 699934 11-Oct-2012 21:15

The 1km figure is misleading i reckon. I'm about 400-500m from a cabinet, and if you go by chorus maximum attenuation dB (around 10-11 or something?)as a hard cut off limit, i can't get VDSL2. And thats with a central splitter and a 18-20mbit ADSL2+ syncrate, which is definitely not that common.

JohnButt

361 posts

Ultimate Geek
+1 received by user: 38

Trusted

Subscriber

Reply # 699943 11-Oct-2012 21:35

Hi, I am almost exactly 900m from Eastbourne exchange - see Days Bay Homestay on google maps, the exchange is just past Muritai School :-) BTW, Home is all new Cat 6 to a central patchpanel, including out to the aerial drop. Naked DSL, so no splitter at all, we use the DECT base station within the Fritz box for our two lines.

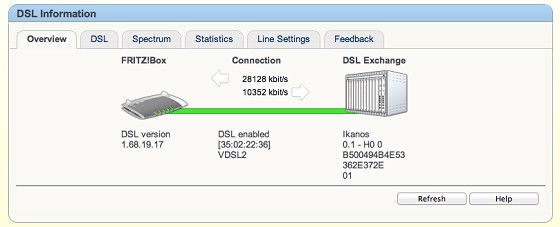

Receive DirectionSend DirectionMax. DSLAM throughputkbit/s7000010360Min. DSLAM throughputkbit/s360360Attainable throughputkbit/s281281304Current throughputkbit/s2812810352 Latency 1 ms1 msBitswap ononImpulse Noise Protection 0.00.0 Signal-to-noise ratiodB1115Line attenuationdB15

Very happy with my VDSL, the upload change was extraordinary. On ADSL I used to get 17000/1000 for current throughput.

truenet.nz

Panelist migration to Fibre has reduced DSL coverage, especially ADSL. To assist by volunteering see our FAQ page

IcI

310 posts

Ultimate Geek
+1 received by user: 62

Trusted

Reply # 699973 11-Oct-2012 22:30

@tonyhughes

I don't know about the percentages, but zooming in does show a lot of green (VDSL)
http://www.chorus.co.nz/sat

You can also have a look here
http://koordinates.com/maps/BroadbandMap/collections/
