Weird VDSL Speeds

Forums › New Zealand Broadband › Weird VDSL Speeds

joutei

308 posts

Ultimate Geek
+1 received by user: 9

#123430 7-Jul-2013 13:50

So I rang telecom to check what kind of speeds I would be getting on VDSL.
According to the chorus tool it says I will be getting speeds of 24mbps down , 11.1 mbps up .

I thought that was a bit strange, so I called up snap and asked them to run a prequal, same answer.
Neither telecom or snap could give me an explanation, but the rep at Snap did say it was weird.

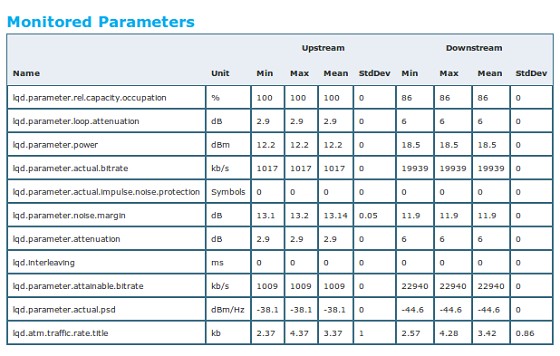

My downstream attenuation is reporting 6 on my modem, however on their systems it says 2.

I have a master spliter which is VDSL2 compatible, 300 - 400metres from the local cabinet aswell.

Anyone have any ideas ?

richms

29098 posts

Uber Geek
+1 received by user: 10209

Trusted

Lifetime subscriber

#850422 7-Jul-2013 14:17

Thats about what I get at 6-700m from the cabinet (23 down, 10.something up) . Something is clearly not good if you are only seeing that at 300m

Richard rich.ms

joutei

308 posts

Ultimate Geek
+1 received by user: 9

#850423 7-Jul-2013 14:21

richms: Thats about what I get at 6-700m from the cabinet (23 down, 10.something up) . Something is clearly not good if you are only seeing that at 300m

Yeah it really has me puzzled :/

richms

29098 posts

Uber Geek
+1 received by user: 10209

Trusted

Lifetime subscriber

#850424 7-Jul-2013 14:22

Hang on, I have just re read that, do you _have_ vdsl and are seeing those speeds, or is that just what chorus are estimating?

Richard rich.ms

joutei

308 posts

Ultimate Geek
+1 received by user: 9

#850426 7-Jul-2013 14:31

Telecom and snap said thats the speeds i will be expecting on my line using their chorus tool.

michaelmurfy

meow
13579 posts

Uber Geek
+1 received by user: 10910

Moderator

ID Verified

Trusted

Lifetime subscriber

#850428 7-Jul-2013 14:36

Are you on Snap or Telecom? Telecom don't own the lines anymore so if you're with Snap I don't know why you'd be ringing Telecom.

If you're with Telecom feel free to flick me a private message with your landline number / address, else just flick me your address and I can check it out on the maps. Sounds to me that your master filter might be installed incorrectly, if there is any interference on your line it can cause massive speed-drops on VDSL.

Michael Murphy | https://murfy.nz
Referral Links: Quic Broadband (use R122101E7CV7Q for free setup)

Are you happy with what you get from Geekzone? Please consider supporting us by subscribing.
Opinions are my own and not the views of my employer.

sbiddle

30853 posts

Uber Geek
+1 received by user: 9996

Retired Mod

Trusted

Biddle Corp

Lifetime subscriber

#850431 7-Jul-2013 14:44

I thought that was a bit strange, so I called up snap and asked them to run a prequal, same answer

Thiere is only one way to do a prequal so the results should be the same from both. If they differed I'd be really worried.

Netmap data does tend to be under real world results for VDSL2 downstream figures if you're close to a cabinet since DSM will optimise the profile.

Geekzone

Want to support Geekzone and browse the site without the ads? Subscribe to Geekzone now (monthly, annual and lifetime options).

joutei

308 posts

Ultimate Geek
+1 received by user: 9

#850441 7-Jul-2013 15:09

sbiddle:

I thought that was a bit strange, so I called up snap and asked them to run a prequal, same answer

since DSM will optimise the profile.

Did you mean DLM ;)

sidefx

3775 posts

Uber Geek
+1 received by user: 1295

Trusted

#850455 7-Jul-2013 15:22

The prequal estimates always seem to be extremely conservative. Mine came back around 20 I think but I get 36-37 on default Target SNRM - I've heard of other people getting similar estimates but once connected much better speeds. The 11.1 up is a bit odd but I'd think you'll see ~40+ down with that attenuation on ADSL if you do move to VDSL.

"I was born not knowing and have had only a little time to change that here and there." | Octopus Energy | Sharesies
- Richard Feynman

cyril7

9075 posts

Uber Geek
+1 received by user: 2499

ID Verified

Trusted

Subscriber

#850459 7-Jul-2013 15:31

Hi, poorly in incorrectly installed master filters do happen, normally by incompetent practitioners, recently I was asked by Telecom to investigate a troubled VDSL install, I found the Chorus installer had incorrectly installed the filter, the result was 20Mb/s down and 10Mb/s up, after I corrected the install it went to 42Mb/s down and 10Mb/s up, and the customer no longer had to endure loud hissing on the phone.

The technicolour VDSL2 modem was reporting 12-13db of downstream attenuation both before and after correct filter installation. An incorrectly installed filter might not upset an ADSL2+ install, but would definitely show up on a VDSL2 situation.

Cyril

michaelmurfy

meow
13579 posts

Uber Geek
+1 received by user: 10910

Moderator

ID Verified

Trusted

Lifetime subscriber

#850460 7-Jul-2013 15:34

In this case the OP has not gotten VDSL installed yet, was just looking at the prequal results of which are a huge underestimate normally. His line is pretty good.

joutei

308 posts

Ultimate Geek
+1 received by user: 9

#850464 7-Jul-2013 15:47

Yup just got a whole lot of info from Michael.
Thanks everyone :)

HP

Shop now for HP laptops and other devices (affiliate link).

myfullflavour

896 posts

Ultimate Geek
+1 received by user: 382

Trusted

Full Flavour

#850467 7-Jul-2013 15:58

I concur about the pre-qual results being conservative. I don't like giving them out to prospective customers as 9/10 times they are majorly underestimating the likely line speed.

Cymro

283 posts

Ultimate Geek
+1 received by user: 8

#850628 8-Jul-2013 08:49

myfullflavour: I concur about the pre-qual results being conservative. I don't like giving them out to prospective customers as 9/10 times they are majorly underestimating the likely line speed.

It's actually impossible to get over 31mbps on that Chorus tool for downstream.

Chorus have said they are going to re-calibrate it "soon"
