Hi,







I checked the Orcon, Spark and Vodafone address checker.



My address can get ADSL and VDSL.



DO you think it will improve my current ADSL speed if i switch to VDSL?

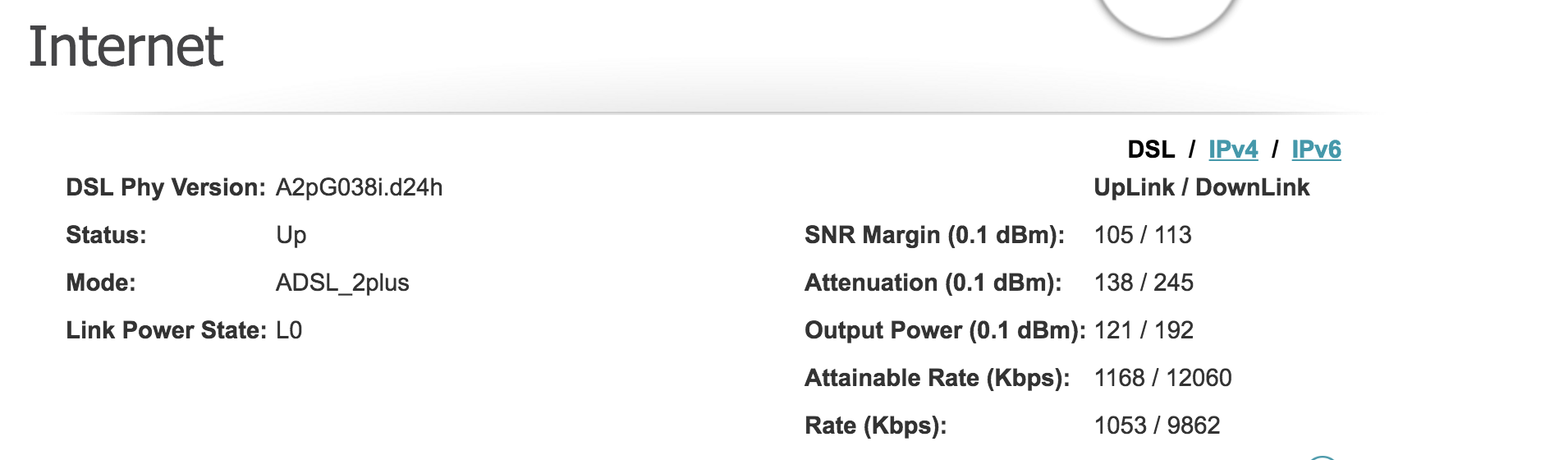

My ADSL Current line Rate:

















Thanks






Create new topic
hio77
'That VDSL Cat'
12616 posts

Uber Geek

Trusted
Subscriber

  #1578752 23-Jun-2016 00:21
Send private message

your on the longer side of things, you might get 25/2 or so though assuming it goes through.







Your low downstream at that distance implies your line itself isnt too healthy.





#include <std_disclaimer>



Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.




bmine2nyt

17 posts

Geek


  #1578770 23-Jun-2016 06:30
Send private message

hio77:



your on the longer side of things, you might get 25/2 or so though assuming it goes through.







Your low downstream at that distance implies your line itself isnt too healthy.









Thanks.. if i get 25/2 still not bad.. in ADSL i can get 11/1. :)








Jase2985
10017 posts

Uber Geek

Lifetime subscriber

  #1578773 23-Jun-2016 07:15
Send private message

wholey huge picture batman



Its worth a go


littleheaven
2088 posts

Uber Geek

Subscriber

  #1578842 23-Jun-2016 09:29
Send private message

My parents were marginal - they went from 4/0.6 to 17/1, so while not spectacular, it's made a massive difference to them.





Geek girl. Freelance copywriter and editor at Unmistakable.co.nz.



Currently using: Custom-built AMD Ryzen 7 3700X Desktop, HP M6-1017TX Laptop, iPad Pro, iPhone 7, iPhone XR, AppleTV4.


bmine2nyt

17 posts

Geek


  #1578849 23-Jun-2016 09:52
Send private message

littleheaven:



My parents were marginal - they went from 4/0.6 to 17/1, so while not spectacular, it's made a massive difference to them.









Wow thats good improvement from adsl.







Do you know if your parents install the master splitter for vdsl?










littleheaven
2088 posts

Uber Geek

Subscriber

  #1578856 23-Jun-2016 10:05
Send private message

bmine2nyt:



littleheaven:



My parents were marginal - they went from 4/0.6 to 17/1, so while not spectacular, it's made a massive difference to them.









Wow thats good improvement from adsl.







Do you know if your parents install the master splitter for vdsl?













Yeah, their internal wiring was pretty bad, hence the horrible ADSL speed. I believe the Chorus tech installed a master splitter when he put in VDSL - he ran a whole new line up the side of the house and through the attic.





Geek girl. Freelance copywriter and editor at Unmistakable.co.nz.



Currently using: Custom-built AMD Ryzen 7 3700X Desktop, HP M6-1017TX Laptop, iPad Pro, iPhone 7, iPhone XR, AppleTV4.


Sideface
6270 posts

Uber Geek

Trusted
DR
Lifetime subscriber

  #1578866 23-Jun-2016 10:22
Send private message

You have a high downstream attenuation of 22.4dB. Your house wiring may be contributing to this.



If you want VDSL to work well you will need a VDSL master filter, which will improve your house wiring and xDSL performance.





Sideface








bmine2nyt

17 posts

Geek


  #1579084 23-Jun-2016 16:07
Send private message

Sideface:



You have a high downstream attenuation of 22.4dB. Your house wiring may be contributing to this.



If you want VDSL to work well you will need a VDSL master filter, which will improve your house wiring and xDSL performance.









Where i can find the master filter? is it provided by chorus when i apply for vdsl? Or i have to buy it separate and look for a tech to install the master filter.







Thanks


Sideface
6270 posts

Uber Geek

Trusted
DR
Lifetime subscriber

  #1579112 23-Jun-2016 17:31
Send private message

bmine2nyt:



Sideface:



You have a high downstream attenuation of 22.4dB. Your house wiring may be contributing to this.



If you want VDSL to work well you will need a VDSL master filter, which will improve your house wiring and xDSL performance.





Where i can find the master filter? is it provided by chorus when i apply for vdsl? Or i have to buy it separate and look for a tech to install the master filter.



Thanks





The master filter is / should be part of your fixed house wiring.



Unfortunately, not all ISPs install master filters routinely. They should.  wink



Read this: Is your premises phone wiring impacting your broadband performance?





Sideface


bmine2nyt

17 posts

Geek


  #1580107 25-Jun-2016 13:57
Send private message

How do i install the VDSL Master filter?



anyone can help me?







5 jackport in the house.







Thanks



















Jackport of modem








RunningMan
6142 posts

Uber Geek


  #1580222 25-Jun-2016 17:00
Send private message

Step one is the hardest - run a new cat5e / cat6 cable from the ETP (white box in first picture) to where you want your modem outlet.



Once you've done that, it's a matter of crimping the right wires together - that's the easy bit.


Sideface
6270 posts

Uber Geek

Trusted
DR
Lifetime subscriber

  #1580271 25-Jun-2016 18:15
Send private message

You don't need to do this yourself.



Some ISPs provide a VDSL master filter and wiring "free" as part of a standard install. Do some market research.



Apart from knowledge, you will need some special tools and fittings, cable, and a new RJ45  socket, so the cost of do-it-yourself can rise rapidly.





Sideface


hio77
'That VDSL Cat'
12616 posts

Uber Geek

Trusted
Subscriber

  #1580287 25-Jun-2016 19:00
Send private message

Run the cable, then look at the next steps..







Many techs often cheat a little at that stage and run DSL on the orange pair in the two pair wire.





#include <std_disclaimer>



Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.




RunningMan
6142 posts

Uber Geek


  #1580418 26-Jun-2016 09:03
Send private message

hio77:



[snip]







Many techs often cheat a little at that stage and run DSL on the orange pair in the two pair wire.





Depends on the cable whether or not this is a good idea. If there's a spare pair in good condition with no branches, it's worth a go...
