Topic # 198327 4-Jul-2016 20:41
Send private message

We have a 200Mbps fibre connection with 2D. The PC has a gigabit NIC connected to the router with CAT 5.e cable.


Multithreaded downloads only reach 110Mbps. Speed Tests only achieve 110-120Mbps. In every aspect I've never been able to achieve at least near advertised speed.


I'm using the Fritz 7360 and both LAN 1 and 2 are set to 1Gbps. In Windows the NIC status shows 1Gbps, and the PC is using a SSD. Am I out of luck or is there a configuration issue somewhere.




Create new topic
5591 posts

Uber Geek
+1 received by user: 253

Lifetime subscriber

  Reply # 1585871 4-Jul-2016 20:41
Send private message

Hello... Our robot found some keywords in your post, so here is an automated reply with some important things to note regarding broadband speeds.


If you are posting regarding DSL speeds please check that


  • you have reset your modem and router
  • your PC (or other PCs in your LAN) is not downloading large files when you are testing - you are not being throttled by your ISP due to going over the monthly cap
  • your tests are always done on an ethernet connection to the router - do not use wireless for testing
  • you read this topic and follow the instructions there.

Make sure you provide information for other users to help you. If you have not already done it, please EDIT your post and add this now:


  • Your ISP and plan
  • Type of connection (ADSL, ADSL2, VDSL)
  • Your modem DSL stats (do not worry about posting Speedtest, we need sync rate, attenuation and noise margin)
  • Your general location (or street)
  • If you are rural or urban
  • If you know your connection is to an exchange, cabinet or conklin
  • If your connection is to a ULL or wholesale service
  • If you have done an isolation test as per the link above

Most of the problems with speed are likely to be related to internal wiring issues. Read this discussion to find out more about this. Your ISP is not intentionally slowing you down today (unless you are on a managed plan). Also if this is the school holidays it's likely you will notice slower than usual speed due to more users online.


A master splitter is required for VDSL2 and in most cases will improve speeds on DSL connections. Regular disconnections can be a monitored alarm or a set top box trying to connect. If there's an alarm connected to your line even if you don't have an alarm contract it may still try to connect so it's worth checking.


I recommend you read these two blog posts:


I am the Geekzone Robot and I am here to help. I am from the Internet. I do not interact. Do not expect other replies from me.

Mr Snotty
8180 posts

Uber Geek
+1 received by user: 4164

Lifetime subscriber

  Reply # 1585886 4-Jul-2016 20:47
Send private message

Sounds like they've ever got you on the wrong profile or your PC can't support the full speeds (perhaps test it on another PC?). Phoned 2degrees yet to ask them?


21711 posts

Uber Geek
+1 received by user: 4495


  Reply # 1585940 4-Jul-2016 21:02
Send private message

How about speedtest on a phone on 5GHz AC wireless? That can easily max out a 200 connection if it is working properly


1563 posts

Uber Geek
+1 received by user: 611

  Reply # 1585943 4-Jul-2016 21:09
Send private message

Is your router fast enough to handle the speeds?


Try unplug the router and plug your computer directly into the ONT.


Set VLAN 10 on your network card and start a PPPoE dialer on your computer.

17 posts

+1 received by user: 2

  Reply # 1585954 4-Jul-2016 21:44
Send private message

I've contacted 2D and they've confirmed my profile is 200Mbps. I don't have a AC router to test the speed wirelessly.

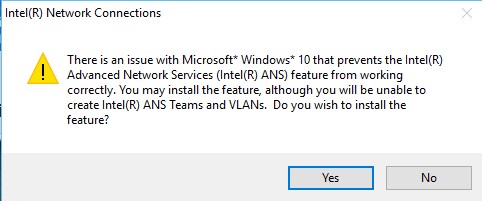

I tried to setup a VLAN using my Intel NIC however it always says disabled. I created a PPPoE dialer with my 2D credentials, although as my NIC can't create a VLAN connection to the ONT it's unsuccessful.



Would pfSense work?



'That VDSL Cat'
9210 posts

Uber Geek
+1 received by user: 2043


  Reply # 1585960 4-Jul-2016 22:03
Send private message

pfsense would work yes.




IIRC, snapdegress have said the 7360 is under-powered for 200/200.

#include <std_disclaimer>


Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

1528 posts

Uber Geek
+1 received by user: 269


  Reply # 1586946 6-Jul-2016 09:44
Send private message

Hi UrbanNZ14,


Can you please PM us your account number, we'll take a look for you.




Ralph ^JOB
