A question about the relation between VDSL2's ping and the connection speed "I don't live in New Zealand"

Forums › New Zealand Broadband › A question about the relation between VDSL2's ping and the connection speed "I don't live in New Zealand"

Kmdenh

6 posts

Wannabe Geek

#216684 7-Jul-2017 18:53

I subscribed in one of the ISPs in our country (Saudi Arabia).

The service is VDSL2 with 20 MB down and 1 MB up. Everything is satisfying expect that the ping is higher than normal. It is obviously noticed especially when I play games like overwatch, cod or battlefield.

This is the only problem that encountered me since the beginning. STC which is my ISP is really strict. Thier routers don't provide the information needed to monitor the line. Such as the Line's Profile and latency. They are trying to fools us for some reason, but with a little tweak, I was finally able to reveal the statistics of my line.

These are the statistics after a little tweak through inspection (one of Chrome's features).

Here are few notes about what I noticed:

1. The VDSL2 profile is always fixed to 17a for some reason.

2. There's a delay in the Down and up delay boxes.

3. Although my line could attain up to 100 MB, I am stuck with 20 MB because of their stupid packages.

These were some information to clarify what I'm going to ask.

Recently, I contacted the ISP (STC) to look for a solution for the ping (45 with our local service in Speedtest). They fixed it through decreasing the Downstream speed from 22000 to 20000 as you can notice in the statistics. Surprisingly, the ping is decreased

Surprisingly, the ping is decreased to 30 and even 29!! And nothing changed in the statistics except the downstream as I mentioned.

My question is what is the relation and what actually happened? I searched a lot, but to no avail. The only forum that was helpful is this one!

The pinned topic about VDSL Information and Tuning was really helpful that's why I posted the question in this forum.

Thank you in advance for your help .. :)

toejam316

1466 posts

Uber Geek

Trusted

Lifetime subscriber

#1815647 7-Jul-2017 19:11

They changed you to a profile that doesn't have interleaving on.

VDSL profiles generally prioritize stability and high speeds over latency, but since your line is so good, changing your connection to a profile with lower latency and less speed isn't a problem, as you're still over the 20Mbps offering.

Anything I say is the ramblings of an ill informed, opinionated so-and-so, and not representative of any of my past, present or future employers, and is also probably best disregarded.

Kmdenh

6 posts

Wannabe Geek

#1815648 7-Jul-2017 19:12

but the profile as I mentioned is always profile 17a. Even after they decreased my speed.

toejam316

1466 posts

Uber Geek

Trusted

Lifetime subscriber

#1815650 7-Jul-2017 19:14

I believe interleaving can be enabled or disabled on any profile.

Anything I say is the ramblings of an ill informed, opinionated so-and-so, and not representative of any of my past, present or future employers, and is also probably best disregarded.

Kmdenh

6 posts

Wannabe Geek

#1815651 7-Jul-2017 19:19

In another forum, someone posted his statistics and it shows the type of channel he is on! I believe they did the same thing they did with my line. The down rate decreased and the ping went down from 25 to 15.

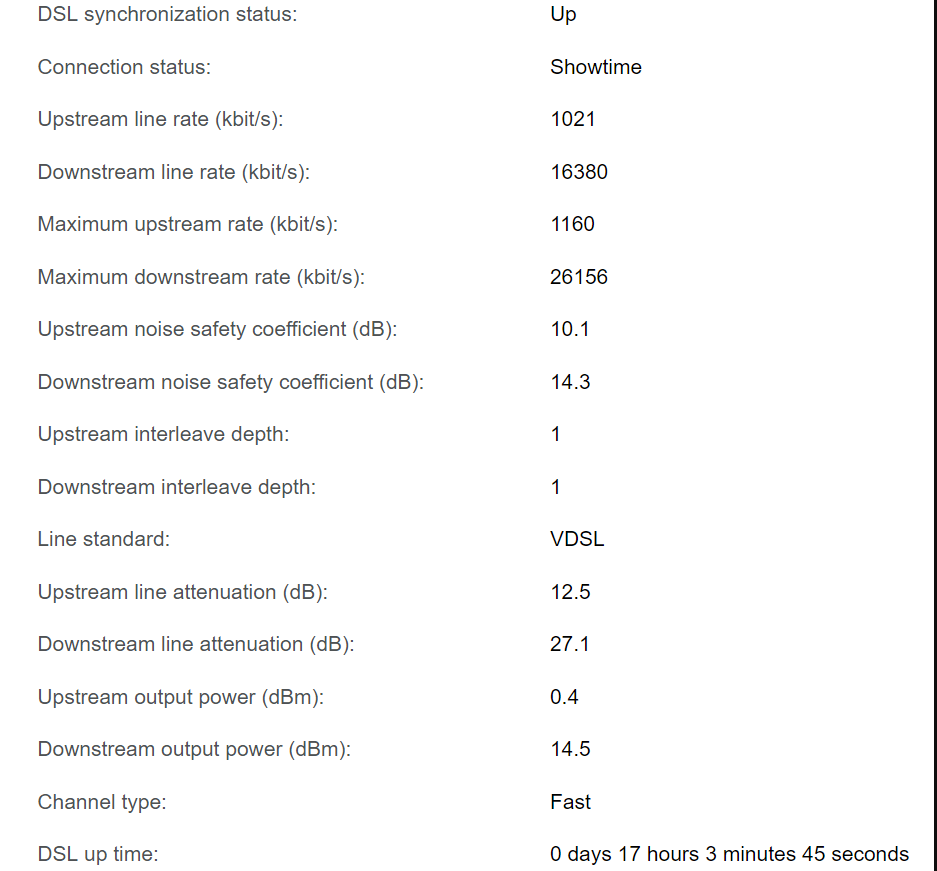

Here are his statistics:

But VDSL doesn't use a channel type. What might be the trick here?

Kmdenh

6 posts

Wannabe Geek

#1818858 10-Jul-2017 14:06

Everything went back the way it was, unfortunately.

I contacted the ISP once again, and they said it's set automatically and there's nothing we can do about changing the interleaving depth!

I need your help and ideas on this guys.

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#1818864 10-Jul-2017 14:11

Interleavings is there for a reason.

If your rsp is not able to request it to be turned off that will be the conditions set by the network management.

Bandplan profiles have nothing todo with latency at all.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

Aredwood

3885 posts

Uber Geek

#1819265 10-Jul-2017 23:47

Does your ISP offer ADSL2? Presumably they can since they offer VDSL. Since you have such a good line, ADSL2 would probably still give you similar speeds to VDSL that is capped to 20/1 down/up. And then they can set the interleave depth to 0 - so lower ping.

I also had a look around the STC website. I guessing that you can't get Fibre where you live? If you can then that will give you far lower ping. Also I see that STC offer an option where you can pay extra to get a higher upload speed. Up to 10mbit for copper connections instead of the standard 1mbit. Your line rate shows that you can get the full 10Mbit. Have you tried paying for the extra upload to see if it makes a difference?

Quic Broadband

Move to New Zealand's best fibre broadband service (affiliate link). Free setup code: R587125ERQ6VE. Note that to use Quic Broadband you must be comfortable with configuring your own router.

Kmdenh

6 posts

Wannabe Geek

#1819287 11-Jul-2017 05:02

Aredwood:

Does your ISP offer ADSL2? Presumably they can since they offer VDSL. Since you have such a good line, ADSL2 would probably still give you similar speeds to VDSL that is capped to 20/1 down/up. And then they can set the interleave depth to 0 - so lower ping.

I also had a look around the STC website. I guessing that you can't get Fibre where you live? If you can then that will give you far lower ping. Also I see that STC offer an option where you can pay extra to get a higher upload speed. Up to 10mbit for copper connections instead of the standard 1mbit. Your line rate shows that you can get the full 10Mbit. Have you tried paying for the extra upload to see if it makes a difference?

I can't go back to ADSL2, unfortunately. The upload key they offer is not for copper connection. It is made only for Fibre connections. I know that nothing makes sense about their packages!

Kmdenh

6 posts

Wannabe Geek

#1819288 11-Jul-2017 05:20

hio77: Interleavings is there for a reason.

If your rsp is not able to request it to be turned off that will be the conditions set by the network management.

Bandplan profiles have nothing todo with latency at all.

If it's as you claim for a reason, then why my friend has an interleave depth = 1? My line statistics are far better than him!

He requested it himself, but it was weird, to be honest. He asks the technician specifically to change the channel type into an ADSL fast profile, and it worked pretty well for him.

I couldn't understand it at all. I mean can they alter the profile values such as INP or Interleave depth or even disable it?

Today I requested a new router. Look at my stats. There's a channel type!

This router fortunately shows the depth of interleaving.
