RBI Antenna placement

Welcome Guest.

You haven't logged in yet. If you don't have an account you can register now.

Forums › New Zealand Broadband › RBI Antenna placement

am289

31 posts

Geek

#245238 24-Jan-2019 23:26

if I install a second 700MHz $G antenna at position 3, or 4, the same as the existing one, am I likely to cause interference with either of the other transmitters?

The one between 3 and 4 is a 2.4 GHz WiFI connected to external WiFi antenna for the lower paddock, while the lowest one is the PtP to the farmhouse.

Also, the signal strength has increased quite a bit recently. I suppose that could be due to a new tower - is there any way to see which tower I am connected to so I can ensure the antennas are best aligned?

Cheers

nakedmolerat

4629 posts

Uber Geek

Trusted

Lifetime subscriber

#2167263 25-Jan-2019 00:54

@coffeebaron is the guy that can help

coffeebaron

6231 posts

Uber Geek

Trusted

Lifetime subscriber

#2167427 25-Jan-2019 13:30

Position 3 should be fine. Close to existing antenna and adjust angle so on opposing 45 degree angles.
What's your approx location and advise PCI from modem stats.

Rural IT and Broadband support.

Broadband troubleshooting and master filter installs.
Starlink installer - one month free: https://www.starlink.com/?referral=RC-32845-88860-71
Wi-Fi and networking
Cel-Fi supply and installer - boost your mobile phone coverage legally

Need help in Auckland, Waikato or BoP? Click my email button, or email me direct: [my user name] at geekzonemail dot com

am289

31 posts

Geek

#2167429 25-Jan-2019 13:44

Thanks for the reply!

PCI is 452, located in North Canterbury near Greta Valley / Omihi

am289

31 posts

Geek

#2167430 25-Jan-2019 13:47

Probably more importantly, do you think it would warrant an additional antenna?

Currently around 50ms ping, 35 mbps down, 4 mbps up, but it has been variable at times which drops the upload markedly.

am289

31 posts

Geek

#2167433 25-Jan-2019 13:54

am289:

Probably more importantly, do you think it would warrant an additional antenna?

Currently around 50ms ping, 35 mbps down, 4 mbps up, but it has been variable at times which drops the upload markedly.

Meant to include this

coffeebaron

6231 posts

Uber Geek

Trusted

Lifetime subscriber

#2167434 25-Jan-2019 13:58

You're connected to the Greta Valley tower. A 2nd antenna is generally a good idea. It often will result in increased performance and gives you a bigger slice of available capacity during peak time.
Also please post the rest of the modem stats.

Rural IT and Broadband support.

Need help in Auckland, Waikato or BoP? Click my email button, or email me direct: [my user name] at geekzonemail dot com

coffeebaron

6231 posts

Uber Geek

Trusted

Lifetime subscriber

#2167435 25-Jan-2019 14:00

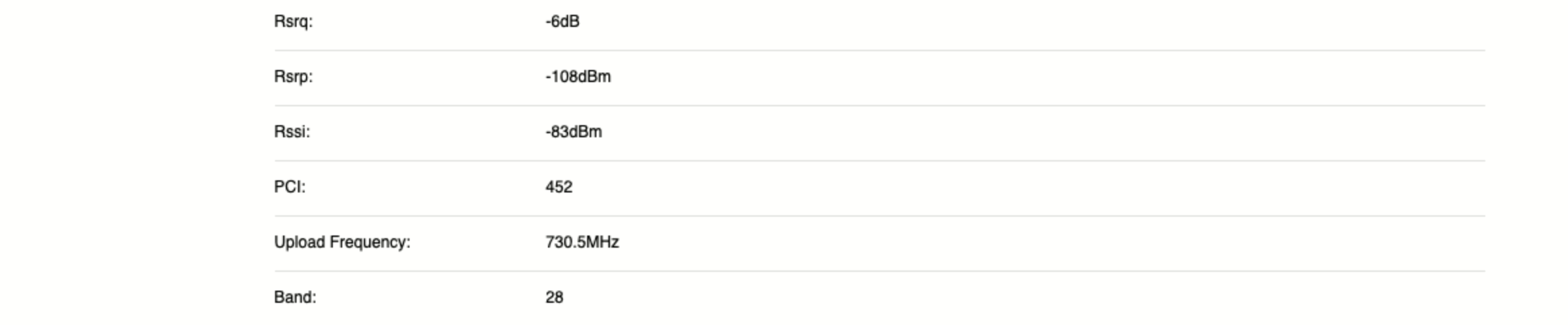

So -108 Is getting low on the signal range. Nearer -100 or greater is better. -110 and lower, then performance begins to drop significantly.

Rural IT and Broadband support.

Need help in Auckland, Waikato or BoP? Click my email button, or email me direct: [my user name] at geekzonemail dot com

Equinox IT

Cloud spending continues to surge globally, but most organisations haven’t made the changes necessary to maximise the value and cost-efficiency benefits of their cloud investments. Download the whitepaper From Overspend to Advantage now.

am289

31 posts

Geek

#2167438 25-Jan-2019 14:11

Great thanks!

coffeebaron

6231 posts

Uber Geek

Trusted

Lifetime subscriber

#2167442 25-Jan-2019 14:36

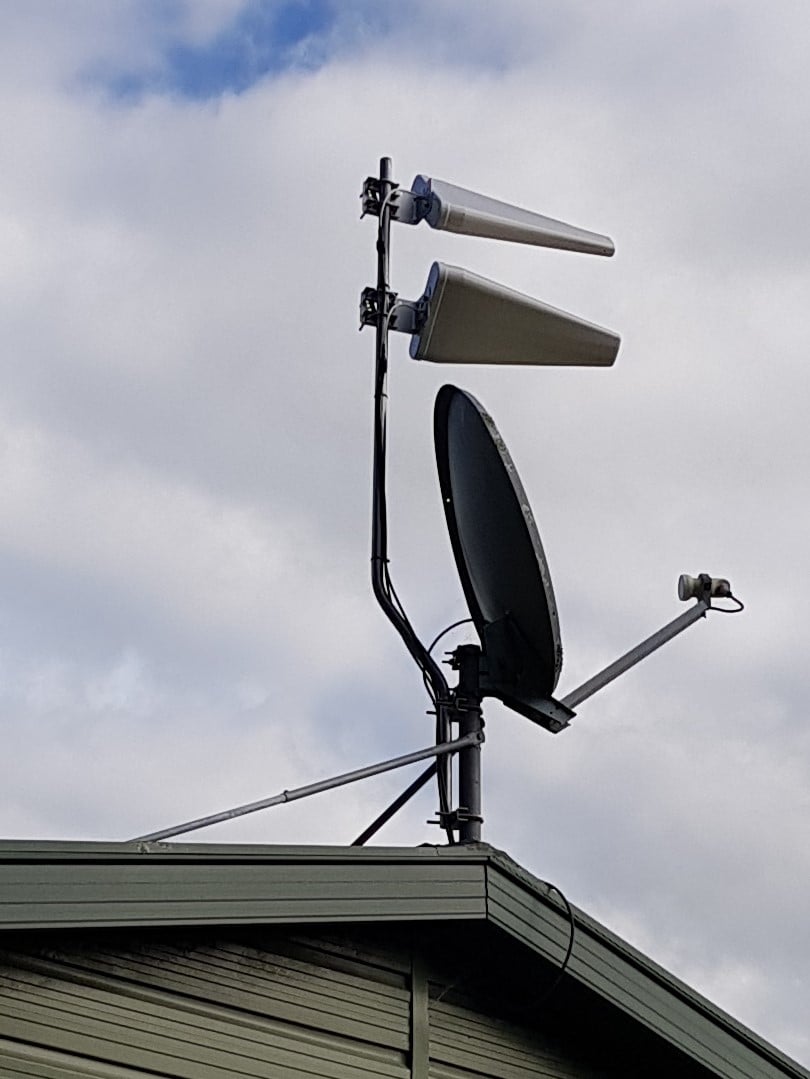

Sample of antenna install:

Rural IT and Broadband support.

Need help in Auckland, Waikato or BoP? Click my email button, or email me direct: [my user name] at geekzonemail dot com
