Need help installing a master splitter for my VDSL modem

Forums › New Zealand Broadband › Need help installing a master splitter for my VDSL modem

mister123

13 posts

Geek

#290266 30-Oct-2021 16:22

So I’m in need of desperate help In regards too installing a VDSL splitter I know it’s 2021 but I’m out of range of fibre coming too my street.

I have opened my ETP and have found there are only 2 cables and have only 1 pair of each cable connected are blue - white cables connected too each other by colour and on both cables there are red and black cables, one red black pair is isolated and the other is connected by a scotchlok

If I am wanting too install a master splitter is there any way possible to install a master splitter within

Ps I am sorry for the poor quality of my ETP it hasn’t been opened for a very long time

If I could get some help it would be truly appreciated

1 | 2 | 3

9186 posts

Uber Geek
+1 received by user: 4839

#2804387 30-Oct-2021 16:24

Photo?

nztim

4012 posts

Uber Geek
+1 received by user: 2710

ID Verified

Trusted

TEAMnetwork

Subscriber

#2804388 30-Oct-2021 16:26

You in wellington region?

Any views expressed on these forums are my own and don't necessarily reflect those of my employer.

mister123

13 posts

Geek

#2804393 30-Oct-2021 16:31

I’m in the far north area and I can’t seem to upload a photo if someone could message me somehow that could show me how too work this forum or I can directly contact to help me I would appreciate it I am completely new too this and have no idea what I’m doing

Linux

12182 posts

Uber Geek
+1 received by user: 8475

Trusted

Lifetime subscriber

#2804448 30-Oct-2021 16:54

@mister123 How far in the Far North and are you on Naked Broadband or clothed Broadband?

mister123

13 posts

Geek

#2804449 30-Oct-2021 16:58

mister123

13 posts

Geek

#2804451 30-Oct-2021 17:00

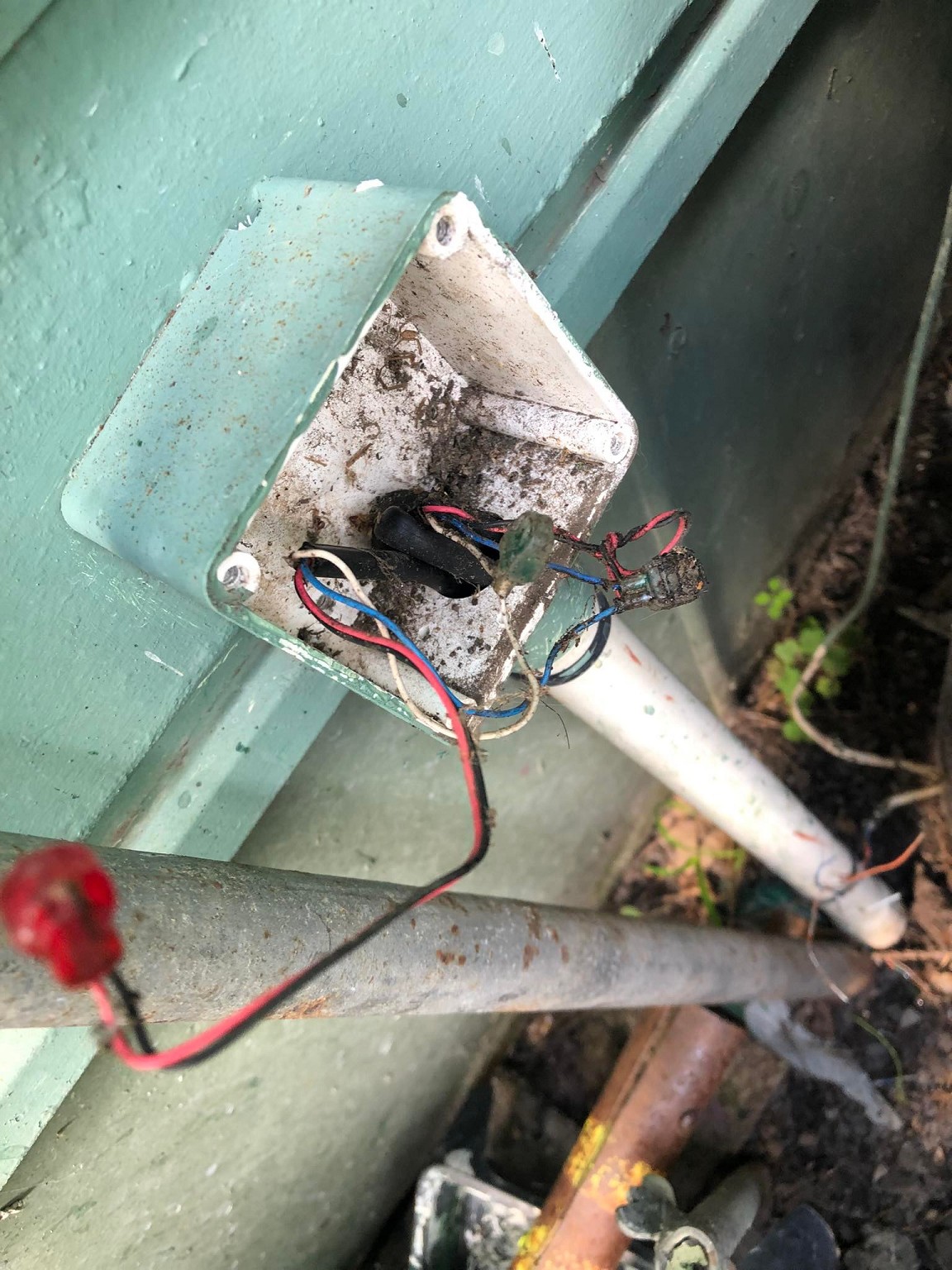

that is my ETP i took today and i live in Waipapakauri Domain just outside a place called Waimanoni as stated above the blue wire is connected too the blue wire on the other cable same as the white cable

Lego

Shop now for Lego sets and other gifts (affiliate link).

Linux

12182 posts

Uber Geek
+1 received by user: 8475

Trusted

Lifetime subscriber

#2804452 30-Oct-2021 17:02

Are you on Naked Broadband by any chance?

mister123

13 posts

Geek

#2804453 30-Oct-2021 17:02

and i think i am on clothed broadband is that with the phone line and broadband together? i am asking for help because our broadband disconnects almost every hour and when we make or receive calls we are desperate too make this stop

Linux

12182 posts

Uber Geek
+1 received by user: 8475

Trusted

Lifetime subscriber

#2804455 30-Oct-2021 17:05

Is your home line delivered over POTS or the broadband connection? If over broadband you might be doing this the hard way

mister123

13 posts

Geek

#2804458 30-Oct-2021 17:10

is there any physical way of finding this out ? i would say it POTS becuase i still am using old phone jacks for my DSL and phone ? please correct me if i am wrong

Linux

12182 posts

Uber Geek
+1 received by user: 8475

Trusted

Lifetime subscriber

#2804459 30-Oct-2021 17:11

Yes sounds like POTS correct

Mighty Ape

Shop now at Mighty Ape (affiliate link).

mister123

13 posts

Geek

#2804460 30-Oct-2021 17:16

if thats correct could there possibly be a solution too the problem i am having

Linux

12182 posts

Uber Geek
+1 received by user: 8475

Trusted

Lifetime subscriber

#2804461 30-Oct-2021 17:17

Carry on with the install of the master splitter

mister123

13 posts

Geek

#2804463 30-Oct-2021 17:22

so with the ETP is there anyway of identifying the wires connected within? regarding the cables inside the ETP

nztim

4012 posts

Uber Geek
+1 received by user: 2710

ID Verified

Trusted

TEAMnetwork

Subscriber

#2804467 30-Oct-2021 17:28

Both of those cables look like outdoor cables, you need to identify which is the line and which goes to your first jack, this is done with a tone tracer, the the spare pair will connect to the green wires of the filter and connect to a dedicated jack for your modem, the blue wires will go to the original pair to your existing jacks for your phones and the orange pair will connect to the line

Id find a professional in your area to do this for you if you are not comfortable and don't have the tools

Any views expressed on these forums are my own and don't necessarily reflect those of my employer.
