Keystone for chorus fibre

Forums › New Zealand Broadband › Keystone for chorus fibre

disordinary

5 posts

Wannabe Geek
+1 received by user: 1

#317712 8-Nov-2024 10:16

Hi, we've finally got fibre to the edge of our property. I want a nice tidy install so I'm going to ask the installer to run the fibre through existing conduit to a patch panel in the wall. I'm wondering if anyone knows what fibre standard keystone I should get to terminate the fibre to for the ONT?

1 | 2

757 posts

Ultimate Geek
+1 received by user: 335

#3306872 8-Nov-2024 10:25

you want the fibre lead to end at a patch panel before the ONT?

not sure that's an option. it ends at the ONT, which remains Chorus property.

or do you mean a fibre run from the ONT to where your router is located?

wellygary

8810 posts

Uber Geek
+1 received by user: 5287

#3306873 8-Nov-2024 10:26

Is this a UFB install or commercial arrangement,

If its UFB, Chorus will likely only terminate their fibre in their ONT,

They don't want any other connections in the way - Its unlikely they will terminate their run to a patch panel.

disordinary

5 posts

Wannabe Geek
+1 received by user: 1

#3306891 8-Nov-2024 11:48

Yeah it's for Chorus / public install,

So my best bet is to run the conduit and then have the chord come out through a hole in the patch panel?

nitro

757 posts

Ultimate Geek
+1 received by user: 335

#3306892 8-Nov-2024 12:07

disordinary:

Yeah it's for Chorus / public install,

So my best bet is to run the conduit and then have the chord come out through a hole in the patch panel?

I thought you have an existing conduit, such as what would have been used for the old copper line. In my brother-in-law's house, they used the copper line as draw wire for fibre and now have the ONT where the old phone jack was.

I suppose having a new conduit in place for them could/would end up the same.

saf

221 posts

Master Geek
+1 received by user: 533

ID Verified

Trusted

Vetta Group

Subscriber

#3306894 8-Nov-2024 12:14

disordinary:

I'm wondering if anyone knows what fibre standard keystone I should get to terminate the fibre to for the ONT?

SC/APC

My views are as unique as a unicorn riding a unicycle. They do not reflect the opinions of my employer, my cat, or the sentient coffee machine in the break room.

Jase2985

13730 posts

Uber Geek
+1 received by user: 6202

ID Verified

Lifetime subscriber

#3306971 8-Nov-2024 14:07

is your ONT going in the same place as your patch panel? if so why do you need to terminate it at the patch panel, just have it connected to the ONT directly.

New World

Shop on-line at New World now for your groceries (affiliate link).

quickymart

14940 posts

Uber Geek
+1 received by user: 13953

ID Verified

#3306980 8-Nov-2024 14:50

Would be helpful if the conduit has a draw wire in there if you're referring to what I'm thinking of (internal conduit). Makes the tech's job a fair bit easier.

disordinary

5 posts

Wannabe Geek
+1 received by user: 1

#3306981 8-Nov-2024 14:54

saf:

disordinary:

I'm wondering if anyone knows what fibre standard keystone I should get to terminate the fibre to for the ONT?

SC/APC

No, it's conduit that I put in for ethernet. I want it to come out an ethernet patch panel.

disordinary

5 posts

Wannabe Geek
+1 received by user: 1

#3306982 8-Nov-2024 14:55

quickymart:

Would be helpful if the conduit has a draw wire in there if you're referring to what I'm thinking of (internal conduit). Makes the tech's job a fair bit easier.

The patch "panel" in question is an in wall jack with 5 rj45 keystone jacks and one blank jack, I wanted the fibre to just be a keystone plug in the last jack.

wellygary

8810 posts

Uber Geek
+1 received by user: 5287

#3306985 8-Nov-2024 15:01

They will unlikely break the cable for a connection,

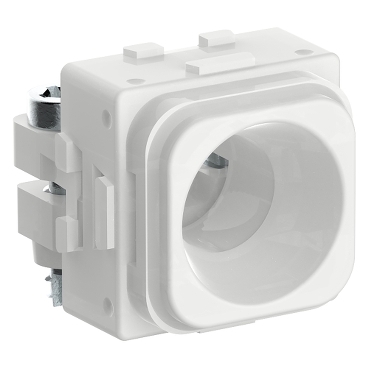

Your best option is to nicely ask the Chorus Tech to slip a PCU keystone over the cable as they install it...

https://www.pdl.co.nz/products/switches-sockets/clipsal-mechanisms/module-pcu-adaptor-300-series-pdl351mpcu?itemno=PDL351MPCU-TN

olivernz

512 posts

Ultimate Geek
+1 received by user: 177

ID Verified

Trusted

Lifetime subscriber

#3307008 8-Nov-2024 17:03

The cable is not only fibre but copper too. So like a thick rigid ethernet cable.

AliExpress

Shop now on AliExpress (affiliate link).

Spyware

3818 posts

Uber Geek
+1 received by user: 1366

Lifetime subscriber

#3307035 8-Nov-2024 18:38

disordinary:

The patch "panel" in question is an in wall jack with 5 rj45 keystone jacks and one blank jack, I wanted the fibre to just be a keystone plug in the last jack.

https://www.fs.com/au/products/143332.html

Spark Max Fibre using Mikrotik CCR1009-8G-1S-1S+, CRS125-24G-1S, Unifi UAP, U6-Pro, UAP-AC-M-Pro, Apple TV 4K (2022), Apple TV 4K (2017), iPad Air 1st gen, iPad Air 4th gen, iPhone 13, SkyNZ3151 (the white box). If it doesn't move then it's data cabled.

cyril7

9073 posts

Uber Geek
+1 received by user: 2499

ID Verified

Trusted

Subscriber

#3307074 8-Nov-2024 20:33

Hi I strongly suggest what you are trying to achieve is outside of what Chorus will accept, better to just let them fibre from the street via the etp to the ont directly, they will not entertain fibre breaks outside of that.

Don't forget up to the ont is their network not yours, their rules will apply, not you wants, harsh but true.

Cyril

disordinary

5 posts

Wannabe Geek
+1 received by user: 1

#3307076 8-Nov-2024 20:40

Thanks for the replies, guess my best option is something like what Wellygary suggested.

BMarquis

465 posts

Ultimate Geek
+1 received by user: 577

Trusted

Chorus

Lifetime subscriber

#3307112 9-Nov-2024 08:20

Your best option is to let our installers do what they do, as Cyril said.

We will not insert anything on that optical path as it is our network and we are resposible for it.

External Termination point -> Internal Termination point then a fibre patch cord to the ONT.
From the copper ethernet side of the ONT around your home - thats your domain to do what you wish.
