Should i be getting a higher sync rate on ADSL2+?

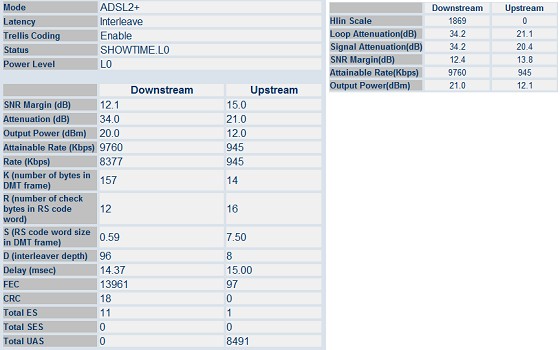

 DownstreamUpstream Hlin Scale18690Loop Attenuation(dB)34.221.1Signal Attenuation(dB)34.220.4SNR Margin(dB)12.413.8Attainable Rate(Kbps)9760945Output Power(dBm)2112.1
 DownstreamUpstreamSNR   Margin (dB)12.114.9Attenuation (dB)3421Output   Power (dBm)2012Attainable   Rate (Kbps)9760945Rate   (Kbps)8377945K (number   of bytes in DMT frame)15714R (number   of check bytes in RS code word)1216S (RS code   word size in DMT frame)0.597.5D   (interleaver depth)968Delay   (msec)14.3715FEC1395997CRC180Total ES111Total SES00Total UAS08491




Technical Evangelist
Microsoft NZ
about.me/nzregs
Twitter: @nzregs


Create new topic


Infrastructure Geek
4055 posts

Uber Geek
+1 received by user: 195

Trusted
Microsoft NZ
Subscriber

  Reply # 518271 7-Sep-2011 20:30
Send private message

ugh, the html tables became a real mess






Technical Evangelist
Microsoft NZ
about.me/nzregs
Twitter: @nzregs


5150 posts

Uber Geek
+1 received by user: 2173

Trusted
Subscriber

  Reply # 518291 7-Sep-2011 21:32
Send private message

For 34db attenuation, I think your sync rate is very good.




Chorus has spent $1.4 billion on making their xDSL broadband network faster. If your still stuck on ADSL or VDSL, why not spend from $150 on a master filter install to make sure you are getting the most out of your connection?
I install - Naked DSL, DSL Master Splitters, VoIP, data cabling and general computer support for home and small business.
Rural Broadband RBI installer for Ultimate Broadband and Full Flavour



Need help in Auckland, Waikato or BoP? Click my email button, or email me direct: [my user name] at geekzonemail dot com








Try Wrike: fast, easy, and efficient project collaboration software


Infrastructure Geek
4055 posts

Uber Geek
+1 received by user: 195

Trusted
Microsoft NZ
Subscriber

  Reply # 518332 7-Sep-2011 23:41
Send private message

i had a google and found a couple of links that seemed to suggest i should be up towards 13Mbps on ADSL2+:

http://whirlpool.net.au/wiki/dslam_speeds
http://fremnet.net/article/216/adsl-theoretical-speed-calculator
http://en.wikipedia.org/wiki/G.DMT#DMT_history_and_line_rates




Technical Evangelist
Microsoft NZ
about.me/nzregs
Twitter: @nzregs


4025 posts

Uber Geek
+1 received by user: 1076

Trusted

  Reply # 518338 8-Sep-2011 00:10
Send private message

I would have expected 5000-9000kbps sync with those stats.

5150 posts

Uber Geek
+1 received by user: 2173

Trusted
Subscriber

  Reply # 518350 8-Sep-2011 06:31
Send private message

Regs: i had a google and found a couple of links that seemed to suggest i should be up towards 13Mbps on ADSL2+:

http://whirlpool.net.au/wiki/dslam_speeds
http://fremnet.net/article/216/adsl-theoretical-speed-calculator
http://en.wikipedia.org/wiki/G.DMT#DMT_history_and_line_rates


That's most likely with a target noise margin of 6db, but Chorus use 12. How far are you from exchange / cabinet?





Chorus has spent $1.4 billion on making their xDSL broadband network faster. If your still stuck on ADSL or VDSL, why not spend from $150 on a master filter install to make sure you are getting the most out of your connection?
I install - Naked DSL, DSL Master Splitters, VoIP, data cabling and general computer support for home and small business.
Rural Broadband RBI installer for Ultimate Broadband and Full Flavour



Need help in Auckland, Waikato or BoP? Click my email button, or email me direct: [my user name] at geekzonemail dot com


6116 posts

Uber Geek
+1 received by user: 209

Trusted
Subscriber

  Reply # 518352 8-Sep-2011 07:19
Send private message

I would say its on the money for 12dB noise margin.

Cyril



Infrastructure Geek
4055 posts

Uber Geek
+1 received by user: 195

Trusted
Microsoft NZ
Subscriber

  Reply # 518498 8-Sep-2011 12:24
Send private message

OK, thanks guys.

My next question.... attainable rate versus actual rate. 8377 vs 9760. am i on a adsl1 speed profile of some sort?




Technical Evangelist
Microsoft NZ
about.me/nzregs
Twitter: @nzregs


154 posts

Master Geek
+1 received by user: 9


  Reply # 518688 8-Sep-2011 17:02
Send private message

Regs: ugh, the html tables became a real mess




 with some ADSL modem you could use DMT tool to lower SNR Margin to get more out of your Downstream sync rate.

e.g

6116 posts

Uber Geek
+1 received by user: 209

Trusted
Subscriber

  Reply # 518690 8-Sep-2011 17:07
Send private message

The attainable against acutal is where one is the theoretical based on attenuation and noise margin, the other is reality, I would describe your close enough to not worry.

Cyril
