Hi folks,

I have a P6T - Asus mother board and want to install a wireless pci card.

Can someone confirm if this pci card will fit my mother board?

http://www.pbtech.co.nz/index.php?z=p&p=NETTPL0781&name=TP-LINK-TL-WN781N-Wireless-PCI-E-Express-Adapter-w

Thanks heapsssss

simon14

1889 posts

Uber Geek

Trusted

#1017859 3-Apr-2014 13:50

This is a pic i believe:

http://www.legitreviews.com/images/reviews/885/ASUS_P6T_Deluxe_Palm_OC_2.jpg

gundar

488 posts

Ultimate Geek

Trusted

#1017860 3-Apr-2014 13:51

It will, looking at picutres from far, but you should check that your graphics card allows access to the slots - often a big fan or heatsink will invalidate the adjacent slots.

simon14

1889 posts

Uber Geek

Trusted

#1017862 3-Apr-2014 13:53

I cant seem to see where in the pic it would plug into?

gundar

488 posts

Ultimate Geek

Trusted

#1017865 3-Apr-2014 14:00

It is a PCI-express card. That family of motherboards has both PCI and PCI-e slots, but on varying models the slots are in different places. PCI-e slots are in varying lengths based on throughput requirements, so it could go in a 'longer' slot and only utilse the first few millimeters. The wifi card is cut to prevent it being put into a PCI slot, so if you are installing it and it seems to require any type of force, check you got it right or not.

I mentioned heatsinks, because on some of those family of motherboards there is only a graphics slot and immediately adjacent pci-e slot that is useless if your graphics card has a big heatsink.

DravidDavid

1907 posts

Uber Geek

#1017866 3-Apr-2014 14:01

simon14: I cant seem to see where in the pic it would plug into?

That is a 1X wireless card. It will fix in any PCI-E slot that is larger than it as well as a 1X slot.

In your motherboard picture, there is a black PCI-E 4X slot above the primary PCI-E 16X slot. (in blue)
If you have a video card that does not have a massive heatsink top and bottom, it will fit just fine. If you don't have a video card at all, you can choose between using the larger 16X PCI-E slot or the 1X slot.

:)

gundar

488 posts

Ultimate Geek

Trusted

#1017868 3-Apr-2014 14:02

http://en.wikipedia.org/wiki/PCI_Express

This page has some pics in to clarify my words.

Oblivian

7296 posts

Uber Geek

ID Verified

#1017870 3-Apr-2014 14:06

The image is the deluxe version, The standard may have a different layout.

Standard as per manual:

2 x PCIe 2.0 x16 (dual x16, blue)
1 x PCIe 2.0 x16 (x4 mode, white)
1 x PCIe x1

Click the guys links and open the side or read your manual to confirm. As there is a Deluxe, Deluxe V2, PE.. many variants.

Equinox IT

Cloud spending continues to surge globally, but most organisations haven’t made the changes necessary to maximise the value and cost-efficiency benefits of their cloud investments. Download the whitepaper From Overspend to Advantage now.

simon14

1889 posts

Uber Geek

Trusted

#1017938 3-Apr-2014 15:23

Thank you guys,

Will this card work too out of interest?

http://www.pbtech.co.nz/index.php?z=p&p=NETTPL0852&name=TP-LINK-TL-WN851ND-300M-Wireless-N-PCI-Adapter-Ath

toyonut

1508 posts

Uber Geek

#1017981 3-Apr-2014 16:20

Yep, both will be fine. Just pay attention to the slot type. The second card is a pci slot and the first is a pci-e. Your motherboard will fit both as long as you do not have a 2 slot graphics card fouling the free slot you want to plug in to.

Try Vultr using this link and get us both some credit:

http://www.vultr.com/?ref=7033587-3B

simon14

1889 posts

Uber Geek

Trusted

#1018022 3-Apr-2014 17:48

You guys were right, the video card was covering the pci e slow. Luckily there was another slot i could move the video card to to free up the space.

Just before i open the box, i ended up purchasing this:

http://www.pbtech.co.nz/index.php?z=p&p=NETTPL0881&name=TP-LINK-TL-WN881ND-300Mbps-Wireless-N-PCI-E-Expres

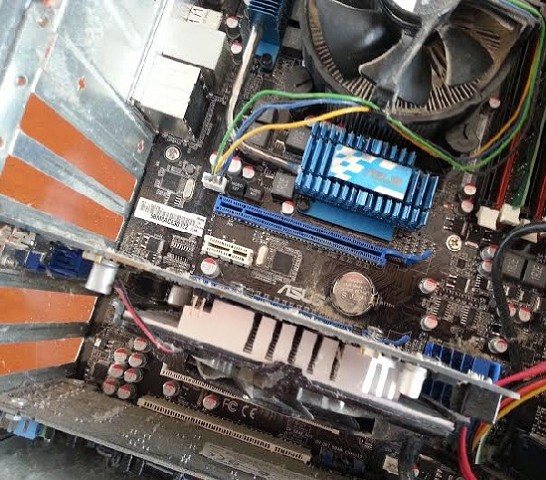

Here is a screenshot of my actual mother board now im home.

Before i open the box, will this fit? thanks :)

simon14

1889 posts

Uber Geek

Trusted

#1018032 3-Apr-2014 18:27

hmmm yes ok it does fit but now my video card isnt working

Poll

343 posts

Ultimate Geek

#1018033 3-Apr-2014 18:34

Put your video card in the slot closest to the cpu and then the pcie card in the slot where you currently have your graphics card and see how that goes.
Your also motherboard possibly has a bios setting that decides which pcie slot it will boot graphics from first which could be why it's not booting from that one.

Oblivian

7296 posts

Uber Geek

ID Verified

#1018034 3-Apr-2014 18:37

2nd slot being a 16x probably relies on the first being occupied.

Fan could do with a paintbrush gunk removal too..

simon14

1889 posts

Uber Geek

Trusted

#1018060 3-Apr-2014 19:59

Video card just wasnt plugged in properly.

Wireless PCI card is rubbish anyway, only get 5mbps out of it.... oh well, will just use cable.

Thanks everyone for all your help here.... ps, anyone want a nearly new pci wireless card???
