2.5' Bay Front Panel USB 3.0

Forums › Desktop computing › 2.5' Bay Front Panel USB 3.0

Oubadah

676 posts

Ultimate Geek
+1 received by user: 12

#89924 11-Sep-2011 15:28

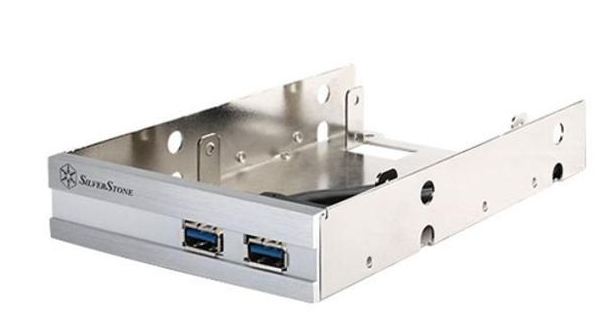

Where can I get this in NZ or cheap:

Note the internal header.

michaelt

425 posts

Ultimate Geek
+1 received by user: 8

#519587 11-Sep-2011 15:45

Are you sure you don't mean a 3.5" panel? Most PC cases have 5.25" slots for optical drives, and 3.5" slots for floppy drives, card readers, etc.

Oubadah

676 posts

Ultimate Geek
+1 received by user: 12

#519596 11-Sep-2011 16:10

michaelt: Are you sure you don't mean a 3.5" panel? Most PC cases have 5.25" slots for optical drives, and 3.5" slots for floppy drives, card readers, etc.

Yes, I meant 3.5" (floppy drive size), not 2.5 err... feet, as I accidentally wrote.

richms

29251 posts

Uber Geek
+1 received by user: 10361

Trusted

Lifetime subscriber

#519610 11-Sep-2011 17:10

Is there even a standard for headers yet? Last I checked intel were still dragging their heels with it, and noone wanted to repeat the mess that was USB1.1 headers when they started to come out in a non standard way blowing up peoples USB stuff when connected to a mismatched case and mo-bo combo.

Richard rich.ms

Oubadah

676 posts

Ultimate Geek
+1 received by user: 12

#519621 11-Sep-2011 17:48

richms: Is there even a standard for headers yet? Last I checked intel were still dragging their heels with it, and noone wanted to repeat the mess that was USB1.1 headers when they started to come out in a non standard way blowing up peoples USB stuff when connected to a mismatched case and mo-bo combo.

It's looked the same on every board I've seen:

dontpanic42

1574 posts

Uber Geek
+1 received by user: 11

#519630 11-Sep-2011 18:03

Maybe this?
http://www.ascent.co.nz/productspecification.aspx?ItemID=398634

It doesn't really show what header connector it has, but it says
"The FP36 has cables that connect directly to motherboard rear I/O panel’s USB 3.0 ports (for motherboards with built-in USB 3.0 support)"
So it may do.

michaelt

425 posts

Ultimate Geek
+1 received by user: 8

#519632 11-Sep-2011 18:08

dontpanic42: Maybe this?
http://www.ascent.co.nz/productspecification.aspx?ItemID=398634

It doesn't really show what header connector it has, but it says
"The FP36 has cables that connect directly to motherboard rear I/O panel’s USB 3.0 ports (for motherboards with built-in USB 3.0 support)"
So it may do.

I'm pretty sure that means it's just an extension cables that plugs into the USB 3.0 ports at the back of your motherboard. Those are quite common because many motherboard have USB 3.0 ports at the back, but no USB 3.0 header (I have one of these).

Mighty Ape

Shop now at Mighty Ape (affiliate link).

dontpanic42

1574 posts

Uber Geek
+1 received by user: 11

#519636 11-Sep-2011 18:22

Yeah, you're right.
Just had a look at the Silverstone website and it is just an extension.

I've also got a motherboard with rear USB3.0 ports, so I might actually look at this some more.

This looks promising though. Not quite a complete solution, but it's halfway there.
http://www.computerlounge.co.nz/components/componentview.asp?partid=15543

Oubadah

676 posts

Ultimate Geek
+1 received by user: 12

#519672 11-Sep-2011 20:04

Looks like I'll just have to pay the $24 US for this one:

http://www.ebay.com.au/itm/USB-3-0-2-Port-Front-Panel-2-5-Floppy-Bay-20-Pin-/200640952964#ht_500wt_9...

Seem pretty steep for sweet FA... Or maybe I'm just cheap?

richms

29251 posts

Uber Geek
+1 received by user: 10361

Trusted

Lifetime subscriber

#519676 11-Sep-2011 20:15

Your just being cheap, you want something new and not in great supply, could be way worse than that.

Otherwise DX have some that have a PCIe plug on the end which I have one of on the way to me and will see how it goes when it gets here.

Richard rich.ms

dontpanic42

1574 posts

Uber Geek
+1 received by user: 11

#519677 11-Sep-2011 20:16

Oubadah: Looks like I'll just have to pay the $24 US for this one:

http://www.ebay.com.au/itm/USB-3-0-2-Port-Front-Panel-2-5-Floppy-Bay-20-Pin-/200640952964#ht_500wt_9...

Seem pretty steep for sweet FA... Or maybe I'm just cheap?

I suppose it is a little steep for such a basic part, but it's only around NZ$30 landed.
It's also a pity that you can't get such a part in NZ.

richms

29251 posts

Uber Geek
+1 received by user: 10361

Trusted

Lifetime subscriber

#519692 11-Sep-2011 21:05

This one is a little cheaper -http://www.ebay.com/itm/3-5-USB-3-0-Front-Panel-Drive-Bay-20Pins-2-USB-3-0-/260840193895?pt=AU_Compo...

Richard rich.ms

Mighty Ape

Shop now at Mighty Ape (affiliate link).

merve0o0

492 posts

Ultimate Geek
+1 received by user: 10

#521778 16-Sep-2011 08:47

Thanks to dontpanic for that link I have a Lian-li case so I can just swap that out

toyonut

1508 posts

Uber Geek
+1 received by user: 211

#522403 17-Sep-2011 16:58

Is this solved already?
http://www.pbtech.co.nz/index.php?z=p&p=CHSCLM0300&name=COOLER-MASTER-USB-3.0-Adapter-Transfer-Rate-up-to-

Try Vultr using this link and get us both some credit:

http://www.vultr.com/?ref=7033587-3B

dontpanic42

1574 posts

Uber Geek
+1 received by user: 11

#522408 17-Sep-2011 17:23

paulmilbank: Is this solved already?
http://www.pbtech.co.nz/index.php?z=p&p=CHSCLM0300&name=COOLER-MASTER-USB-3.0-Adapter-Transfer-Rate-up-to-

Good find sir.
I couldn't find anything on PBTech. Must be the search terms used. :)
