#520657 13-Sep-2011 20:41

a 24 Port dynamix panel is only $50 odd bucks so probably is worth it. Only down side is you now need a frame.

I have an old 6U frame that I would give away as they are dime a dozen. Its 200mm deep. Would that fit in your cupboard?

cyril7

9058 posts

Uber Geek

ID Verified

Trusted

Subscriber

#520663 13-Sep-2011 20:50

Along with the unit that illict linked there are the signet ones that I designed, there is the ST2206 which is a full DSL solution which includes housing for the VDLS2 filter and provides proper PTC106/TCF isolation socket and DSL socket, the ST2208 is designed for the apartment market with 8 cat5e rated data sockets/patchpanel and 4 phone/voice patch sockets plus a DSL modem socket.

http://www.sigtech.co.nz/uploads/72000/files/ST2206_Installation_instructions__A4_Single_.pdf

http://www.sigtech.co.nz/uploads/72000/files/SIGNET_ST2208_Installation_Instructions__A4_.pdf

Cheers
Cyril

hazza87

352 posts

Ultimate Geek

#520670 13-Sep-2011 21:02

Where can the ST2206 be purchased from? and what is the likely price?

The cupboard is fairly large ( ex hot water cupboard) with shelving in it and mostly full of junk i will be removing so should fit. It also backs onto a reasonably large laundry which has some spare walls which could be used for mounting things if neccessary.

cyril7

9058 posts

Uber Geek

ID Verified

Trusted

Subscriber

#520676 13-Sep-2011 21:06

Hi, most wholesalers, but Cory's/Mastertrade in particular but lots of others, and expect a $50-60ish price ,$40 trade, PM me if you want to know more.

Cyril

mcmillgd

50 posts

Geek

#520687 13-Sep-2011 21:24

Just wondering about the best way to install this into a new house.

Would you put the ST2206 in the Garage directly where the phone line enters the house?
If so what's the best way to mount this in the wall, is there a simple in-wall panel to hold this device?

I have an IT cupboard in the middle of the house, would I just run the DSL line from the ST2206 to the AV cupboard where my patch panel and VDSL modem are?

I suppose I would just run 1 pair from a phone port on the ST2206 to my patch panel and push phones around the house from there...

Kinda thinking out loud here, tell me if i'm on the wrong track.

Thanks

cyril7

9058 posts

Uber Geek

ID Verified

Trusted

Subscriber

#520750 14-Sep-2011 06:08

Hi, run a line from the demarc (in the garage in your case) directly to your AV cupboard, site the ST2206 there, the VDSL2 filter mounts on the ST2206. The ST22206 can be directly screwed to the wall, just remove the plastic clips and use the holes where they were.

The idea is to place the the ST2206 next to your patch panel and modem so you can then use standard cat5e patch cords to patch phone circuits to desired outlets in the house, and obvioulsy somewhere to connect your modem to.

Cheers
Cyril

mcmillgd

50 posts

Geek

#520887 14-Sep-2011 11:52

Do I still need one BT plug at the demark point if I use the ST2206?

Lenovo

Shop now for Lenovo laptops and other devices (affiliate link).

cyril7

9058 posts

Uber Geek

ID Verified

Trusted

Subscriber

#520952 14-Sep-2011 13:39

Na, what for?

If you go for a structured solution then do it fully no need to have BTs for anything.

Cyril

mcmillgd

50 posts

Geek

#520959 14-Sep-2011 13:49

I've been told Telecom requires you to have atleast one BT plug at the Demarc point.
Glad to hear I don't need it.

hazza87

352 posts

Ultimate Geek

#521021 14-Sep-2011 16:04

Just been outside and crawled under a concrete slab to take a look at the telecom etp, seems i need a special screwdriver to get into it, it has 3 grooves, looks like a tri-wing screw, am i correct? Where can i get a screwdriver to get into it.

YadaMe

110 posts

Master Geek

#521024 14-Sep-2011 16:13

How prone to interference are cat5/cat6 cables from GSM transmission?
Just moved into a house with a small tall cupboard that I was looking at putting the alarm (call out via Cell) and also using as a distribution for network and tv.

Cheers

cyril7

9058 posts

Uber Geek

ID Verified

Trusted

Subscriber

#521028 14-Sep-2011 16:17

Hi, people use their cellphones at their desks next to lan cables all the time, no issue.

Probably wise to keep a 300mm clearance from a large bunch of cat5/6 cables and the antenna of the alarm, but other than that any interference is well out of band to ethernet signals, this includes both the 900Mhz carrier and the TDD beat of GSM/GPRS.

Personally I think I would want to use another location.

Cyril

hazza87

352 posts

Ultimate Geek

#521048 14-Sep-2011 16:50

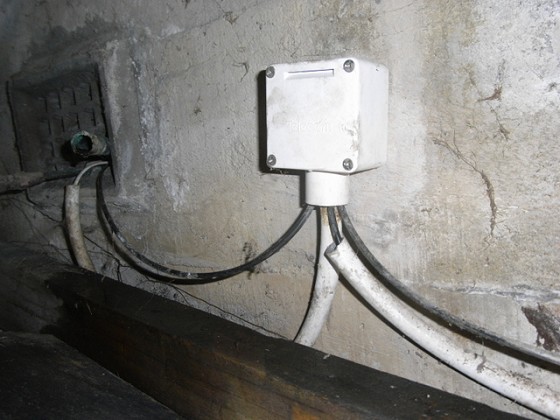

See picture of ETP Telecom ETP

:

There seems to be 2 black cables coming in (both inside the telecom green ducting (out of shot)) only one goes into the white ducting).
Then one white cable coming out (in white ducting) to under the house also another black unducted cable going under the house.
I will go investigate under the house to see where they go.

chevrolux

4962 posts

Uber Geek
Inactive user

#521093 14-Sep-2011 17:45

is there a splitter in there now?
the splitter will have an orange wire on it. See what wire is joined to that and that is your incoming line. Ignore the black one going under the house just look at the ones going down the telecom duct.

hazza87

352 posts

Ultimate Geek

#521104 14-Sep-2011 17:57

I have taken a look at where the cables go now, the black one entering the house is split (very crappily under the house) to all the voice jacks in the house and the white one goes into the adsl jack.
I have remembered that this house used to have 2 phone lines, could this explain the 2 incoming lines from the road?

Unfortunately i cannot get in the etp as i need to get that kind of screwdriver to open it up,
Chevrolux what kind do i need?

PS yes there is a central splitter in there
