Ultimate Geek

#2100393 3-Oct-2018 06:17

I use this for my setup:

#Offloading settings
set system offload hwnat disable
set system offload ipsec enable
set system offload ipv4 forwarding enable
set system offload ipv4 gre enable
set system offload ipv4 pppoe enable
set system offload ipv4 vlan enable
set system offload ipv6 forwarding enable
set system offload ipv6 pppoe enable
set system offload ipv6 vlan disable
set system syslog global facility all level notice
set system syslog global facility protocols level debug
set system traffic-analysis dpi enable
set system traffic-analysis export enable

Tinkerisk

4224 posts

Uber Geek

#2103153 8-Oct-2018 08:56

A few days ago, firmware v1.10.7 has been officially released.

- NET: FTTH, OPNsense, 10G backbone, GWN APs, ipPBX
- SRV: 12 RU HA server cluster, 0.1 PB storage on premise
- IoT: thread, zigbee, tasmota, BidCoS, LoRa, WX suite, IR
- 3D: two 3D printers, 3D scanner, CNC router, laser cutter

cjmchch

264 posts

Ultimate Geek

#2103235 8-Oct-2018 11:08

Hi

Trying to set up my ER4 by following this guide. I've come across a few items that don't quite conform with errors emitted when I try to config - whether this has anything to do with the latest Firmware update or not I'm unsure.

I've reset my device back to out of box state and am wanting to setup for use with 2Degrees UFB Ultimate.

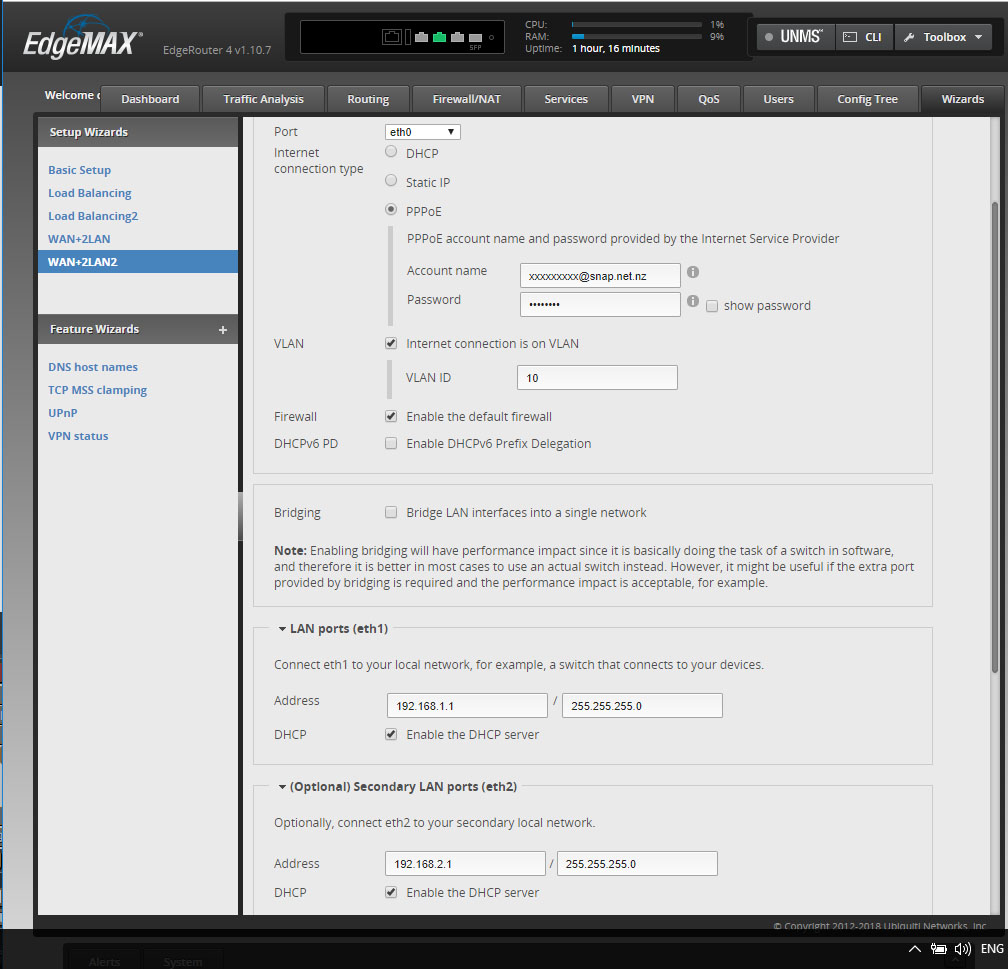

I setup PPPoE/password, set VLAN ID to 10, tick Enable default Firewall, make sure Bridge is not selected, save and restart. I start entering all the configure details as detailed but have no luck with any of the IPv6 config entries. Basically all of them are giving some form of error. My question therefore, before I start setting this up, yet again, is - should 'Enable DHCPv6 Prefix Delegation' be in a selected or unselected state?

michaelmurfy

meow
13240 posts

Uber Geek

Moderator

ID Verified

Trusted

Lifetime subscriber

#2103253 8-Oct-2018 12:06

@cjmchch I've updated the OP - I noticed there was a mistake in my commands. Try with those.

Michael Murphy | https://murfy.nz
Referral Links: Quic Broadband (use R122101E7CV7Q for free setup)

Are you happy with what you get from Geekzone? Please consider supporting us by subscribing.
Opinions are my own and not the views of my employer.

cjmchch

264 posts

Ultimate Geek

#2103303 8-Oct-2018 12:59

michaelmurfy:
@cjmchch I've updated the OP - I noticed there was a mistake in my commands. Try with those.

Thank you

I will.

I’m getting there, albeit slowly...at least I was able to browse the Internet!

freakngeek

356 posts

Ultimate Geek

#2104084 9-Oct-2018 18:59

Missed this as it never went BETA first but v1.0.7 released here

EdgeOS Firmware Changelog
====
Supported products
* EdgePoint R6, model: EP-R6
* EdgePoint R8, model: EP-R8
* EdgeRouter X, model: ER-X
* EdgeRouter X SFP, model: ER-X-SFP
* EdgeRouter Lite, model: ERLite-3
* EdgeRouter PoE, model: ERPoe-5
* EdgeRouter, model: ER-8
* EdgeRouter PRO, model: ERPro-8
* EdgeRouter 4, model: ER-4
* EdgeRouter 6P, model: ER-6P
* EdgeRouter 12, model: ER-12
* EdgeRouter Infinity, model: ER-8-XG
====

1.10.7 (e50, e100, e200, e300, e1000) Changelog / September 26, 2018
====
Fixes:
- WebGUI: Fix regression in v1.10.6 when false-positive "There was an error upgrading the system"
message was displayed when upgrading via WebGUI
- Interface: Fix bug in ER-Infinity when eth0 VLAN interface dropped 1500 byte incoming packets even
if MTU was set to 1500
- Interface: Fix bug in ER-Infinity when link on SFP-copper module was always ON even if
Ethernet cable was unplugged
- Upgrade: Fixed bug when ER-X/ER-X-SFP/EP-R6 failed to boot new firmware if bad-block was present in
kernel partition when doing firmware upgrade
- Discovery: Add TCP support for UBNT-Discovery protocol used by UNMS
- Bootloader: Show MD5 checksum of current bootloader in "show system boot-image" CLI command
- Bootloader: Add latest bootloader inside EdgeOS firmware image which could be installed
by running "add system boot-image" CLI command.
- LED: Fix LED light/blinking behaviour (required bootloader upgrade)
- Bootloader: Fix bug when "show system boot-image" CLI command failed in ER-4/ER-6P/ER-12
- OSPFv3: Fix bug when "instance-id" was not updated
- VPLS: Fix bug when ER failed to establish with VPLS session with non-UBNT routers because
it did not comply with RFC-4761
- Interface: Fix bug that caused "Commit failure" when deleting VLAN interace with custom MTU
- DHCP: prevent DHCP clients from registering hostnames "unifi", "wpad" and "isatap".
Hosts with these names can still obtain DHCP leases, but their hostname will be ignored, for both
dnsmasq and dhcpd as DHCP server.
- DHCP: Fixed bug when DHCP server failed to restart during reconfiguration with
"There's already a DHCP server running" message in syslog
- DHCP: Fix bug when illegal DHCP server configuration succeeded and caused `dhcpd` to silently die
- DNS: Fix bug when DNS forwarding via DHCP client interface did not work if DHCP lease
was acquired after configuring DNS forwarding
- CLI: Fix bug when "set" command failed after doing "discard"

iamsammajor

370 posts

Ultimate Geek

Lifetime subscriber

#2104167 9-Oct-2018 22:55

michaelmurfy:

@cjmchch I've updated the OP - I noticed there was a mistake in my commands. Try with those.

good evening Michael,

i tried your updated method to enable ipv6, how do you normally verified ipv6 has been able or not?

i can see there is new line under my normal ipv4 address, they started with fe80::2d28:

but is it normal to have "::"?

thanks,

Sam

Equinox IT

Cloud spending continues to surge globally, but most organisations haven’t made the changes necessary to maximise the value and cost-efficiency benefits of their cloud investments. Download the whitepaper From Overspend to Advantage now.

michaelmurfy

meow
13240 posts

Uber Geek

Moderator

ID Verified

Trusted

Lifetime subscriber

#2104168 9-Oct-2018 23:10

iamsammajor:

i tried your updated method to enable ipv6, how do you normally verified ipv6 has been able or not?

i can see there is new line under my normal ipv4 address, they started with fe80::2d28:

but is it normal to have "::"?

Your router should show a fe80:: address under the PPPoE connection and a subnet under your local LAN port. Try rebooting it. I can see your post didn't come via IPv6 so it isn't working yet (tip - Geekzone's logo will change when accessed via IPv6).

Ensure you've modified the commands for your setup - they're an example only. Also read the bit regarding 2degrees IPv6 using a /48 subnet if you don't have a static IP with them. If you want to try again then use the clear commands at the top of the IPv6 part, reboot your router and try again.

Also if you want to learn more about IPv6 I recommend completing this course: https://ipv6.he.net/certification/ - you get a free shirt upon completion. Lets see if anyone can match my score:

iamsammajor

370 posts

Ultimate Geek

Lifetime subscriber

#2104170 9-Oct-2018 23:31

michaelmurfy:

iamsammajor:

i tried your updated method to enable ipv6, how do you normally verified ipv6 has been able or not?

i can see there is new line under my normal ipv4 address, they started with fe80::2d28:

but is it normal to have "::"?

Your router should show a fe80:: address under the PPPoE connection and a subnet under your local LAN port. Try rebooting it. I can see your post didn't come via IPv6 so it isn't working yet (tip - Geekzone's logo will change when accessed via IPv6).

Ensure you've modified the commands for your setup - they're an example only. Also read the bit regarding 2degrees IPv6 using a /48 subnet if you don't have a static IP with them. If you want to try again then use the clear commands at the top of the IPv6 part, reboot your router and try again.

Also if you want to learn more about IPv6 I recommend completing this course: https://ipv6.he.net/certification/ - you get a free shirt upon completion. Lets see if anyone can match my score:

a green "ipv6" was there on top of the geekzone logo, but gone after rebooting,

i did see a fe80:: address under the PPPoE connection, so as under eth1,

i did use "set prefix-length /48"

Taubin

557 posts

Ultimate Geek

ID Verified

Subscriber

#2104200 10-Oct-2018 06:41

The HE certification is great, you'll learn a lot. I wear my shirt quite often.

You can also try IPv6 only sites, like https://ipv6.google.com to test your connectivity. Bear in mind, you're browser can and will fall back to IPv4 at times. You can also use https://test-ipv6.com/ to test your connection (there are others, you can google them).

ZL2TOY/ZL1DMP

iamsammajor

370 posts

Ultimate Geek

Lifetime subscriber

#2106617 12-Oct-2018 09:03

i can see ipv6 address in the router and every client, can also go https://ipv6.google.com , but when i go test-ipv6.com, it fails. also there is no change in geekzone logo

cjmchch

264 posts

Ultimate Geek

#2106765 12-Oct-2018 13:44

I'm up and running with my EdgeRouter4 using IPv4 only - kept stalling for some reason when trying to setup on IPv6 following the instructions.

Everything is working except for 2 small issues - Port Forwarding and open ports. I think it is most likely because of my settings in relation to setting the correct WAN interface. This is where I'm a bit confused and hoping someone can give me the correct answer.

I use 2Degrees UFB which has a WAN eth0 setting of pppoe with vlan 10 set.

When it comes to setting Firewall Policies and Port Forwarding is my WAN interface eth0. eth0.10 or pppoe?

I have set a port forwarding rule to one of my computers which remains closed when I test it. This is why I think my interface settings are wrong. I have it set to eth0.10

The other small issue is that I have both port 80 and 443 open that I never opened, and want closed. How best to achieve that?

Thanks in advance for any help

Resolved this myself - WAN interface is PPPoE!

I figured that if I couldn't open ports that I set and the firewall wasn't blocking ports it was meant to then it had to be the WAN interface setting that was wrong...

cjmchch

264 posts

Ultimate Geek

#2109101 16-Oct-2018 20:14

Just wondering Michael Murphy if there is a way on the edgerouter 4 to show uptime of my internet connectivity or some other way of determining if my internet connection drops off.

I've had a couple of recent issues where one of my 24/7 computers has failed to connect to an external range of servers and times out. I'm trying to isolate whether it is an issue with regard the connection or a computer/internal network problem issue or not.

dfnt

1511 posts

Uber Geek

Lifetime subscriber

#2109118 16-Oct-2018 21:11

You can integrate the EdgeRouter with UNMS which will log outages for you https://unms.com/

You have to install it on a Linux server, and it runs on its own docker container

cjmchch

264 posts

Ultimate Geek

#2109119 16-Oct-2018 21:13

Thanks for that - the issues I'm having are on a CentOS server so will install and run from there. Cheers for the info.
