Is there any way to check if line is ADSL2 enabled?

Forums › LAN (ethernet/Wifi/routers/Bluetooth) › Is there any way to check if line is ADSL2 enabled?

HairyScot

179 posts

Master Geek

# 18945 30-Jan-2008 16:38

Hi,

I am with IHUG on the Glenfield exchange (09-444) and i would like to find out if the exchange and my line is ADSL2 capable but cannot find any info on this.

Anyone got any idea(s) about this?

I have the IHUG Broadband 3 plan but I get nowhere near 7.5Mbps.
Depending on the time of day, I get speedtest results varying between 1.6 and 4.2.

1 | 2

6694 posts

Uber Geek
+1 received by user: 563

Trusted

Subscriber

# 107582 30-Jan-2008 16:51

Hi Jim, if you go into the setup web page of the router and rumage around you should find a ADSL/WAN status page that will tell you what mode the router is in, also it will tell you other important details like the connected line rate, and line attenuation and S/N.

If you have a D-Link router then it may be limited as to what speed it can acheive even if in ADSL2, there is supposed to be a firmware fix for this.

Cyril

Spyware

2253 posts

Uber Geek
+1 received by user: 467

Lifetime subscriber

# 107586 30-Jan-2008 17:09

http://www.telecom.co.nz/binarys/adslplus_07_dec_2007.pdf

Ross

Spark FibreMAX using Mikrotik CCR1009-8G-1S-1S+

Speed Test

HairyScot

179 posts

Master Geek

# 107595 30-Jan-2008 18:10

Router is DLink DSL-G604T

ADSL Status page shows :-

ADSL Status

ADSL status shows the ADSL physical layer status.

ADSL Firmware Version:		7.03.01.00 - 7.03.01.00 - 7.03.01.00 Annex A - 01.07.2c - 0.54
ADSL Software Version:		V3.02B01T01.NZ.20071120
Line State		Connected
Modulation		ADSL_2plus
Annex Mode		function uiShowAnnex() { var Datapump_ver = "7.03.01.00 Annex A"; var annex; if (Datapump_ver.indexOf("Annex") == -1){ annex = "N/A"; }else{ annex = Datapump_ver.slice(Datapump_ver.indexOf("Annex")); } //alert(annex); document.write(annex); } uiShowAnnex(); Annex A
Max Tx Power		-38 dBm/Hz

Item	Downstream	Upstream	Unit
SNR Margin	14	-14	dB
Line Attenuation	34	18	dB
Data Rate	5450	165	kbps

On the ADSL Config page MODULATION is set as ADSL2+(Multimode)

I see from the Telecom page that full ADSL2 switchover should be completed in February.

Thanks for the info guys.

cokemaster

Nate wants an iphone
3906 posts

Uber Geek
+1 received by user: 33

Mod Emeritus

Trusted

Lifetime subscriber

# 107598 30-Jan-2008 18:32

If the status page is showing DSL2+ as the modem, then its likely connecting as DSL2+ already, except your line conditions prevent a dramatic speed increase.

webhosting |New Zealand connections | geekzone IRC chat
Loose lips may sink ships - Be smart - Don't post internal/commercially sensitive or confidential information!

Spyware

2253 posts

Uber Geek
+1 received by user: 467

Lifetime subscriber

# 107602 30-Jan-2008 18:43

Line conditions appear similar to mine, I went from syncing at 8 mbps to between 10.5 and 11.2 (using Belkin F5D9630) once adsl2+ profile was enabled. Linksys AM300 syncs at 9.8, Netgear DG834G at 7.5 (TI chipset).

Ross

Spark FibreMAX using Mikrotik CCR1009-8G-1S-1S+

Speed Test

cokemaster

Nate wants an iphone
3906 posts

Uber Geek
+1 received by user: 33

Mod Emeritus

Trusted

Lifetime subscriber

# 107604 30-Jan-2008 18:51

I can get better, but here are my sync rates.

Luckily I get throughput to roughly match.

webhosting |New Zealand connections | geekzone IRC chat
Loose lips may sink ships - Be smart - Don't post internal/commercially sensitive or confidential information!

paradoxsm

3000 posts

Uber Geek

Trusted

# 107629 30-Jan-2008 20:49

I have 15444 down and 807 up in this temprorary residence.
My throughput is a consistent 12500 Mbps even at busy times, I'm enjoying it while I have it as I'm leaving Auckland again. (3 years is TOO long!)
I'm leaving this connection active with a server plumbed up though.

farcus

1010 posts

Uber Geek
+1 received by user: 98

# 107982 1-Feb-2008 14:20

HairyScot: Router is DLink DSL-G604T

I see from the Telecom page that full ADSL2 switchover should be completed in February.

Thanks for the info guys.

Looks similar to my exchange - while the equipment has been installed it has yet to be fully implemented - switch over in Feb 2008

trig42

Banana?
4750 posts

Uber Geek
+1 received by user: 1237

Subscriber

# 108595 5-Feb-2008 07:20

You lucky lucky.

I'm in Napier - I'd say the wait for 2+ will be substantial...

farcus

1010 posts

Uber Geek
+1 received by user: 98

# 108601 5-Feb-2008 08:00

Zone 1 (major centres) is due for completion in April. I'd guess that they will start rolling out zone 2 pretty soon after that.

stevenewzealand

26 posts

Geek
+1 received by user: 1

Trusted

Tomizone

# 110251 12-Feb-2008 22:32

ooooooooh! cant wait....Birkenhead in March :(

I'll stick my Tomizone on it then...

kingoe

25 posts

Geek

# 112629 24-Feb-2008 11:12

I have a ADSL2+ compatible router and it's settings can be easily changed to G.DMT or into multi-modem etc.
However I doubt Telecom's DSLAM's and RIM equipment is going to allow ADSL2+ (24,000Kbps) and lucky enough if Telecom gives ADSL2 (12,000Kbps). Even then other ISP's will still prob not get there own DSLAM's to support independance for years, sucks when your port can not get reset by an ISP unless it goes through Telecom.

Though Orcon & Slingshot are trialling Naked DSL & Ihug apparently are trialling in Ponsonby some independant equipment, a good planned infrastructure for those outside of Ponsonby is years away I believe.

Looking here, that there's a good quality connection for the lead-in from PIT, (cable gauge) and the exchange isn't far away still ADSL2+ is a pipe dream in reality if we're talking about Telecom NZ.

cokemaster

Nate wants an iphone
3906 posts

Uber Geek
+1 received by user: 33

Mod Emeritus

Trusted

Lifetime subscriber

# 112632 24-Feb-2008 11:18

What are you talking about? ADSL2+ has already started being rolled out, if you read the wholesale documents found on the Telecom website. A few people (including myself) have noticed the change to DSL2+

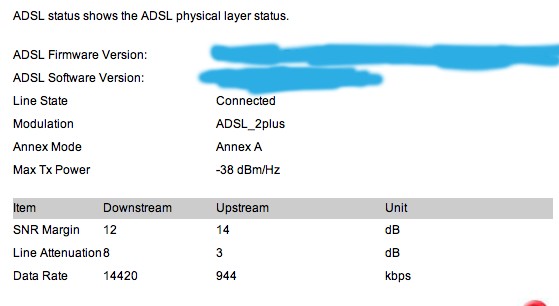

As for ADSL2+ connections... my modem is stating:

Line State Connected
Modulation ADSL_2plus
Annex Mode Annex A
Max Tx Power -38 dBm/Hz

Not such a pipe dream indeed.

webhosting |New Zealand connections | geekzone IRC chat
Loose lips may sink ships - Be smart - Don't post internal/commercially sensitive or confidential information!

Spyware

2253 posts

Uber Geek
+1 received by user: 467

Lifetime subscriber

# 112644 24-Feb-2008 11:48

ISAM deployment 732/741 99%
Exchanges migrated ASAM to ISAM 102/115 89%
Customers migrated to ISAMs 300k/360k 83%
Exchanges enabled as ADSL2+ 100/115 87%
Customers connected to ADSL2+ profile 243k/360k 68%

Ross

Spark FibreMAX using Mikrotik CCR1009-8G-1S-1S+

Speed Test

kingoe

25 posts

Geek

# 112869 25-Feb-2008 11:11

As I stated that ADSL2 is being rolled out as trials in certain area's, basing off attenuation rates ADSL2 seems possible for some people here, but getting ADSL2+ (24meg) here well I'll believe it when I see it - that's when Telecom saying anything like faster speeds, it's well overdue.

I wonder if the splitting of cable as used in heavy suburbian dense areas and apartments, like peer gain method will be fixed to allow ADSL2+.
