Help configure Ubiquiti EdgeRouter Lite with PPPoE and VLAN

Forums › LAN (ethernet/Wifi/routers/Bluetooth) › Help configure Ubiquiti EdgeRouter Lite with PPPoE and VLAN

GeekRay

134 posts

Master Geek

Trusted

#191757 15-Feb-2016 15:21

I am having trouble configuring my ERL for Slingshot UFB that requires PPPoE and VLAN tagging. Would appreciate your wisdom that helps me tame this beast.

My endeavour so far:

Upgraded to V1.7 firmware – working fine as I can log in and access its functions through the new web-based UI
Tried Andrew’s (Aredwood) config file but got error message: Upload failed

Tried to configured one PPPoE WAN port with two bridged LAN ports via Wizard tab: no luck – cannot log back in after reboot. I did change the ethernet cable from Eth 0 to Eth 1 after reboot. When tried to ping this ERL from my Mac, it shows inconsistently with either “host unknow” or “time-out”.

Any tip on what the next step is I may take? Am I not doing the right thing or maybe the hardware has been damaged (I did a few hard-reset during the past couple days)?

Apology for those rookie questions and thanks in advance for your kind support. I searched across the forum but couldn't find any instruction that I can follow.

michaelmurfy

meow
13270 posts

Uber Geek

Moderator

ID Verified

Trusted

Lifetime subscriber

#1492758 15-Feb-2016 17:18

Do a factory restore to start off - lets start off fresh.

Don't use the WAN+2LAN2 wizard - instead run the "WAN+2LAN" wizard but don't configure the 2nd port only since if you use it as a bridge you disable hardware acceleration router-wide.

Next, from the main screen (Dashboard) add a new VLAN interface as VLAN 10, and assign it to the ETH0 interface.

Delete PPPoE0 - recreate it specifying the VLAN 10 interface you just created.

You'll have internet at this stage however it is important to go into Firewall/NAT and set your interfaces up (PPPoE1):

Go to the Firewall Policies page and edit your rules for WAN_IN and WAN_LOCAL to specify the new PPPoE interface. Do a port scan using GRC Sheilds-UP and you should be done!

Michael Murphy | https://murfy.nz
Referral Links: Quic Broadband (use R122101E7CV7Q for free setup)

Are you happy with what you get from Geekzone? Please consider supporting us by subscribing.
Opinions are my own and not the views of my employer.

GeekRay

134 posts

Master Geek

Trusted

#1492839 15-Feb-2016 21:09

Thanks for your instruction, Michael.

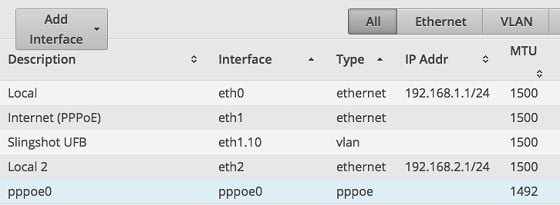

After you first four steps, following is what I got; does it look right to you?

When doing the 5th step (firewall), I don't seem to get what you indicated: "pppoe0" as one of the options on the dropdown box:

Any idea please?

michaelmurfy

meow
13270 posts

Uber Geek

Moderator

ID Verified

Trusted

Lifetime subscriber

#1492914 15-Feb-2016 23:06

Oh for the firewall you need to go to "other" and type "pppoe0" - weird interface quirk there.

I just set up my EdgeRouter from scratch tonight (never again, my config is so complex it took me about 4 hours). I was on the ball with the whole thing except ended up manually configuring it without using the wizards. Essentially you'll plug your ONT into eth1 and plug your network into eth0 with that setup.

As long as you remove the pppoe0 connection and re-add it linking your "eth1.10" interface you should be set to go. I am not familiar with Slingshot UFB but that does look correct. There are easier ways to do it through the CLI however I thought I'd better instruct you through the WebUI to prevent confusion :)

michaelmurfy

meow
13270 posts

Uber Geek

Moderator

ID Verified

Trusted

Lifetime subscriber

#1492915 15-Feb-2016 23:08

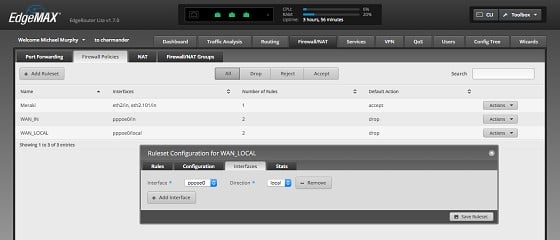

For the firewall page edit your rules like so:

(ignore my top rule)

GeekRay

134 posts

Master Geek

Trusted

#1492981 16-Feb-2016 07:51

michaelmurfy:

Oh for the firewall you need to go to "other" and type "pppoe0" - weird interface quirk there.

Thanks for the tip. This helps my confusion big time.

michaelmurfy:

I just set up my EdgeRouter from scratch tonight (never again, my config is so complex it took me about 4 hours). I was on the ball with the whole thing except ended up manually configuring it without using the wizards. Essentially you'll plug your ONT into eth1 and plug your network into eth0 with that setup.

So if I understand it, the ERL will end up provisioning two LANs based on this configuration, right?

michaelmurfy:

As long as you remove the pppoe0 connection and re-add it linking your "eth1.10" interface you should be set to go. I am not familiar with Slingshot UFB but that does look correct. There are easier ways to do it through the CLI however I thought I'd better instruct you through the WebUI to prevent confusion :)

I guess I overestimate what ERL's WebUI can do at this stage. Let's see if the next version will take care those know quirks. By the way, do you have recommended link if I would like to take the CLI path next time?

Many thanks for your help and I feel apologetic about those four hours you lost ...

GeekRay

134 posts

Master Geek

Trusted

#1494704 18-Feb-2016 10:29

Finally it's up and running. Hooray. Some quick updates as notes to myself and for future search on this topic:

Re The error message I received (at the top of this thread) during loading Andrew's config file, this was due to the thoughtful Mac OS that automatically uncompressed his config file after download, which makes it unrecognisable to the ERL.
Thought ERL has three gigabit ports, it doesn't have a dedicated chip for switch work. This means port-bridging will be done by software and will have impact on its capacity and performance.
Based on the above, I end up having two networks available which is a bonus; not sure what to do with the 2nd one yet.
As I am using HG659B as my AP, the DHCP range needs to be adjusted to avoid IP conflict; HG659B is set at 192.168.1.254 by default.

The ERL isn't the easiest to set up as some have said but I really enjoy its solid performance (and hopefully its reliability). Time will tell. Many many thanks for GZers, especially Michael @michaelmurfy and Andrew @Aredwood.

Paul1977

5058 posts

Uber Geek

#1494731 18-Feb-2016 11:03

On 2Degrees fibre on Enable in Christchurch I found I got dodgy performance until I changed the MTU on pppoe0 to 1500 (which required changing the parent VLAN and ETH to 1508).

Michael, I recall you also had this in your setup - can you advise if it is still required for an optimal connection? Is this ISP specific? Want to make sure I am not giving incorrect advice to the OP.

Sharesies

Trade NZ and US shares and funds with Sharesies (affiliate link).

michaelmurfy

meow
13270 posts

Uber Geek

Moderator

ID Verified

Trusted

Lifetime subscriber

#1494814 18-Feb-2016 11:53

@Paul1977 yes I've set my MTU to 1508 for everything except the PPPoE connection however changed to BigPipe today so hoping that setup still works (I think it is as my connection is up).

Baza

1 post

Wannabe Geek

#1502499 1-Mar-2016 22:24

Hi,

I have followed this thread but cant get a PPPOE connection to SNAP (2degrees). Called 2degrees and they cant see any authentication requests from PPPOE?

Set-up as below any pointers appreciated ( Edgerouter Lite Firmware 1.8)

Interfaces - eth0 (LAN) eth1 ( internet WAN) VLAN10 ( SNAP UFB) eth1.10 pppoe0 - parent is eth1.10

Config.boot

firewall {
all-ping enable
broadcast-ping disable
ipv6-receive-redirects disable
ipv6-src-route disable
ip-src-route disable
log-martians enable
name WAN_IN {
default-action drop
description "WAN to internal"
rule 10 {
action accept
description "Allow established/related"
log disable
protocol all
state {
established enable
related enable
}
}
rule 20 {
action drop
description "Drop invalid state"
state {
invalid enable
}
}
}
name WAN_LOCAL {
default-action drop
description "WAN to router"
rule 10 {
action accept
description "Allow established/related"
log disable
protocol all
state {
established enable
related enable
}
}
rule 20 {
action drop
description "Drop invalid state"
state {
invalid enable
}
}
}
options {
mss-clamp {
mss 1412
}
}
receive-redirects disable
send-redirects enable
source-validation disable
syn-cookies enable
}
interfaces {
ethernet eth0 {
address 192.168.1.1/24
description Local
duplex auto
speed auto
}
ethernet eth1 {
description "Internet (PPPoE)"
duplex auto
speed auto
vif 10 {
description "SNAP UFB"
ip {
}
pppoe 0 {
default-route auto
firewall {
in {
name WAN_IN
}
local {
name WAN_LOCAL
}
}
mtu 1492
name-server auto
password xxxxxxxx
user-id xxxxxxx@snap.net.nz
}
}
}
ethernet eth2 {
address 192.168.2.1/24
description "Local 2"
duplex auto
speed auto
}
loopback lo {
}
}
port-forward {
auto-firewall enable
hairpin-nat enable
lan-interface eth1
wan-interface pppoe0
}
service {
dhcp-server {
disabled false
hostfile-update disable
shared-network-name LAN1 {
authoritative disable
subnet 192.168.1.0/24 {
default-router 192.168.1.1
dns-server 192.168.1.1
lease 86400
start 192.168.1.21 {
stop 192.168.1.240
}
}
}
shared-network-name LAN2 {
authoritative disable
subnet 192.168.2.0/24 {
default-router 192.168.2.1
dns-server 192.168.2.1
lease 86400
start 192.168.2.21 {
stop 192.168.2.240
}
}
}
}
dns {
forwarding {
cache-size 150
listen-on eth0
listen-on eth2
}
}
gui {
https-port 443
}
nat {
rule 5010 {
outbound-interface pppoe0
type masquerade
}
}
ssh {
port 22
protocol-version v2
}
}
system {
host-name ubnt
login {
user ubnt {
authentication {
encrypted-password $1$zKNoUbAo$gomzUbYvgyUMcD436Wo66.
}
level admin
}
}
ntp {
server 0.ubnt.pool.ntp.org {
}
server 1.ubnt.pool.ntp.org {
}
server 2.ubnt.pool.ntp.org {
}
server 3.ubnt.pool.ntp.org {
}
}
syslog {
global {
facility all {
level notice
}
facility protocols {
level debug
}
}
}
time-zone UTC
}

/* Warning: Do not remove the following line. */
/* === vyatta-config-version: "config-management@1:conntrack@1:cron@1:dhcp-relay@1:dhcp-server@4:firewall@5:ipsec@5:nat@3:qos@1:quagga@2:system@4:ubnt-pptp@1:ubnt-util@1:vrrp@1:webgui@1:webproxy@1:zone-policy@1" === */
/* Release version: v1.8.0.4853089.160219.1607 */

michaelmurfy

meow
13270 posts

Uber Geek

Moderator

ID Verified

Trusted

Lifetime subscriber

#1502510 1-Mar-2016 22:44

I can see your PPPoE / VLAN interfaces are not linked - here is mine. Also note I use a MTU of 1508 on all interfaces except the PPPoE interface (which is 1500) and my WAN interface is set to eth0:

interfaces {

ethernet eth0 {

description Internet

duplex auto

mtu 1508

speed auto

vif 10 {

description "BigPipe VLAN"

mtu 1508

pppoe 0 {

default-route auto

firewall {

in {

name WAN_IN

}

local {

name WAN_LOCAL

}

mtu 1500

name-server auto

password yourpasswordhere

user-id user@isp.co.nz

}

miked

207 posts

Master Geek

Trusted

#1562501 30-May-2016 17:30

Very helpful thread.

I'd been struggling to get my Port Forwards working correctly. I'd wondered if the WAN should be set to pppoe0 instead of eth0, but I'd found that wasn't in the list of options in the GUI. However looking at this thread confirmed that was indeed my problem, and how to fix it. Select "other" and then type in "pppoe0".

With that simple change done, everything is now correctly working here now with Port Forwards and Auto-Firewall rules..... all thanks to this thread.

Thanks

Mike

twominutesalad

2 posts

Wannabe Geek

#1569447 10-Jun-2016 14:33

Hey guys.

My EdgeRouter Lite is running the v1.8.0 firmware. It seems that in order to make PPPoE and VLANs work with later iterations of the firmware you have to set it up a little differently:

First add a VLAN (VID of 10) to your WAN interface (in my case eth1 as I used the WAN+2LAN setup wizard)

Secondly, add a PPPoE interface and select the same interface that you did for the VLAN (eth1).

Thirdly, setup the WAN interface under Port Forwarding, and the Firewall Policies as Michael described earlier in this thread.

You should now be good to go!

I hope this helps if anyone is stuck!

twominutesalad

2 posts

Wannabe Geek

#1570398 12-Jun-2016 12:05

Please disregard my last reply, it turns out my ISP (BigPipe) is not using VLAN tagging on (at least some) of their UFB plans now! Just PPPoE.

Makes the setup in the EdgeRouter Lite a lot easier. If you have a provider which uses PPPoE and VLANs still, disregard what I wrote and follow Michael's steps.

Be aware that some of the BigPipe guides still show VLANs being used.

Thanks guys!

michaelmurfy

meow
13270 posts

Uber Geek

Moderator

ID Verified

Trusted

Lifetime subscriber

#1570462 12-Jun-2016 14:02

I'm on BigPipe w/ VLAN 10 anyway ;)

thewanderingv

185 posts

Master Geek

#1573400 15-Jun-2016 14:24

Hi Michael and others,

So I reset my ERL and reconfigured it for Bigpipe (just regular, no VLAN10) last night using the WAN+2LAN option, and using the PPPOE option in the wizard. WAN is ETH1; LAN is ETH0; PPPOE is configured over PPPOE0

Then, when I was trying to get my two raspberry pi DNS servers up and running, I ran into some trouble:

1. SSH logins have suddenly slowed down to a snail's pace - I understand a leading cause of this is the inability for my Mac to run reverse DNS lookups

2. I can no longer do any nslookups on my mac

3. When I set my raspberry pis as the DNS servers, and turn off the DNS forwarding in the ERL, DNS doesn't work.

All of these issues lead me to believe that there are some firewall/port forwarding settings that seem to be wrong.

I went to the Port Forwarding part of the config, and have set the WAN interface as pppoe0 and LAN as eth0. But that didn't seem to help.

Any thoughts? I can paste my config, but thought I'd try the easy way first rather than to have to subject you all to a long piece of code.
