Topic # 217850 15-Jul-2017 10:49
Send private message quote this post

Can anyone confirm that this can will work and what the settings should be?


View this topic in a long page with up to 500 replies per page Create new topic
 1 | 2
6800 posts

Uber Geek
+1 received by user: 2167

Subscriber

  Reply # 1822785 15-Jul-2017 10:56
Send private message quote this post

https://www.spark.co.nz/help/internet-data/getstarted/broadband-settings-for-third-party-modems/



does the device support VLANs on the WAN interface? if not its not going to work as you need to be able assign VLAN10 on the WAN interface for fibre which im assuming you are asking about as you dont specifically say


BDFL - Memuneh
58741 posts

Uber Geek
+1 received by user: 10137

Administrator
Trusted
Geekzone
Subscriber

  Reply # 1822798 15-Jul-2017 11:21
Send private message quote this post

I have a Synology RT2600ac connected to 2degrees fibre. The router does support VLAN tagging - actually this is something I helped implement for New Zealand because the first firmware release had some problems and it was working only on one port (VLAN would disable all other ports). Support issued a fix and this has worked well since then. They issue firmware updates every month or so, including security fixes (Linux CVEs) and other features.













9 posts

Wannabe Geek


  Reply # 1822803 15-Jul-2017 11:29
Send private message quote this post

Thanks for your responses.



Yes it is a fibre connection.



I have updated the router to the latest firmware.



I have set IPTV & VoIP to manual and which is were I suspect that you enable VLAN's and have set it to 10 for lans 1 and 2



Other settings on the WAN side are:



user is set for user@spark.co.nz



password is set to password



connection is set for PPPoE



MTU : 1492



MRU : 1492



Thanks.








9 posts

Wannabe Geek


  Reply # 1822807 15-Jul-2017 11:42
Send private message quote this post

Sorry, I'm new at this... Should have said that the settings above do not work.


BDFL - Memuneh
58741 posts

Uber Geek
+1 received by user: 10137

Administrator
Trusted
Geekzone
Subscriber

  Reply # 1822808 15-Jul-2017 11:42
Send private message quote this post


9 posts

Wannabe Geek


  Reply # 1822811 15-Jul-2017 11:55
Send private message quote this post

Hi Memuneh, What was the also?


BDFL - Memuneh
58741 posts

Uber Geek
+1 received by user: 10137

Administrator
Trusted
Geekzone
Subscriber

  Reply # 1822812 15-Jul-2017 11:59
Send private message quote this post

I posted the reply with a screenshot showing how my router is configured for VLAN.







9 posts

Wannabe Geek


  Reply # 1822814 15-Jul-2017 12:02
Send private message quote this post

Oh ok, the screenshot just came through as a picture box with an X in it?


BDFL - Memuneh
58741 posts

Uber Geek
+1 received by user: 10137

Administrator
Trusted
Geekzone
Subscriber

  Reply # 1822817 15-Jul-2017 12:08
Send private message quote this post

I have changed the image type - refresh the page and see if it loads. If not then you might have something blocking it (adblocker or similar perhaps?)







9 posts

Wannabe Geek


  Reply # 1822818 15-Jul-2017 12:10
Send private message quote this post

Thanks got that now and that is also how I have configured my router....




9 posts

Wannabe Geek


  Reply # 1822825 15-Jul-2017 13:06
Send private message quote this post

I re-powered both the Router and the Chorus ONT at the same time and it came up connected.



I had individually re-powered them both in the past but never together.



Thanks for your help.


BDFL - Memuneh
58741 posts

Uber Geek
+1 received by user: 10137

Administrator
Trusted
Geekzone
Subscriber

  Reply # 1822826 15-Jul-2017 13:09
Send private message quote this post

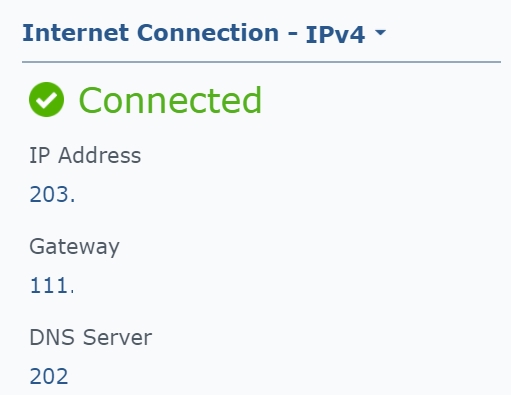

If you check the Internet status does it show "Connected" and a gateway and DNS addresses?





In any case, can you ping Google DNS?





ping 8.8.8.8





If you run nslookup geekzone.co.nz do you get a response? You might want to run nslookup geekzone.co.nz and nslookup geekzone.co.nz 8.8.8.8 to see if you get replies from your ISP DNS or from Google DNS





Server:  ns1.snap.net.nz
Server:  ns1.snap.net.nz
Address:  202.37.101.1
Name:    geekzone.co.nz



Addresses:  2400:cb00:2048:1::6818:30e
2400:cb00:2048:1::6818:20e
104.24.2.14
104.24.3.14









9 posts

Wannabe Geek


  Reply # 1822827 15-Jul-2017 13:11
Send private message quote this post

Yea, all good I'm using it now.


BDFL - Memuneh
58741 posts

Uber Geek
+1 received by user: 10137

Administrator
Trusted
Geekzone
Subscriber



9 posts

Wannabe Geek


  Reply # 1822884 15-Jul-2017 14:02
Send private message quote this post

I re-powered both the Router and the Chorus ONT at the same time and it came up connected.







I had individually re-powered them both in the past but never together.







Thanks for your help.
