So, thought this might be of interest to you all, as suggested by Felix from BigPipe.



Bit of Background



I used to live in central Wellington where I had ADSL2 at about 25mb ish connection speeds. Fibre wasn’t available in my apartment block, but I was happy with that speed… ish… I always wanted more but couldn’t quite get it.



My partner and I bought a rural property in the Upper Hutt Region about 3 years ago. Being our first home together, we were understandably excited. We hastily moved in and got BigPipe to port our ADSL connection over to the new house. To my horror, the best connection speeds possible was <0.5mb and after some investigation work with the BigPipe Support staff (who were really helpful btw), Chorus suggested, based on the maps and their information at hand, that they were surprised we even had a connection at all and should be thankful for that!



Working in IT and being a reasonably keen online gamer, this wouldn’t do. So, the quest for decent internet began!



Discussing my options with some friends in Spark, Chorus had declared they were not going to upgrade the exchanges in the area, nor would they ever run fibre up the street regardless of the fact there are 87 registered businesses and about 300 homes up here (minor details apparently and to be fair the road is about 30 odd km long…). We (the neighbourhood) even petitioned the local MP to help at least get the cabinets upgraded, which turned out to be a fruitless endeavour.



In the end, we decided to look at 4G as an alternative. Satellite was ruled out quickly due to high cost and more importantly, high latency. As with everything on this property, nothing seemed to be easy; 4G at the house was terrain shielded from the tower and even with a x-pol directional antenna, max speeds were around 4 - 5mb. Getting better but still not cool.



Being a lifestyle property in a hilly area, the property extends up a fairly reasonable hill extending from 170m altitude at the road to about 537m. I decided to carry out 4G site surveys on the back of the quad bike, headed up and found a spot only 200m (as the crow flys) from the house that has full signal strength to the cell towers and full LOS to the house. Great!



The Relay Tower V1



I decided to build a 2.4ghz PtP relay tower with 4G as the backhaul link. The site was powered by two 80w solar panels, 2 x 40amp hr 12v batteries in 12v configuration, which had a Sierra Wireless MP70 vehicle modem which acted as the router/firewall attached to them. Speeds where around 50 - 60mb depending on the cell gods at the time. This was AWESOME (compared to what we had…).



But there’s a catch with 4G. One I knew about but conveniently disregarded due to the excitement of decent internet again - finally downloading game updates, discovering Netflix and rediscovering the joys of HD YouTube…



The dreaded DATA CAP.



Within 3 months, the speed was like crack, however along came that first month in which we hit the cap and were reminded that life was not that flash at rural properties when it comes to the Internet. We downloaded (via Netflix, steam and god knows what else) ~450GB over a single month with a 120gb data cap. This was not our finest hour…



We needed an unlimited data cap at max speeds.



Click to see full size  Click to see full size   Click to see full size



Concept PtP and PtMP using Ubiquiti Gear.



As luck would have it, the view from the relay tower, up from the house, we can see Upper Hutt. This gave me hope, we can see all the people that have fibre at around ~8km away LoS. There must be a way.



Asking around I found someone on the opposite side of Upper Hutt on the Hills who had fibre already terminated in their house, and more importantly, had LoS to my relay tower.



To add to the requirement for internet, my parents had purchased the house next door to us about 6 months ago and they needed an Internet connection as well.



The plan was to terminate fibre at this guy’s house, then fire it via a PtP directional 5.8ghz range Wifi 8.8km to the Relay Tower, then rebroadcast to the two houses via a 120-degree sector PtMP 5.8ghz connection.



We chose to use Ubiquiti all the way as my experience with their Unifi products has only being positive and the cost was reasonable.



So, we chose the following products to put a link in place.



  • Ubiquiti USG https://www.gowifi.co.nz/routers/usg.html .
  • Ubiquiti Litebeam AC GEN2 https://www.gowifi.co.nz/wireless/lbe-5ac-gen2.html
  • Ubiquiti Litebeam AC 120 Degree Sector Radio https://www.gowifi.co.nz/wireless/lbe-5ac-16-120.html ; and
  • Ubiquiti Unifi AP Pros for the houses https://www.gowifi.co.nz/wireless-access-points/uap-ac-pro.html
  • Ubiquiti Cloud Controller and the new Ubiquiti Network Management Server (UNMS) running on an Ubuntu Server hosted in MS Azure Cloud to control and manage the entire network. More info here https://www.ubnt.com/software/

Here’s the proposed network topology.









Here is the LoS Profile according to airlink.ubnt.com











The Relay Tower V2



The relay tower is basically a 2.4mx200x200 H5 Pole as the Mast Base, anchored in the ground with about 75kg of concrete and steel concrete anchors. During the upgrade I installed a 40mm galv steel pipe acting as actual mast with wire stays welded mid-way up (previous pole was a 15mm galv pipe with no stays attached). The new pole is attached to the base via two 12mm thick galv steel plates welded to the pole and bolted to the base using 2 x M12 250mm bolts. There is some green anti-rust paint covering the welds to protect them.



The Ubiquiti equipment is all 24v PoE so a new single 270w 24v solar panel was acquired. It also has two new 12v 120amphr AGM batteries wired for 24v. The calculations I did with Reid Technologies in Auckland worked out it could last about 2 or 3 days without sunlight so it’s overkill but it gives me room to add things like a LoRaWAN system later if I wanted to.

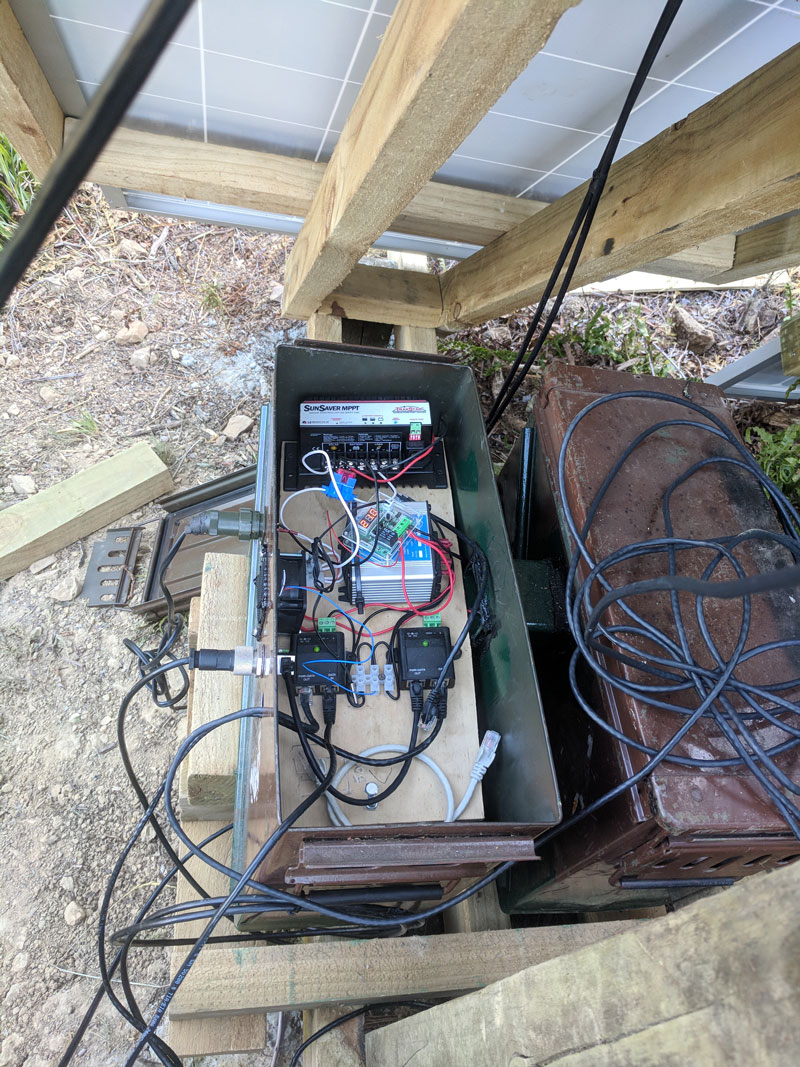

The housing for the batteries and systems are two ex-army 50cal ammo tins, with a pipe welded between them for airflow. These tins are attached to the mast/solar frame to add weight to it and stop it flying away. A 12v digital fan controller monitors the temps inside the ammo tins which turns a fan on when the temp hits 30 degrees, keeping everything nice and cool. The fan controller has a step-down convertor from 24v to 12v too.  The fan intake and outflow are dust filtered and have RF shielding over top, mainly to stop bugs from getting in it but does reduce any residual noise to the environment from the solar controller which may(?) cause interference… but let’s be real, its mainly for the bugs... The battery boxes are then covered with a plywood box to stop the sun from hitting the metal and cooking everything as well as adding a second protection layer from the elements.



To power the radios, I used two gigabit passive PoE injectors, which have been patched together with ethernet, so no switch required. https://www.gowifi.co.nz/power/apoe03g.html



So far, the wind loading on the site hasn’t been too extreme (compared to what we can get), I believe its survived about 120kmph winds thus far. The concrete is dug into clay rock (which required a jack hammer to “dig” the hole) and, coupled with the weight of the batteries attached to the frame, I’m not expecting to see it go anywhere anytime soon.



On the mast itself, I mounted the 120-degree PtMP sector antenna up high, as it can handle a little vibration, however the PtP firing over 8km is mounted low to give the maximum stability. It also made it a lot easier to sight the antenna in, as I could reach it without a ladder. In the recent high winds, I could not see any movement on the antenna at all so think its solid.  I’ve used Ubiquiti outdoor CAT6 STP for the cabling as well.



Click to see full size   Click to see full size   Click to see full size   Click to see full size







Total Cost



All up, we have spent around $2400 so far on the upgrade to the relay tower and all the radios required. So not bad considering what it could have been.







The REAL QUESTION: Was it worth it????



So all the radios are advertised to reach 450+ Mbps and keeping in mind the alignment, I don't believe, is quite right yet, so I think its only running at 60 - 75% capacity. Here is what we actually achieved:

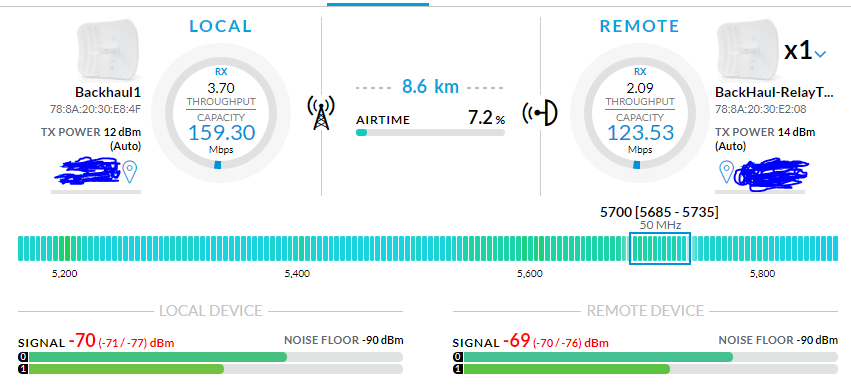

Link Speed Tests Between Fibre Termination Point and Relay Tower







Constellation Diagrams





Current Fibre connection from BigPipe is only 200Mbps currently, with a speedtest of about 189Mbps at the firewall.



Speedtest.net results from the house on the other side of the link to the fibre.





And downloading a random game from Steam





So in Summary, YES VERY MUCH WORTH IT.







Possible Enhancements



If we wanted to up the speed, the radios will need to be changed to get a better throughput. In which case I would consider looking at the Ubiquiti airFiber 5 radios https://www.ubnt.com/airfiber/airfiber5/ which can get speeds of 1.2Gbps. However, at approx. $1300 an end, and realising that they are 48v PoE meaning more batteries, solar panels and a 48v charge controller…. I am going to have to gain some serious (read not achievable) brownie points with the Mrs to let me do that or win Lotto… either way, I think I have the best possible connection I can get with the money we have invested currently.







Lessons Learned (well kinda)



For anyone wanting to do something similar, here are some lessons I learned along the way…



  • Antenna Masts need to be insanely stable for the PtP link. The longer the distance, the more stable the antennas MUST be. 1 degree of movement can put you off tens to thousands of metres at the other end depending on distance! Wind vibration is a pain, so engineer it well.
  • Ubiquiti gear is SUPER easy to setup and using things such as Constellation Maps is ACTUALLY helpful so read up on wtf they are if you don’t know! I didn’t know until I needed to figure out what end was affected by the wind!
  • Don’t over think the network topology, think security yes but don’t go nuts on separate networks for everything as it makes it really hard to diagnose problems… of course if you are a keen network engineer or a person with way too much time on your hands, go nuts.
  • Do not underestimate the total cost of the setup. I budgeted $2000, in the end some things were cheaper but others like the MTTP Solar controller where way more expensive than expected.
  • With saying that, go MTTP instead of PVM for the solar controller. You’ll get longer battery life saving you in the long run. Just make sure you do the power budget appropriately so you have room to move if you choose to add kit later or we have a really bad winter.
  • Vegetation likes to grow around your solar panel, particularly if it’s in the bush… This sounds obvious but after a few months if you get random issues like power problems or a decrease in speed, it’s worth going to the relay station and checking the vegetation and cleaning the panel.
  • VISUALLY CHECK LOS BEFORE YOU BUILD AND TERMINATE ANYTHING! Seriously, do not solely rely on tools such as airlink.ubnt.com, although they are super helpful. Check the visual line of sight before you build. On our first attempt at the backhaul link, we discovered 20 odd 40-50m high Pine trees in the way! Would have been a great shot otherwise!
  • Pine Tree Needles are the perfect length to really stuff up your wifi link particularly when wet… They are the right wavelength to wipe out your link so AVOID PINE TREES IF POSSIBLE.
  • Ubiquiti radios in AP mode have a feature called AirMagic. This is your friend when selecting the right freq at the right channel width to ensure maximum data rates and more importantly stability of the link. Going to a thinner channel may mean your throughput is actually better based on a more stable link. Just make sure your receiving station is set to receive what ever channel width you choose!
  • Ubiquiti also has a feature which allows you to TEST a configuration. So, once you have the link established and aligned right, you can make small changes and test them. If the link doesn’t come back after 120 seconds then it reverts back. SUPER handy!
  • Aligning antennas takes longer the further the endpoints are from each other. Don’t think you can achieve it in 10mins for an 8km shot unless your either lucky or just amazing at aligning things you can barely see with bino’s. This process turned out to be really painful, but good communication between the endpoints is key. And only one side adjust at a time!
  • Think through the remote management of all the kit before you go buying it. The cloud controller and Ubiquiti Network Management Server (UNMS) has made life soooooo much easier including firmware updates.
  • Think about the environment of where your kit is going to be put. The Ubiquiti USG at our first endpoint for example was in a metal uninsulated shed. We discovered that the USG has NO temperature sensor so could not notify us of heat issues. You need the USG Pro for that feature!
  • Lastly, BigPipe have been awesome to deal with. Recommend them.

View this topic in a long page with up to 500 replies per page Create new topic
 1 | 2
5186 posts

Uber Geek
+1 received by user: 1681


  Reply # 1955170 11-Feb-2018 13:39
One person supports this post
Send private message

What a great first post - welcome to GZ.



Did you consider wind rather than solar given the locations seem to be windy?


2489 posts

Uber Geek
+1 received by user: 684


  Reply # 1955171 11-Feb-2018 13:39
One person supports this post
Send private message

Very interesting and informative read, thanks!

Are Bigpipe supporting that the 2 (or three?) houses are all ‘sharing’ the one connection?

I just wonder how this will work out when/if more people begin to realise that 1Gbs fibre (shared 4 or 5 ways) is cheaper than 4 or 5 separate 200/20 connections and not often than not would give a far better performance overall too 🤔







27250 posts

Uber Geek
+1 received by user: 6684

Moderator
Trusted
Biddle Corp
Lifetime subscriber

  Reply # 1955172 11-Feb-2018 13:42
Send private message

Great work!



Your signal strength and chain being out of balance will be affecting the speed as it shows the radios aren't perfectly aligned. Ideally you should be aiming for something in the -50s, and personally I would have opted for a bigger radio for a link over that distance. You will also be getting a lot of noise shooting over an urban area.












9 posts

Wannabe Geek
+1 received by user: 11


  Reply # 1955175 11-Feb-2018 13:47
Send private message

RunningMan:



What a great first post - welcome to GZ.



Did you consider wind rather than solar given the locations seem to be windy?





Yes considered wind however from what I have heard from my neighbors and work stories, too much wind becomes a concern. The solar works great however, and when the batteries are fully charged the controller manages everything. The cost of solar isnt that bad either, Reid Technologies in Auckland do great deals on the panels and the controllers.











PhantomNVD: Very interesting and informative read, thanks!

Are Bigpipe supporting that the 2 (or three?) houses are all ‘sharing’ the one connection?

I just wonder how this will work out when/if more people begin to realise that 1Gbs fibre (shared 4 or 5 ways) is cheaper than 4 or 5 separate 200/20 connections and not often than not would give a far better performance overall too 🤔







Working with my contacts at Spark I tried to go down the route of being a bearer for them so they could manage it if the other houses around me wanted access, but they werent interested. My parents arent what I would call "big users" so Im not expecting massive bandwidth usage from them.



If I do go down the commercial route and provide it to the other houses, I would prefer to get a commercial connection and perhaps carrier grade radios as well. I dont want to deal with "customers" when the link goes down for whatever reason.




9 posts

Wannabe Geek
+1 received by user: 11


  Reply # 1955176 11-Feb-2018 13:49
Send private message

sbiddle:



Great work!



Your signal strength and chain being out of balance will be affecting the speed as it shows the radios aren't perfectly aligned. Ideally you should be aiming for something in the -50s, and personally I would have opted for a bigger radio for a link over that distance. You will also be getting a lot of noise shooting over an urban area.









Cheers! Yeah still got some engineering to do but the rain is stopping me at the moment. Agreed on the bigger radio, the first link we tried to do was half the distance (about 4.2km) over rural only so thought it would be fine. Pine Trees however ruined that idea...






Mr Snotty
8072 posts

Uber Geek
+1 received by user: 4049

Moderator
Trusted
Lifetime subscriber

  Reply # 1955200 11-Feb-2018 14:01
Send private message

This is simply awesome! You should also post on the https://community.ubnt.com/ stories section as Ubiquiti will often send you free swag for doing so (or, you know, may even "help" you with an airfibre).







9 posts

Wannabe Geek
+1 received by user: 11


  Reply # 1955201 11-Feb-2018 14:03
Send private message

michaelmurfy:



This is simply awesome! You should also post on the https://community.ubnt.com/ stories section as Ubiquiti will often send you free swag for doing so (or, you know, may even "help" you with an airfibre).









Cant argue with the possibility of free swag! hahahaha Thanks!






Mr Snotty
8072 posts

Uber Geek
+1 received by user: 4049

Moderator
Trusted
Lifetime subscriber

  Reply # 1955204 11-Feb-2018 14:11
One person supports this post
Send private message

I may as well add I LOVE the use of the ammo boxes :) Would love to go take a look one day.



Edit: You may want to consider the Edgerouter 4 (or an Edgerouter) for your endpoint in the future as these can be integrated with UNMS nicely. The Edgerouter 4 doesn't generate as much heat as the Edgerouter Lite or the USG:



Click to see full size





1586 posts

Uber Geek
+1 received by user: 156

Trusted

  Reply # 1955241 11-Feb-2018 15:20
Send private message

This is awesome, 100% got me thinking of how to help the inlaws with their rubbish ADSL (not as bad you your's however)





CPU: Intel 3770k| RAM: F3-2400C10D-16GTX G.Skill Trident X |MB:  Gigabyte Z77X-UD5H-WB | GFX: GV-N660OC-2GD gv-n660oc-2gd GeForce GTX 660 | Monitor: Qnix 27" 2560x1440






defiant
689 posts

Ultimate Geek
+1 received by user: 329

Lifetime subscriber

  Reply # 1955244 11-Feb-2018 15:50
Send private message

Awesome post.



Another +1 for the ER4, and also when Murph comes up to take a look I'll tag along :p



How come you opted for Azure over AWS for the cloud VM?


'That VDSL Cat'
9051 posts

Uber Geek
+1 received by user: 1992

Trusted
Spark
Subscriber

  Reply # 1955311 11-Feb-2018 17:29
Send private message

Very impressive work!







looks like solid bracing for that wellington wind too.



How's communications with the other party? with a few links i've had my hand in the social and organizing aspect there is the worst part of it all!





#include <std_disclaimer>



Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.




9 posts

Wannabe Geek
+1 received by user: 11


  Reply # 1955348 11-Feb-2018 18:01
Send private message

nas:



Awesome post.



Another +1 for the ER4, and also when Murph comes up to take a look I'll tag along :p



How come you opted for Azure over AWS for the cloud VM?





Cheers, only just found out about the ER range, they look cool and come recommended.



I choose Azure as I have a MSDN subscription so get a 250$ credit every month there. Plus its the platform of choice for my work so know it well.


1586 posts

Uber Geek
+1 received by user: 156

Trusted

  Reply # 1955432 11-Feb-2018 20:52
Send private message

Does the rain impact the link quality at all, and do you have any high voltage power lines in the LoS?





CPU: Intel 3770k| RAM: F3-2400C10D-16GTX G.Skill Trident X |MB:  Gigabyte Z77X-UD5H-WB | GFX: GV-N660OC-2GD gv-n660oc-2gd GeForce GTX 660 | Monitor: Qnix 27" 2560x1440








9 posts

Wannabe Geek
+1 received by user: 11


  Reply # 1955433 11-Feb-2018 20:54
Send private message

mentalinc:



Does the rain impact the link quality at all, and do you have any high voltage power lines in the LoS?





Rain doesnt seem too affect it that I have noticed. Once the alignment is right Ill be able to tell more.



There are high voltage lines between the two points, believe we shoot over them however with a reasonable clearance (maybe 20 - 30m). Not sure how much they are affecting us however.


781 posts

Ultimate Geek
+1 received by user: 475


  Reply # 1955702 12-Feb-2018 13:53
One person supports this post
Send private message

Cool, nicely done. This is my kind of project.



This is what they should have done in Outram.
