Topic # 239899 9-Aug-2018 21:07
Send private message quote this post

I got a Netcomm NF18ACV from Slingshot with landline function enabled and an Edgerouter Lite.



If I was to use the routing function of my Edgerouter while keeping the NF18ACV for switching and VOIP, can someone tell me how to set up the NF18ACV modem?



* the Edgerouter is working fine by itself even with the NF18ACV behind it as a switch, but the telephone port isn't working in this setup.



Many thanks


Create new topic
6312 posts

Uber Geek
+1 received by user: 293

Trusted
Subscriber

  Reply # 2070933 9-Aug-2018 21:14
Send private message quote this post

Hi, so I am guessing you have the NF connected to the edge router via one of its LAN ports, if so that is probably the issue, the VOIP part is looking for an uplink via its WAN port.



So if you want to use the VOIP service you might need to forgo the switch aspect of the NF, connect it to your edge router via the WAN port use either a static IP in the edgerouters lan or DHCP and see if you get VOIP service back. It will be double nat'd but should work. That said I am not too sure of Slingshots VOIP service.



Then just get a switch, they are not worth much, $30



Cyril




117 posts

Master Geek
+1 received by user: 13

Trusted

  Reply # 2070936 9-Aug-2018 21:22
Send private message quote this post

Thanks for your speedy answer, Cyril.

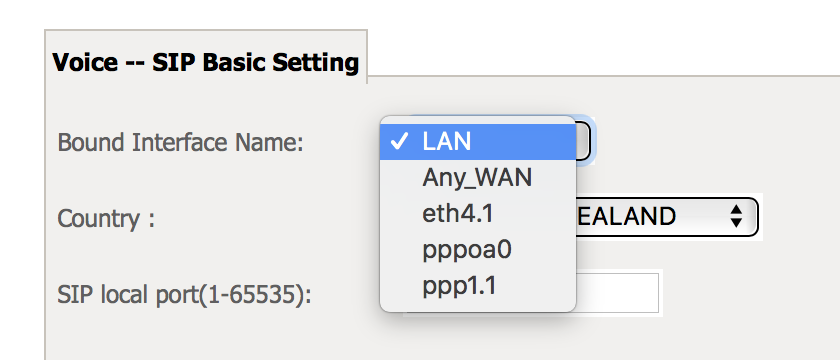

While checking through its VOIP settings, I found this interesting option:





Can this tell NF to find the uplink from a different interface?






27061 posts

Uber Geek
+1 received by user: 6508

Moderator
Trusted
Biddle Corp
Lifetime subscriber

  Reply # 2070937 9-Aug-2018 21:24
One person supports this post
Send private message quote this post

You need to switch your Edgeroter to be your primary router and then reconfigure the NF18ACV to plug into a LAN port and get a local IP making sure you disable the SIP ALG  in the Edgerouter.



If this doesn't work there is no real other solution. You need to use your RSP supplied hardware, or move to a RSP better suited to your requirements if you don't like their restrictions.










6312 posts

Uber Geek
+1 received by user: 293

Trusted
Subscriber

  Reply # 2070938 9-Aug-2018 21:24
Send private message quote this post

Hi as I say not played with slingshots voio, but otherwise yes give it a go, I assume it was on any wan originally.

Cyril



117 posts

Master Geek
+1 received by user: 13

Trusted

  Reply # 2071110 10-Aug-2018 10:09
Send private message quote this post

cyril7: Hi as I say not played with slingshots voio, but otherwise yes give it a go, I assume it was on any wan originally.

Cyril



Yes, it was on AnyWAN as default. I tried both LAN and AnyWAN but haven't got any luck yet.



sbiddle:



You need to switch your Edgeroter to be your primary router and then reconfigure the NF18ACV to plug into a LAN port and get a local IP making sure you disable the SIP ALG  in the Edgerouter.



If this doesn't work there is no real other solution. You need to use your RSP supplied hardware, or move to a RSP better suited to your requirements if you don't like their restrictions.





Thanks for the instruction, Sbiddle.



  • Set up Edgerouter as DHCP and router - (tick)
  • Disable SIP ALG - (tick, and something completely new to me)
  • Configure NF18ACV: local IP + disable DHCP + link Edgerouter via LAN port (tick)

Result: not working yet.



I know the easy solution might be either using RSP hardware or getting a ATA, but I prefer starting with what I have so I can reduce the gears I accumulate.
