Can't get EdgeRouter X working on Spark: Fibre box on wall > EdgeRouter X

Forums › LAN (ethernet/Wifi/routers/Bluetooth) › Can't get EdgeRouter X working on Spark: Fibre box on wall > EdgeRouter X > Google WiFi primary pod

lawilson97

49 posts

Geek

#267907 17-Feb-2020 16:21

Hello all,

Firstly, I've done this same setup at another house with Vodafone - it was my first time and it didn't take long.

This attempt, with Spark (not sure if it makes any significant difference), has been a nightmare. I have run the ipsec and hwnat commands as well.

My setup is: Fibre box on wall > EdgeRouter X > Google WiFi pod > (2 more pods spaced throughout house).

Initially, I went through the basic setup provided by this guide: https://www.youtube.com/watch?v=aECPxlT6Qq4 with no such luck.

Then, I tried it again using the settings provided by Spark: https://www.spark.co.nz/help/internet/set-up/non-spark-modem/ - no luck there either. I'm also not sure whether it should even be under PPPoE or DHCP.

I then tried this tutorial, which everyone has said worked for them: https://www.geekzone.co.nz/forums.asp?forumid=66&topicid=205740 - not for me, I am assuming I've done something wrong.

After being quite sure everything has been set up properly, I plug the ONT into Eth0 and the Google WiFi master pod into the Eth1 port. The Google WiFi (according to the app on my phone) just says everything is offline - everything is even greyed out, so I can't reset settings and such.

I've been having to take the ER-X upstairs and plugging it into my PC, changing the settings, bring it downstairs, plug everything in and do this over and over with different tutorials, to no avail. Anyone have any idea what's happening?

sbiddle

30853 posts

Uber Geek

Retired Mod

Trusted

Biddle Corp

Lifetime subscriber

#2422563 17-Feb-2020 16:26

Are you remembering the VLAN10 tagging?

lawilson97

49 posts

Geek

#2422564 17-Feb-2020 16:28

sbiddle:

Are you remembering the VLAN10 tagging?

If you mean setting the VLAN ID to 10, that is what I've done - is that the correct thing to do?

dfnt

1511 posts

Uber Geek

Lifetime subscriber

#2422565 17-Feb-2020 16:29

Post a screenshot of the main page on the EdgeRouter X

As above, you probably don't have vlan 10 configured correctly on eth0

lawilson97

49 posts

Geek

#2422570 17-Feb-2020 16:39

dfnt:

Post a screenshot of the main page on the EdgeRouter X

As above, you probably don't have vlan 10 configured correctly on eth0

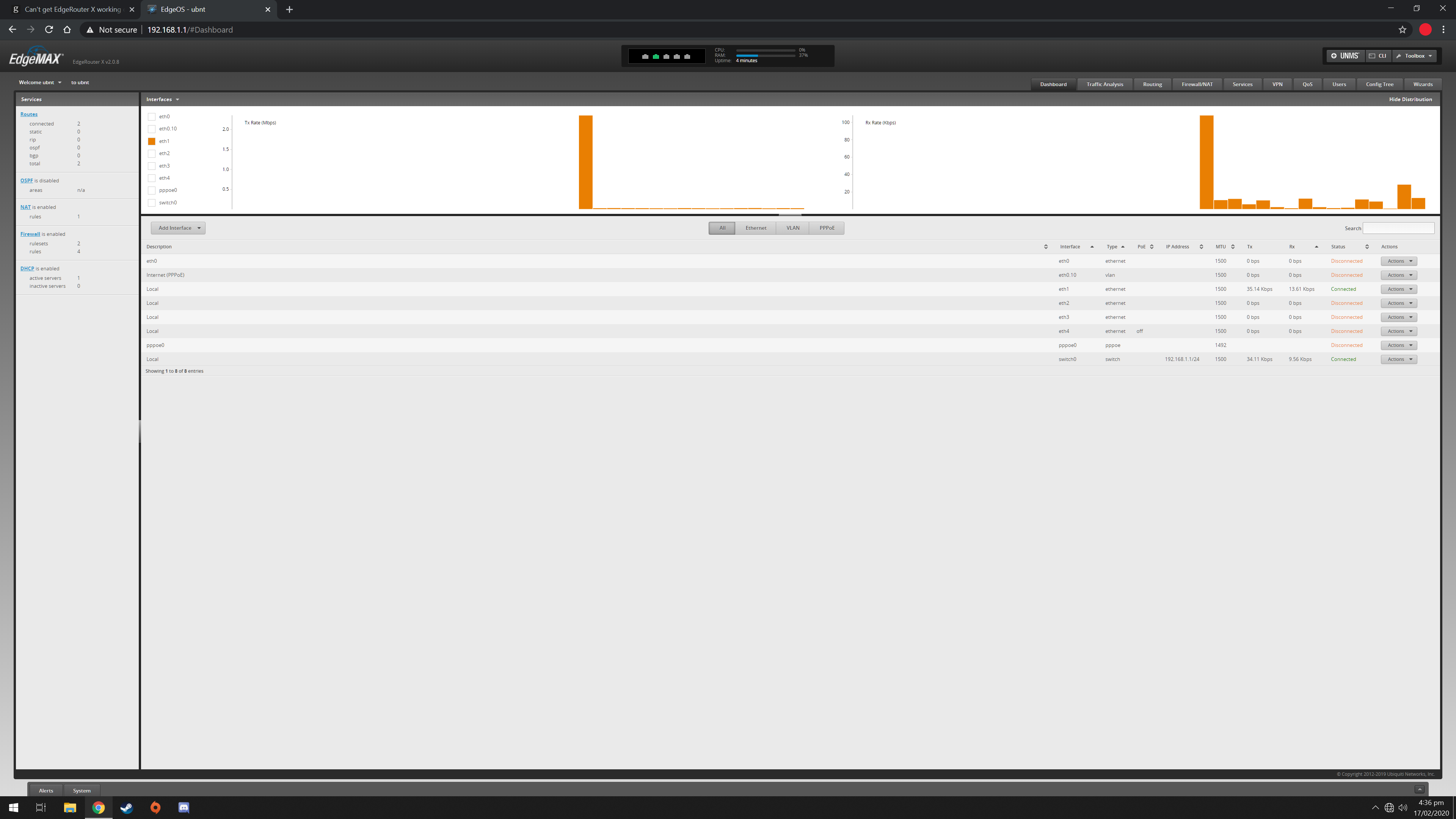

Sure, here you go - hope this is what you need:

dfnt

1511 posts

Uber Geek

Lifetime subscriber

#2422614 17-Feb-2020 16:44

Can you edit the pppoe0 interface, does it show eth0.10 as the interface associated with it?

Have you also added user@xtrabb.co.nz and any password as well?

Also, you don't have anything connected to eth0 - is this because you're posting from your other router in the mean time?

lawilson97

49 posts

Geek

#2422620 17-Feb-2020 16:52

dfnt:

Can you edit the pppoe0 interface, does it show eth0.10 as the interface associated with it?

Have you also added user@xtrabb.co.nz and any password as well?

Also, you don't have anything connected to eth0 - is this because you're posting from your other router in the mean time?

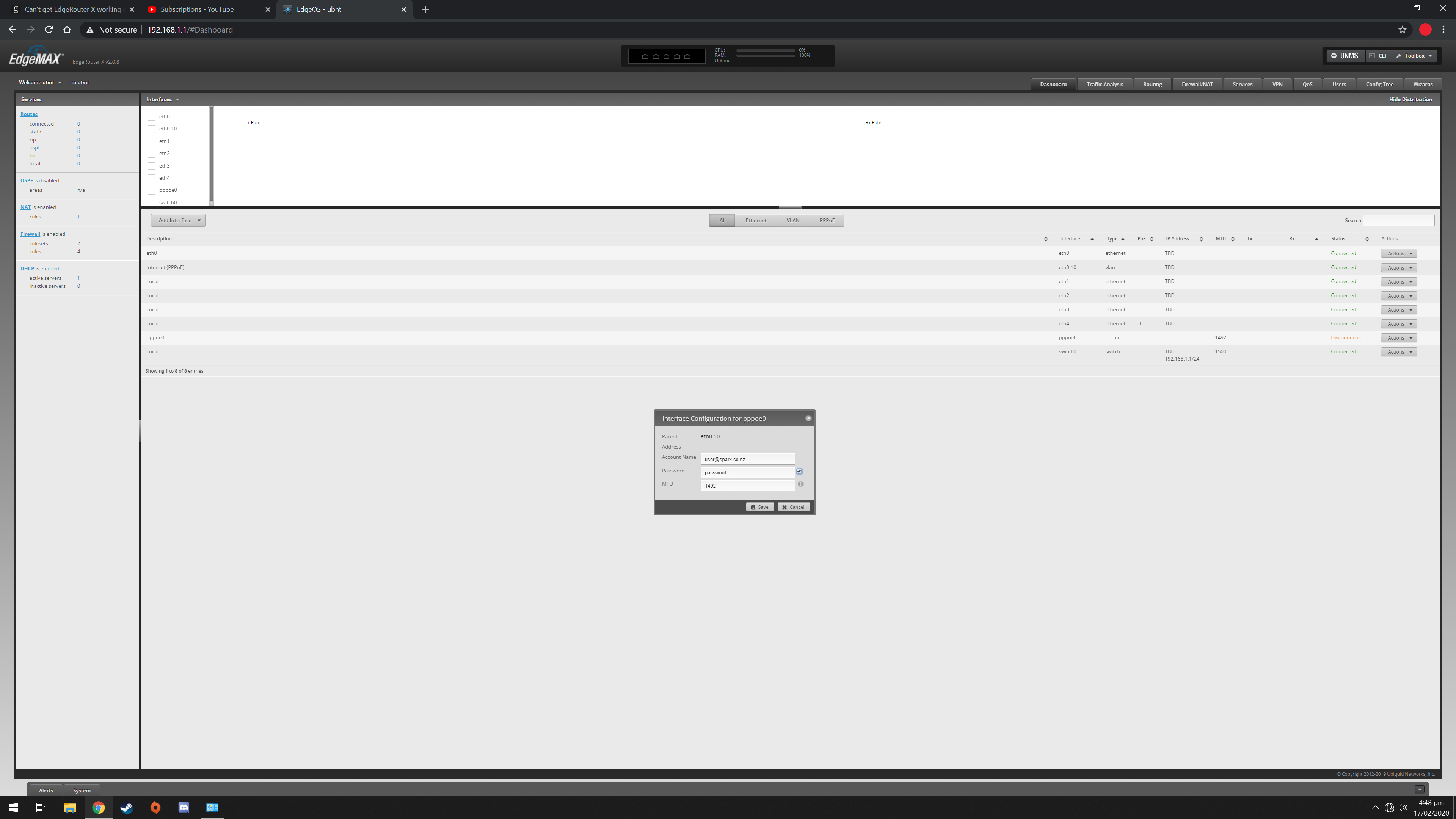

Here's a screenshot of this interface - I'm using the account/password that Spark says on their non-Spark modem setup page (linked in my original post) And yes I'm using the old router to be able to access the internet at the moment.

EDIT: I've also noticed that the interfaces go in and out of the 'connected' status a lot... even though nothing's connected apart from Eth1.

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#2422623 17-Feb-2020 16:57

Based on the above screenshot, Can i just confirm there is actually a cable from Eth0 on the Edgerouter to Port 1 of the ONT?

is the light itself actually lit up?

actually, is this because you are using your computer away from the ont to configure? If so please DM me your details..

Wanna make sure your not flagging something..

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

Equinox IT

Cloud spending continues to surge globally, but most organisations haven’t made the changes necessary to maximise the value and cost-efficiency benefits of their cloud investments. Download the whitepaper From Overspend to Advantage now.

lawilson97

49 posts

Geek

#2422632 17-Feb-2020 17:08

hio77:

Based on the above screenshot, Can i just confirm there is actually a cable from Eth0 on the Edgerouter to Port 1 of the ONT?

is the light itself actually lit up?

actually, is this because you are using your computer away from the ont to configure? If so please DM me your details..

Wanna make sure your not flagging something..

When the EdgeRouter X is actually plugged into the ONT, it is plugged into the first port (GET1, I think it's called), which is the same as the regular old router uses, and into Eth0 of the ER-X.

Three lights light up on the EdgeRouter - power, eth0 and eth1. Have no idea how I'd be able to tell if it is caused by me configuring it without it being plugged into the ONT at the same time, will DM you based on your reponse to this one.

Cheers!

dfnt

1511 posts

Uber Geek

Lifetime subscriber

#2422646 17-Feb-2020 17:40

That all looks correct tbh

When eth0 is plugged in, does the pppoe0 interface get an IP address? It should display your public IP address once its authenticated.

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#2422647 17-Feb-2020 17:41

lawilson97:

hio77:

Based on the above screenshot, Can i just confirm there is actually a cable from Eth0 on the Edgerouter to Port 1 of the ONT?

is the light itself actually lit up?

actually, is this because you are using your computer away from the ont to configure? If so please DM me your details..

Wanna make sure your not flagging something..

When the EdgeRouter X is actually plugged into the ONT, it is plugged into the first port (GET1, I think it's called), which is the same as the regular old router uses, and into Eth0 of the ER-X.

Three lights light up on the EdgeRouter - power, eth0 and eth1. Have no idea how I'd be able to tell if it is caused by me configuring it without it being plugged into the ONT at the same time, will DM you based on your reponse to this one.

Cheers!

Right perfect, There is a possibility you still have the DHCP client also running (sometimes called "Detect Internet") if so that will be stopping your PPPoE Session - DM me your details and i'll confirm.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#2422673 17-Feb-2020 18:35

Responded in DM, however this is a common issue... so probably worth responding without the extra detail here.

1. Your router is dialing DHCP which is blocking the port (Rate limited authentication).

2. You have two PPPoE Sessions trying to connect on your router, the first is establishing (gaining IP) and then being terminated by the repeated attempts to authenticate. (at which stage the combination of all the requests is again, rate limiting you)

3. The reason this worked on vodafone, is because they don't enforce restrictions at all in terms of multiple connections on the BNG.
