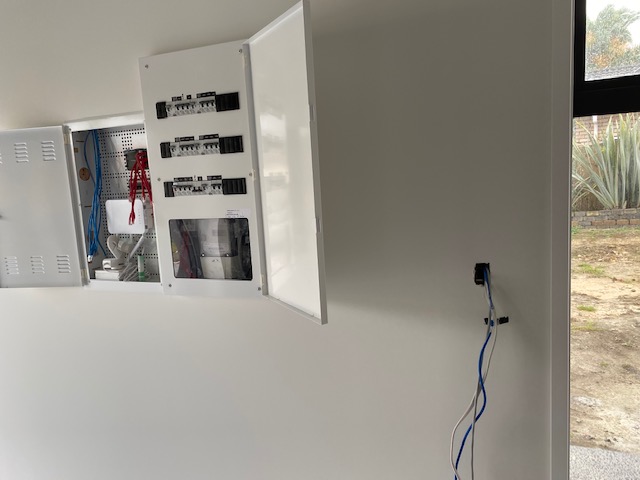

I have a work mate that is a couple of days away from finishing up a house build. The other day chorus installed the ONT in the Comms cabinet. But due to the way the ONT is plugged into the power point the cabinet door can't be closed.

He is also concerned that there will not be any space to put the modem. Looking at the Ethernet cables they appear to already be terminated and as there aren't a huge number of them (he isn't a techie) he probably won't need a patch panel. I don't know what the red cables are?

I have advised him to get a separate AP and plug it into the living room/office data point as if his modem/wifi is in the comms cabinet he will get terrible wifi performance.

Anyone have any advice as to what he should be asking the electrician/vodafone to do?

Cheers

Electric kiwi signup credit Sharesies credit

cyril7

9058 posts

Uber Geek

ID Verified

Trusted

Subscriber

#2506939 17-Jun-2020 20:24

Hi what a right royal, anyway just get a basic power strip to allow you to sort the ont plug pack in a useful angle. Get rid of the phone module that all the red patch leads are plugged into which will leave room for the router. Then have the blue cat6 leads terminated on the lower patch panel.

Cyril

Dynamic

3866 posts

Uber Geek

ID Verified

Trusted

Lifetime subscriber

#2506954 17-Jun-2020 20:48

Maybe get a little power board with a rear-entry plug (the cord sticks straight up away from the socket) and plug the ONT into this?

“Don't believe anything you read on the net. Except this. Well, including this, I suppose.” Douglas Adams

Referral links to services I use, really like, and may be rewarded if you sign up:
PocketSmith for budgeting and personal finance management. A great Kiwi company.

cyril7

9058 posts

Uber Geek

ID Verified

Trusted

Subscriber

#2507043 18-Jun-2020 07:17

Oh, just noticed that the sparkie has termianted the cat6 cables with plugs, this is not ideal, but as its done you can also remove the patch panel. Clearly the sparkie needs retraining

Cyril

Froglotion

208 posts

Master Geek

#2510994 23-Jun-2020 20:57

As mentioned i'd just chuck a multiboard in there, cable tie it to the back of the box, then plug the router brick in to that.

Install a cheap switch in there, plug the blue cables into the switch, then the switch into the router. Then as you say, install a wireless AP somewhere central connected to one of the wall network sockets. Should be good then. My parents had theirs setup similar, that's what I did as I couldn't be bothered running more wiring.

SomeoneSomewhere

1802 posts

Uber Geek

Lifetime subscriber

#2510995 23-Jun-2020 21:07

Urgh. Sparkie here who's had to deal with those boards.

If you use a horizontal socket, you can get the issues OP is having.

If you use a vertical socket, plugs that stick sideways (like some FritzBoxes have) don't fit either. This was usually OK until Chorus switched from in-line adapters to plugpacks.

I resorted to taking an angle grinder to them and mounting a socket to the back on a shallow mounting block. This worked fairly well. You can also install one of each, but it still doesn't work *well*.

As for the box with the red cables, it looks like it might say DSL splitter? Very odd and probably unnecessary. If you pull the push-pins, you can probably just remove it.

bignose

142 posts

Master Geek

#2511063 23-Jun-2020 21:49

cyril7:
Oh, just noticed that the sparkie has termianted the cat6 cables with plugs, this is not ideal, but as its done you can also remove the patch panel. Clearly the sparkie needs retraining

Cyril

given the 'quality' of the work in that cabinet first thing I'd be doing is running a tester on the cable runs to check those terminations (and the termination at the far end) - and then when you find they're as bad as the rest of the work just cut the ends off, punch down onto the un-used patch panel (re-punch the other end too)

blackjack17

1705 posts

Uber Geek

#2512874 26-Jun-2020 14:08

So my work mate is still having issues and would like to get someone in to just sort it for them. Does anyone have any recommendations. He is in Takanini Auckland.

Is @coffeebaron still around?

How do you tag people?

Electric kiwi signup credit Sharesies credit

Equinox IT

Cloud spending continues to surge globally, but most organisations haven’t made the changes necessary to maximise the value and cost-efficiency benefits of their cloud investments. Download the whitepaper From Overspend to Advantage now.

coffeebaron

6231 posts

Uber Geek

Trusted

Lifetime subscriber

#2512990 26-Jun-2020 15:23

blackjack17:

So my work mate is still having issues and would like to get someone in to just sort it for them. Does anyone have any recommendations. He is in Takanini Auckland.

Is @coffeebaron still around?

How do you tag people?

Yep still around, not as many Auckland trips these days - but I will be heading up there early next week. PM me details if your mate needs some work done.

Rural IT and Broadband support.

Broadband troubleshooting and master filter installs.
Starlink installer - one month free: https://www.starlink.com/?referral=RC-32845-88860-71
Wi-Fi and networking
Cel-Fi supply and installer - boost your mobile phone coverage legally

Need help in Auckland, Waikato or BoP? Click my email button, or email me direct: [my user name] at geekzonemail dot com

shrub

775 posts

Ultimate Geek

ID Verified

#2513023 26-Jun-2020 15:59

I've seen this so many times where family and friends have hit me up to look into why data points are not working. Normally its because they are patched to the phone spliter or only the blue wires are terminated...

Looks like a spec build where the sparky clearly has no clue about data.

blackjack17

1705 posts

Uber Geek

#2513227 26-Jun-2020 19:45

coffeebaron:
blackjack17:

So my work mate is still having issues and would like to get someone in to just sort it for them. Does anyone have any recommendations. He is in Takanini Auckland.

Is @coffeebaron still around?

How do you tag people?

Yep still around, not as many Auckland trips these days - but I will be heading up there early next week. PM me details if your mate needs some work done.

Will do as soon as I get his contact details

Electric kiwi signup credit Sharesies credit

K8Toledo

1014 posts

Uber Geek

#2513285 26-Jun-2020 22:37

blackjack17:

I have a work mate that is a couple of days away from finishing up a house build. The other day chorus installed the ONT in the Comms cabinet. But due to the way the ONT is plugged into the power point the cabinet door can't be closed.

He is also concerned that there will not be any space to put the modem. Looking at the Ethernet cables they appear to already be terminated and as there aren't a huge number of them (he isn't a techie) he probably won't need a patch panel. I don't know what the red cables are?

I have advised him to get a separate AP and plug it into the living room/office data point as if his modem/wifi is in the comms cabinet he will get terrible wifi performance.

Anyone have any advice as to what he should be asking the electrician/vodafone to do?

Cheers

The Sparky is responsible here not Chorus. Chorus don't install power points, not in my experience at least.
