configure Cisco 2901 Router to Spark Fiber.

Forums › LAN (ethernet/Wifi/routers/Bluetooth) › configure Cisco 2901 Router to Spark Fiber.

cashmac

6 posts

Wannabe Geek

#272936 26-Jul-2020 11:36

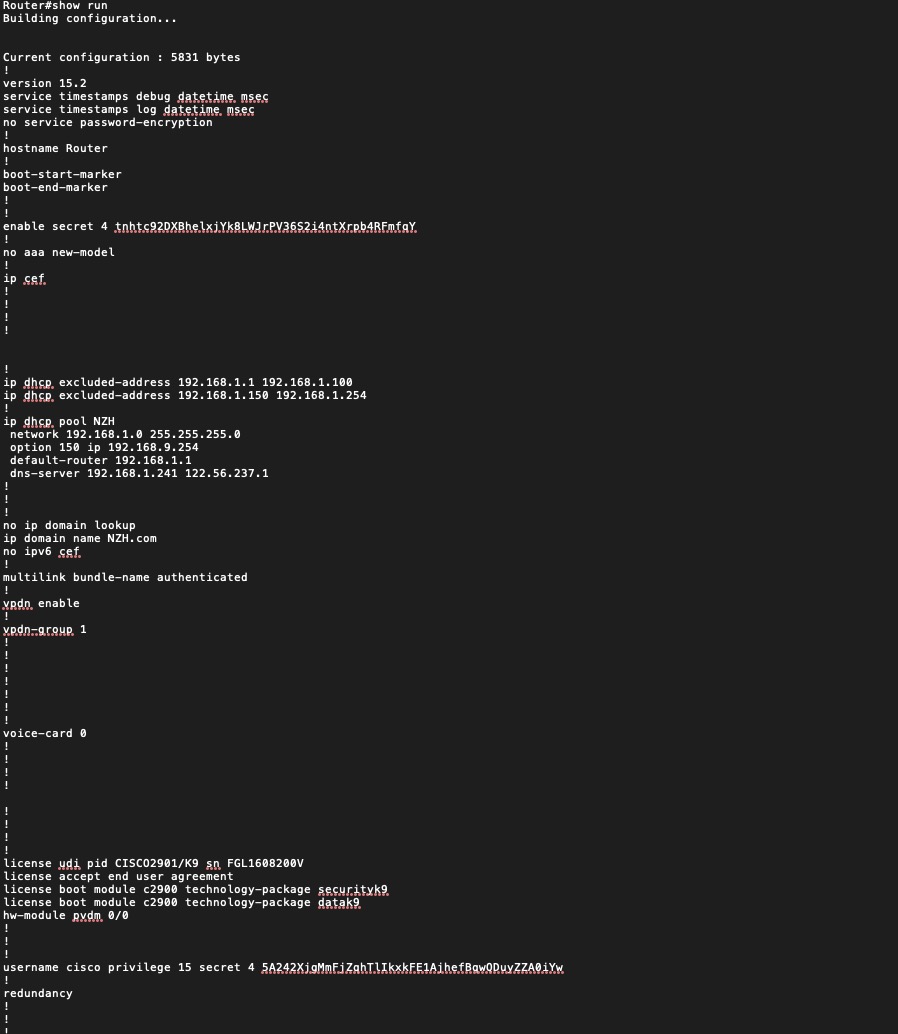

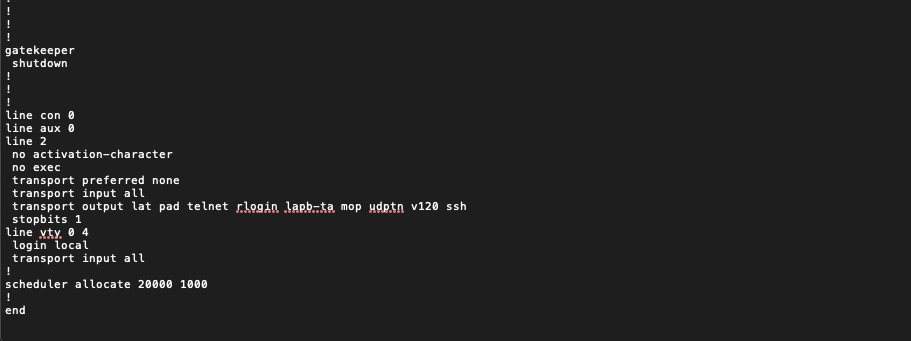

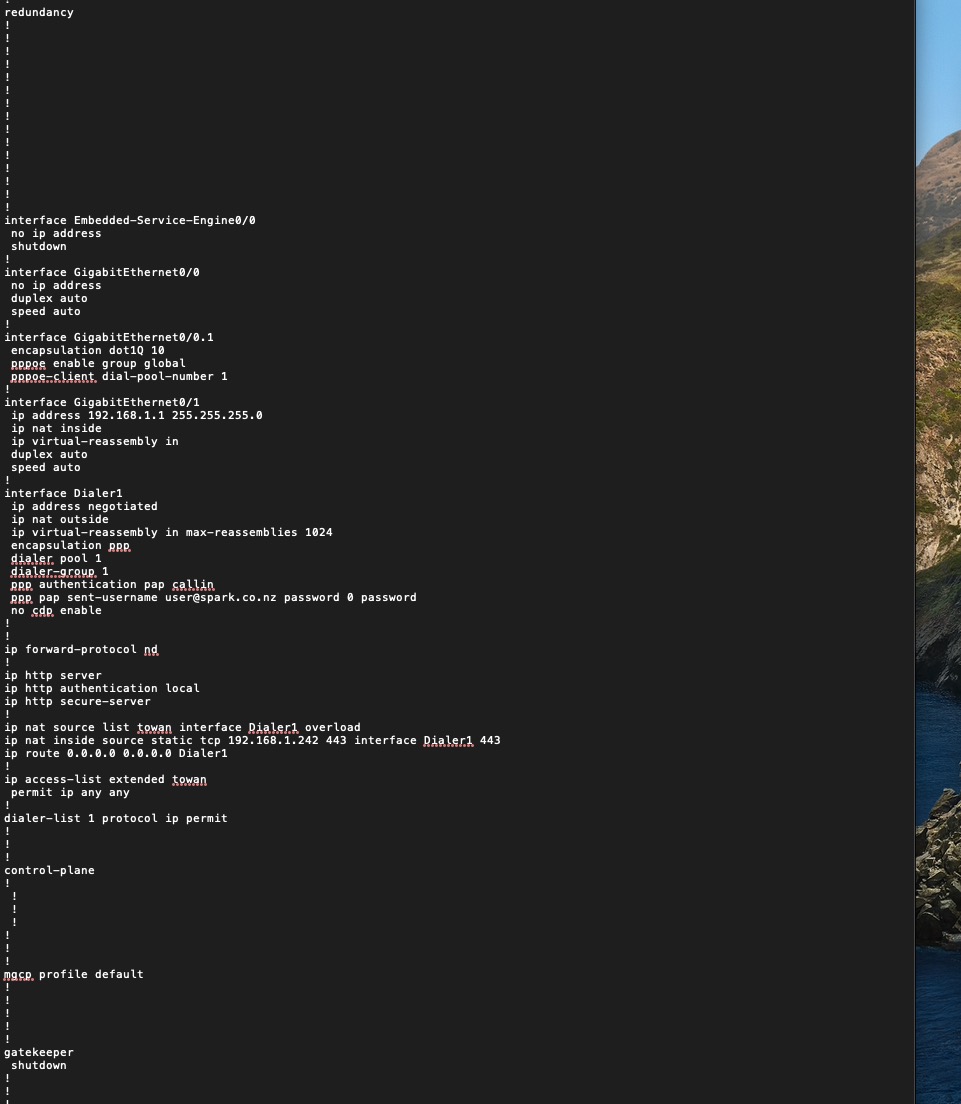

I bought a cisco 2901, I try to configure it can use spark optical fiber, but after configuration is complete, only from outsida connected to the insida, insida can not outside, could you help me check my configuration, whether omissions, I have to do a search on the Internet, but it now seems likely that the configuration and nz.

Can anyone support me? Thank you very much

freitasm

BDFL - Memuneh
80672 posts

Uber Geek
+1 received by user: 41123

Administrator

ID Verified

Trusted

Geekzone

Lifetime subscriber

#2528889 26-Jul-2020 11:44

Did you have another router plugged to the fibre connection before? Was it working? What model?

Why did you buy this Cisco? What were you trying to achieve/solve?

Referral links: Quic Broadband (free setup code: R587125ERQ6VE) | Samsung | AliExpress | Wise | Sharesies

Support Geekzone by subscribing (browse ads-free), or making a one-off or recurring donation through PressPatron.

cashmac

6 posts

Wannabe Geek

#2528933 26-Jul-2020 12:07

Yes, I used the other router before, which is working. The 2901 I just got is home lab, I want to build a small office that can use VoIP, VPN...

BarTender

3629 posts

Uber Geek
+1 received by user: 2572

ID Verified

Trusted

Lifetime subscriber

#2528944 26-Jul-2020 12:28

If you don't know what you're doing with a Cisco router and know how to configure IOS then perhaps a consumer grade router would be more appopriate.

https://www.ifm.net.nz/cookbooks/adsl.html

Or specifically this one:

https://www.ifm.net.nz/cookbooks/890-isr-wizard.html

With selecting UFB on VLAN 10 would probably give you config close enough to what you need.

cashmac

6 posts

Wannabe Geek

#2528945 26-Jul-2020 12:32

Thanks i will try to use that.

nztim

4023 posts

Uber Geek
+1 received by user: 2724

ID Verified

Trusted

TEAMnetwork

Subscriber

#2529141 26-Jul-2020 19:16

The cisco 2901 is already obsolete, it can only push 150mbps before NAT and any ACLs

Add IPSEC, necessary ACLs to secure things and you are looking at performance of only 80mbps so even a 100/20 connection will be hindered by this router
