Punch down tool for PDL Iconic

Forums › LAN (ethernet/Wifi/routers/Bluetooth) › Punch down tool for PDL Iconic

Lightbulb

119 posts

Master Geek
+1 received by user: 10

ID Verified

Lifetime subscriber

#279517 20-Oct-2020 16:36

I wonder if someone could tell me what type of punchdown tool should be used for PDL Iconic RJ45 sockets and where they can be bought etc.

I gather the tool is different to the one for the dynamix RJ45 sockets that I've previously used.

Many thanks

hsvhel

1273 posts

Uber Geek
+1 received by user: 596

ID Verified

#2589439 20-Oct-2020 16:40

Where are you based?

Referral Link Quic

Free Setup use R502152EQH6OK on check out

nztim

4012 posts

Uber Geek
+1 received by user: 2710

ID Verified

Trusted

TEAMnetwork

Subscriber

#2589450 20-Oct-2020 17:34

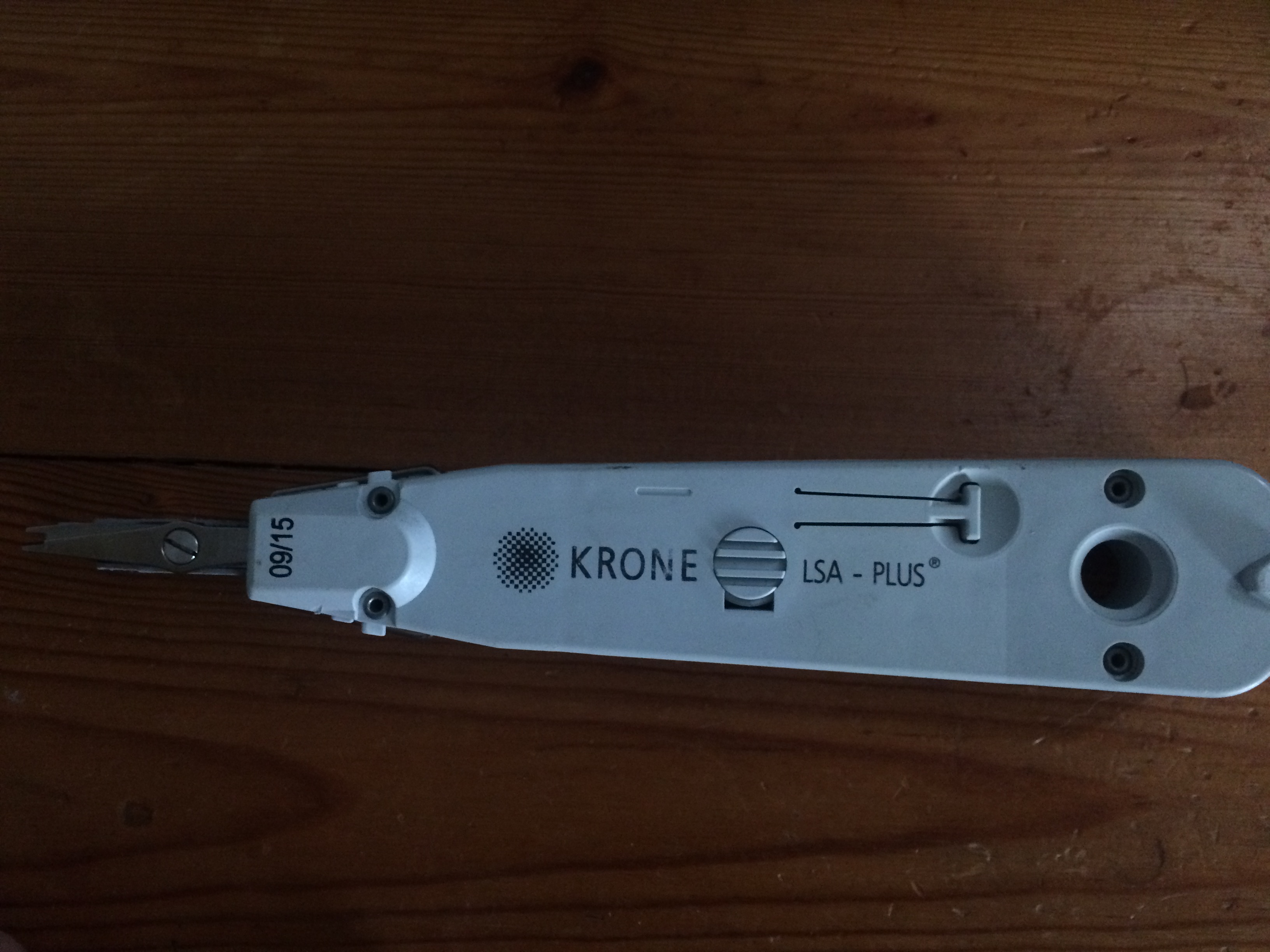

I only use my GENUINE krone tool for these

The cheap $8 CDL ones just don’t give a nice clean cut and the can damage the connection terminals after extended use

Any views expressed on these forums are my own and don't necessarily reflect those of my employer.

cyril7

9073 posts

Uber Geek
+1 received by user: 2499

ID Verified

Trusted

Subscriber

#2589458 20-Oct-2020 17:56

Hi the pdl iconic are a 110 idc, although as Tim points out a krone LSA tool will work also.

Cyril

nztim

4012 posts

Uber Geek
+1 received by user: 2710

ID Verified

Trusted

TEAMnetwork

Subscriber

#2589462 20-Oct-2020 18:03

cyril7: Hi the pdl iconic are a 110 idc, although as Tim points out a krone LSA tool will work also.

Cyril

My point is don’t use knock off cheap tools, they will damage things and give poor cuts

Any views expressed on these forums are my own and don't necessarily reflect those of my employer.

BarTender

3629 posts

Uber Geek
+1 received by user: 2572

ID Verified

Trusted

Lifetime subscriber

#2590056 21-Oct-2020 21:43

If you’re in Wellington I have a 110 tool you can use as I have a spare.

sbiddle

30853 posts

Uber Geek
+1 received by user: 9996

Retired Mod

Trusted

Biddle Corp

Lifetime subscriber

#2590111 22-Oct-2020 07:19

To add my 5c to this I never use a punchdown tool for RJ45 sockets - the only tool I use is a proper crimping/compression tool for the specific keystone module. You insert the wires and do the whole 8 wires at once. IMHO it's the only foolproof way to ever do keystone modules.

The problem with keystone modules is that there are different designs and therefore tools typically only with with a single brand.

Geekzone

Want to support Geekzone and browse the site without the ads? Subscribe to Geekzone now (monthly, annual and lifetime options).

nztim

4012 posts

Uber Geek
+1 received by user: 2710

ID Verified

Trusted

TEAMnetwork

Subscriber

#2590114 22-Oct-2020 07:56

sbiddle:

To add my 5c to this I never use a punchdown tool for RJ45 sockets - the only tool I use is a proper crimping/compression tool for the specific keystone module. You insert the wires and do the whole 8 wires at once. IMHO it's the only foolproof way to ever do keystone modules.

The problem with keystone modules is that there are different designs and therefore tools typically only with with a single brand.

I don't think the new Iconic jacks are keystone PDL319MD-TN looks like a single moulid frontloading jack

The PDL 600 Series definitely are are a keystone insert to a PDL converter

Any views expressed on these forums are my own and don't necessarily reflect those of my employer.

cyril7

9073 posts

Uber Geek
+1 received by user: 2499

ID Verified

Trusted

Subscriber

#2590121 22-Oct-2020 08:42

Hi Tim, correct the iconic series have their own faceplate retaining mechanisim that requires modules are inserted from the rear and a self retaining plastic clip secures the module to the faceplate. The way the module clips to the faceplate is not unlike an amdex mech, however not as strong retention, instead the aforementioned clip secures the mech fully, this makes for ready removal and remediation.

The Iconic range does have clip PDL319MKC that allows you to use conventional keystones.

Cyril

nztim

4012 posts

Uber Geek
+1 received by user: 2710

ID Verified

Trusted

TEAMnetwork

Subscriber

#2590129 22-Oct-2020 09:03

I am fan of standards so would likely use that keystone converter with a standards based keystone jack

Any views expressed on these forums are my own and don't necessarily reflect those of my employer.
