VDSL Faceplate cable for internet connection HELP required

Forums › LAN (ethernet/Wifi/routers/Bluetooth) › VDSL Faceplate cable for internet connection HELP required

Unwise

1 post

Wannabe Geek

#293257 9-Jan-2022 17:48

I don't understand what any of these wires mean or do so excuse me if my terminology is incorrect.

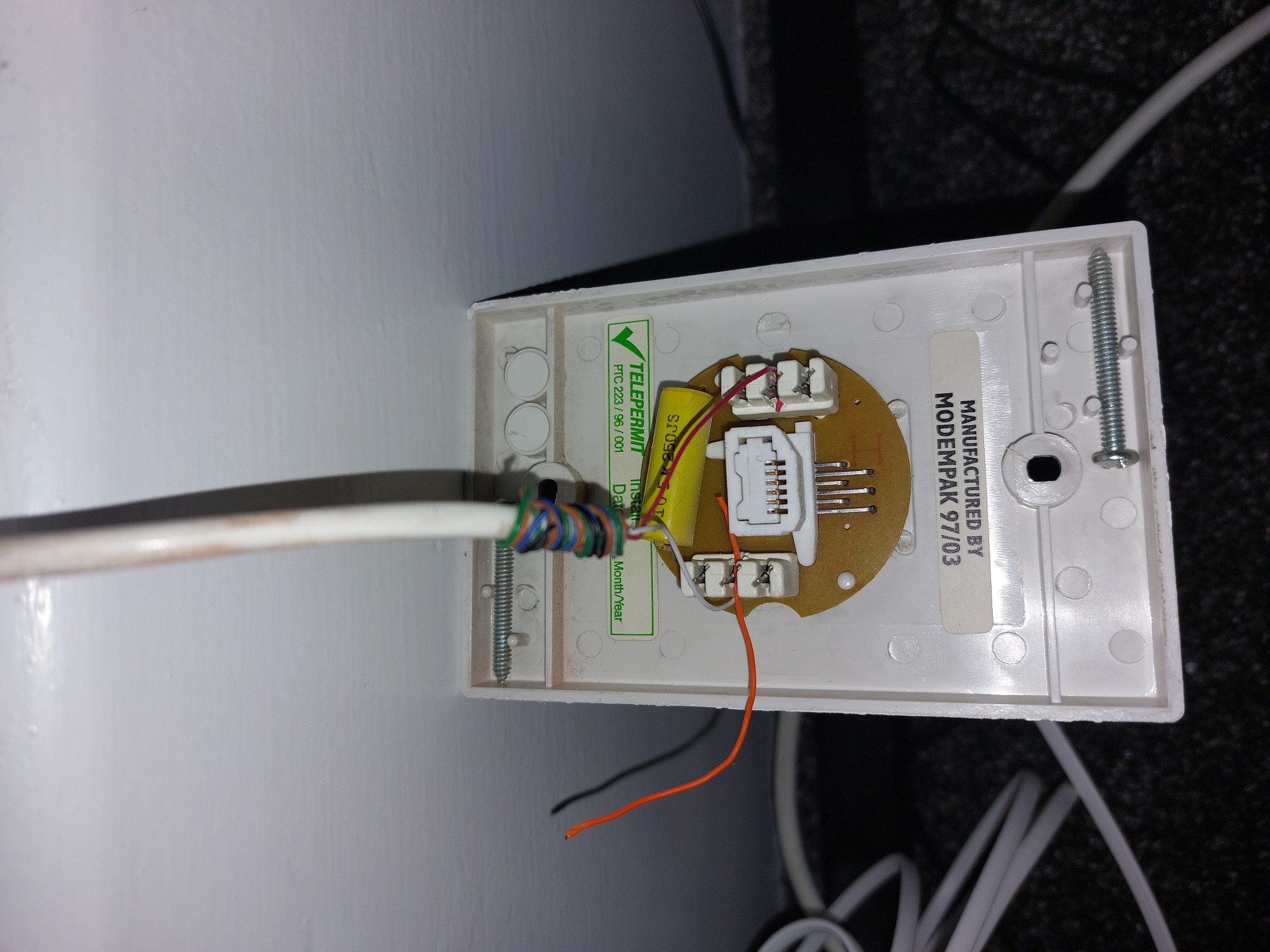

Was moving furniture and bumped the wire coming out of the faceplate and our internet connection turned off. I can still connect to the router but the internet light is off and my devices just say "connected without internet access".

Would this be fixable without calling in a technition as everywhere I have called are currently outside of businesses hours.

Cheers.

Bung

6733 posts

Uber Geek
+1 received by user: 2926

Subscriber

#2845910 9-Jan-2022 21:28

Was the jack face plate screwed in position or was it just hanging on the end of the cable? You should use a proper tool to make sure the wires are fully inserted in the connection slots but you can use a small screwdriver to push the wire down either side of the slot. Do not jam the screwdriver blade into the terminal or you will spread it. The short piece or red wire is doing nothing.

wellygary

8810 posts

Uber Geek
+1 received by user: 5287

#2845926 9-Jan-2022 22:13

The connector for the red wire looks damaged... check there is a connection to bare metal on the wire...

Bung

6733 posts

Uber Geek
+1 received by user: 2926

Subscriber

#2845951 10-Jan-2022 08:03

On a 2 wire jack each group of 3 termination slots is commoned so if 1 is damaged just use another on same side. You can get cheap insertion tools from Mitre10 for about $4, better copies of Krone tool are $20 - $25.

richms

29098 posts

Uber Geek
+1 received by user: 10208

Trusted

Lifetime subscriber

#2846022 10-Jan-2022 11:52

Bung: On a 2 wire jack each group of 3 termination slots is commoned so if 1 is damaged just use another on same side. You can get cheap insertion tools from Mitre10 for about $4, better copies of Krone tool are $20 - $25.

Only on the later 2c labled sockets - that one has a 97 date on it, and has a capacitor so isnt from the era of 2 contact sockets. Needs to be in the middle ones on each side. If the terminal is damaged then a new one may still be available at some hardware stores, but it seems they have dropped them since there is no call for people to install more phone sockets now.

Richard rich.ms

Bung

6733 posts

Uber Geek
+1 received by user: 2926

Subscriber

#2846065 10-Jan-2022 12:40

Commoned Krone strips predated 2C sockets. I have a Modempak PDL 600 version of that socket PTC223/96/002. The sockets were only made with 6 contacts and 3 were left unconnected.
