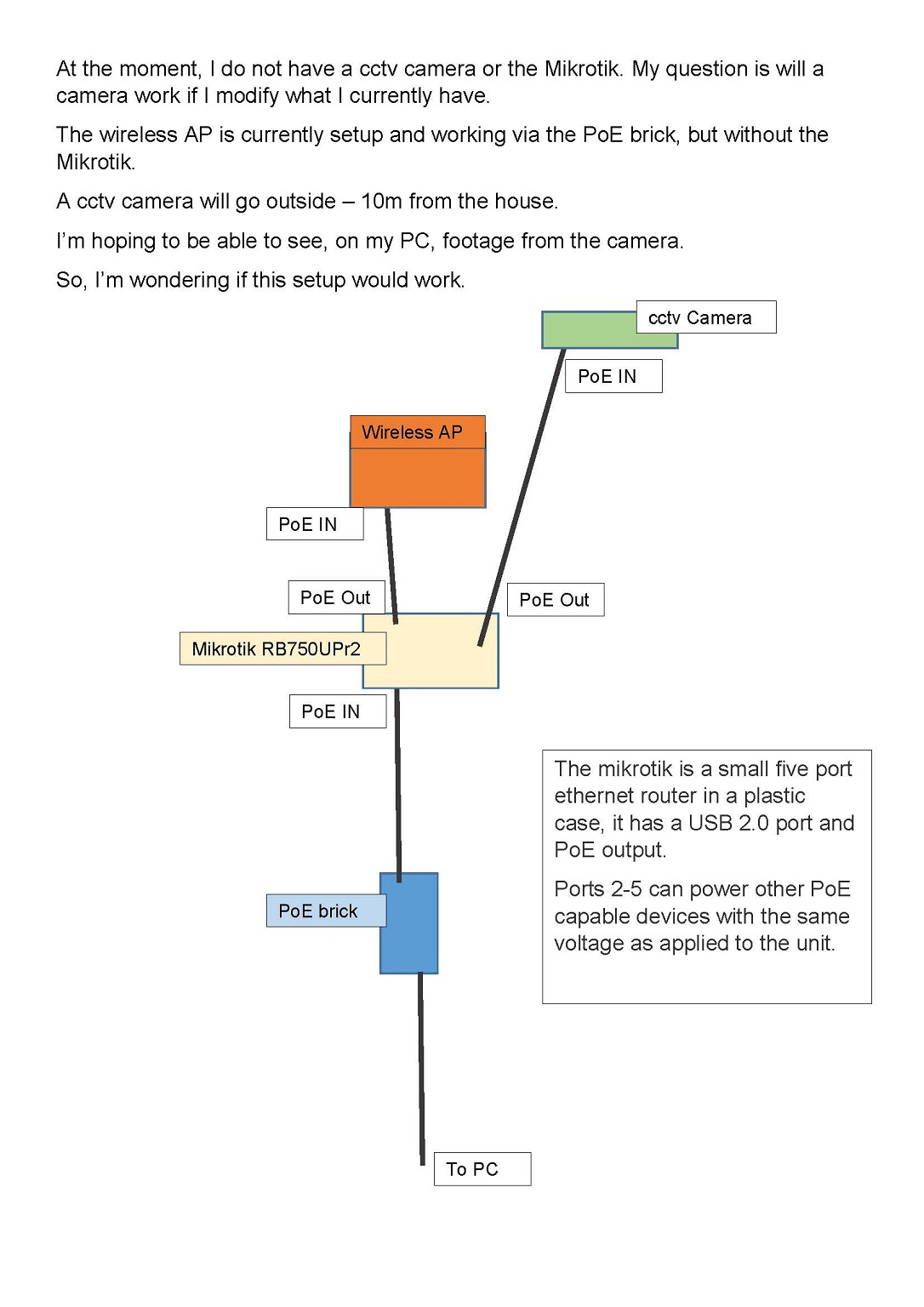

I'm wanting to attach a PoE camera to my LAN. I'm wondering if the setup I've drawn (badly, sorry), would work.



Can anyone help me please.











[IF YOU DON'T KNOW, YOU DON'T KNOW]


Create new topic
Dynamic
4015 posts

Uber Geek
+1 received by user: 1851

ID Verified
Trusted
Lifetime subscriber

  #2871708 20-Feb-2022 18:33
Send private message

Check the PoE brick specifications to ensure it is up to the task.  Your limitation may be the PoE budget of 1A per port and 2A max.  I don't know what juice your AP requires or a PoE camera would need.



As long as you are happy with the 100mbps performance of the RB750, I'd give it a go.  Perhaps ask in the Offers and Wanted forum if anyone has a retired/spare RB750.





“Don't believe anything you read on the net. Except this. Well, including this, I suppose.” Douglas Adams




Spyware
3818 posts

Uber Geek
+1 received by user: 1366

Lifetime subscriber

  #2871716 20-Feb-2022 19:13
Send private message

Learn the difference between passive PoE that Mikrotik supports and 802.3af/at.
