What’s this plug and how did I crimp it

Forums › LAN (ethernet/Wifi/routers/Bluetooth) › What’s this plug and how did I crimp it

sfrasernz

234 posts

Master Geek
+1 received by user: 13

#315336 4-Jul-2024 19:22

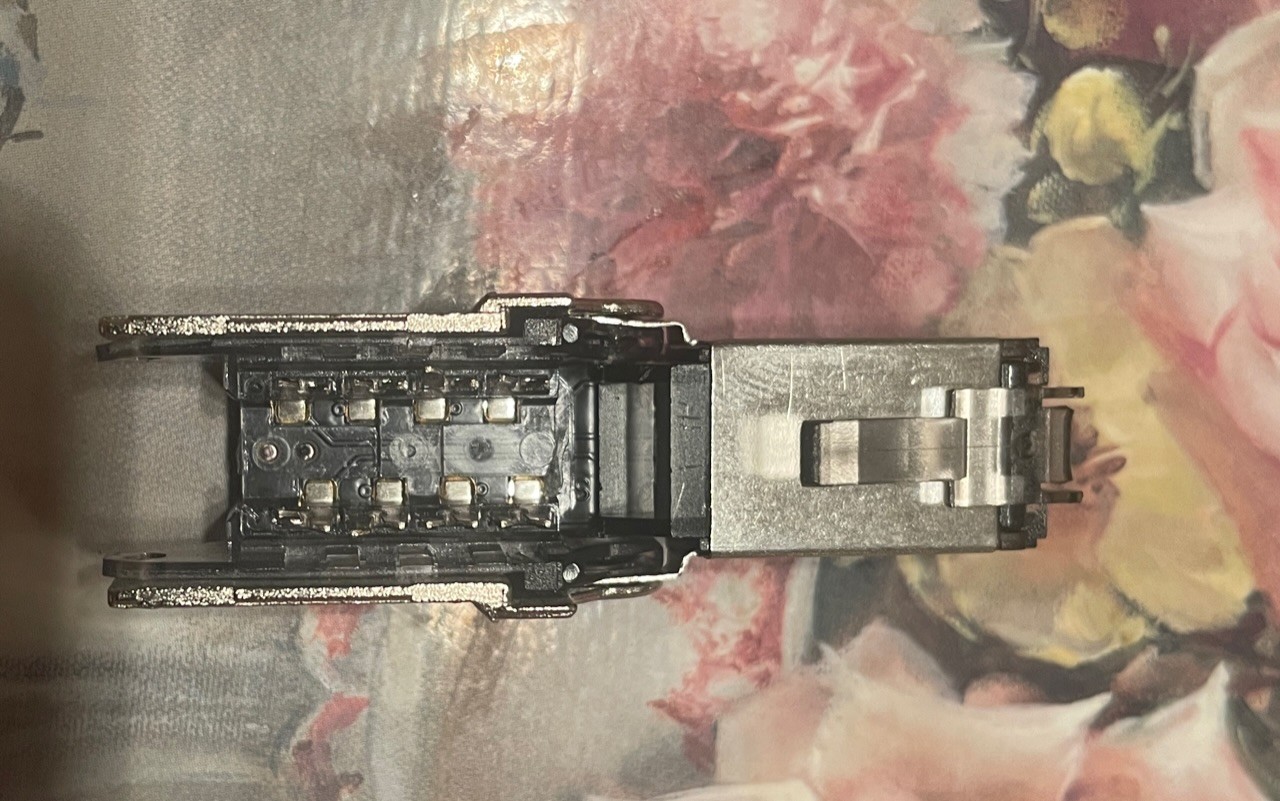

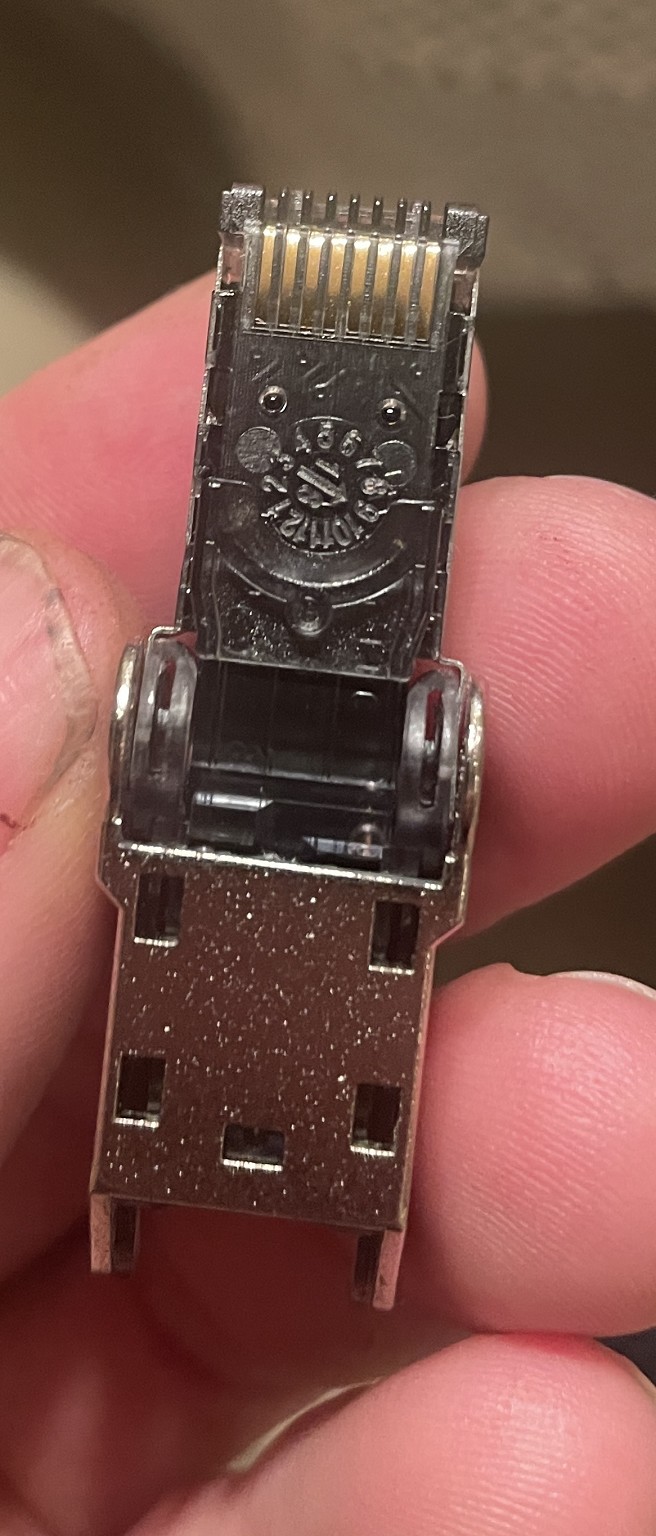

The in-laws Ethernet cable that connects their Computer to the router across the house is a horrible shielded plug thingy that has broken and I’m tasked with fixing it. I know how to crimp and wire a regular RJ45 and punch down blocks but have no idea how to fix this or what the pin out is.

Can someone help me identify what it’s called and I can then research what I need to fix it. It doesn’t look like a punch down block. Maybe a special tool is required ?

Dynamic

4015 posts

Uber Geek
+1 received by user: 1851

ID Verified

Trusted

Lifetime subscriber

#3256333 4-Jul-2024 19:35

I've not seen one like this, though to be fair I've only crimped a couple of dozen cables in my life. Does it fold, and does the folding action 'crimp' the connectors?

“Don't believe anything you read on the net. Except this. Well, including this, I suppose.” Douglas Adams

snnet

1413 posts

Uber Geek
+1 received by user: 556

#3256336 4-Jul-2024 19:42

It looks like there's a piece missing because these are designed to have punch down blocks on them.. For shielded I use the push thru shielded crimps and tools...much tidier and doesn't break like these ones do (they're more for fixed situations IMO like CCTV cameras)

sfrasernz

234 posts

Master Geek
+1 received by user: 13

#3256338 4-Jul-2024 19:45

Yes you’re right. Found this.

https://nz.rs-online.com/web/p/ethernet-connectors/2010685?cm_mmc=NZ-PLA-DS3A-_-google-_-PLA_NZ_Pmax_Catchall_1223-_--_-&matchtype=&&gad_source=1&gbraid=0AAAAADkeWNNCmvuBWNCFqDqEjMbnw4_Wh&gclid=EAIaIQobChMIo9KI7vCMhwMVZFkPAh19DQzpEAQYBiABEgK-f_D_BwE&gclsrc=aw.ds

Seems like the punch down section has gone missing. I’ll see what I can find locally tomorrow and should be able to fix it. The individual cable pairs are too thick to fit a regular solid RJ45 plug.

snnet

1413 posts

Uber Geek
+1 received by user: 556

#3256341 4-Jul-2024 19:49

Yeah, it wasn't easy terminating previously without the right bits. These ones work for me https://cdlnz.com/RJ-45PTC6S-20 - I use them with the thicker underground gel filled cable. Need the associated tool, and some patience

coffeebaron

6304 posts

Uber Geek
+1 received by user: 3566

Trusted

Lifetime subscriber

#3256429 4-Jul-2024 21:52

Those are a hinged RJ45 plug that are handy for a tight space. Not good for outdoors, they corroded easily.

Unless you have a special use case, then a regular plug, or socket & patch lead will be fine.

Rural IT and Broadband support.

Broadband troubleshooting and master filter installs.
Starlink installer - one month free: https://www.starlink.com/?referral=RC-32845-88860-71
Wi-Fi and networking
Cel-Fi supply and installer - boost your mobile phone coverage legally

Need help in Auckland, Waikato or BoP? Click my email button, or email me direct: [my user name] at geekzonemail dot com

sfrasernz

234 posts

Master Geek
+1 received by user: 13

#3256431 4-Jul-2024 21:55

The actual cable they’ve run is crazy thick. The individual pairs are super thick and won’t fit a regular RJ45 plug. I think my game plan is to see if I can terminate those thick wires onto a keystone and run a regular patch lead.

Geekzone

Want to support Geekzone and browse the site without the ads? Subscribe to Geekzone now (monthly, annual and lifetime options).

raytaylor

4076 posts

Uber Geek
+1 received by user: 1296

Trusted

#3256593 5-Jul-2024 12:46

Are you based in hawkes bay? If so i probably have a standard RJ45 in my truck that will accept thicker wires.

If your in a hurry, you could go to ideal electrical and get a punch down joiner such as

CDYAPDC6

and punch it down to a normal cat5/cat6 cable which then connects to the computer.

Are you able to find the cable model code off the cable jacket? It would probably be okay to use a standard Cat6A plug which uses much thicker wires.
