PoE Passthrough Switch

Forums › LAN (ethernet/Wifi/routers/Bluetooth) › PoE Passthrough Switch

Paul1977

5171 posts

Uber Geek
+1 received by user: 2192

#315703 8-Aug-2024 08:54

Needing to install an additional PoE camera, but hoping to avoid the cost and effort of running all now cable back to the main switch. But running cable from one of the existing cameras to the new camera position would be easy.

So I'm after a small PoE passthrough switch that supports at least IEEE 802.3af, but preferably IEEE 802.3at.

Not having much luck Googling this from NZ suppliers. Can anyone point me in the right direction?

Thanks

djaggar

78 posts

Master Geek
+1 received by user: 1

Lifetime subscriber

#3269397 8-Aug-2024 09:05

D-Link DGS-1100-05PD

I have too many computers ... and you do too ... it's all my fault ;-)

Paul1977

5171 posts

Uber Geek
+1 received by user: 2192

#3269399 8-Aug-2024 09:12

djaggar:

D-Link DGS-1100-05PD

Was looking at that one, but no-one seems to have stock.

Also, the PoE budget is18W. The max consumption (combined) of the two cameras that would need to be powered is 18.1W. Probably fine as they're unlikely to both be at max at the same time, but I'd rather have a bit of a buffer there.

Mehrts

1112 posts

Uber Geek
+1 received by user: 984

Trusted

#3269404 8-Aug-2024 09:21

Something like the Ubiquiti USW-Flex, but you'll ideally need an 802.3bt power supply in order to provide full power to the PoE devices (15w per port)

djaggar

78 posts

Master Geek
+1 received by user: 1

Lifetime subscriber

#3269405 8-Aug-2024 09:24

Paul1977:

djaggar:

D-Link DGS-1100-05PD

Was looking at that one, but no-one seems to have stock.

Also, the PoE budget is18W. The max consumption (combined) of the two cameras that would need to be powered is 18.1W. Probably fine as they're unlikely to both be at max at the same time, but I'd rather have a bit of a buffer there.

If you happen to be in Christchurch you can borrow mine for a test ...

I have too many computers ... and you do too ... it's all my fault ;-)

Paul1977

5171 posts

Uber Geek
+1 received by user: 2192

#3269417 8-Aug-2024 10:05

djaggar:

If you happen to be in Christchurch you can borrow mine for a test ...

Thanks for the offer. I am in Christchurch, but the cameras are in Auckland.

Paul1977

5171 posts

Uber Geek
+1 received by user: 2192

#3269419 8-Aug-2024 10:09

Mehrts:

Something like the Ubiquiti USW-Flex, but you'll ideally need an 802.3bt power supply in order to provide full power to the PoE devices (15w per port)

Hmmm... that could be an option. I guess I'd want to disable PoE on the switchport from the main switch, then stick a 802.3bt injector between the main switch and the USW-Flex?

Lenovo

Shop now for Lenovo laptops and other devices (affiliate link).

Mehrts

1112 posts

Uber Geek
+1 received by user: 984

Trusted

#3269423 8-Aug-2024 10:30

Paul1977:

Mehrts:

Something like the Ubiquiti USW-Flex, but you'll ideally need an 802.3bt power supply in order to provide full power to the PoE devices (15w per port)

Hmmm... that could be an option. I guess I'd want to disable PoE on the switchport from the main switch, then stick a 802.3bt injector between the main switch and the USW-Flex?

Yea, that's how I'd do it. Not sure if going down this path is budget friendly though, by the time you buy a switch plus an injector. But at least it's a solution to what you're after.

Tockly

353 posts

Ultimate Geek
+1 received by user: 88

#3269426 8-Aug-2024 10:40

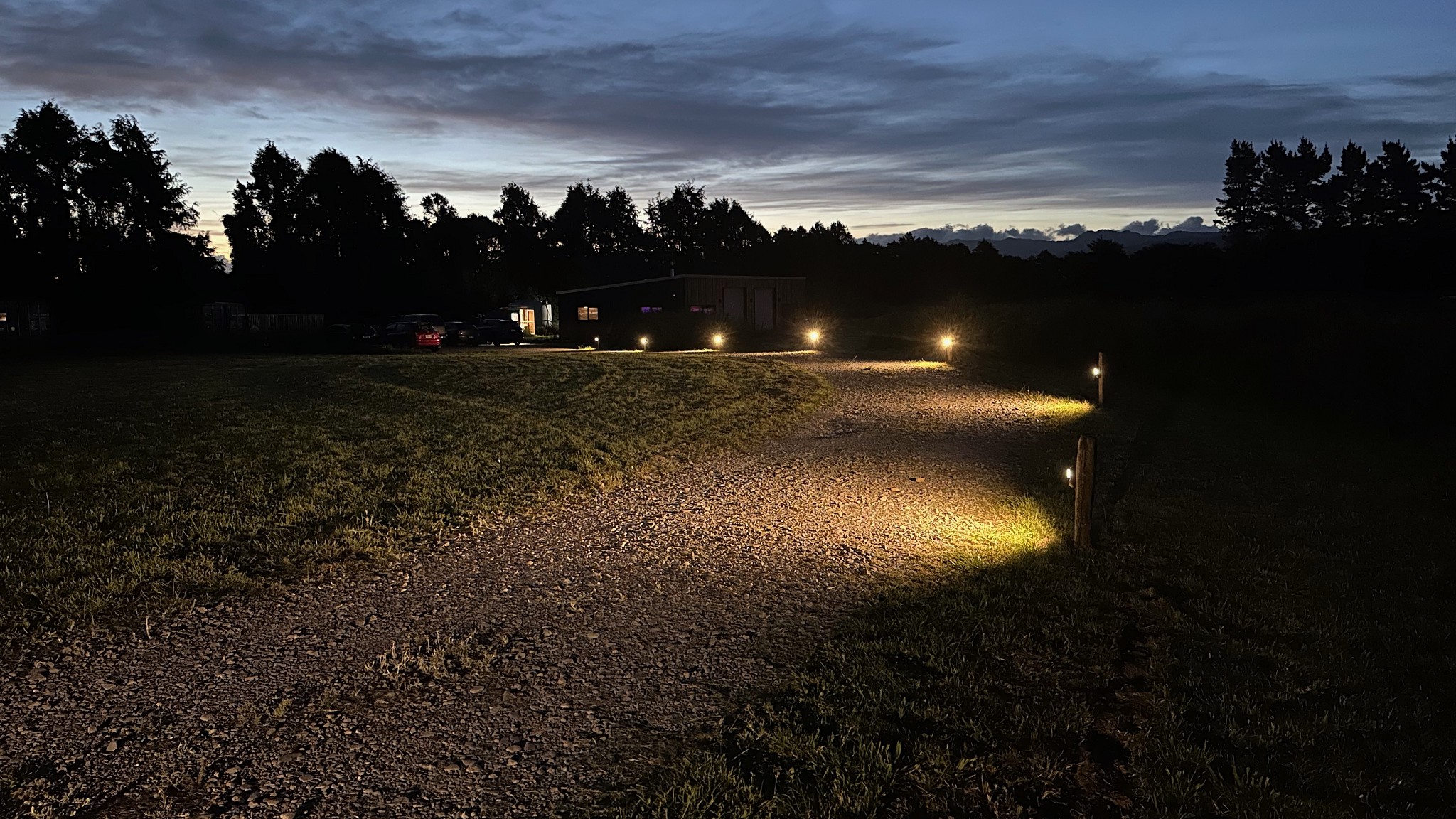

I use a couple of USW-Flex's to power some cameras and a bunch of Unifi Floodlights up my driveway. I disabled PoE on my core switch and placed a bigger injector between it and the Flex to handle the load.

Works a treat, apart from a spike when the lights turn on, everything seems to run far lower than the power the injector provides.

Bonus was only having to have two cables from the house up the driveway.

richms

29098 posts

Uber Geek
+1 received by user: 10208

Trusted

Lifetime subscriber

#3269831 9-Aug-2024 11:32

POE splitter off alixpress is what you need - there are them from 2 outputs to 4 outputs, some even gigabit, most 100 megabit - Under $10 for some of them.

I have a couple and then a whole lot of POE splitters to run small ethernet tat like the tuya zigbee gateways, raspberry pi's doing random things etc.

IR is the power user on cameras so look at the switch when its dark to see what they are taking, and they will take a little more when its cold because of the way LEDs work

Edit: https://www.aliexpress.com/item/1005007392435953.htm

type thing.

Also remember that if the cameras are 100 megabit then there are pair-splitters that will put 2 runs over 1 cable, but they were not much cheaper than the extenders with the water-resistant plugs on them and would have tied up 2 switch ports to do the same thing, but if you are at the limit of the ports capabilities that would be better than having it mess about with an injector.

Richard rich.ms

coffeebaron

6304 posts

Uber Geek
+1 received by user: 3566

Trusted

Lifetime subscriber

#3269853 9-Aug-2024 12:43

Mehrts:

Something like the Ubiquiti USW-Flex, but you'll ideally need an 802.3bt power supply in order to provide full power to the PoE devices (15w per port)

I have used this to power the flex:

https://www.gowifi.co.nz/ubiquiti/u-poe-plus-plus.html
