Port forwarding for utorrent not working, linksys wrt54gl running tomato

Forums › LAN (ethernet/Wifi/routers/Bluetooth) › Port forwarding for utorrent not working, linksys wrt54gl running tomato

Dreamy

251 posts

Ultimate Geek

Trusted

#40870 5-Sep-2009 18:00

Hi, I just upgraded my firmware to tomato on my linksys wrt54gl router. Love the upgrade, especially the boost in the wifi signal.

Everything works well, except for utorrent. I've googled & tried the suggestions but nothing seems to work for me. Max I can get is about 25 kB/s down, I'm usually up around 3-400 or so.

The utorrent test to see if the port if forwarded properly, says it is not. It was ok on my belkin modem/router (which I used up until today).

My modem is a d-link dsl-502t. I have disabled the firewall in there.

I've restarted my computer, the modem, utorrent & the router after changing settings. I've changed the port, still no joy.

I'm not sure what else to try. Does anyone have any suggestions? I suspect it's something to do with the settings on the modem, but I can't find anything that says what to change there. When I did some mucking around, my whole internet connection dropped so I set it back again.

I've uploaded some pics of my settings both in the router and the modem.

Thanks.

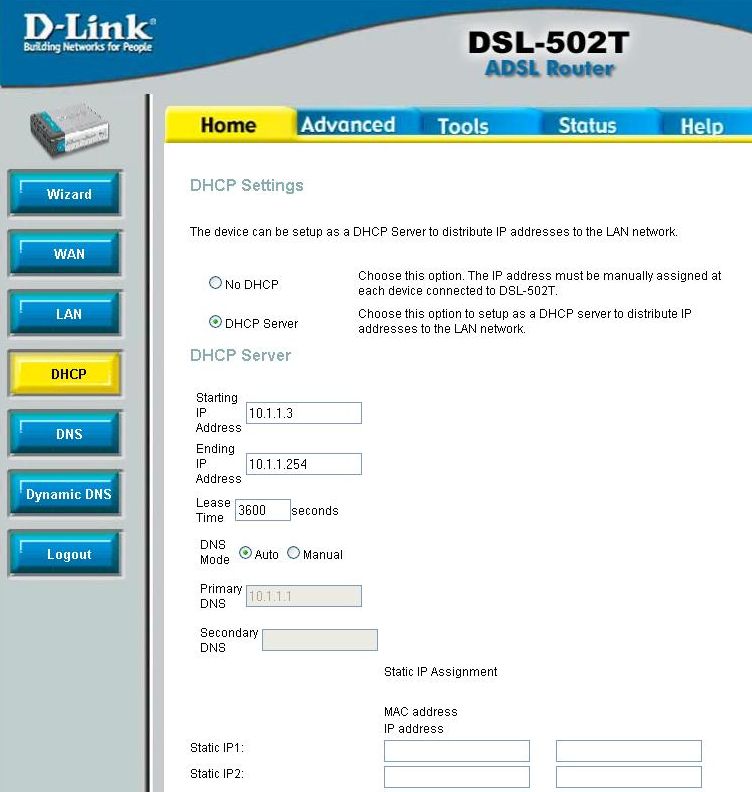

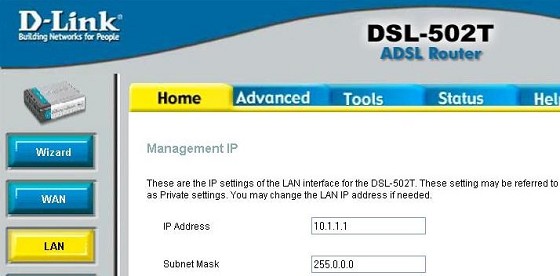

Modem:
https://cdn.geekzone.co.nz/imagessubs/blogfba5508e50ca39f1ba70f0c101d8202d.jpg
https://cdn.geekzone.co.nz/imagessubs/af9682dabadb44f75e28ad76bb968c34.jpg

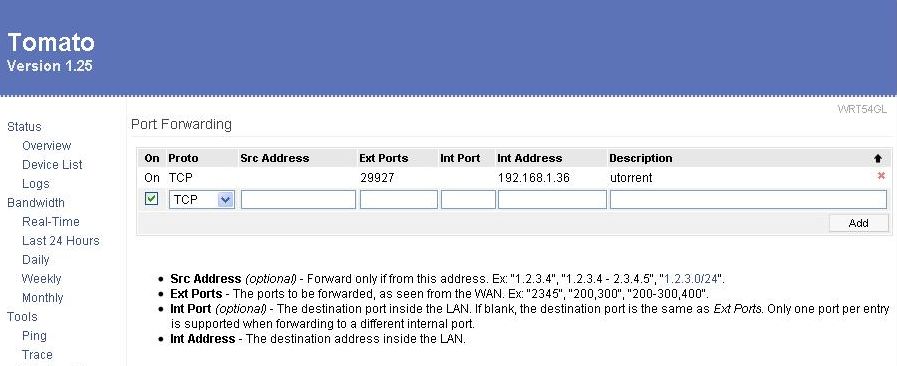

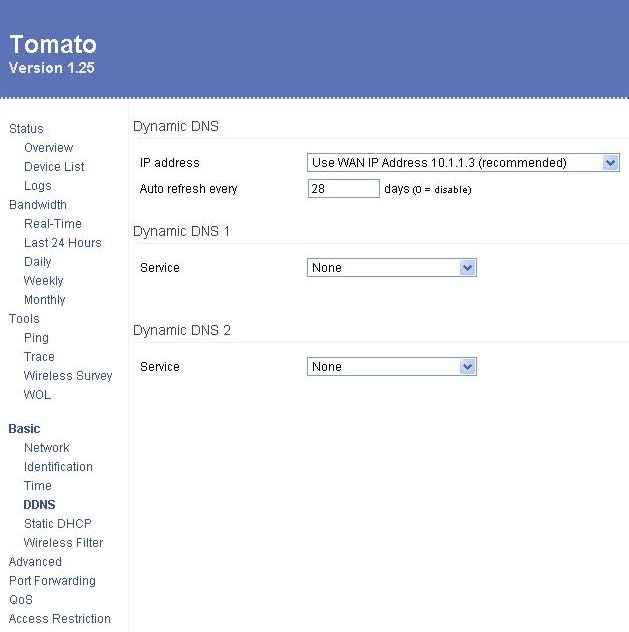

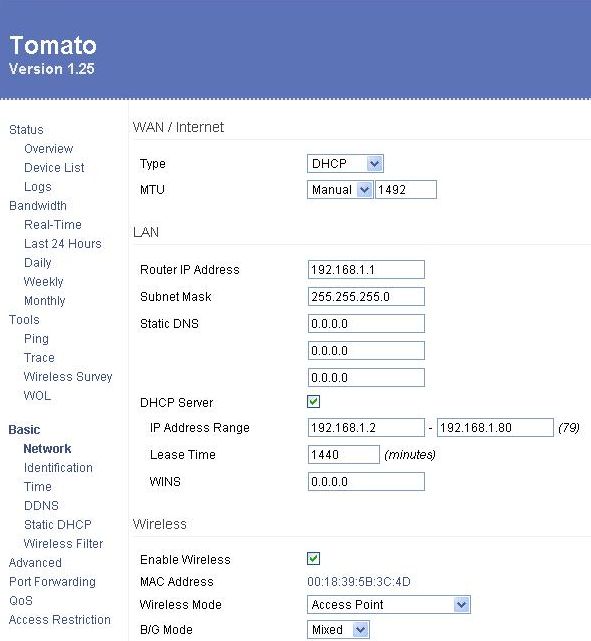

Router:
https://cdn.geekzone.co.nz/imagessubs/06c30c1d4f6e85356fef34e6181ab85b.jpg
https://cdn.geekzone.co.nz/imagessubs/b87d76986d958b7b48f6b529096550bb.jpg
https://cdn.geekzone.co.nz/imagessubs/56496383cc232d2cb124ac0eb1b865d8.jpg

~~Dream.Catcher~~
iPhone 4s 16 GB, Ipad2 32gb
windows 7 computer

sbiddle

30853 posts

Uber Geek
+1 received by user: 9996

Retired Mod

Trusted

Biddle Corp

Lifetime subscriber

#253421 5-Sep-2009 18:18

You have DHCP enabled on both devices. It should only be enabled on one

What IP range is your PC actually receiving?

Dreamy

251 posts

Ultimate Geek

Trusted

#253423 5-Sep-2009 18:37

Oops, didn't notice that. I've disabled it on the modem, but still no joy with utorrent.

I've assigned all the computers on my network a static ip address, in the 192.168.1.xxx range. Seems to work ok for surfing.

~~Dream.Catcher~~
iPhone 4s 16 GB, Ipad2 32gb
windows 7 computer

sbiddle

30853 posts

Uber Geek
+1 received by user: 9996

Retired Mod

Trusted

Biddle Corp

Lifetime subscriber

#253429 5-Sep-2009 18:57

Without seeing more of the settings I'm guessing you have some double NAT issues.

Is the d-link in bridge mode?

Dreamy

251 posts

Ultimate Geek

Trusted

#253436 5-Sep-2009 19:46

Well, the help says that that setting should be under WAN, but I can't see it, and I've had a look at every setting on there, so I can't tell if it's in bridge mode or not.

If you'd like to see other settings, I can post a pic, I just need to know what you need to see, thanks.

~~Dream.Catcher~~
iPhone 4s 16 GB, Ipad2 32gb
windows 7 computer

Ragnor

8279 posts

Uber Geek
+1 received by user: 585

Trusted

#253598 6-Sep-2009 18:48

Sounds like double NAT. Enable ppoa half bridge (sometimes called ip extension) in the dlink if it supports it. However I suspect that model doesn't support that feature.

In that case you need to forward the port from the dlink to the wrt54, then from the wrt54 to your machine.

michaelt

425 posts

Ultimate Geek
+1 received by user: 8

#253612 6-Sep-2009 19:51

Pretty sure the DSL-502 doesn't support half bridge mode. If it supports DMZ (demilitarised zone) set that up to refer to the Tomato router. If it doesn't, you'll have to forward the ports twice, as mentioned before. You're probably best getting a newer ADSL router. Can probably get a RTA1320 or something similar off trademe for $10.

Dyson

Shop now for Dyson appliances (affiliate link).

Eimaj

14 posts

Geek
+1 received by user: 3

#254847 10-Sep-2009 19:22

I am not familiar with your devices but I have a similar setup as below, I suggest setting it up statically with no DHCP anywhere.

PC: 192.168.1.2 (LAN): -------> (LAN) Router: 192.168.1.1 (WAN): -------> (LAN) Modem: 10.1.1.1

Forward the uTorrent port from the modem to the router and from the router to PC:

Port: "55667" forwarded from 10.1.1.1 to 192.168.1.1
Port: "55667" forwarded from 192.168.1.1 to 192.168.1.2

Hope this helps!

:)
