Icehrt

4 posts

Wannabe Geek


#72356 24-Nov-2010 22:11
Send private message

I've just installed one of these into a house and I'm having trouble getting it working. I have followed the instructions but still not getting the phone to go down to the jack points.
I have tried with both the test/isolate plugged in and unplugged. Phone works if you patch from the patch panel to the test/isolate port but not any of the 6 ports that should work. Anyone got any ideas on what I can do???


Create new topic
sbiddle
30853 posts

Uber Geek
+1 received by user: 9996

Retired Mod
Trusted
Biddle Corp
Lifetime subscriber

  #409264 25-Nov-2010 06:15
Send private message

Have you looped the alarm port if you're not using an alarm?

Cyril7 designed this so might be able to offer some more advice!



cyril7
9073 posts

Uber Geek
+1 received by user: 2499

ID Verified
Trusted
Subscriber

  #409310 25-Nov-2010 09:04
Send private message

Hi as Steve says, if you have no security system then you must loop the security TO and From circuits othewise it no go, I think it says that at least once in the destructions that accompany the panel.




Cyril

Icehrt

4 posts

Wannabe Geek


  #409311 25-Nov-2010 09:07
Send private message

Thanks I will do that. Must have missed that part.



cyril7
9073 posts

Uber Geek
+1 received by user: 2499

ID Verified
Trusted
Subscriber

  #409314 25-Nov-2010 09:10
Send private message

Yep, 8th or 9th line down in the instructions, if its not looped no go.

Cyril

shadybrothers
236 posts

Master Geek
+1 received by user: 1


  #414064 7-Dec-2010 14:58
Send private message

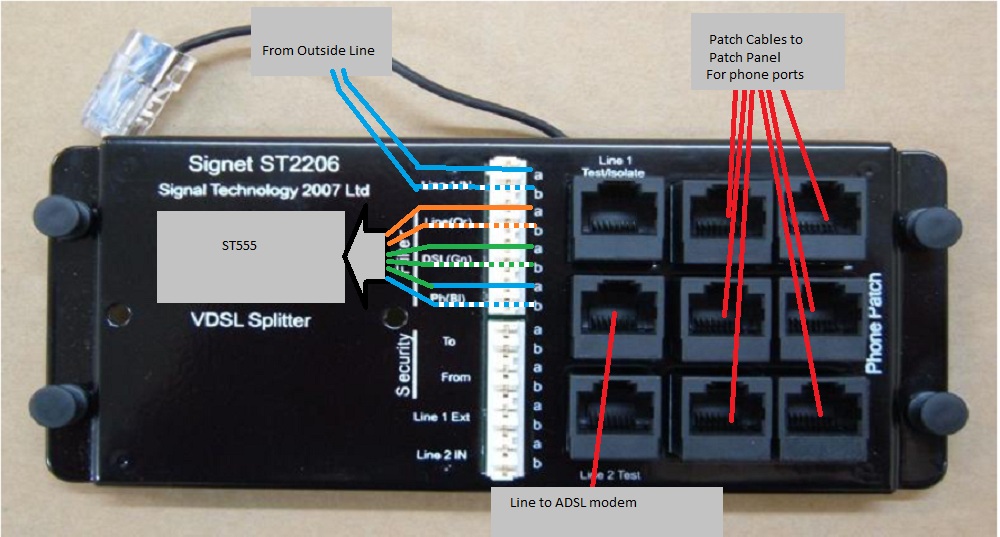

Nice diagram, saving for future reference when I move my Telecom wire to my new patch cupboard :D
