#2774187 8-Sep-2021 08:19

Visual check of where the conductors are punched down would be the first step, then a cable tester if you have one - even the cheap ones will be OK. This sort of thing https://www.trademe.co.nz/a/marketplace/computers/cables-adaptors/networking/listing/3251212809

Mehrts

1112 posts

Uber Geek
+1 received by user: 984

Trusted

#2774207 8-Sep-2021 08:55

Plug your AP directly into the switch & see if it's working properly or not.

If not, then start to look harder at the cabling/terminations.

danepak

1124 posts

Uber Geek
+1 received by user: 85

#2774209 8-Sep-2021 08:56

RunningMan:
Visual check of where the conductors are punched down would be the first step, then a cable tester if you have one - even the cheap ones will be OK. This sort of thing https://www.trademe.co.nz/a/marketplace/computers/cables-adaptors/networking/listing/3251212809

Thanks, will get one of those.

dt

1152 posts

Uber Geek
+1 received by user: 371
Inactive user

#2774253 8-Sep-2021 09:44

Mehrts:

Plug your AP directly into the switch & see if it's working properly or not.

If not, then start to look harder at the cabling/terminations.

I would try this method before buying a cable tester

elpenguino

3576 posts

Uber Geek
+1 received by user: 2938

#2774289 8-Sep-2021 11:18

Just be aware that there's multiple standards with different power capabilities but all called POE.

It may not necessarily be plug and play.

Most of the posters in this thread are just like chimpanzees on MDMA, full of feelings of bonhomie, joy, and optimism. Fred99 8/4/21

danepak

1124 posts

Uber Geek
+1 received by user: 85

#2774495 8-Sep-2021 14:23

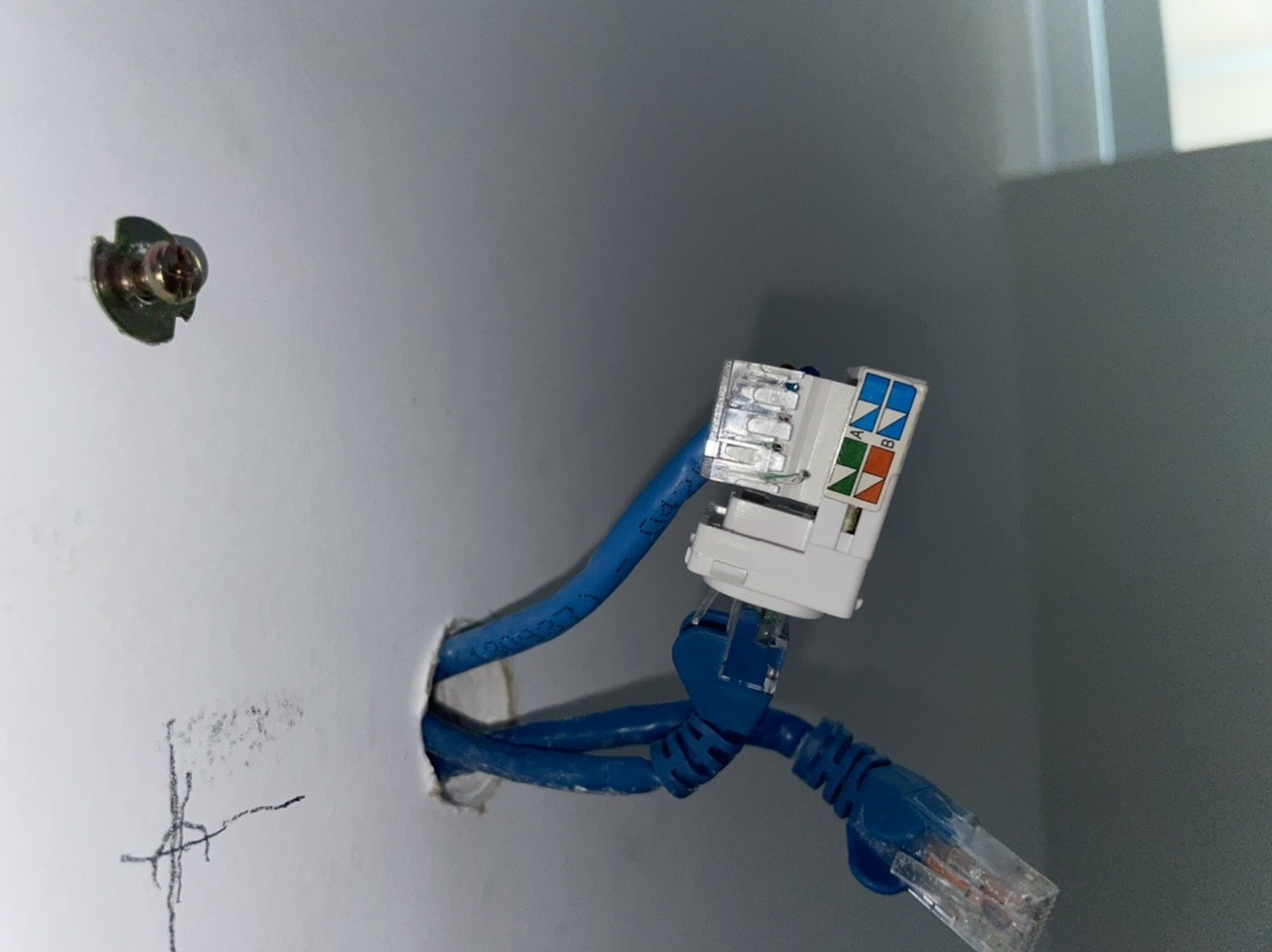

OK, had a good look at the cable and it looks like one bit isn’t connected.
Or is it supposed to look like this?
If it isn’t, is there an easy fix?

Samsung

Shop now on Samsung phones, tablets, TVs and more (affiliate link).

Ge0rge

2114 posts

Uber Geek
+1 received by user: 2060

Trusted

Lifetime subscriber

#2774500 8-Sep-2021 14:27

That looks rough, but should be ok. Have you tried either the original AP at your switch, or your other AP at that point?
The kink in the flex doesn't look to hot.

danepak

1124 posts

Uber Geek
+1 received by user: 85

#2774503 8-Sep-2021 14:31

I tried the AP elsewhere and it actually works, so must be the cable.

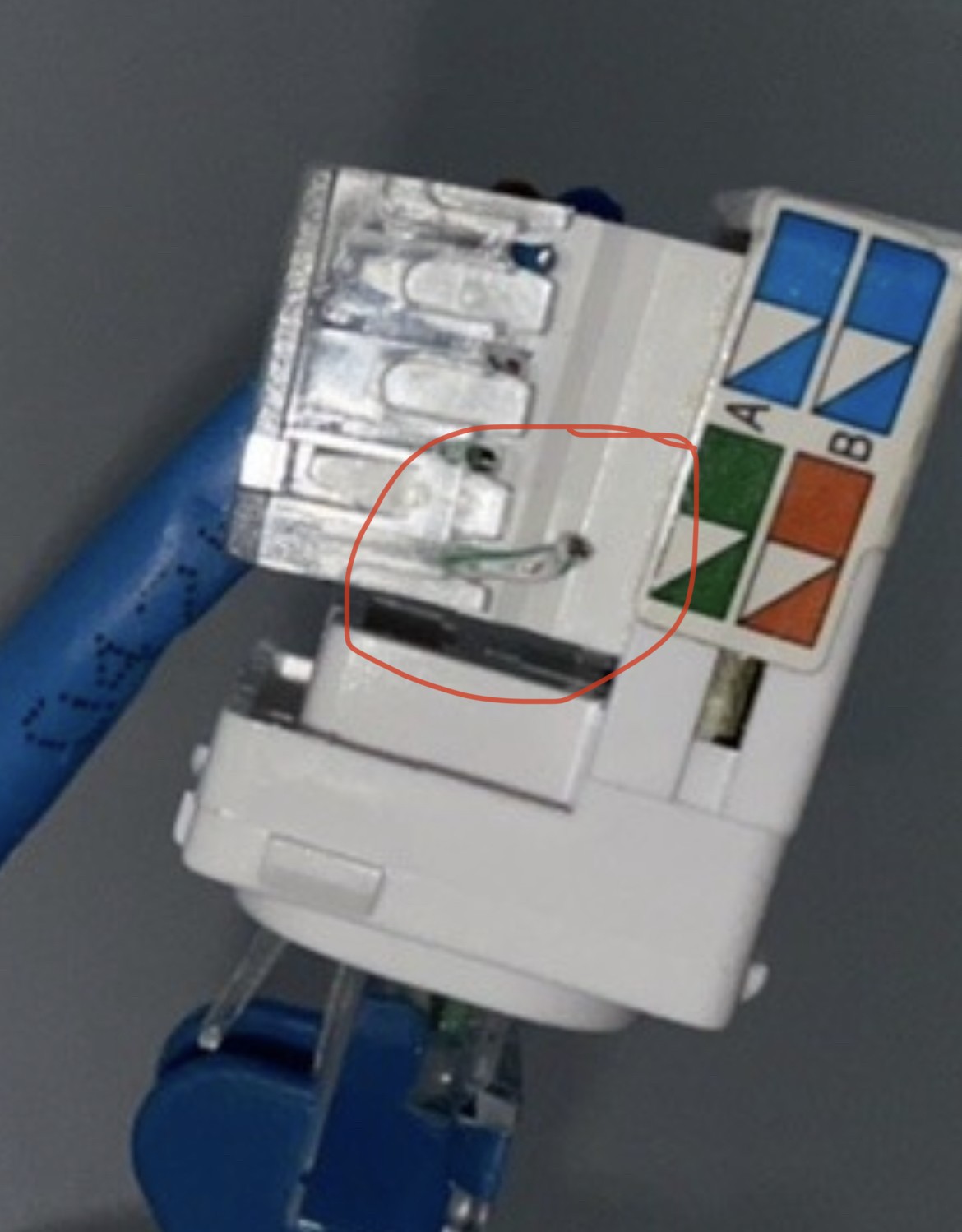

Is this bit supposed to look like that? (See red circle)

Ge0rge

2114 posts

Uber Geek
+1 received by user: 2060

Trusted

Lifetime subscriber

#2774506 8-Sep-2021 14:35

Next thing I would try is swapping out the patch cable, see if it's that. Your circled bit is OK- the installer hasn't trimmed the end off - see how the other three are much shorter?

RunningMan

9184 posts

Uber Geek
+1 received by user: 4834

#2774548 8-Sep-2021 15:21

The correct tool will punch the wire into the connector and trim off the excess - if the excess hasn't been trimmed, it may not have been punched in fully either.

neb

11294 posts

Uber Geek
+1 received by user: 10018

Trusted

Lifetime subscriber

#2774666 8-Sep-2021 16:58

danepak: So I’ve got a spare Ethernet cable (PoE powered) hanging from the ceiling downstairs.
Are there PoE lights available?

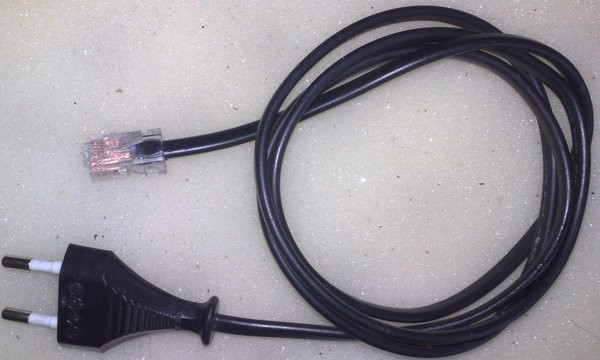

It depends. Is it Real Man's PoE:

or just that woosy low-voltage stuff?

Geekzone

Want to support Geekzone and browse the site without the ads? Subscribe to Geekzone now (monthly, annual and lifetime options).

MadEngineer

4591 posts

Uber Geek
+1 received by user: 2570

Trusted

#2774746 8-Sep-2021 18:19

You jest, but lighting over PoE is very much a thing. My office at work is kitted out entirely with such panel lights.

You're not on Atlantis anymore, Duncan Idaho.

danepak

1124 posts

Uber Geek
+1 received by user: 85

#2775184 9-Sep-2021 11:21

I swapped the cable in the patch panel.
So far, so good.
Thanks for your advice.

Stu

Hammered
8740 posts

Uber Geek
+1 received by user: 2391

Moderator

ID Verified

Trusted

Lifetime subscriber

#2775188 9-Sep-2021 11:25

Interestingly I believe the suggestion was to try replacing the patch cable shown in your photos (it's the darker blue cable). But well done if the other end was the problem!

People often mistake me for an adult because of my age.

Keep calm, and carry on posting.

Referral Links: Sharesies -

Are you happy with what you get from Geekzone? If so, please consider supporting us by subscribing.

No matter where you go, there you are.

Spyware

3818 posts

Uber Geek
+1 received by user: 1366

Lifetime subscriber

#2775190 9-Sep-2021 11:29

Likelihood the patch lead is faulty is next to NIL.
