Hey guys,

I'm just looking at picking up some Xiaomi Blind motors.

Does anyone have any experience with them? I have never had blinds before so this is all new to me.

Does anyone know if they fit NZ blinds?

will I need special adapters/fitting/mounts from a blinds perspective? (power is straight forward)

if there is a Maximum length as I have a 5.4m window?

https://www.aliexpress.com/item/33049459177.html

1 | 2

113 posts

Master Geek
+1 received by user: 5

#2286810 31-Jul-2019 19:54

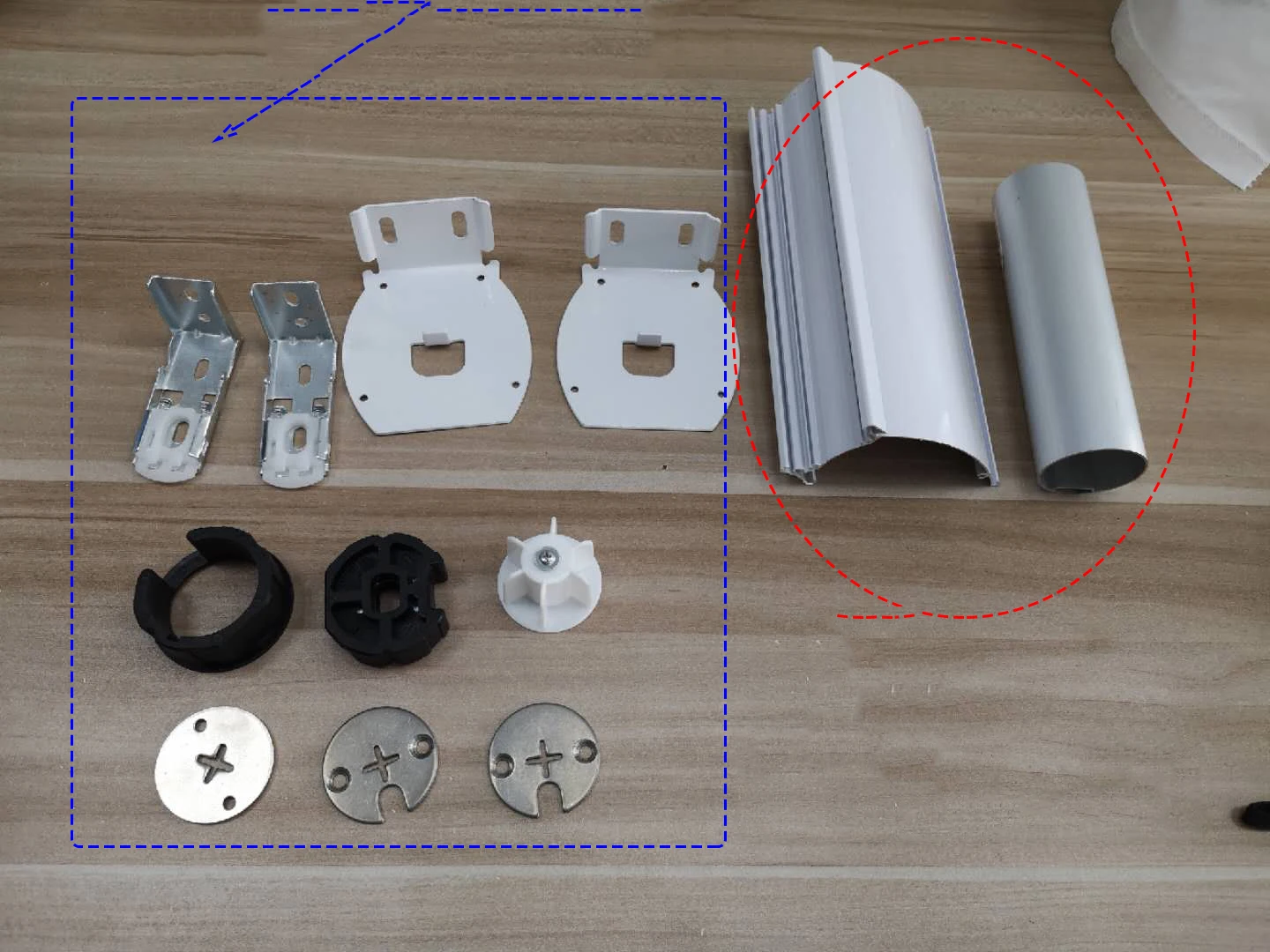

I figured I better update this, I've ordered one for science. They fit in to a 50mm Aluminium tube, and the below parts are the additional ones I need to complete the installation.

Ill see what I can get here in NZ but will probably need to get the whole lot from Aliexpress. But at $80 USD for a quality Zigbee motor it seems like a good deal

skewt

752 posts

Ultimate Geek
+1 received by user: 215

#2286847 31-Jul-2019 21:16

What size tube do NZ blinds use?

I’m keen to get some of these if can get it going

premiumtouring

357 posts

Ultimate Geek
+1 received by user: 143

#2286899 1-Aug-2019 07:14

Yeah, also following this thread with interest.

FletchNZ

113 posts

Master Geek
+1 received by user: 5

#2286905 1-Aug-2019 07:43

I cant find any info on what Aluminum tube are used in NZ - I know nothing about blinds so thats why i've ordered a sample. I had one guy over to measure yesterday but it turns out they dont do automated ones.

My goal is a Zigbee controlled blind system, so if this is a failure I can go with the much more expensive Qmotion system, dont really want to though.

So far a great resource has been This video and this blind seller.

https://www.youtube.com/watch?v=7sqXNm49oHg

https://www.aliexpress.com/store/1908671?spm=a2g1y.12024536.1000001.11.2cfb2761XtWjk8

skewt

752 posts

Ultimate Geek
+1 received by user: 215

#2286959 1-Aug-2019 09:20

I can pull one of my blinds down tonight and check measurements if needed

FletchNZ

113 posts

Master Geek
+1 received by user: 5

#2286968 1-Aug-2019 09:32

Thanks, It seems the ali tubes come in 2 sizes 38mm and 50mm - at least in China - if thats any help.

Apple TV

Stream your favourite shows now on Apple TV (affiliate link).

mdf

3566 posts

Uber Geek
+1 received by user: 1519

Trusted

#2286980 1-Aug-2019 09:48

For roller blinds, I use onlineblinds.co.nz. Really good quality and amazing value. They have an automated roller blind option, though I strongly suspect it won't be Zigbee. However, if you phone and ask for David, he will be able to tell you the exact size and specifications of all their stuff - I've spoken to him a few times and he is super helpful.

I'm currently doing an automation project for venetian blinds. Signs look promising so far, will report back once the project is done.

FletchNZ

113 posts

Master Geek
+1 received by user: 5

#2286984 1-Aug-2019 09:55

At the risk of over posting, thank you all for your help, I was a bit lost. Ill Flick onlineblinds.co.nz an email.

russelo

332 posts

Ultimate Geek
+1 received by user: 43

#2286991 1-Aug-2019 10:01

Watching. Been wanting to automate blinds at home for some time.

FletchNZ

113 posts

Master Geek
+1 received by user: 5

#2287356 1-Aug-2019 19:29

I contacted onlineblinds.co.nz but the weren't interested in making the blinds for them at all, despite roughly having the right tube size for them and I said I could get the adapters for them.

Ill have to try and find some other company, once the motor arrives ill go visit a few locally.

skewt

752 posts

Ultimate Geek
+1 received by user: 215

#2287373 1-Aug-2019 20:12

I checked mine that were purchased last year and they seem to be a 40mm tube

Geekzone support

Support Geekzone with one-off or recurring donations Donate via PressPatron.

Talkiet

4819 posts

Uber Geek
+1 received by user: 3934

Trusted

#2287396 1-Aug-2019 21:49

IO used rodsandblinds.co.nz and got 38mm blackout blinds for my lounge about 18 months ago. I used battery powered remote control blind motors from Aliexpress

https://www.aliexpress.com/item/32614830824.html

Those ones.. Got a curtain motor and track as well

https://www.aliexpress.com/item/32528164079.html

Got a 15 channel wall controller as well and have it integrated into Homeassistant and Amazon Echo through an RMpro. "Alexa, close the blinds"

Works perfect. Batteries in each blind last ages. Consindered the ludicrously overpriced solar panels to keep them charged but ended up building my own tiny panels+charge controller for about $5 per blind.

watch?v=2cHZnR9XMMo</a>?rel=0' frameborder='0' allowfullscreen>

Cheers - N

ps. https://www.youtube.com/watch?v=2cHZnR9XMMo is the youtube link. I wish the embedding on here actually worked consistently.

Please note all comments are from my own brain and don't necessarily represent the position or opinions of my employer, previous employers, colleagues, friends or pets.

premiumtouring

357 posts

Ultimate Geek
+1 received by user: 143

#2287442 2-Aug-2019 07:19

Talkiet:

Works perfect. Batteries in each blind last ages. Consindered the ludicrously overpriced solar panels to keep them charged but ended up building my own tiny panels+charge controller for about $5 per blind.

Now this you need to share more details on! Do you have a parts list / approximate price per blind and rough overview of your build?

Loving the blinds being perfectly in sync, that was oddly satisfying!

dt

1152 posts

Uber Geek
+1 received by user: 371
Inactive user

#2287559 2-Aug-2019 10:40

very cool @Talkiet

Talkiet

4819 posts

Uber Geek
+1 received by user: 3934

Trusted

#2287606 2-Aug-2019 11:32

premiumtouring:

Talkiet:

Works perfect. Batteries in each blind last ages. Consindered the ludicrously overpriced solar panels to keep them charged but ended up building my own tiny panels+charge controller for about $5 per blind.

Now this you need to share more details on! Do you have a parts list / approximate price per blind and rough overview of your build?

Loving the blinds being perfectly in sync, that was oddly satisfying!

There's nothing to document really.

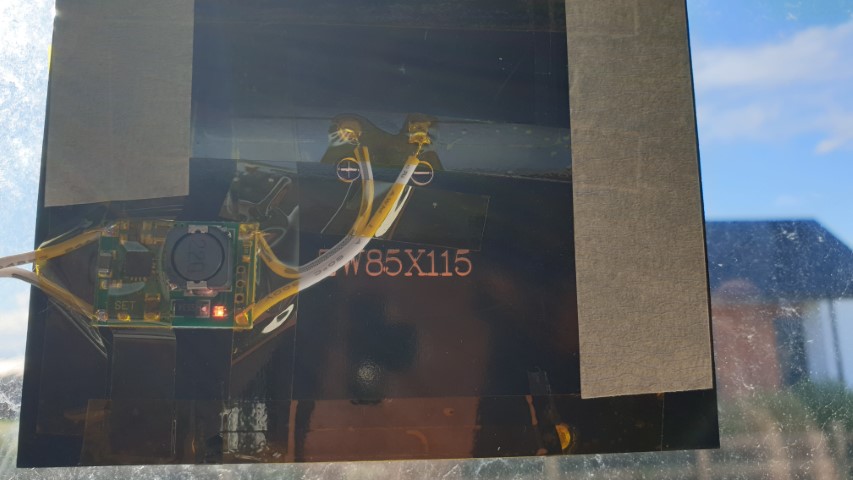

Panel, charge controller, use plug off existing chargers.

$0.93 controller - https://www.aliexpress.com/item/32947135639.html

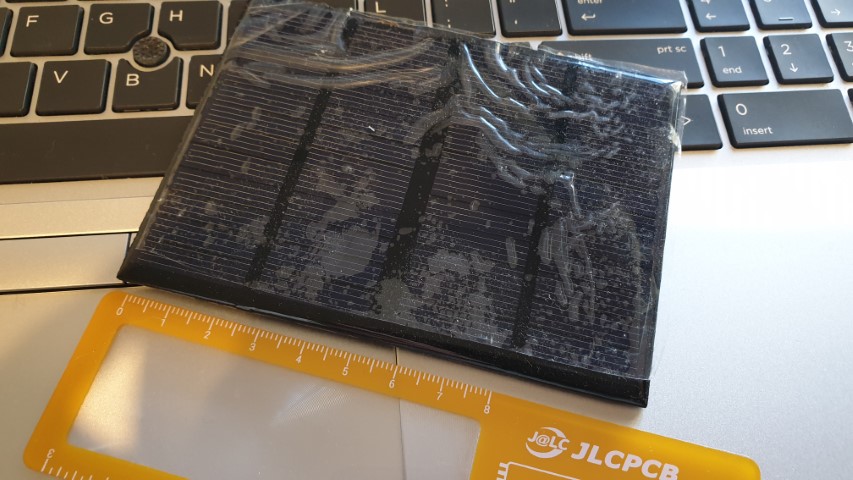

$3.75 panel - https://www.aliexpress.com/item/32757562057.html

Done.
