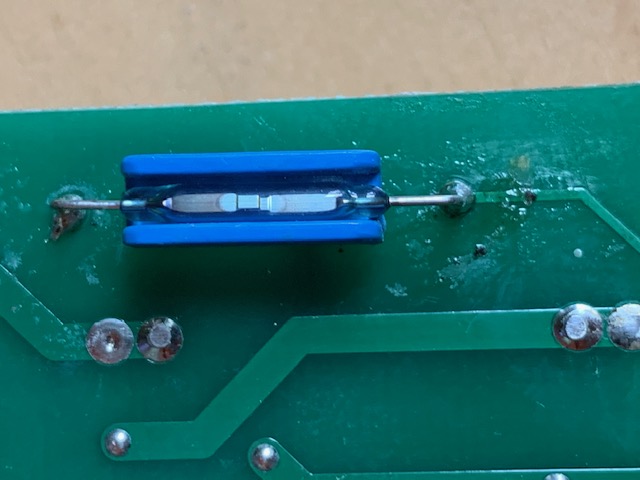

labelled as RD on circuit board, for a water pump controller




Filter this topic showing only the reply marked as answer Create new topic
thewabbit
127 posts

Master Geek

ID Verified

  #2463880 17-Apr-2020 09:01
Send private message

Thermal fuse? heats up and separates if it gets too hot (too much current)?




Technofreak
6530 posts

Uber Geek

Trusted

  #2463883 17-Apr-2020 09:05
Send private message

Looks a bit like a reed relay. Is there a magnet that can come in close proximity to the component?



Certainly looks as if it's been changed before by the flux residue around the solder connections. That would give credence to it being something like a fuse.





Sony Xperia XA2 running Sailfish OS. https://sailfishos.org The true independent open source mobile OS
Samsung Galaxy Tab S6
Dell Inspiron 14z i5


Linux
11424 posts

Uber Geek

Trusted
Lifetime subscriber

  #2463884 17-Apr-2020 09:05
Send private message

Looks like a Thermal fuse to me as well




FIFO

30 posts

Geek


  #2463913 17-Apr-2020 09:21
Send private message

I was also thinking fuse. No magnets or coils close by. Measures open circuit so that's a problem.


thewabbit
127 posts

Master Geek

ID Verified

  #2463920 17-Apr-2020 09:25
Send private message

FIFO:



I was also thinking fuse. No magnets or coils close by. Measures open circuit so that's a problem.









Could be open by design and close when the enclosure gets too hot and shuts the pump down nicely or reduce flow/load?


MadEngineer
4278 posts

Uber Geek

Trusted

  #2463936 17-Apr-2020 09:35
Send private message

Looks suspiciously like a reed switch to me, especially with that component name. Put a magnet near it and see if it closes.




You're not on Atlantis anymore, Duncan Idaho.

Linux
11424 posts

Uber Geek

Trusted
Lifetime subscriber

  #2464023 17-Apr-2020 09:59
Send private message

Reed switch normally has glass around it






Trade NZ and US shares and funds with Sharesies (affiliate link).
FIFO

30 posts

Geek


  #2464025 17-Apr-2020 10:01
Send private message

interesting, it does close with a magnet


FIFO

30 posts

Geek


  #2464028 17-Apr-2020 10:04
Send private message

https://www.jaycar.co.nz/miniature-glass-reed-switch/p/SM1002







think this is it, still can't figure what its purpose is on the board


FIFO

30 posts

Geek


  #2464042 17-Apr-2020 10:22
Send private message

OK, figured it out. The controller card is mounted next to a water tight pressure vessel. There will be magnets inside there that drives the switches.


Linux
11424 posts

Uber Geek

Trusted
Lifetime subscriber

  #2464044 17-Apr-2020 10:23
Send private message

Then it's a Reed switch


MadEngineer
4278 posts

Uber Geek

Trusted

  #2464049 17-Apr-2020 10:36
Send private message

Linux:



Reed switch normally has glass around it



Exactly.  This is a glass enclosed item with a plastic surround or protective base/stand-off.
