623 posts

Ultimate Geek


#271670 21-May-2020 14:19
Send private message quote this post

My electrician can't install my Google Nest Hello doorbell.


Apparently it doesn't come with a 24V DC connector to the chime, only 24V AC (which won't work in NZ).


From what I can see, my only option is to go for a Ring doorbell.


Anyone else got a Google Nest Hello doorbell working in NZ?


View this topic in a long page with up to 500 replies per page Create new topic
 1 | 2
198 posts

Master Geek

Lifetime subscriber

  #2488756 21-May-2020 14:37
Send private message quote this post

Ring sells a 24v ac power supply



623 posts

Ultimate Geek


  #2488757 21-May-2020 14:39
Send private message quote this post

But that won't work with the Google Nest Hello, will it?








198 posts

Master Geek

Lifetime subscriber

  #2488762 21-May-2020 14:43
Send private message quote this post

according to this article, it will.  Unless that is not your device.



https://support.google.com/googlenest/answer/9250901?hl=en



Nest Hello has an internal battery which other Nest cameras don’t have. Hello is powered by your household wiring and uses low voltage wires that carry 14 to 30 V AC in North America, or 10.8 and 30 V AC in Europe.



https://nz-en.ring.com/collections/accessories/products/plug-in-adapter







Input







220 - 240VAC, 50 Hz















Output







24Vac 20VA










3243 posts

Uber Geek

Subscriber

  #2488769 21-May-2020 15:12
Send private message quote this post

Similar issue about 20 threads below this https://www.geekzone.co.nz/forums.asp?forumid=73&topicid=270332

44 posts

Geek


  #2489869 22-May-2020 22:49
Send private message quote this post

Why won't they power supply work in NZ?



623 posts

Ultimate Geek


  #2489905 23-May-2020 07:55
Send private message quote this post

technician14: Why won't they power supply work in NZ?


Something to do with the chime.
It has to be 24DC, but it’s 24AC.

Oh well, it has to be the Ring 2 then.
I do have Alexa and I understand it integrates better with Ring anyway.
I just really loved the design of the Nest Hello.

3243 posts

Uber Geek

Subscriber

  #2489940 23-May-2020 09:10
Send private message quote this post

danepak:
technician14: Why won't they power supply work in NZ?


Something to do with the chime.
It has to be 24DC, but it’s 24AC.

Oh well, it has to be the Ring 2 then.
I do have Alexa and I understand it integrates better with Ring anyway.
I just really loved the design of the Nest Hello.


The Nest Hello does not use dc. The following is copied from Google.

"Nest Hello needs to be powered by wires delivering 16 - 24 V AC, and at least 10 VA (in North America) or 12 - 24 V AC and at least 8 VA (in Europe).

Tip: A traditional doorbell system uses very little power, but Nest Hello has specific power requirements so the camera can continuously record video. You’ll need to check if your current doorbell system can deliver enough power for Hello to work."

Years ago it was common for the doorbell circuit to be powered from a small transformer. This is what the Nest product is intended to utilise if it is there or alternatively an ac plug pack. Unless you also have a door chime that needs dc so can't directly use the Nest supply I think there is a misunderstanding.









623 posts

Ultimate Geek


  #2489944 23-May-2020 09:24
Send private message quote this post

Yep, that’s what he said.
As it doesn’t use DC, we can’t get it to work with the chime.

198 posts

Master Geek

Lifetime subscriber

  #2489948 23-May-2020 09:33
Send private message quote this post

You have an existing doorbell chime? Do you need to keep that?

3243 posts

Uber Geek

Subscriber

  #2489950 23-May-2020 09:35
Send private message quote this post

What is the chime?

Edit. Quick search shows up others that have used dc for Nest so that a chime will work. You need to balance having enough power for Nest without overloading chime. So it can be done if you put your mind to it.



623 posts

Ultimate Geek


  #2489953 23-May-2020 09:44
Send private message quote this post

Don’t necessarily have to keep the chime.
Not sure of brand.

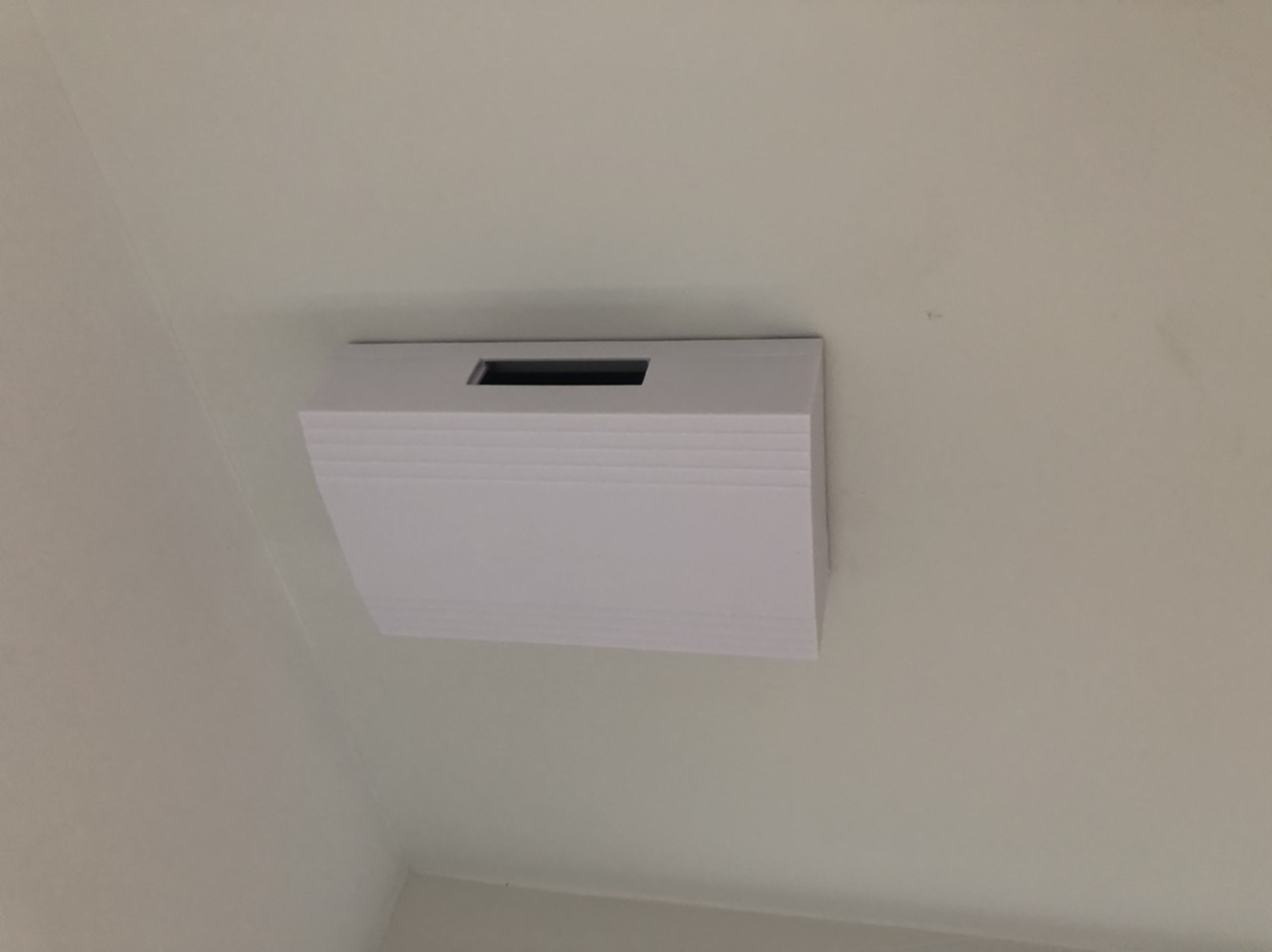

Is the photo of assistance?


Ah, it’s been rotated for some reason. Should be 90 degrees rotated.




623 posts

Ultimate Geek


  #2489955 23-May-2020 09:46
Send private message quote this post

Bung: What is the chime?

Edit. Quick search shows up others that have used dc for Nest so that a chime will work. You need to balance having enough power for Nest without overloading chime. So it can be done if you put your mind to it.


Yep, but my electrician gave up, so I guess I’ll have to leave it.

972 posts

Ultimate Geek

Trusted
Lifetime subscriber

  #2489961 23-May-2020 10:05
Send private message quote this post

danepak: Ah, it’s been rotated for some reason. Should be 90 degrees rotated.



I know this is going off-topic, but are you using an iPhone?



I've noticed that a lot with iPhones; I think they save the photo in a standard orientation, and then use the EXIF data to record the "correct" rotation for display - which works well on the iPhone and other Apple Products;  but not so much if/when the EXIF data is lost, stripped, or otherwise unused.




623 posts

Ultimate Geek


  #2489963 23-May-2020 10:09
Send private message quote this post

jamesrt:

danepak: Ah, it’s been rotated for some reason. Should be 90 degrees rotated.


I know this is going off-topic, but are you using an iPhone?


I've noticed that a lot with iPhones; I think they save the photo in a standard orientation, and then use the EXIF data to record the "correct" rotation for display - which works well on the iPhone and other Apple Products;  but not so much if/when the EXIF data is lost, stripped, or otherwise unused.


Yep, using iPhone.
