First up a note - I could rip out this system and put in a new one. However the system works fine. I see this as potentially an interesting project, not a "throw money at it" exercise.

I have an alarm system that came with the house. The system works, however I have no ability to know if it has gone off when I am away or to enable/disable it remotely.

I would like to add a home automation setup that connects into this, but the first obstacle is I have no information on the system at all, no manual nothing. The system is unbranded, other than a sticker on the house "spectrum security"

The control panel is very basic:

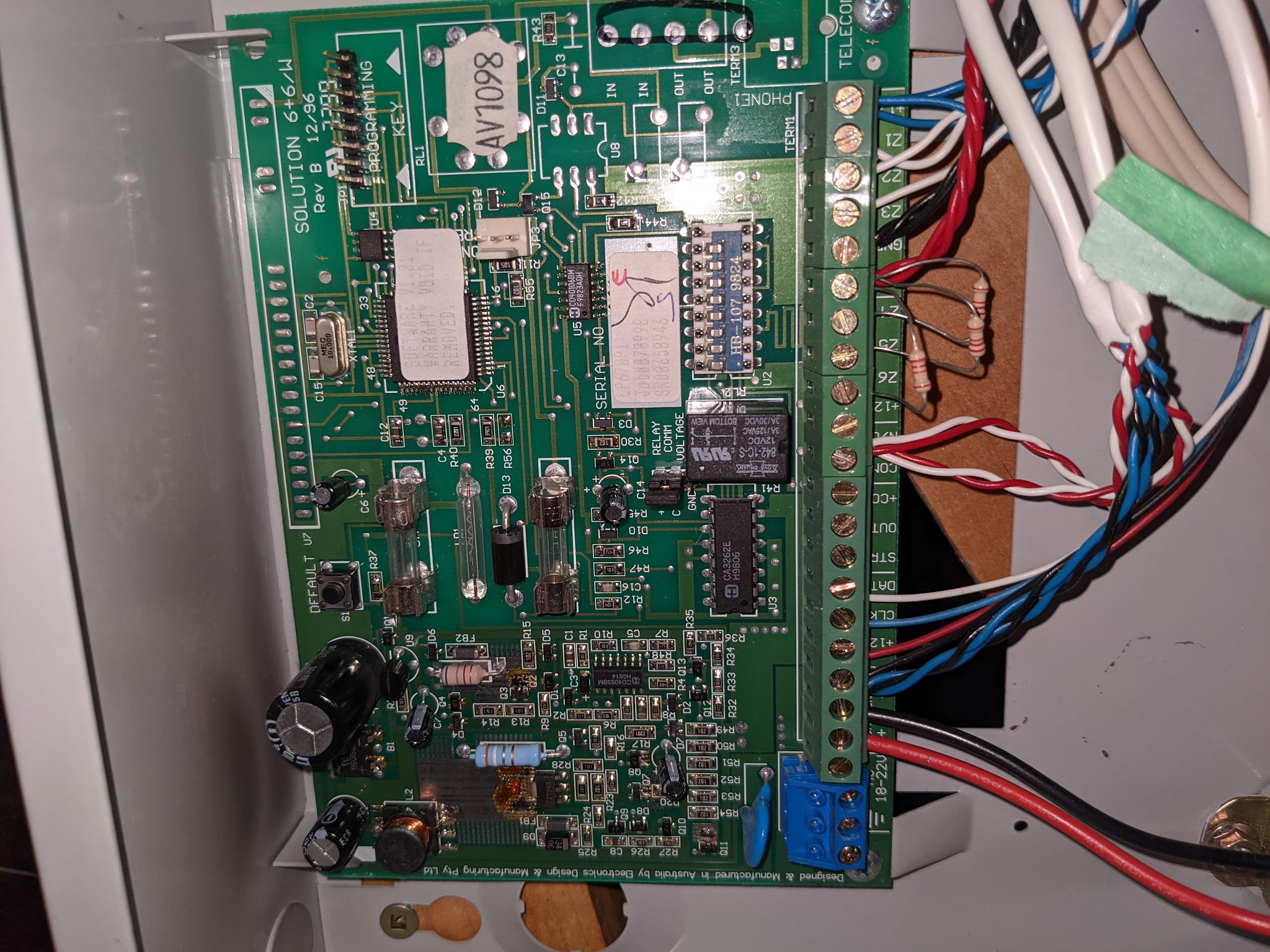

Recently I needed to replace the battery, so I took a photo of the circuit board of the unit in the roof space at the same time. Note when I took this photo I had removed the power lead (blue connectors) as the alarm was going off.

If anyone has any pointers on how to add a home automation setup to this big bonus :)

1 | 2

12 posts

Geek
+1 received by user: 3

#3005707 4-Dec-2022 20:51

Looks like "solution 6 + 6" from the pic is the name of the alarm

PDF of instruction manual https://www.protectwest.com.au/wp-content/uploads/2016/08/Bosch-EDM-Solution-66-user-manual.pdf

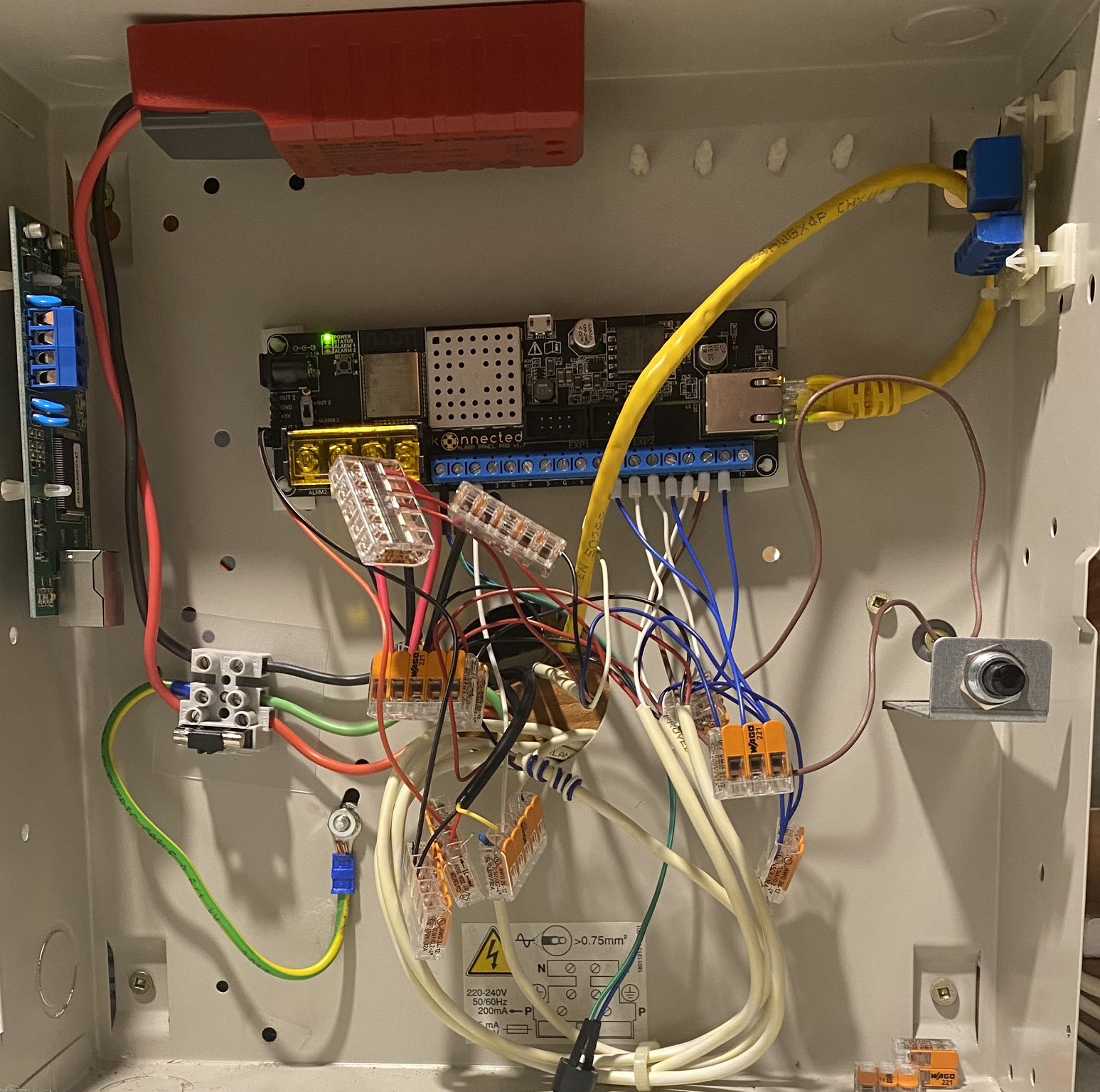

For Smarts konnected.io

seems to be pretty popular, have not tried it yet myself

Technofreak

6656 posts

Uber Geek
+1 received by user: 3474

Trusted

#3005719 4-Dec-2022 21:54

We have a Paradox alarm system. I added remote arm/disarm and monitoring using Home Assistant recently. There's a lot of integrations for Home Assistant for a lot of things. Might be worth look.

Sony Xperia XA2 running Sailfish OS. https://sailfishos.org The true independent open source mobile OS
Samsung Galaxy Tab S6
Dell Inspiron 14z i5

Bazil

81 posts

Master Geek
+1 received by user: 33

#3005728 4-Dec-2022 22:42

CrunchiePotatoes:

Looks like "solution 6 + 6" from the pic is the name of the alarm

PDF of instruction manual https://www.protectwest.com.au/wp-content/uploads/2016/08/Bosch-EDM-Solution-66-user-manual.pdf

For Smarts konnected.io

seems to be pretty popular, have not tried it yet myself

Perfect, thank you. Does anyone have experience with Konnected.io?

More than willing to try out, just interested.

jarledb

Webhead
3319 posts

Uber Geek
+1 received by user: 1983

Moderator

ID Verified

Trusted

Lifetime subscriber

#3005730 4-Dec-2022 22:49

Technofreak: We have a Paradox alarm system. I added remote arm/disarm and monitoring using Home Assistant recently. There's a lot of integrations for Home Assistant for a lot of things. Might be worth look.

Very cool. What did you use?

Jarle Dahl Bergersen | Referral Links: Want $50 off when you join Octopus Energy? Use this referral code
Are you happy with what you get from Geekzone? Please consider supporting us by making a donation or subscribing.

Technofreak

6656 posts

Uber Geek
+1 received by user: 3474

Trusted

#3005738 4-Dec-2022 23:30

I used PAI ( Paradox Alarm Interface).

You also need an interface cable to go from the panel serial port and one of the USB connectors on the Raspberry Pi running home Home Assistant.

Sony Xperia XA2 running Sailfish OS. https://sailfishos.org The true independent open source mobile OS
Samsung Galaxy Tab S6
Dell Inspiron 14z i5

Handle9

11924 posts

Uber Geek
+1 received by user: 9675

Trusted

Lifetime subscriber

#3005745 5-Dec-2022 03:48

CrunchiePotatoes:
Looks like "solution 6 + 6" from the pic is the name of the alarm

PDF of instruction manual https://www.protectwest.com.au/wp-content/uploads/2016/08/Bosch-EDM-Solution-66-user-manual.pdf

For Smarts konnected.io

seems to be pretty popular, have not tried it yet myself

You could go to the extent of konnected.io or just run the relay outputs into a pi or similar which can send notifications like arm/disarm, mains failure and alarm. I think solution 6+6 has three programmable relay outputs. The bigger issue will be getting access to program the panel via the keypad.

Edit: Solution panels are great but have potato level smarts. Your one doesn’t even have a phone jack. As you can see from the pcb it’s from 1996 so temper your expectations.

New World

Shop on-line at New World now for your groceries (affiliate link).

Handle9

11924 posts

Uber Geek
+1 received by user: 9675

Trusted

Lifetime subscriber

#3005746 5-Dec-2022 04:01

Have you checked what happens if you set off the alarm?

Out of the box the STR output is meant to go to the strobe and OUT1 would go to the horn. N/O would go to the inside screamer. I don’t think any of these are connected to anything?

Bazil

81 posts

Master Geek
+1 received by user: 33

#3005748 5-Dec-2022 06:18

Handle9: Have you checked what happens if you set off the alarm?

Out of the box the STR output is meant to go to the strobe and OUT1 would go to the horn. N/O would go to the inside screamer. I don’t think any of these are connected to anything?

Everything certainly works - it is very loud!

Handle9

11924 posts

Uber Geek
+1 received by user: 9675

Trusted

Lifetime subscriber

#3005749 5-Dec-2022 06:26

Interesting. You've got something a bit funky going on somehow.

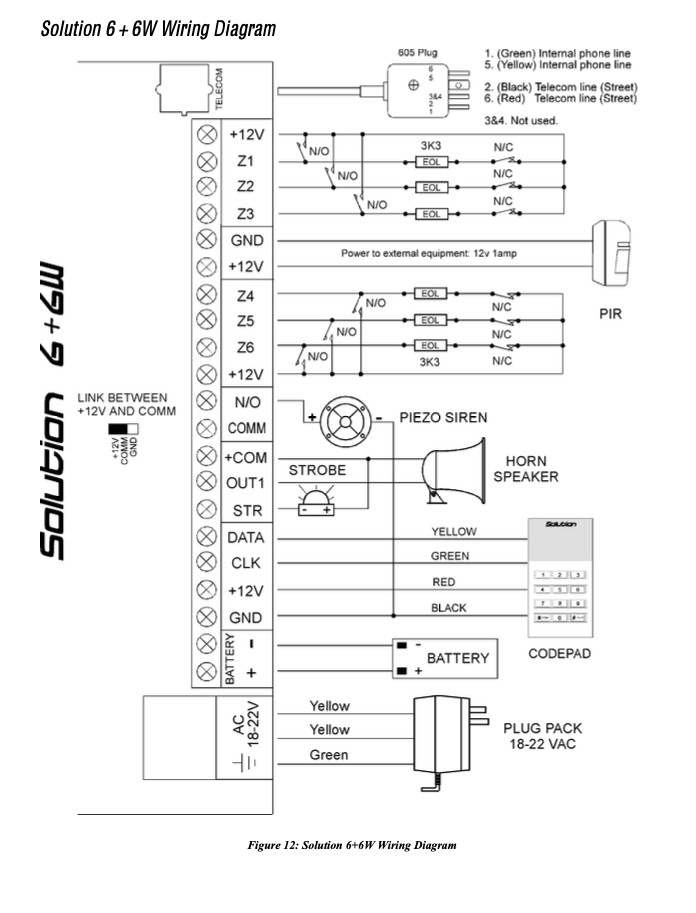

Anyway here's the wiring diagram FYI

davidcole

6099 posts

Uber Geek
+1 received by user: 1465

Trusted

#3005754 5-Dec-2022 07:15

Technofreak: I used PAI ( Paradox Alarm Interface).

You also need an interface cable to go from the panel serial port and one of the USB connectors on the Raspberry Pi running home Home Assistant.

or the ip module..ideally one on the old firmware.

Previously known as psycik

Home Assistant: Gigabyte AMD A8 Brix, Home Assistant with Aeotech ZWave Controller, Raspberry PI, Wemos D1 Mini, Zwave, Shelly Humidity and Temperature sensors
Media:Chromecast v2, ATV4 4k, ATV4, HDHomeRun Dual
Server Host Plex Server 3x3TB, 4x4TB using MergerFS, Samsung 850 evo 512 GB SSD, Proxmox Server with 1xW10, 2xUbuntu 22.04 LTS, Backblaze Backups, usenetprime.com fastmail.com Sharesies Trakt.TV Sharesight

Technofreak

6656 posts

Uber Geek
+1 received by user: 3474

Trusted

#3005806 5-Dec-2022 08:00

davidcole:

Technofreak: I used PAI ( Paradox Alarm Interface).

You also need an interface cable to go from the panel serial port and one of the USB connectors on the Raspberry Pi running home Home Assistant.

or the ip module..ideally one on the old firmware.

If I already had the IP module I'd use it otherwise I think the serial to USB cable is the best (simple, cheap, easiest) option.

Sony Xperia XA2 running Sailfish OS. https://sailfishos.org The true independent open source mobile OS
Samsung Galaxy Tab S6
Dell Inspiron 14z i5

Dell

Shop now for Dell laptops and other devices (affiliate link).

esawers

559 posts

Ultimate Geek
+1 received by user: 94

#3005814 5-Dec-2022 08:49

We had a Solution 660 panel, the installer kept all of the sensors and sirens and replaced the panel with a Solution 3000 (with ip panel?) so we can use the phone app to turn the alarm on and off. The app is very basic though
