Hi all, in relation to my earlier query re RC cars, we were gifted a RC truck :) however the battery charger has been lost for this.

I am having trouble sourcing the specific charging cable with the right plug to fit this type of battery.

Jaycar & a hobby shop were unable to tell us the part name.

Might this hive know the part name? So I can google and purchase a new charging cable.

Thanks!

gbwelly

1264 posts

Uber Geek
+1 received by user: 777

Subscriber

#3059385 5-Apr-2023 15:10

Sorry, the picture isn't loading.

caffynz

324 posts

Ultimate Geek
+1 received by user: 143

ID Verified

Subscriber

#3059561 5-Apr-2023 22:16

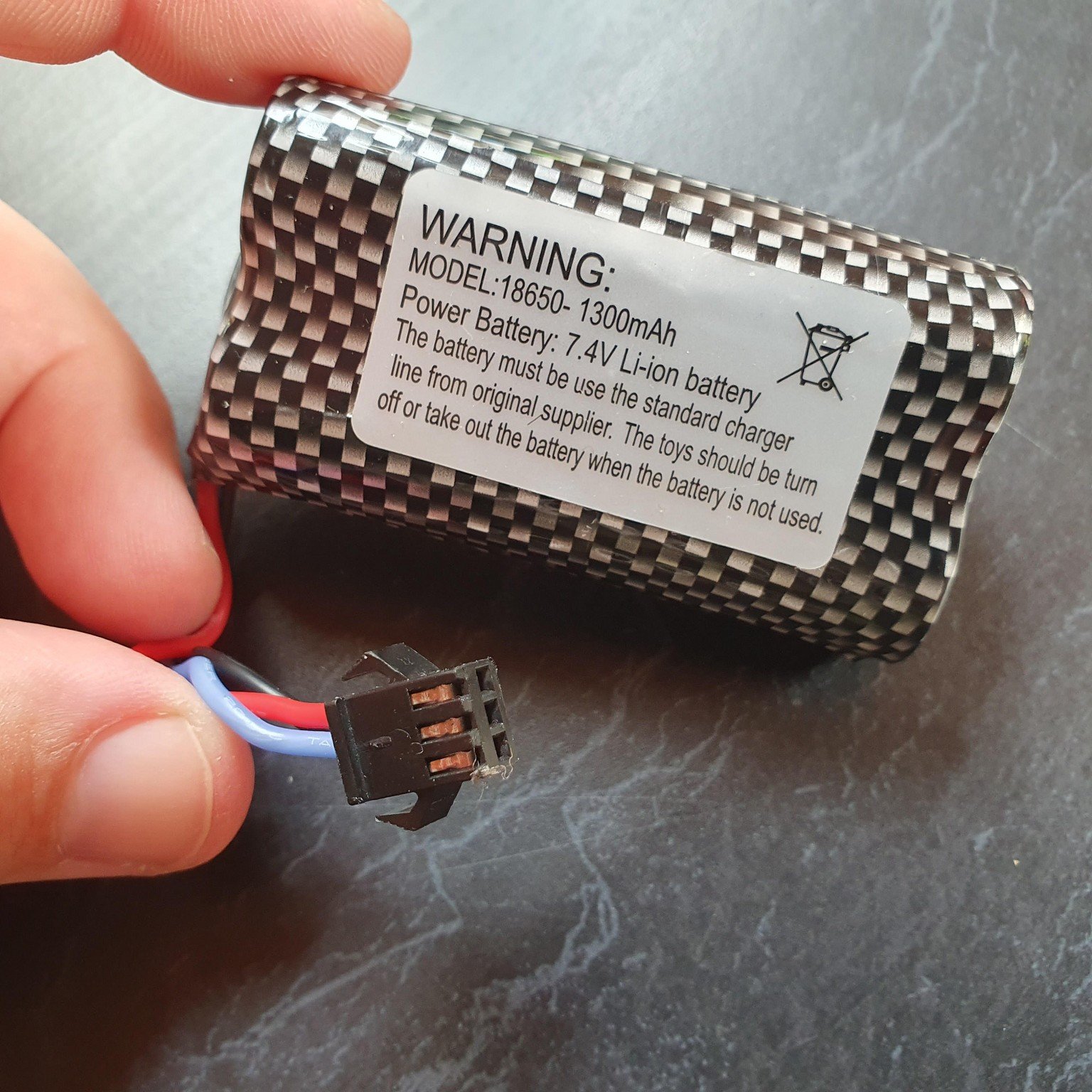

Thanks for LMK. Trying again:

kiwiharry

1067 posts

Uber Geek
+1 received by user: 478

ID Verified

Subscriber

#3059573 5-Apr-2023 23:01

Google reverse image search shows it's a JST SM-3P.

So maybe something like this is what you could be after?

https://www.ebay.com/itm/255063668477

Could be available locally, but hopefully this puts you on the right track

If you can't laugh at yourself then you probably shouldn't laugh at others.

caffynz

324 posts

Ultimate Geek
+1 received by user: 143

ID Verified

Subscriber

#3059574 5-Apr-2023 23:23

Thank you! Google Lens was not working very well for me!

I have something to go on :)

xpd

Geek of Coastguard
14193 posts

Uber Geek
+1 received by user: 4659

Retired Mod

ID Verified

Trusted

Lifetime subscriber

#3059607 6-Apr-2023 07:30

Have a chat with https://www.rchobbies.co.nz/ if you dont have any luck. Sometimes its just a matter of chopping off the connecters and replacing with something more common.

XPD / Gavin

LinkTree

richms

29251 posts

Uber Geek
+1 received by user: 10361

Trusted

Lifetime subscriber

#3059681 6-Apr-2023 09:59

There is no standard for the wiring of those connectors so you need to check out whatever you get. It may be a ballance style with the connection between the 2 cells bought out, or it may be a thermal sensor. Its not as simple as just getting the right plug to fit.

In anycase, look at LED connectors for pre-terminated ones of those, its very commony on LED strips.
