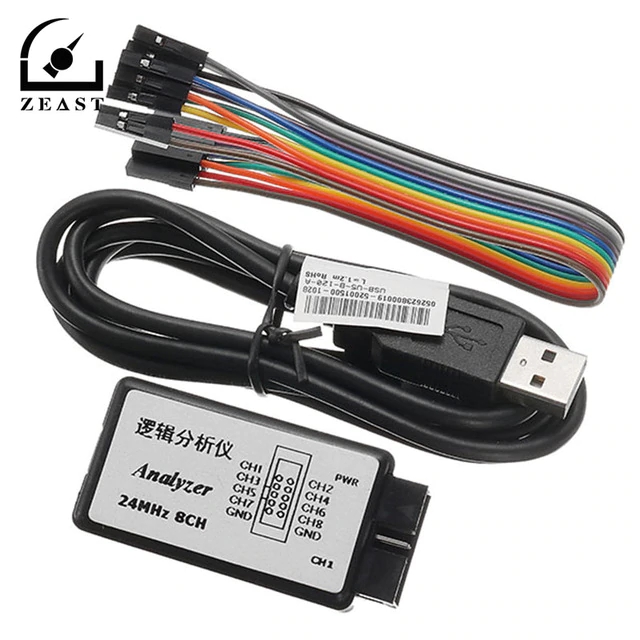

WTB: USB Logic Analyser Debugger 8 channel 24MHz

To post in this sub-forum you must have made 100 posts or have Trust status or have completed our ID Verification

Forums › Offers and Wanted › WTB: USB Logic Analyser Debugger 8 channel 24MHz

xbmcnut

501 posts

Ultimate Geek
+1 received by user: 49

#251621 3-Jul-2019 12:44

Anyone got one of these surplus? I've got one coming from Ali for $10 but it could be a month away and I'm trying to help a code developer debug some hardware for a MiLight bridge.

RS820+, DS223, CoreELEC on Odroid N2+, 3 x Echo Dot & 7 x Google Homes connected to Home Assistant on Beelink SEi12.

phrozenpenguin

868 posts

Ultimate Geek
+1 received by user: 90

#2269258 3-Jul-2019 12:58

I don't have one so offtopic but interested as to what this does and why you need it?

xbmcnut

501 posts

Ultimate Geek
+1 received by user: 49

#2269262 3-Jul-2019 13:08

I'm working with the developer here https://github.com/sidoh/esp8266_milight_hub/issues/266 to debug the SPI interface for rogue 2.4GHz MiLight remotes. Chris has built some cool software that can act as a MiLight bridge that sniffs packets from 2.4GHz remotes allowing you to emulate them in Home Assistant. I have three such remotes but only one can be sniffed so we need to analyse the SPI interface on the two I have that don't work.

RS820+, DS223, CoreELEC on Odroid N2+, 3 x Echo Dot & 7 x Google Homes connected to Home Assistant on Beelink SEi12.

floydbloke

3646 posts

Uber Geek
+1 received by user: 4554

ID Verified

#2269263 3-Jul-2019 13:22

If you have no luck here there is one on Trademe for $20 (+$5.50 postage).

https://www.trademe.co.nz/electronics-photography/other-electronics/other/listing-2207408218.htm?rsqid=0cc994405fdc453c9f539755a5e2c4d0-001

You could ask if they have local stock.

Sometimes I use big words I don't always fully understand in an effort to make myself sound more photosynthesis.

xbmcnut

501 posts

Ultimate Geek
+1 received by user: 49

#2269302 3-Jul-2019 13:29

Thanks @floydbloke

I didn't look very hard!! Buying now.

RS820+, DS223, CoreELEC on Odroid N2+, 3 x Echo Dot & 7 x Google Homes connected to Home Assistant on Beelink SEi12.

phrozenpenguin

868 posts

Ultimate Geek
+1 received by user: 90

#2269303 3-Jul-2019 13:31

xbmcnut:

I'm working with the developer here https://github.com/sidoh/esp8266_milight_hub/issues/266 to debug the SPI interface for rogue 2.4GHz MiLight remotes. Chris has built some cool software that can act as a MiLight bridge that sniffs packets from 2.4GHz remotes allowing you to emulate them in Home Assistant. I have three such remotes but only one can be sniffed so we need to analyse the SPI interface on the two I have that don't work.

Good luck - that looks a fun little rabbit-hole to explore!
