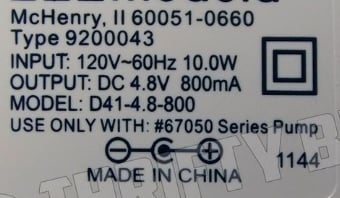

i have this one, but it only works in 120v~60Hz.



dose anyone have a spare on that works in 240v? i tried trademe and jaycar, didnt have any luck.



thanks advance.







Sam






Create new topic
Affiliate link




Affiliate link: Norton Secure VPN helps secure private information using bank-grade encryption when using public Wi-Fi on your PC, Mac, or mobile device.
1101
3036 posts

Uber Geek


  #2323334 23-Sep-2019 12:45
Send private message

5v should be close enough . 5v would be easier to get .






richms
25134 posts

Uber Geek

Trusted
Subscriber

  #2323346 23-Sep-2019 12:57
Send private message

Its probably a charger not just an AC adapter, all the stupid voltage ones seem to be like that. I have a couple of things that need a 12.6v one and they are also current limited to look after the battery charging.





Richard rich.ms

iamsammajor

336 posts

Ultimate Geek


  #2323347 23-Sep-2019 13:01
Send private message

richms:



Its probably a charger not just an AC adapter, all the stupid voltage ones seem to be like that. I have a couple of things that need a 12.6v one and they are also current limited to look after the battery charging.









oh thanks for pointing it out, it might well be the case.




iamsammajor

336 posts

Ultimate Geek


  #2323367 23-Sep-2019 13:29
Send private message

1101:



5v should be close enough . 5v would be easier to get .













just to make sure,



5v, and as long as the outlet plug fit and can deliver more or equal to 800mA it should be fine?


neb

neb
6326 posts

Uber Geek

Trusted
Lifetime subscriber

  #2323662 24-Sep-2019 07:51
Send private message

1101:

5v should be close enough . 5v would be easier to get .









Or put a dropping resistor across it if it's really that finicky. However as @richms pointed out, something with a voltage that weird may be a charger rather than a generic power supply. What's the connector look like?

huckster
537 posts

Ultimate Geek

Lifetime subscriber

  #2323664 24-Sep-2019 07:55
Send private message

neb:
1101:



5v should be close enough . 5v would be easier to get .







Or put a dropping resistor across it if it's really that finicky. However as @richms pointed out, something with a voltage that weird may be a charger rather than a generic power supply. What's the connector look like?



Methinks it is for a breast pump - Googled the "67050 pump" bit.



Something like this I guess.....



https://www.amazon.com/Adapter-Medela-Electric-Breastpump-Supply/dp/B075D8B35J



Looks mighty like an old Nokia charger. I will have a look myself.



EDIT: Actually, that Amazon link takes you to one that handles 100-240V AC 50-60Hz so that could be an option.


iamsammajor

336 posts

Ultimate Geek


  #2323666 24-Sep-2019 07:57
Send private message

neb:
1101:



5v should be close enough . 5v would be easier to get .







Or put a dropping resistor across it if it's really that finicky. However as @richms pointed out, something with a voltage that weird may be a charger rather than a generic power supply. What's the connector look like?

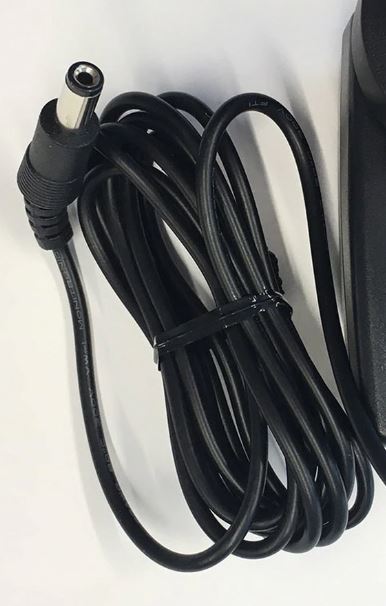

the plug looks like this, 5.5mm, it is for a Medela breast pump.






neb

neb
6326 posts

Uber Geek

Trusted
Lifetime subscriber

  #2323676 24-Sep-2019 08:23
Send private message

iamsammajor:

the plug looks like this, 5.5mm, it is for a Medela breast pump.





That looks like a 5.5 x 2.5, which alongside the 5.5 x 2.1 are kinda the universal standard so any power supply with a 2.1/2.5 mm barrel jack connector should do it. A 2.5 will typically also often work with a 2.1, although obviously not the other way round, and worst-case you can get 2.1 2.5 adapters from Jaycar for a few dollars.





Another option is to get a USB to barrel jack adapter so you can power it from a USB power supply.





As someone else pointed out though, since it's a switchmode power supply all you need is a NZ -> US plug adapter to run it here.

iamsammajor

336 posts

Ultimate Geek


  #2323831 24-Sep-2019 11:58
Send private message

neb:
iamsammajor:



the plug looks like this, 5.5mm, it is for a Medela breast pump.



That looks like a 5.5 x 2.5, which alongside the 5.5 x 2.1 are kinda the universal standard so any power supply with a 2.1/2.5 mm barrel jack connector should do it. A 2.5 will typically also often work with a 2.1, although obviously not the other way round, and worst-case you can get 2.1 2.5 adapters from Jaycar for a few dollars. Another option is to get a USB to barrel jack adapter so you can power it from a USB power supply. As someone else pointed out though, since it's a switchmode power supply all you need is a NZ -> US plug adapter to run it here.







i actually didnt know there is a such thing as a USB to barrel cable. i could actually get the cable as use my iphone 5w charger for it and it might work, cos the charger is 5w 1A


Bung
4536 posts

Uber Geek


  #2323877 24-Sep-2019 12:35
Send private message

neb: As someone else pointed out though, since it's a switchmode power supply all you need is a NZ -> US plug adapter to run it here.


That supply was an alternative from Amazon not the OP's original. The US is a big enough market for a 120v only model to be worthwhile and Americans tend to stay put.

neb

neb
6326 posts

Uber Geek

Trusted
Lifetime subscriber

  #2324178 24-Sep-2019 19:43
Send private message

Ah, yeah, reading comprehension fail, should have checked the original message. Weird that they make a switchmode supply that isn't universal-voltage.

iamsammajor

336 posts

Ultimate Geek


  #2324290 25-Sep-2019 07:10
Send private message

thank you all for your help,



I brought a USB to barrel cable, and use it with the apple 5w adaptor.



it seems to be working on, the pump goes without any problem.







thanks alot



Sam
