[Snap] VDSL - Attainable throughput

Forums › 2degrees (including Slingshot, Orcon, Flip, Stuff Fibre, MyRepublic, 2talk and Vocus) › [Snap] VDSL - Attainable throughput

Eitsop

584 posts

Ultimate Geek
+1 received by user: 153

ID Verified

#127397 8-Aug-2013 20:36

Hi

can Chorus tweak at the exchange the "Attainable throughput", as I have had chorus out twice to fix connection that has hung, and after each time.. the Attainable throughput has reduced?

I was initially getting 30mb, then 25mb, now 18mb?

Anybody in the know?

Dean

sbiddle

30853 posts

Uber Geek
+1 received by user: 9996

Retired Mod

Trusted

Biddle Corp

Lifetime subscriber

#874196 8-Aug-2013 20:40

What is your attenuation and how far do you think you are from an ISAM based upon the Chorus VDSL2 coverage maps?

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#874204 8-Aug-2013 20:42

sounds a bit like your line has issues, and DLM is adjusting..

line stats?

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

Eitsop

584 posts

Ultimate Geek
+1 received by user: 153

ID Verified

#874205 8-Aug-2013 20:43

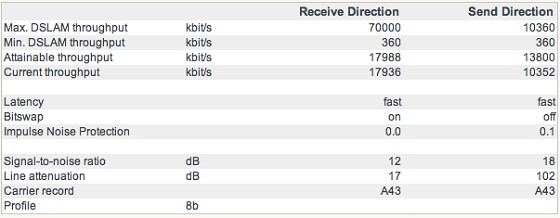

My SNR is 12, & Attenuation is 17

Dean

insane

3324 posts

Uber Geek
+1 received by user: 1006

ID Verified

Trusted

2degrees

Subscriber

#874210 8-Aug-2013 20:47

Modems do that, they re-train to the line conditions if they drop below a threshold, so that behavior is to be expected.

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#874212 8-Aug-2013 20:47

attewell: My SNR is 12, & Attenuation is 17

Dean

since your posting under snap, any chance your using a fritzbox? if so screenshot your graphs.

would also help to know your latency and your INP values, from that we can work out your current DLM profile.

error rates would help too. (only referring to CRC errors)

do you have a master filter installed? or a single cat 5/6 connection from the ETP?

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

Eitsop

584 posts

Ultimate Geek
+1 received by user: 153

ID Verified

#874213 8-Aug-2013 20:48

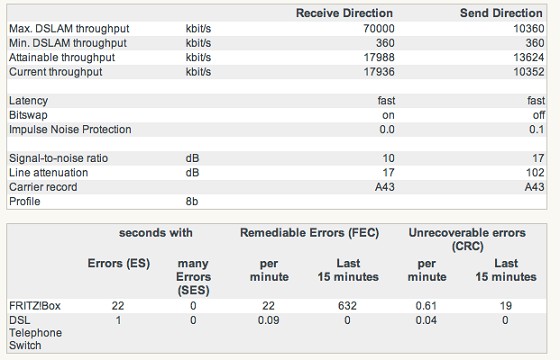

Errors minimal..
Yes Fritzbox.. Yes VDSL Splitter, Yes cat5e from ETP to Fritzbox

Dyson

Shop now for Dyson appliances (affiliate link).

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#874225 8-Aug-2013 21:03

attewell:

Errors minimal..
Yes Fritzbox.. Yes VDSL Splitter, Yes cat5e from ETP to Fritzbox

spectrum?

what counts as minimal?

it would seem your on DLM-1 so thats a good sign if the error rate is down. dont be afraid to screenshot more of the page, you missed a few key points of data that saves having to ask a few of these questions.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

sbiddle

30853 posts

Uber Geek
+1 received by user: 9996

Retired Mod

Trusted

Biddle Corp

Lifetime subscriber

#874226 8-Aug-2013 21:04

Assuming your wiring is up to spec it's highly likely to be a case of being beyond VDSL2 coverage. If so there isn't anything to can do - you're lucky you were actually installed!

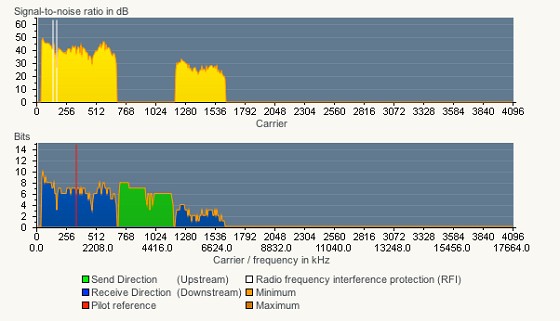

The bitloading graph from the modem would show a lot more.

What does your location show on the Chorus VDSL2 coverage maps? Are you in a 20Mbps zone?

Eitsop

584 posts

Ultimate Geek
+1 received by user: 153

ID Verified

#874228 8-Aug-2013 21:08

Eitsop

584 posts

Ultimate Geek
+1 received by user: 153

ID Verified

#874239 8-Aug-2013 21:17

And yes I am in a >20mb Zone on Chorus Maps

sbiddle

30853 posts

Uber Geek
+1 received by user: 9996

Retired Mod

Trusted

Biddle Corp

Lifetime subscriber

#874242 8-Aug-2013 21:19

I assume you either have a master filter or have your connection on a dedicated jackpoint solely for VDSL2?

You also need to tell is whether Chorus say you're within a VDSL2 coverage area, without you answering this nobody really knows if we're dealing with an actual issue or not.

Geekzone support

Support Geekzone with one-off or recurring donations Donate via PressPatron.

Eitsop

584 posts

Ultimate Geek
+1 received by user: 153

ID Verified

#874257 8-Aug-2013 21:30

sbiddle: I assume you either have a master filter or have your connection on a dedicated jackpoint solely for VDSL2?

You also need to tell is whether Chorus say you're within a VDSL2 coverage area, without you answering this nobody really knows if we're dealing with an actual issue or not.

Yes, Master Filter, already had a VDSL one, and Chorus were going to install one for free.. but I had one already

Yes Chorus Maps say I am in Area and in a >20 zone
