Hi all,



I have a 2Degrees 200/200 UFB plan that includes an additional /29 IP range in addition to the primary static IP address. I have everything set up and working correctly with the provided Fritz!Box 7560 router, but the performance through the router is abysmal. Speed tests vary wildly, pings to the router vary from the expected <1ms all the way through to timeout. I'm pushing the router fairly hard with a lot of rules & running a permanent site to site VPN, and I suspect the device can't handle it.



2Degrees support aren't overwhelming me with confidence and help, so I'm wanting to know whether anyone has any tried and tested solutions to alternative routers that can handle the way 2Degrees implements their static IP allocations. This connection is off site, so I don't have the ability to test new options the way that I would if it was my home connection.



I've got a Ubiquiti EdgeRouter I use for my home connection, and perhaps that might be an appropriate approach, although I haven't tested it with the /29 subnet.



Any help is appreciated.



Thanks


Create new topic
michaelmurfy
meow
13266 posts

Uber Geek

Moderator
ID Verified
Trusted
Lifetime subscriber

  #2238256 15-May-2019 11:12
Send private message

The Edgerouter will work but what you're really wanting is the Fritz!Box 7490.





Michael Murphy | https://murfy.nz
Referral Links: Quic Broadband (use R122101E7CV7Q for free setup)

Are you happy with what you get from Geekzone? Please consider supporting us by subscribing.
Opinions are my own and not the views of my employer.




LightBulbnz

17 posts

Geek


  #2238262 15-May-2019 11:20
Send private message

What's the difference between the two? Does the 7490 have better hardware to cope with what I'm wanting it for?


NickMack
962 posts

Ultimate Geek

Trusted
Lifetime subscriber

  #2238264 15-May-2019 11:20
Send private message

Hiya,



Interesting... I have a /29 on a Frtizbox 7490 and it works fine - I have Webservers, MSExchange, MSSQL and a few other boxes behind it with no issues with speed - I have >35 devices connected (wifi/wired)



What troubleshooting have you performed and how are you testing?



Nick.







NickMack
962 posts

Ultimate Geek

Trusted
Lifetime subscriber

  #2238266 15-May-2019 11:21
Send private message

LightBulbnz:



What's the difference between the two? Does the 7490 have better hardware to cope with what I'm wanting it for?





Main difference between models is wifi stack - 7560 has slightly better wifi, and one less ATA port.



Nick.





LightBulbnz

17 posts

Geek


  #2238268 15-May-2019 11:25
Send private message

Yeah, the wifi is disabled on my fritzbox, so the better wifi stack is irrelevant. If there was better internal hardware that might make a difference though.



The Fritzbox is connected directly to a server. The server is known working well.



I've tried: different ports on the fritzbox and the server. Different cables on the two. Disabling VPN, disabling various features. Factory reset & reload of configuration.



I believe that I've done everything reasonable at this stage.


NickMack
962 posts

Ultimate Geek

Trusted
Lifetime subscriber

  #2238307 15-May-2019 12:24
Send private message

LightBulbnz:



Yeah, the wifi is disabled on my fritzbox, so the better wifi stack is irrelevant. If there was better internal hardware that might make a difference though.



The Fritzbox is connected directly to a server. The server is known working well.



I've tried: different ports on the fritzbox and the server. Different cables on the two. Disabling VPN, disabling various features. Factory reset & reload of configuration.



I believe that I've done everything reasonable at this stage.





Hiya



I don't use wifi on the Fritz either, I use a bunch of Ubiquity kit for wifi, the hardware is the same for the rest - What OS are you running on the server? Have you checked to ensure the network drivers are the latest from the MB manufacturer or NIC manufacturer?



Nick.





LightBulbnz

17 posts

Geek


  #2238310 15-May-2019 12:39
Send private message

I've tried both windows and Debian. I've also tried the built in network interfaces, and also interfaces from a expansion card.






Move to New Zealand's best fibre broadband service (affiliate link). Free setup code: R587125ERQ6VE. Note that to use Quic Broadband you must be comfortable with configuring your own router.
NickMack
962 posts

Ultimate Geek

Trusted
Lifetime subscriber

  #2238314 15-May-2019 12:41
Send private message

Hiya,



Can you please use this guide 2degrees - Troubleshooting speed issues - Tips & Tricks and follow section 5. Building a bootable USB stick to eliminate driver/OS issues.



Nick.





LightBulbnz

17 posts

Geek


  #2238434 15-May-2019 15:47
Send private message

Hi Nick, thanks for your help, but I've tested this before and I know the server isn't the fault.


Aredwood
3885 posts

Uber Geek


  #2238480 15-May-2019 16:06

Can you view the processor load on the Fritzbox while the problems are occurring?

Especially if you are using the Fritzbox to terminate 1 end of the VPN tunnel.

How are the additional IPs inside that subnet provided to you? In the same PPP tunnel as the primary connection or something else?





NickMack
962 posts

Ultimate Geek

Trusted
Lifetime subscriber

  #2238509 15-May-2019 16:59
Send private message

Aredwood: Can you view the processor load on the Fritzbox while the problems are occurring?

Especially if you are using the Fritzbox to terminate 1 end of the VPN tunnel.

How are the additional IPs inside that subnet provided to you? In the same PPP tunnel as the primary connection or something else?







Yes - here







LightBulbnz

17 posts

Geek


  #2238785 16-May-2019 09:09
Send private message

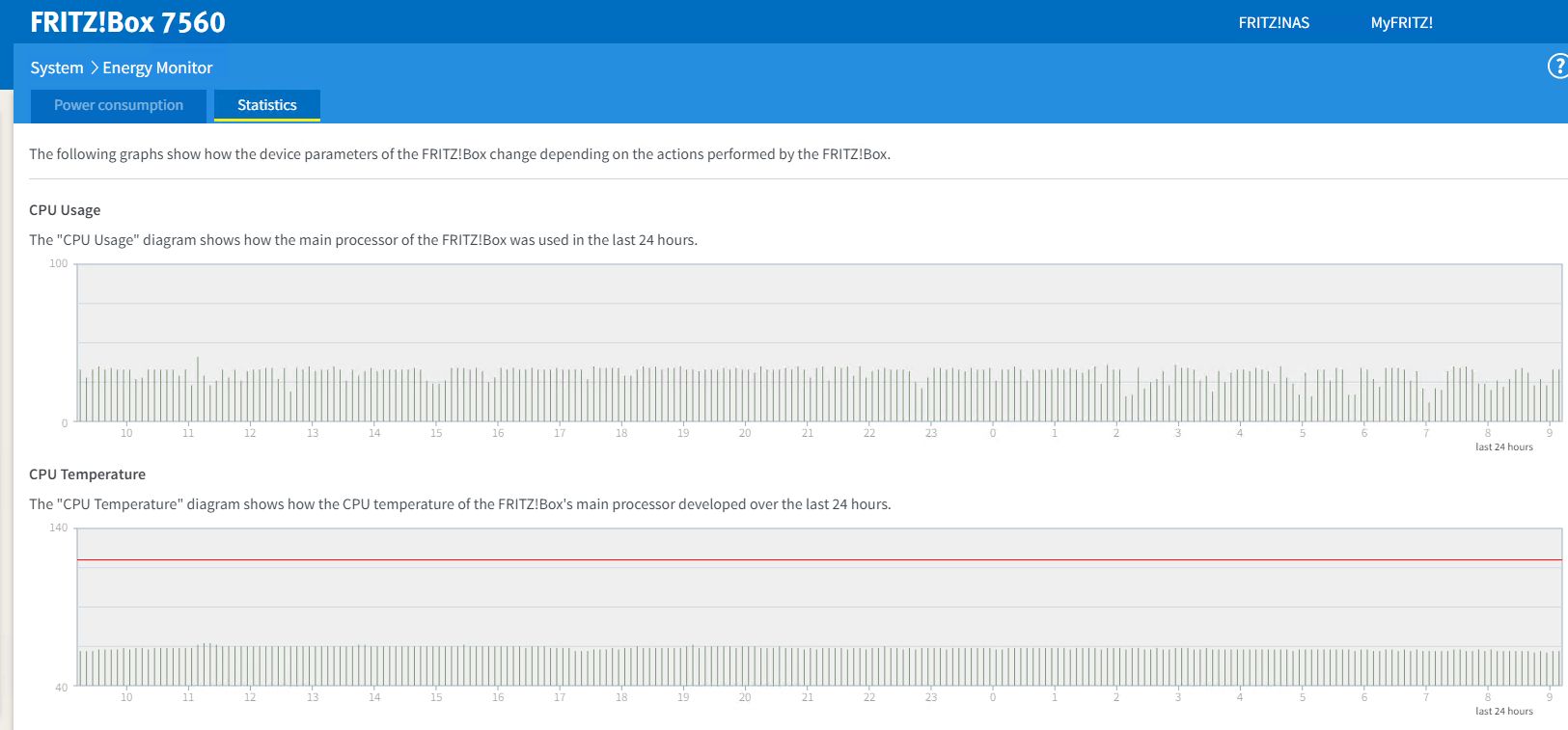

Here's the system utilisation:
