New to Orcon +

Forums › 2degrees (including Slingshot, Orcon, Flip, Stuff Fibre, MyRepublic, 2talk and Vocus) › New to Orcon +

CutCutCut

1039 posts

Uber Geek

#40470 28-Aug-2009 22:48

Hi,

I've just been connected to Orcon plus. It's the first time I've had broadband to this house.

Below is stats from the router. Although 2.29Mbps isn't really slow, I was hoping for a bit more out of Orcon +. Am I being unrealisitic? I was recently staying with my in-laws and they were getting about 4.5Mbps on just a standard Adsl 1 setup with Telecom.
I'm located in Manly, Hibiscus Coast.
Am planning to ring Orcon but am wondering if anyone here can see anything unusual with what I've posted below.

Thanks.

1 | 2

9 posts

Wannabe Geek

#251456 28-Aug-2009 23:41

As a former Hibiscus Coast Orcon+ user I can it is likely that is as good as it will get although they might be able to squeeze a little bit more out of it. I use to leave in the Tindalls Beach area and the maximum I could get was only 3.3Mb/s on speedtest with a line rate of about 4000Kbps. Which is twice the speed my neighbour could get with Telecom, simply due to distance to the exchange I believe which if you didn't know is the building by the bus stop across the road from Whangaparaoa Shopping Centre.

CutCutCut

1039 posts

Uber Geek

#251505 29-Aug-2009 10:23

Thanks there Lapze, I might try and see if they can squeeze a bit more out of it. I would have thought Manly would have been closer to the exchange than tindalls beach but perhaps not in terms of cable length.

Sounddude

I fix stuff!
1928 posts

Uber Geek

Trusted

2degrees

Lifetime subscriber

#251510 29-Aug-2009 10:54

HBC is well known for bad sync speeds.

Do the usual things, unplug all your phones, faxs etc and then reboot your modem. See if that makes a difference.

Make sure you don't have any extension cords plugged into your DSL modem.

Hope that helps!

CutCutCut

1039 posts

Uber Geek

#252086 1-Sep-2009 00:17

Thanks Sounddude. I've tried disconnecting everything and rebooting etc. I'll tryin the next couple of days to connect the modem into the main jack that comes in from the road, the demarc point I think it's called, and see if that helps.
Why is the HBC well known for bad synch speeds?
According to google maps I'm 2 kms away from the exchange by road. Looking at
http://www.internode.on.net/residential/broadband/adsl/extreme/
and this
http://fremnet.net/article/216/adsl-theoretical-speed-calculator
and this guy
http://olofolsson.com/2008/03/adsl-broadband-speed-part-1/
I should be expecting at between 8 - 12 Mbps.
According to Telecoms website they have no plans to stick a cabinet in servicing my street, which I assume means they probably think that we should be close enough to the exchange?

Ragnor

8219 posts

Uber Geek

Trusted

#252088 1-Sep-2009 01:49

Downstream Noise Margin: 6.4dB

That's a really low (and bad) signal to noise margin. There could some problems with your wiring or phone line, or perhaps you have a faulty filter on one of your POTS devices (eg: phone, fax, sky). Can't say for sure.

I doubt you will get a better sync speed without figuring out what is causing that low noise margin.

CutCutCut

1039 posts

Uber Geek

#252145 1-Sep-2009 10:44

Thanks Ragnor, I'll be trying connecting straight to the demarc point sometime this week once I borrow a laptop and I'll disconnect the line that runs to all the other jackpoints and see if that makes a difference. What would a common or average Downstream Noise Margin be? Why is the upstream noise margin so much higher? Or is that also low? How are they different, it is running along the same wires so shouldn't it be the same?
Thanks.

Ragnor

8219 posts

Uber Geek

Trusted

#252159 1-Sep-2009 11:27

If I remember correctly upstream and downstream use different frequency bands on the line. So it's possible you have high noise in the band used by downstream.

What are good rates: I think these are from an Alactel report in 2006 (maybe) but are widely quoted on the net

Attenuation Rates:

<20bB. = Outstanding
20dB-30dB. = Excellent
30dB-40dB. = Very Good
40dB-50dB. = Good
50dB-60dB. = Poor and may experience connectivity issues
60dB+ = Bad and will experience connectivity issues

Noise Margin:

<6bB = Bad and will experience no line synchronisation or intermittent synchronisation problems.
7dB-10dB. = Fair but does not leave much room for variances in conditions.
11dB-20dB. = Good with little or no synchronisation problems
20dB-28dB. = Excellent
29dB. or above = Outstanding

Equinox IT

Cloud spending continues to surge globally, but most organisations haven’t made the changes necessary to maximise the value and cost-efficiency benefits of their cloud investments. Download the whitepaper From Overspend to Advantage now.

Kyanar

4089 posts

Uber Geek

ID Verified

Trusted

#252179 1-Sep-2009 12:05

Have you tried forcing your router to sync with the G.DMT profile? I have an issue where if I force my router to sync with G.DMT, I get a 2Mb/s connection. If I allow it to autosense, if syncs at 1Mb. Also, if Orcon forces my connection to G.DMT, I also get 1Mb. (This is also why I get hacked off when people complain about 4Mb connections. Some of us barely get 2Mb - so they can just stow it).

Bee

732 posts

Ultimate Geek

#252238 1-Sep-2009 14:20

Id be interested to know what you do if you do end up getting better speeds... otherwise if its an area thing Id say move!
Out in Massey, Orcon+ rocks!

Line Mode

ADSL2+
Line State

Show Time

Line Power State
L0
Line Up Time
11:17:17:55

Line Coding
Trellis On
Line Up Count
1

Statistics
Downstream
Upstream

Line Rate
13850 Kbps
947 Kbps

Attainable Line Rate
15340 Kbps
952 Kbps

Noise Margin
5.2 dB
8.9 dB

Line Attenuation
30.5 dB
13.7 dB

Output Power
0.0 dBm
12.0 dBm

noise margin there of 5.1dB but still awesome speeds...

Doing your best is much more important than being the best.

CutCutCut

1039 posts

Uber Geek

#252284 1-Sep-2009 16:14

I haven't tried synching the G.DMT profile and in fact I have no idea what that is! haha. But I will investigate it futher this week.
Yes it seems a very complicated business this, with so many variables and outside factors.
Bee, I would be over the moon with speeds like that! So you're connection is stable with not too many dropouts? Do you know how far from the exchange you are?
It seems I need to raise this noise margin higher, but given you're results Bee I wonder if there are other factors involved with my line too.

Bee

732 posts

Ultimate Geek

#252348 1-Sep-2009 18:20

No idea where my exchange is, but yeah I get good speeds - generally 10 - 11 Mb/s.

just did a speed test now and got 12.36Mb/s download and .77Mb/s upload...

and 4.07Mb/s download to a server in Florida!

Doing your best is much more important than being the best.

CutCutCut

1039 posts

Uber Geek

#252354 1-Sep-2009 18:35

Bee: No idea where my exchange is, but yeah I get good speeds - generally 10 - 11 Mb/s.

just did a speed test now and got 12.36Mb/s download and .77Mb/s upload...

and 4.07Mb/s download to a server in Florida!

Nice!!! I'd be totally stoked if I can get anywhere close to that! Fingers crossed.

CutCutCut

1039 posts

Uber Geek

#253858 7-Sep-2009 20:45

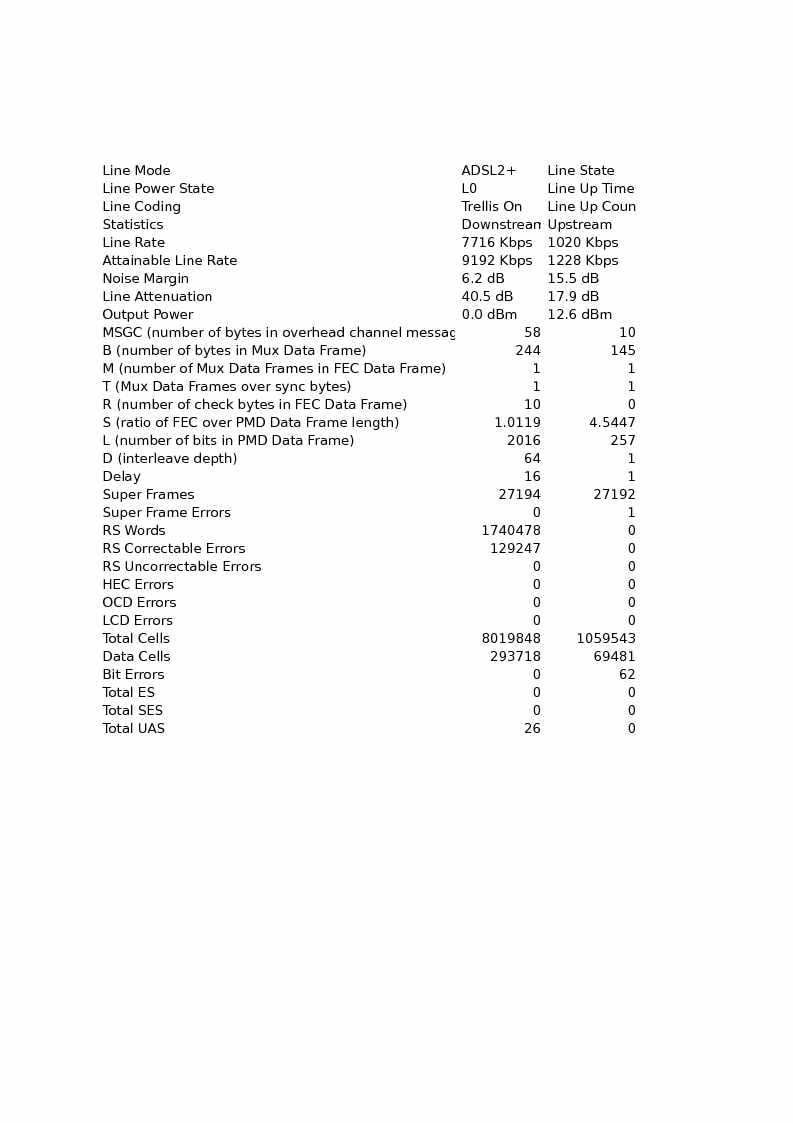

Ok then. So I've finally had time to borrow an old laptop. I've connected the modem to the main phone jack (1st one in from the road) and was pleasently suprised with this result

Nearly 3 times as fast as previous. Below is the router stats, slighlty murky sorry, this laptops running xubuntu, unfamiliar teritory. So I'm guessing somewhere in my ceiling where all the phone lines join up, I have a problem. I guess I'll have to go up there and disconnect each one to see where the culprit lies. I'm still hopeful once I get that sorted they might be able to squeeze a bit more out of it. Optimistic maybe.

CutCutCut

1039 posts

Uber Geek

#253899 7-Sep-2009 22:35

CutCutCut: Ok then. So I've finally had time to borrow an old laptop. I've connected the modem to the main phone jack (1st one in from the road) and was pleasently suprised with this result

Nearly 3 times as fast as previous. Below is the router stats, slighlty murky sorry, this laptops running xubuntu, unfamiliar teritory. So I'm guessing somewhere in my ceiling where all the phone lines join up, I have a problem. I guess I'll have to go up there and disconnect each one to see where the culprit lies. I'm still hopeful once I get that sorted they might be able to squeeze a bit more out of it. Optimistic maybe.

I notice that my noise ratio above is no better than it was before, yet I got much better speeds. So does that indicate there may be other problems futher down the line towards the exchange?

Kyanar

4089 posts

Uber Geek

ID Verified

Trusted

#253923 8-Sep-2009 00:34

Bee: Id be interested to know what you do if you do end up getting better speeds... otherwise if its an area thing Id say move!
Out in Massey, Orcon+ rocks!

What do you mean, MASSEY?!?

1 | 2
