Setting up TV Headend + Openelec

Forums › Freeview (DVB-T/DVB-S) › Setting up TV Headend + Openelec

aussiejosh

22 posts

Geek

#160497 8-Jan-2015 19:19

I am attempting to try something new on my OE setup. Using the WebGUI tvheadend see's my dvb-t tuner but I am unsure of what to do from here to add channels. Has anyone done this before and can offer some guidance? Thanks!

ScuL

487 posts

Ultimate Geek

Trusted

#1212958 13-Jan-2015 09:18

You'll need to add a mux (or use a preset) and it should start populating.

Note I only have experience with TVH and DVB-C

Haere taka mua, taka muri; kaua e wha.

PANiCnz

990 posts

Ultimate Geek

#1216108 16-Jan-2015 14:05

Under Configuration -> DVB Inputs should be the option to "Add DVB Network by Location", select your location from here.

aussiejosh

22 posts

Geek

#1216122 16-Jan-2015 14:15

Thanks guys, I've been out of town all week but I will give it another try over the weekend. I think I have done what you have suggested but am still hitting a wall. I select the auckland NZ region but I don't get much further past that point. I have tried looking online for answers but can't find any how-to guides with the latest 3.9 UI

ScuL

487 posts

Ultimate Geek

Trusted

#1216381 16-Jan-2015 23:14

When you go to configuration -> devices (where the tuner cards are listed).
Have you enabled your "network" on the selected tuner card?

Haere taka mua, taka muri; kaua e wha.

aussiejosh

22 posts

Geek

#1216814 18-Jan-2015 09:08

Okay guys, this is where I'm at.

I've Selected 'Networks' and selected the settings as shown in this picture, creating a DVB-T network named 'Auckland' (using pre-defined auckland-waiatarua)
Click to see full size

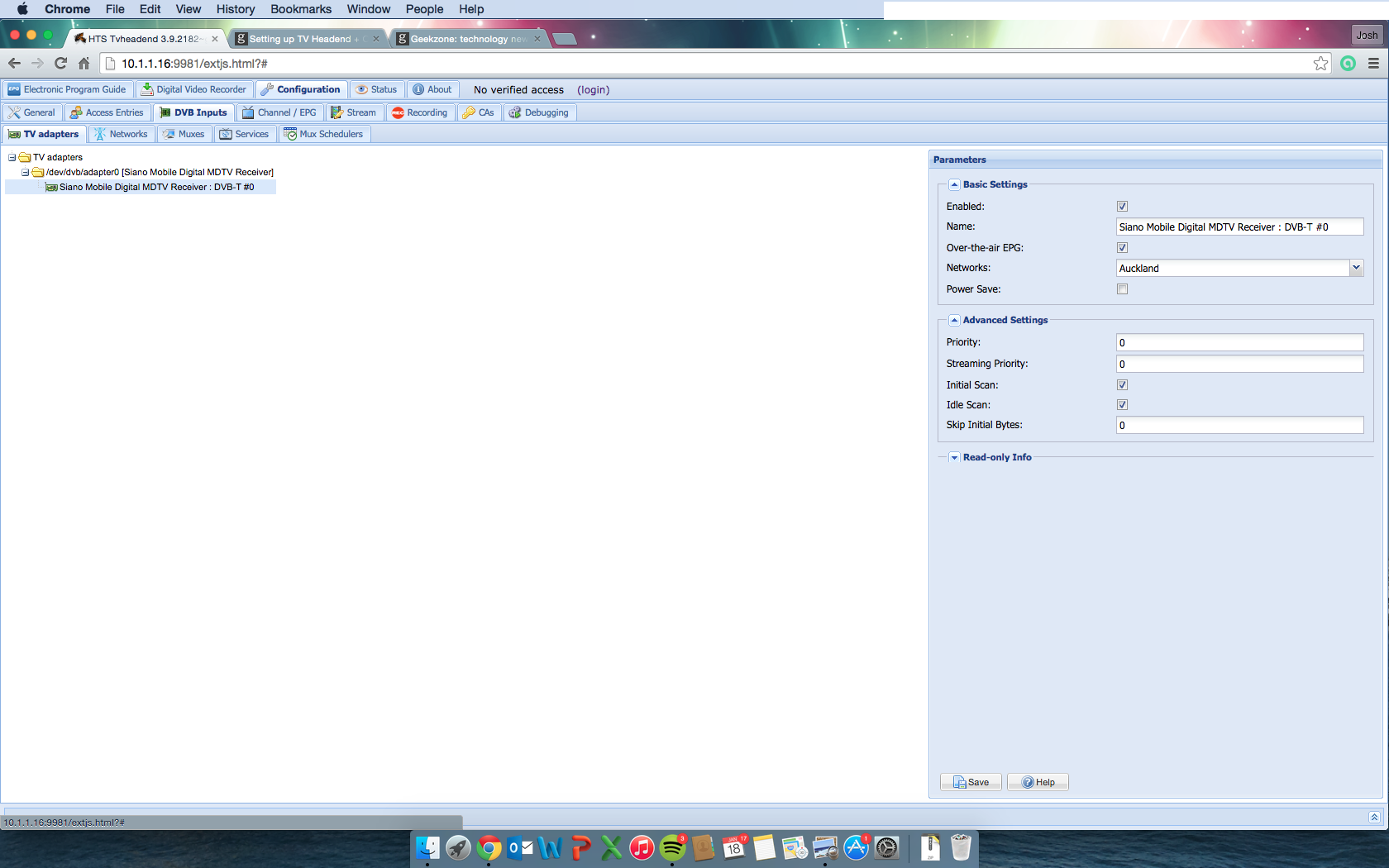

Then selected 'TV Adapters' and selected the 'Auckland' network profile for my tuner
Click to see full size

I then click on the 'Muxes' tab and it shows the three frequencies as 'PEND', and a few minutes later shows 'FAIL'. Where am I going wrong?
Click to see full size

ScuL

487 posts

Ultimate Geek

Trusted

#1216881 18-Jan-2015 11:34

Your screenshots are too small to be legible
Can you also provide a screenshot of the Configuration -> DVB Inputs screen when you've got your adapter selected?

Do you see any EPG scanning activity in the Status tab?

Haere taka mua, taka muri; kaua e wha.

aussiejosh

22 posts

Geek

#1217308 19-Jan-2015 08:56

That's really weird, I was able to click on the thumbnail pictures before to get a larger picture but editing my post must have removed that function. I'll re-post this afternoon with your requested screenshot

Samsung

Shop now on Samsung phones, tablets, TVs and more (affiliate link).

HiroProtagonist

47 posts

Geek

#1225478 30-Jan-2015 16:46

When I setup TVHeadend I found the mux frequencies for my location were out of date. By selecting Generic/auto_Default I was able to scan successfully.
