A bit of background here...
A few weeks ago everything was going fine, then we had a bit of weather bringing on rain fade,
went to watch tv in the morning no signal??? did a re scan and everything was normal.



Now I get no signal scanning finds nothing; however if I do a blind scan all I get is "optus test" @ %76 ?



does it sound like the dish has moved off to the wrong sat? or something else...





 The views expressed by me are not necessarily those of my employer


Create new topic
1911 posts

Uber Geek
+1 received by user: 122


  Reply # 1492134 14-Feb-2016 17:05
Send private message

LNB died?




412 posts

Ultimate Geek
+1 received by user: 100


  Reply # 1492136 14-Feb-2016 17:23
Send private message

I was wandering that but I would expect nothing at all ...



the optus test channel thing has got me stumped....





 The views expressed by me are not necessarily those of my employer








Try Wrike: fast, easy, and efficient project collaboration software
4804 posts

Uber Geek
+1 received by user: 1491


  Reply # 1492204 14-Feb-2016 19:36
Send private message

You're probably picking up D3/C1 at 156 degrees. Two possibilities:



1) Using a Sky dual throat LNB, you have activated 22kHz signal during the rescan, this will selected the alternate (C1/D3) sat.



2) Less likely, but possible you dish has physically moved to the right a few degrees - pretty unlikely, would have to be a good wind and a fairly loose mounting.



As for the original rain fade issue, this could be the dish moving out of alignment, but by far the most common reason is the LNB is end of life.




412 posts

Ultimate Geek
+1 received by user: 100


  Reply # 1492306 14-Feb-2016 22:15
Send private message

A bit more info for anyone that might be able to work this out



I checked the 22khz tone was off and did another blind scan
managed to pick up what looked to be a channel 7(?) feed @ 12634Mhz  H



but nothing else









 The views expressed by me are not necessarily those of my employer


7152 posts

Uber Geek
+1 received by user: 3364

Subscriber

  Reply # 1492314 14-Feb-2016 22:57
Send private message

Could this be something as simple as a bad connection? Maybe due to moisture getting into the antenna input on the lnb or switch.









I reject your reality and substitute my own. - Adam Savage



4804 posts

Uber Geek
+1 received by user: 1491


  Reply # 1492361 15-Feb-2016 06:58
Send private message

Can you ID that channel you picked up more precisely?




412 posts

Ultimate Geek
+1 received by user: 100


  Reply # 1492390 15-Feb-2016 08:00
Send private message

RunningMan:



Can you ID that channel you picked up more precisely?





it goes on/off air when it's not been used and also changes name...



currently called "ATN 7news 3"





 The views expressed by me are not necessarily those of my employer


4804 posts

Uber Geek
+1 received by user: 1491


  Reply # 1492398 15-Feb-2016 08:45
Send private message

That's V polarity, not H. It is on Optus D1 though, so the dish is pointing the right way. Either your receiver is set to output 14v (vertical) rather than 14/18v (V/H), or the LNB is stuffed and won't switch to horizontal polarity.



You don't have a splitter with a different sat receiver powering the LNB do you?




412 posts

Ultimate Geek
+1 received by user: 100


  Reply # 1492403 15-Feb-2016 08:52
Send private message

RunningMan:



That's V polarity, not H. It is on Optus D1 though, so the dish is pointing the right way. Either your receiver is set to output 14v (vertical) rather than 14/18v (V/H), or the LNB is stuffed and won't switch to horizontal polarity.



You don't have a splitter with a different sat receiver powering the LNB do you?





no splitter etc other than the one in the LNB

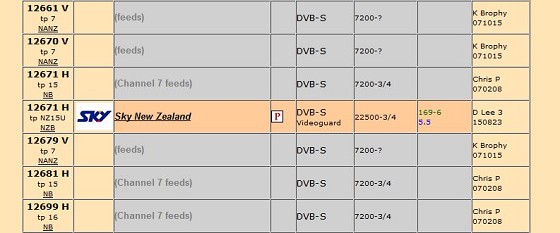

guessing that is the block you are referring to however nothing seems to match??



12634 H with a SR 7200





 The views expressed by me are not necessarily those of my employer


4804 posts

Uber Geek
+1 received by user: 1491


  Reply # 1492405 15-Feb-2016 08:53
Send private message

It is possible that the receiver is going bad and not outputting the 18v needed for horizontal, but this would be pretty uncommon.
