Hi



I've looked everywhere but can't get Mediaportal to tune channels.



I have satellite dish and  DVB-S2 card. The dish work with a normal tuner (Dish DVB-s tuner) but I've tried to use mediaportal with multiple settings (LOF and LNBSW) with not much luck



I had a look at this link https://www.team-mediaportal.com/wiki/pages/viewpage.action?pageId=10454614



I live in palmerston north.







Any help would be much appreciated.


Create new topic
346 posts

Ultimate Geek
+1 received by user: 69


  Reply # 1812947 4-Jul-2017 22:21
Send private message

What sort of DVB-S card is it?  Do you know what sort of LNB your dish has?



I am in PN if you need hands-on help - PM me.




9 posts

Wannabe Geek


  Reply # 1813357 5-Jul-2017 17:05
Send private message

Hi



I have a TBS 6920 DVB-S2 Pci-e card

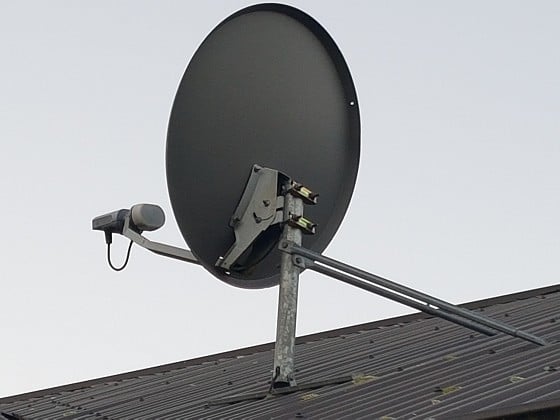

I'm not exactly sure what type of Dish I have. I've attached a picture.





I think the LOF for this is 11300. I've tried different LOF and LNBSW setting without much luck


6642 posts

Uber Geek
+1 received by user: 552

Trusted

  Reply # 1813362 5-Jul-2017 17:24
Send private message

Looks like the 10750 ex sky lnb...


4849 posts

Uber Geek
+1 received by user: 1508


  Reply # 1813419 5-Jul-2017 19:18
Send private message

LOF 10750



LNBSW 15000 or higher to stop it trying to switch



22kHz tone off


346 posts

Ultimate Geek
+1 received by user: 69


  Reply # 1813430 5-Jul-2017 19:37
Send private message

I am not an expert on the various LNBs, but comparing it to the photos here:



http://www.legiontv.co.nz/archives/122



I would say it is the same a mine, a dual LNB with a 10750 MHz local oscillator frequency.  If so, it should have a dual cable coming down to two separate aerial connections inside the house.  In my case both connections are where I have my Sky decoder - I use one for my MythTV box and the other I have cabled off to my test PC elsewhere in the house.  In some houses that have had multiple Sky boxes, the two connections may be terminated in different rooms.  Since you have had a Dish box working, I would suggest that you use exactly the same (known good) aerial cable to try getting the TBS 6920 card working, if possible.  I presume that you have already installed the correct drivers:



https://www.tbsdtv.com/download/document/tbs6920/tbs6920-windows-driver_v1.0.5.2.zip



otherwise MediaPortal would likely not be seeing the tuner at all.

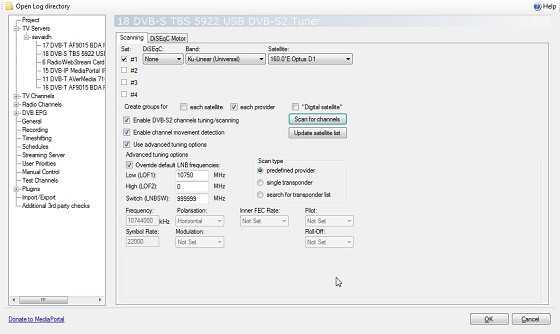

I managed to get a USB cable from my Windows box to where my TBS 9522 tuner is on the other side of the room and installed it in MediaPortal.  I am still using an older version or MediaPortal (1.11.0.0), but the DVB-S/S2 tuning settings are unlikely to have changed much.  I clicked the "Update satellite list" button first, then waited for the downloads to complete, then scanned using these settings:





The scan worked, although I have not checked all the channels.


346 posts

Ultimate Geek
+1 received by user: 69


  Reply # 1813435 5-Jul-2017 19:42
Send private message

That image is a bit hard to read - here is the full size one:



Click to see full size


4849 posts

Uber Geek
+1 received by user: 1508


  Reply # 1813440 5-Jul-2017 19:49
Send private message

fe31nz:[snip]I would say it is the same a mine, a dual LNB with a 10750 MHz local oscillator frequency.  If so, it should have a dual cable coming down to two separate aerial connections inside the house.





Depending on the age and how it was installed, it could have either 1 or 4 outputs, and 1, 2 or 4 cables coming out.


6642 posts

Uber Geek
+1 received by user: 552

Trusted

  Reply # 1813710 6-Jul-2017 11:28
One person supports this post
Send private message

RunningMan:



fe31nz:[snip]I would say it is the same a mine, a dual LNB with a 10750 MHz local oscillator frequency.  If so, it should have a dual cable coming down to two separate aerial connections inside the house.





Depending on the age and how it was installed, it could have either 1 or 4 outputs, and 1, 2 or 4 cables coming out.









And could now be failing, especially prone to drifting when it gets warmer in the sun.


959 posts

Ultimate Geek
+1 received by user: 163

Subscriber

  Reply # 1813780 6-Jul-2017 13:00
Send private message

Worth trying NextPVR ?





rb99
