intelsat 19 on the West Coast

Forums › Freeview (DVB-T/DVB-S) › intelsat 19 on the West Coast

PhillipHawken

11 posts

Geek

#303755 7-Mar-2023 13:48

I have read other posts about problems with Intelsat 19 which partly help.

I have changed the dish to 100cm, added a new triax 10750, changed the skew to 9 still only get 70/10

Has anyone been successfully getting it working?

I had used D2 prior with no problem

PHawken

1 | 2 | 3

8953 posts

Uber Geek

#3046863 7-Mar-2023 14:04

Welcome. Perhaps post in the DVB-S forum.

michaelmurfy

meow
13240 posts

Uber Geek

Moderator

ID Verified

Trusted

Lifetime subscriber

#3046865 7-Mar-2023 14:15

I was a little confused given you said "70/10" so was thinking that may be download / upload speed. But suspect this is TV related.

Feel free to prove me wrong and I'll move it to the right place.

Michael Murphy | https://murfy.nz
Referral Links: Quic Broadband (use R122101E7CV7Q for free setup)

Are you happy with what you get from Geekzone? Please consider supporting us by subscribing.
Opinions are my own and not the views of my employer.

SATTV

1648 posts

Uber Geek

ID Verified

#3046867 7-Mar-2023 14:30

70 = Signal strength

10 = Signal to Noise ratio

I have not played with Satellites for a few years now.

You may still need to tweek the skew of the LNB to get the SNR up, you cant be that far off.

I know enough to be dangerous

PhillipHawken

11 posts

Geek

#3046947 7-Mar-2023 19:46

Im the same,re know enough to be dangerous Lol

the 70 is signal strength, I actually got to 25 signal quality but briefly.

see the sat app data

RunningMan

8953 posts

Uber Geek

#3047018 7-Mar-2023 20:33

Once the dish is approximately aligned, it's just a matter of fine tuning it. Move the dish left/right up down a few mm at a time, let the signal settle for a few seconds and recheck. Once that is at the best level, do the same with the LNB skew - again, use small movements to adjust for peak signal.

PhillipHawken

11 posts

Geek

#3047614 8-Mar-2023 19:07

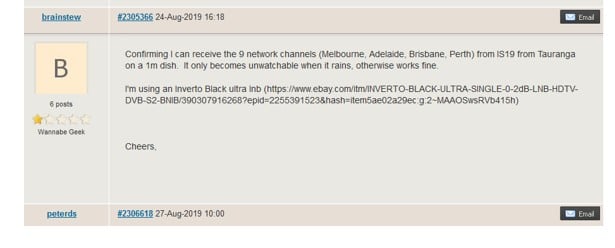

Years ago the following below was on geekzone

The main Lnb available it Triax can you get a better quality LNB?

Apsattv

2388 posts

Uber Geek

#3048063 9-Mar-2023 12:31

The question should be what are you trying to receive? what service what frequency?

Equinox IT

Cloud spending continues to surge globally, but most organisations haven’t made the changes necessary to maximise the value and cost-efficiency benefits of their cloud investments. Download the whitepaper From Overspend to Advantage now.

PhillipHawken

11 posts

Geek

#3048420 10-Mar-2023 08:56

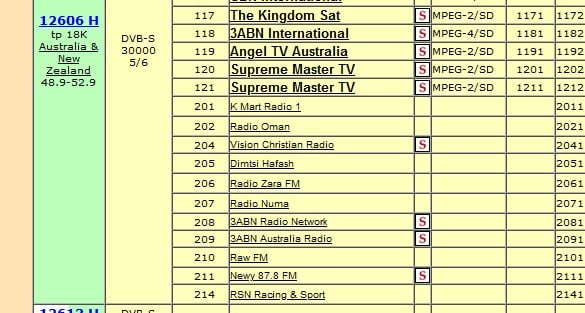

Intelsat 19 12606Mhz 30000 symbol Polarity H

Apsattv

2388 posts

Uber Geek

#3048619 10-Mar-2023 12:46

That should be easy to get, if you are moving a dish from D2 the lnbf skew is quite a bit different for Intelsat 19

also you should be able to load all these other H pol signals

12644 H Sr 28504 Fec 3/4 DVB-S
12686 H Sr 30000 Fec 3/4 DVB-S2
12726 H Sr 28054 Fec 3/4 DVB-S

If you think you are on the right satellite, also try a blindscan

PhillipHawken

11 posts

Geek

#3048647 10-Mar-2023 14:03

There lies the problem. I have a scanner/monitor that can get D1 and D2 (when it existed) but can only now get 70 quality and 25 strength (But on briefly)

I have a number of phone apps that indicate direction plus provide details, still unsuccessful. Thats why the question about LNBs and if there are some better than others?

RunningMan

8953 posts

Uber Geek

#3048669 10-Mar-2023 15:01

You need a bit more than a phone app to align the dish on the sat though. That will get it in approx the right direction, but you still need to properly align it and the LNB as above

Apsattv

2388 posts

Uber Geek

#3048765 10-Mar-2023 16:28

if you mean you have a needle type satfinder? there's another satellite parked at 169E that you might be picking up, also one at 172E

Try the other freqs as above, if you think you are on the satellite try a Blindscan and see if it loads ANY frequencys

Make sure LNBF setting is set to 10750 to match the LNBF and LNBF power is ON

Manually add the 12606 H as both V and H pol so if your skew is far off you might hit it in Vertical

Also the D2 satellite is still there NO change

also one last thing, its not weak, it can load and play fine on a 45cm!

PhillipHawken

11 posts

Geek

#3048805 10-Mar-2023 19:35

Hi Guys

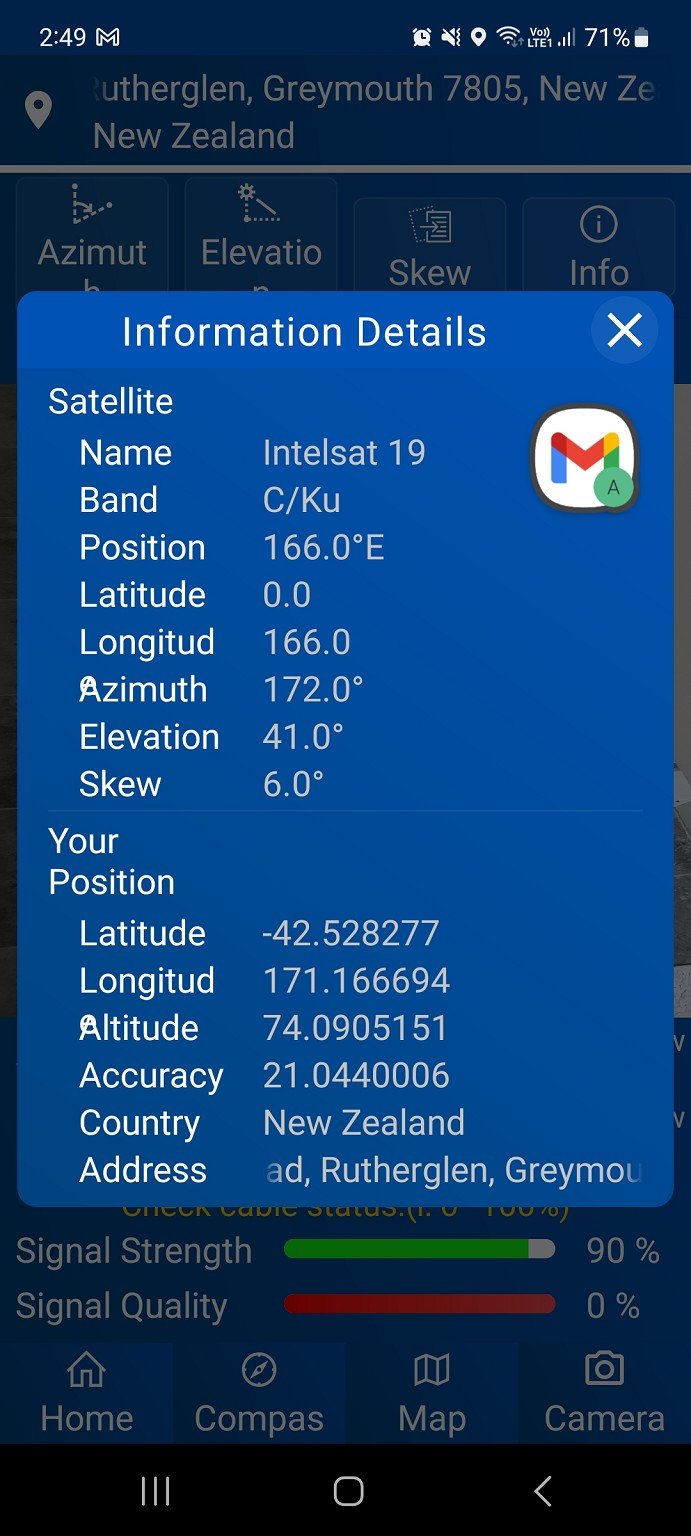

Success at last. Sat 19 was very close to D1, (to the left of on the pole) skew was 6. I used www.dishpointer.com to give a basic direction.

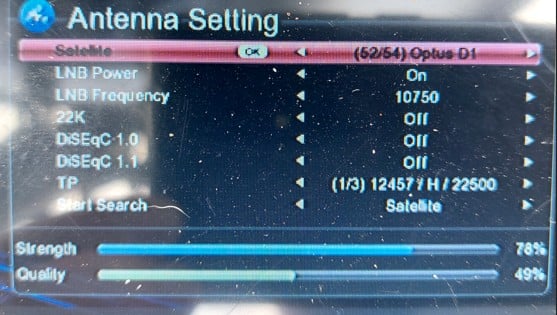

Then I used my Sat finder monitor see example (note I did change settings for Sat 19)

So thanks for your input.

Case closed

Phillip

Apsattv

2388 posts

Uber Geek

#3048898 11-Mar-2023 11:46

Did you load all services though ?

you should also see several channel 9 australia feeds on the vertical

12591 v sr 7200

12600 v sr 7200

12609 v sr 7200

12549 v sr 4280 Fec 2/3

If you can't see these then you have more adjusting to do

Sockpuppets69

3 posts

Wannabe Geek

#3049095 11-Mar-2023 22:09

Slightly off topic – but anyways.. Any decent content worth watching on these feeds? Ive got an old 96cm dish on roof from IPStar/Farmside days – A change of LNB and a re-point sounds like a fun, weekend something to-do. Cheers
