How do I remove server from the rack?

Forums › IT Pro and developers › How do I remove server from the rack?

jimbob79

673 posts

Ultimate Geek
+1 received by user: 165

#207883 18-Jan-2017 10:38

I got a full tower server rack and I removed all the servers from it except one.

I just can't figure it out. It has four release clips in each corner but they seam to do nothing. I can side out about an inch before it stops. It feels Like it need push button to release it, but I can't see anything (apart from the release clips in each of the corners).

trig42

5889 posts

Uber Geek
+1 received by user: 2094

ID Verified

#1705114 18-Jan-2017 10:55

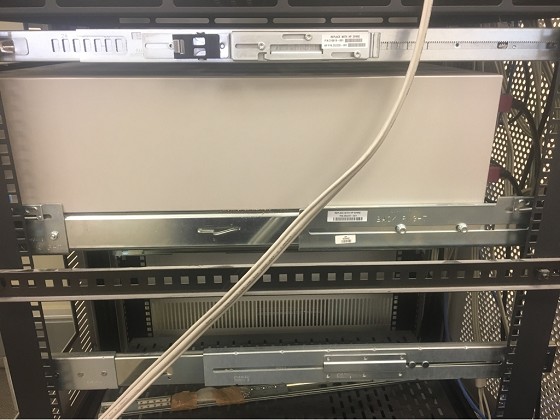

It looks like it is screwed to the rails (in the top pic)?

Jaxson

8172 posts

Uber Geek
+1 received by user: 1332

Trusted

#1705118 18-Jan-2017 11:02

Can you unscrew the mounting clips themselves, and take the whole thing out still attached?

Otherwise, lets call this plan C:

chevrolux

4962 posts

Uber Geek
+1 received by user: 2638
Inactive user

#1705123 18-Jan-2017 11:15

Brute strength and ignorance seems to work well in these situations.

But yea it looks like in that top photo there are screws in the side. Or are they just locking screws for the rails?

jimbob79

673 posts

Ultimate Geek
+1 received by user: 165

#1705133 18-Jan-2017 11:41

Ho... I've been a fickkking idiot!!! I just found out that one of the sprung loaded thumb screws on the front was stuck still snagged on a bolt on the front of the chassis. Putting it basically I did not undo a bolt enough.

Case closed of the "Stuck server rack", thanks for everybody help.

jimbob79

673 posts

Ultimate Geek
+1 received by user: 165

#1705135 18-Jan-2017 11:42

Jaxson:

Can you unscrew the mounting clips themselves, and take the whole thing out still attached?

Otherwise, lets call this plan C:

If in doubt... "C4"!

jimbob79

673 posts

Ultimate Geek
+1 received by user: 165

#1705137 18-Jan-2017 11:44

jimbob79:

Ho... I've been a fickkking idiot!!! I just found out that one of the sprung loaded thumb screws on the front was stuck still snagged on a bolt on the front of the chassis. Putting it basically I did not undo a bolt enough.

Case closed of the "Stuck server rack", thanks for everybody help.

Moral of this story...."If the bolt is lose, it does not mean it not connected".
