Koreasat 6 SKY are testing , Active now

Forums › Sky, Neon, Lightbox › Koreasat 6 SKY are testing , Active now

1 | ... | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10

416 posts

Ultimate Geek
+1 received by user: 69

#3364822 16-Apr-2025 20:24

chillr:

garryk:

Ok, so I can find 23 transponders now, but still none of them report having any services?

Furthermore, the list of transponders reported by the scan doesn't match /include those expected or reported by others on this thread, namely

.....

This is in the satellites.xml file sourced by the vu-solo box from "OE-Alliance". (Maybe this is wrong? Should I source a satellite file from somewhere else?)

<sat name="160.0E Optus D2 & Measat 3a & Koreasat 6" flags="1" position="1600">

.....

You can try the version below - works on my Solo2 & Solo4k both running openvix - which required an edit of /etc/tuxbox/satellites.xml then a reboot.

</sat>
<sat name="160.0E Optus-D2 & Measat-3a & Koreasat-6" flags="1" position="1600">
<transponder frequency="12530000" symbol_rate="30000000" polarization="0" fec_inner="5" system="1" modulation="2" />
<transponder frequency="12484800" symbol_rate="22500000" polarization="0" fec_inner="6" system="1" modulation="2" />
<transponder frequency="12610000" symbol_rate="30000000" polarization="0" fec_inner="5" system="1" modulation="2" />
<transponder frequency="12570000" symbol_rate="30000000" polarization="0" fec_inner="5" system="1" modulation="2" />
<transponder frequency="12546000" symbol_rate="30000000" polarization="0" fec_inner="5" system="1" modulation="2" />
<transponder frequency="12290000" symbol_rate="30000000" polarization="0" fec_inner="5" system="1" modulation="2" />
<transponder frequency="12330000" symbol_rate="30000000" polarization="0" fec_inner="5" system="1" modulation="2" />
<transponder frequency="12370000" symbol_rate="30000000" polarization="0" fec_inner="5" system="1" modulation="2" />
<transponder frequency="12410000" symbol_rate="30000000" polarization="0" fec_inner="5" system="1" modulation="2" />
<transponder frequency="12690000" symbol_rate="30000000" polarization="0" fec_inner="5" system="1" modulation="2" />
<transponder frequency="12734000" symbol_rate="30000000" polarization="0" fec_inner="5" system="1" modulation="2" />
<transponder frequency="12730000" symbol_rate="30000000" polarization="0" fec_inner="5" system="1" modulation="2" />
<transponder frequency="12730000" symbol_rate="22500000" polarization="0" fec_inner="3" system="1" modulation="2" />
<transponder frequency="12287000" symbol_rate="30000000" polarization="0" fec_inner="3" system="1" modulation="2" />
<transponder frequency="12727000" symbol_rate="30000000" polarization="0" fec_inner="3" system="1" modulation="2" />
</sat>

I edited my satellites.xml as above and bingo all is well. It looks like the satellites.xml file supplied by the OE Alliance, which includes openvix, needs updating. I will post on their forum.

rscole86

4999 posts

Uber Geek
+1 received by user: 462

Moderator

Trusted

Lifetime subscriber

#3364824 16-Apr-2025 20:37

Until Lyngsat is updated, then you'll need to manually update your XML file as you now know. Just hold off on any updates to your openvix until you see the new data on Lyngsat. Or keep a copy of your modified XML file and replace it whenever you update.

fishb8

85 posts

Master Geek
+1 received by user: 25

#3364839 16-Apr-2025 21:17

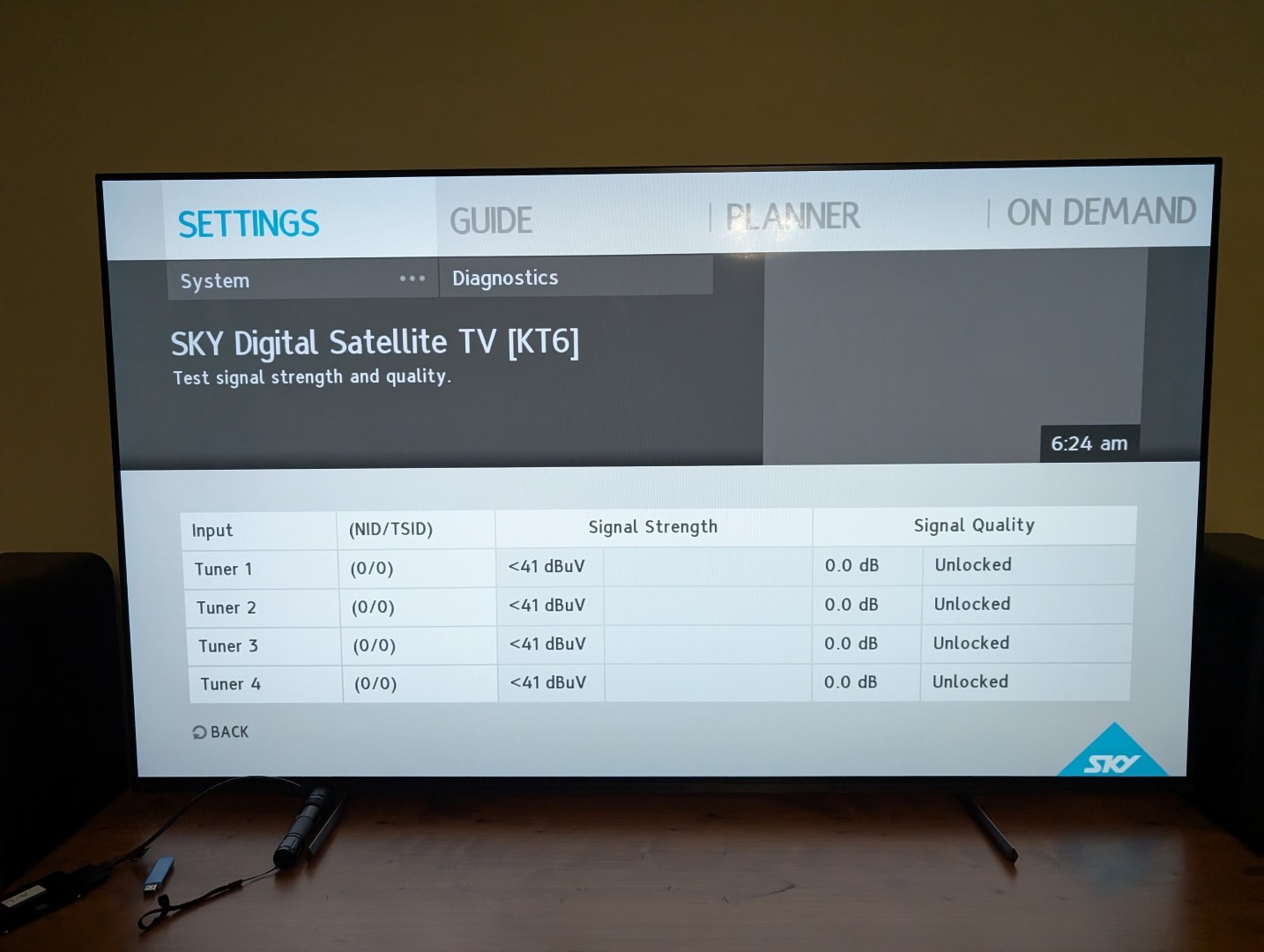

How do I copy the tuner screen? The lnb was replaced about a year ago

We lost sky at 18.40 this evening

RunningMan

9191 posts

Uber Geek
+1 received by user: 4842

#3364840 16-Apr-2025 21:19

Mavarick:

Success,

I managed to get there via using the scan function via the Signal finder function and the 4 sets of transponder numbers posted earlier, I couldn't get it to work any other way.

Just transfered the channels to a new bouquet after each scan.

You shouldn't need to move any channels after a scan as all the services retain the same IDs in the background. A rescan of the 3 new transponders (for Freeview) should be enough and your existing bouquets should work.

Apsattv

2453 posts

Uber Geek
+1 received by user: 726

#3364845 16-Apr-2025 21:39

fishb8:

How do I copy the tuner screen? The lnb was replaced about a year ago

We lost sky at 18.40 this evening

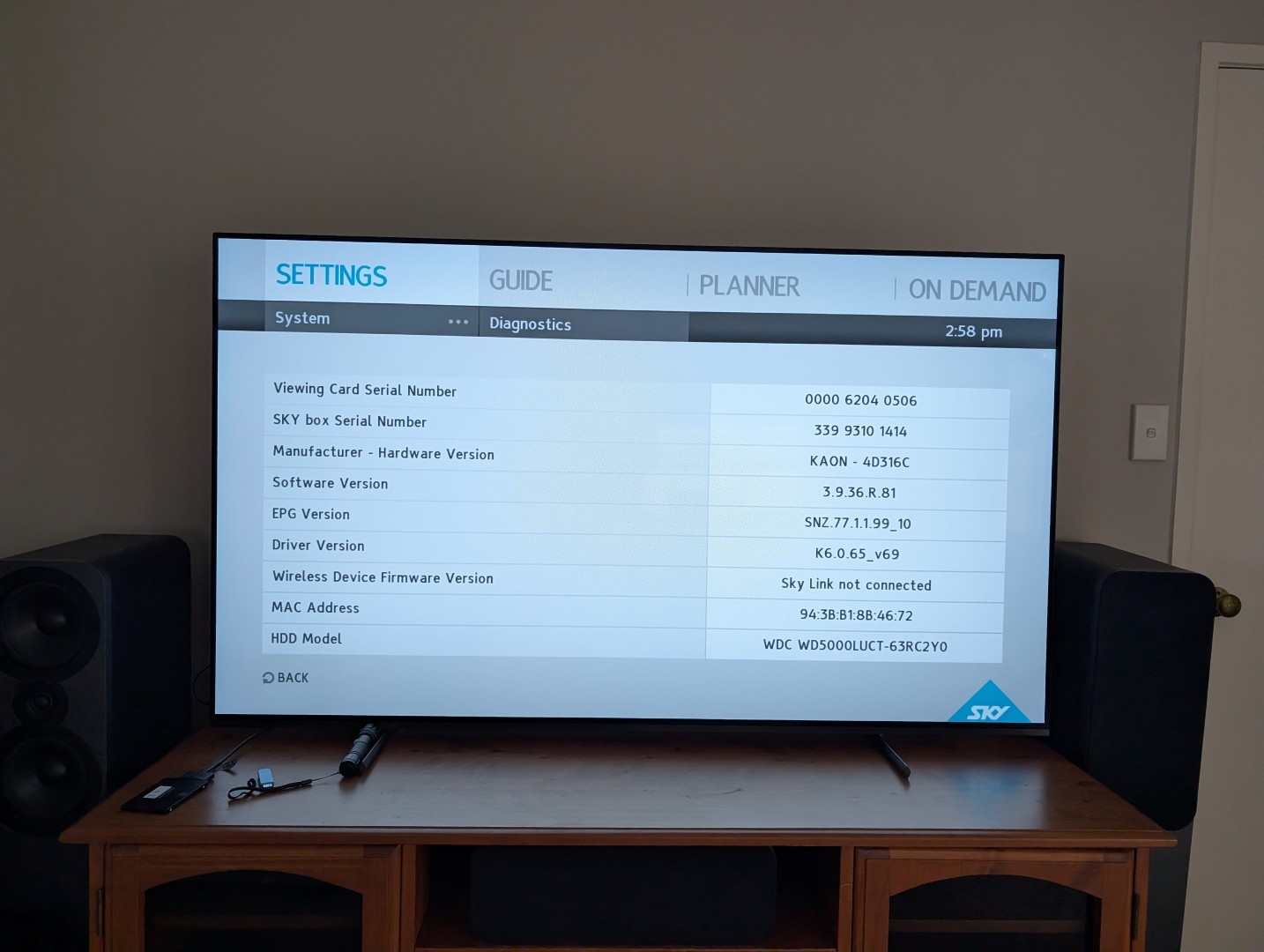

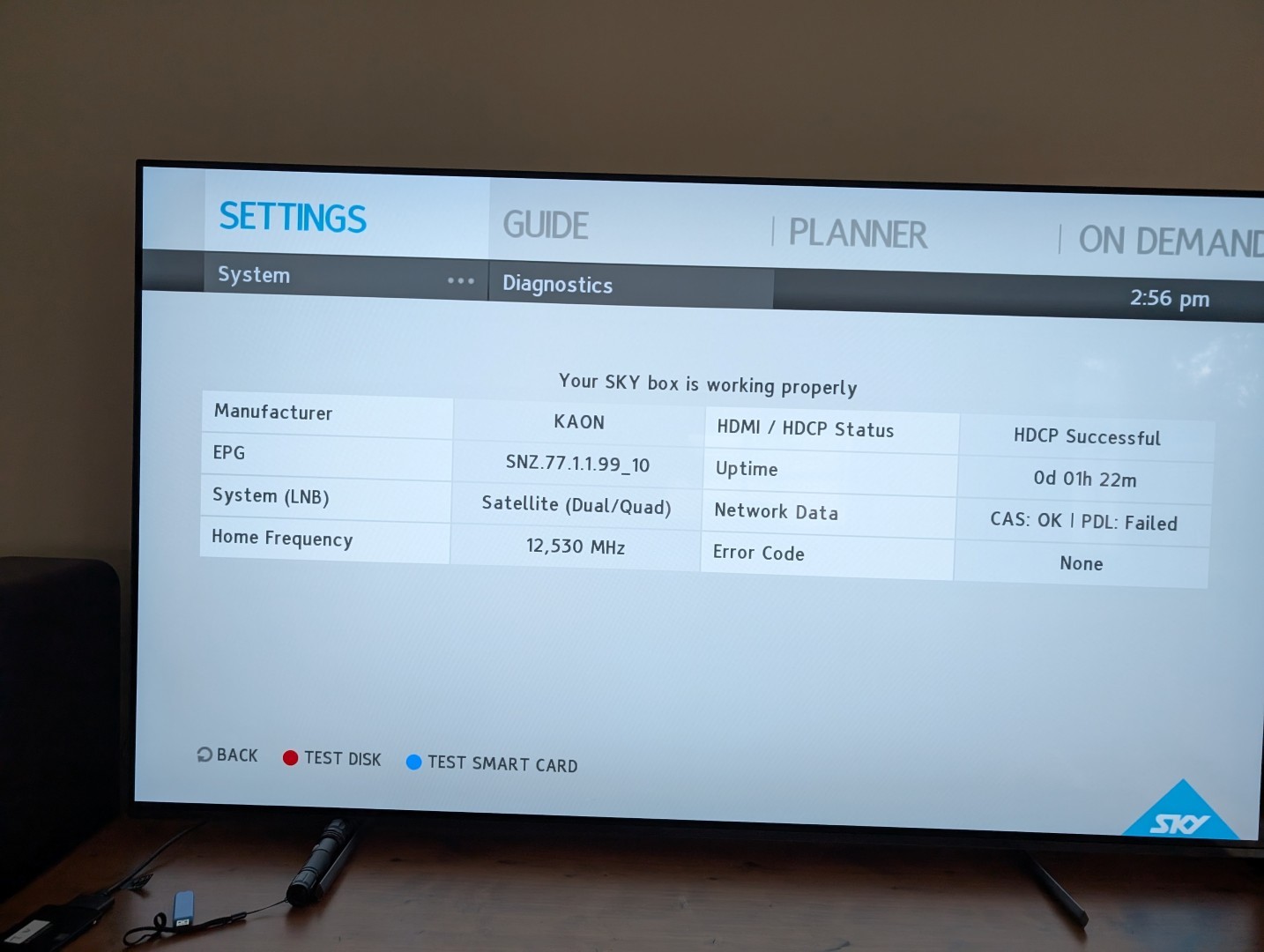

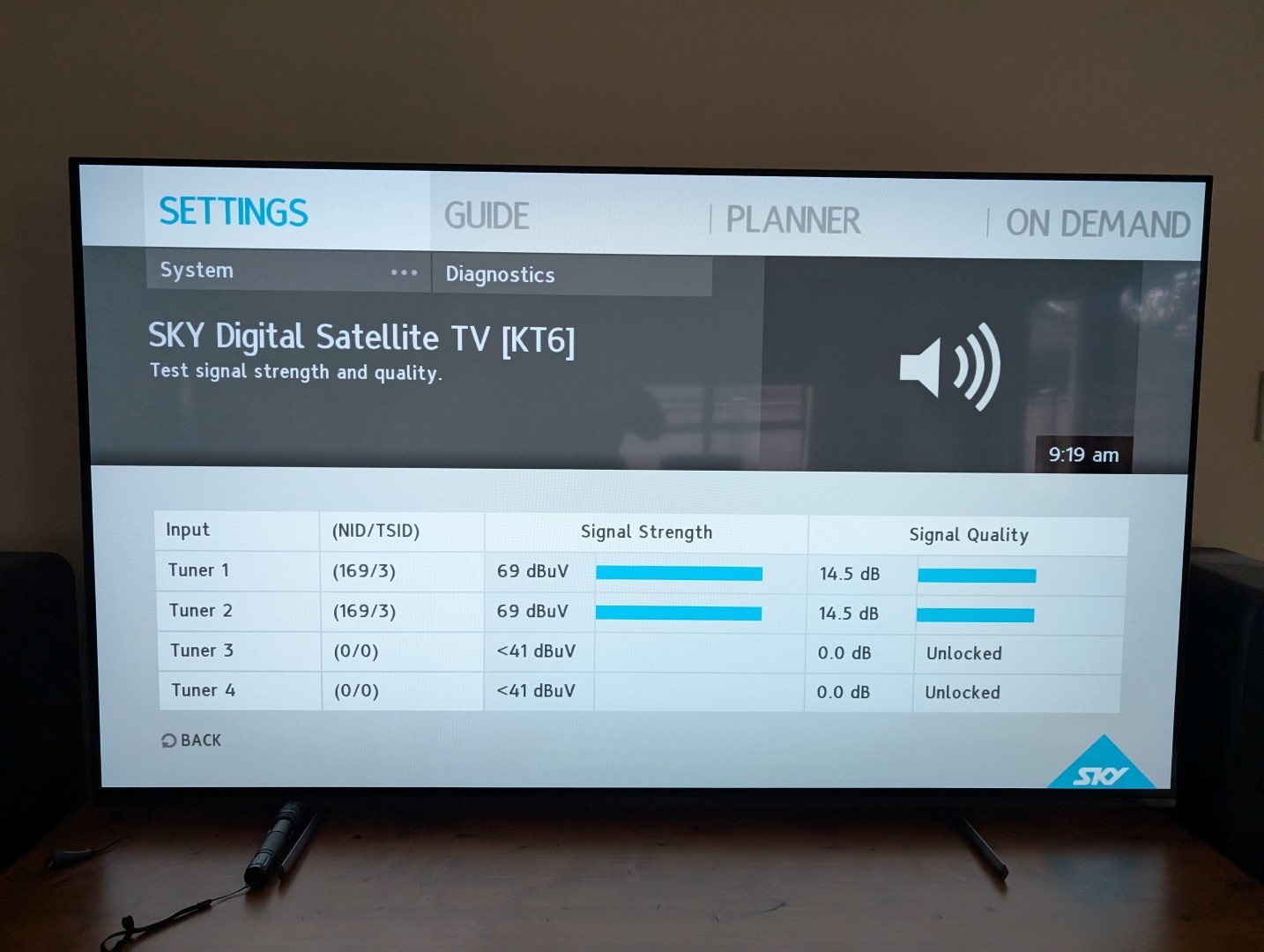

in settings diagnostics blue button, then take a photo and dump it in here.

Eitsop

584 posts

Ultimate Geek
+1 received by user: 153

ID Verified

#3364850 16-Apr-2025 22:17

haydos:

description=Sky NZ OpenTV (Optus D1 on 160.0E)
# nid ,tsid, sid
nid=169
tsid=3
sid=9003
# transponder
frequency=12519000
symbol_rate=22500000
polarization=0
fec_inner=3
orbital_position=1600
inversion=2
system=0
modulation=1
roll_off=0
pilot=2
# channels pids
channels_pids=17
# titles pids
titles_pids=48|49|50|51|52|53|54|55
# summaries pids
summaries_pids=64|65|66|67|68|69|70|71
protocol=opentv

I thought would be like below but that did 't work

description=Sky NZ OpenTV (Optus D1 on 160.0E)
# nid ,tsid, sid
nid=169
tsid=3
sid=9003
# transponder
frequency=12530000
symbol_rate=30000000
polarization=0
fec_inner=7
orbital_position=1600
inversion=2
system=0
modulation=1
roll_off=2
pilot=2
# channels pids
channels_pids=17
# titles pids
titles_pids=48|49|50|51|52|53|54|55
# summaries pids
summaries_pids=64|65|66|67|68|69|70|71
protocol=opentv

HP

Shop now for HP laptops and other devices (affiliate link).

chillr

32 posts

Geek
+1 received by user: 4

#3364851 16-Apr-2025 22:29

fec_inner should be 5. This works on my Duo2...

description=SkyNZ OpenTV (KoreaSat 6 on 160.0E)
# nid ,tsid, sid
nid=169
tsid=3
sid=9003
# transponder
frequency=12530000
symbol_rate=30000000
polarization=0
fec_inner=5
orbital_position=1600
inversion=2
system=1
modulation=2
roll_off=0
pilot=2
# channels pids
channels_pids=17
# titles pids
titles_pids=48|49|50|51|52|53|54|55
# summaries pids
summaries_pids=64|65|66|67|68|69|70|71
protocol=opentv

If you still have issues try the system=0

Eitsop

584 posts

Ultimate Geek
+1 received by user: 153

ID Verified

#3364853 16-Apr-2025 22:45

I keep getting CrossEPG error: timeout for tuner lock

haydos

4 posts

Wannabe Geek

#3364854 16-Apr-2025 22:54

I have a Vu Uno, i just cant seem to make it get a lock....

what version of crossepg do you have?

chillr

32 posts

Geek
+1 received by user: 4

#3364855 16-Apr-2025 22:58

haydos:

I have a Vu Uno, i just cant seem to make it get a lock....

what version of crossepg do you have?

CrossEPG v0.9.1, thou the version likely isn't the issue. Check you have modulation=2 and try both system=0 then system=1

fe31nz

1295 posts

Uber Geek
+1 received by user: 423

#3364863 16-Apr-2025 23:56

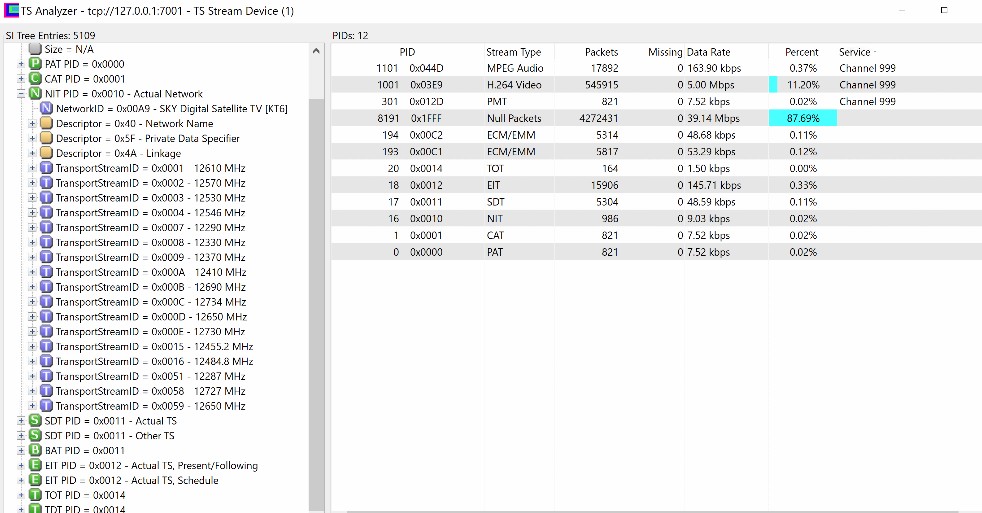

In the NIT tables Sky is now broadcasting on KoreaSat 6, they have some frequencies that are too close together and pick up the same mux. The full list of NIT table frequencies is:

12287
12290
12330
12370
12410
12455.2
12484.8
12530
12546
12570
12610
12650
12690
12727
12730
12734

The 12287 and 12290 frequencies are too close, as are 12727, 12730 and 12734. My DVBViewer setup had a problem with this and said 12730 and 12734 were both valid so I got all of those channels turning up twice. It ignored 12727. It locked in 12290 and ignored 12287.

Geekzone support

Support Geekzone with one-off or recurring donations Donate via PressPatron.

Apsattv

2453 posts

Uber Geek
+1 received by user: 726

#3364867 17-Apr-2025 02:35

In the NIT, taken from the backup t.p on 156E

NIT info isn't always right..can have old data

12287 V (another backup freq inactive 156E )
12727 V (this is Sky 156E backup home transponder) accessible on Channel 999

The 12734 H and 12546 H are leftovers from the previous nit info

The bottom 12650 H is a leftover from the Channel 156E 777 test

Mavarick

213 posts

Master Geek
+1 received by user: 10

#3364868 17-Apr-2025 03:15

I had to move from the Last scanned folder. as each time I scaned a Tp it emptied that folder

although it has now seemed to populate part of my older bouquet i had been using. I only know enough to be dangerous lol

RunningMan:

Mavarick:

Success,

I managed to get there via using the scan function via the Signal finder function and the 4 sets of transponder numbers posted earlier, I couldn't get it to work any other way.

Just transfered the channels to a new bouquet after each scan.

You shouldn't need to move any channels after a scan as all the services retain the same IDs in the background. A rescan of the 3 new transponders (for Freeview) should be enough and your existing bouquets should work.
