Right way to install dryer exhaust?

Forums › Home Workshop DIY › Right way to install dryer exhaust?

1 | 2

nickb800

2735 posts

Uber Geek
+1 received by user: 829

Trusted

#1997460 17-Apr-2018 08:40

All dryers will have a thermal cutout - so if the vent won't open and it gets too hot, it will stop running. This is also why many old dryers 'die' - lint builds up around the thermal sensor, so a simple clean will 'fix' them.

Cut the hose to say 1m long, which will make installation easier. Then it will concertina down to 200mm once you fit everything in place

kiwijunglist

2983 posts

Uber Geek
+1 received by user: 135

ID Verified

#2177787 13-Feb-2019 16:55

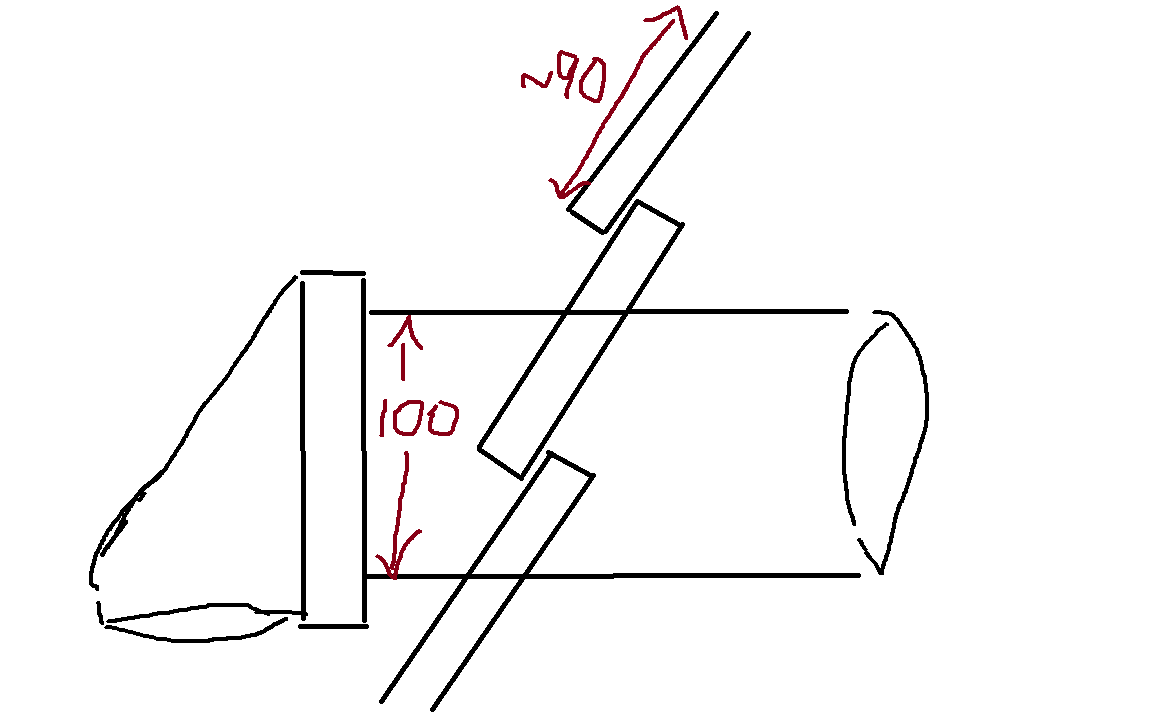

what is the best way to place a weather tight 100mm straight through wall vent through 1960s bevelback timber weatherboard external wall, when the gap between the weatherboards is the same width as the hole?

HTPC / Home automation (home assistant) enthusiast.

kiwijunglist

2983 posts

Uber Geek
+1 received by user: 135

ID Verified

#2177788 13-Feb-2019 16:57

https://www.youtube.com/watch?v=HCxbraTCGZ0&t=147s

^ @ 2:27

HTPC / Home automation (home assistant) enthusiast.

nickb800

2735 posts

Uber Geek
+1 received by user: 829

Trusted

#2177906 13-Feb-2019 19:47

Build up with a scriber then fix the grill over the scriber

E.g.
http://www.sppnz.co.nz/product/ezyscribe/

kiwijunglist

2983 posts

Uber Geek
+1 received by user: 135

ID Verified

#2177935 13-Feb-2019 20:44

cool, i found a video on marking out some scribing for the sides so should be easy.

do i need to do flashing as well would i edge some flashing into the gap between the two weatherboards above the box and run it down and onto the box?

HTPC / Home automation (home assistant) enthusiast.

nickb800

2735 posts

Uber Geek
+1 received by user: 829

Trusted

#2178022 14-Feb-2019 07:04

kiwijunglist:

cool, i found a video on marking out some scribing for the sides so should be easy.

do i need to do flashing as well would i edge some flashing into the gap between the two weatherboards above the box and run it down and onto the box?

Yeah that would be a good idea too

AliExpress

Shop now on AliExpress (affiliate link).

kiwijunglist

2983 posts

Uber Geek
+1 received by user: 135

ID Verified

#2188470 27-Feb-2019 21:15

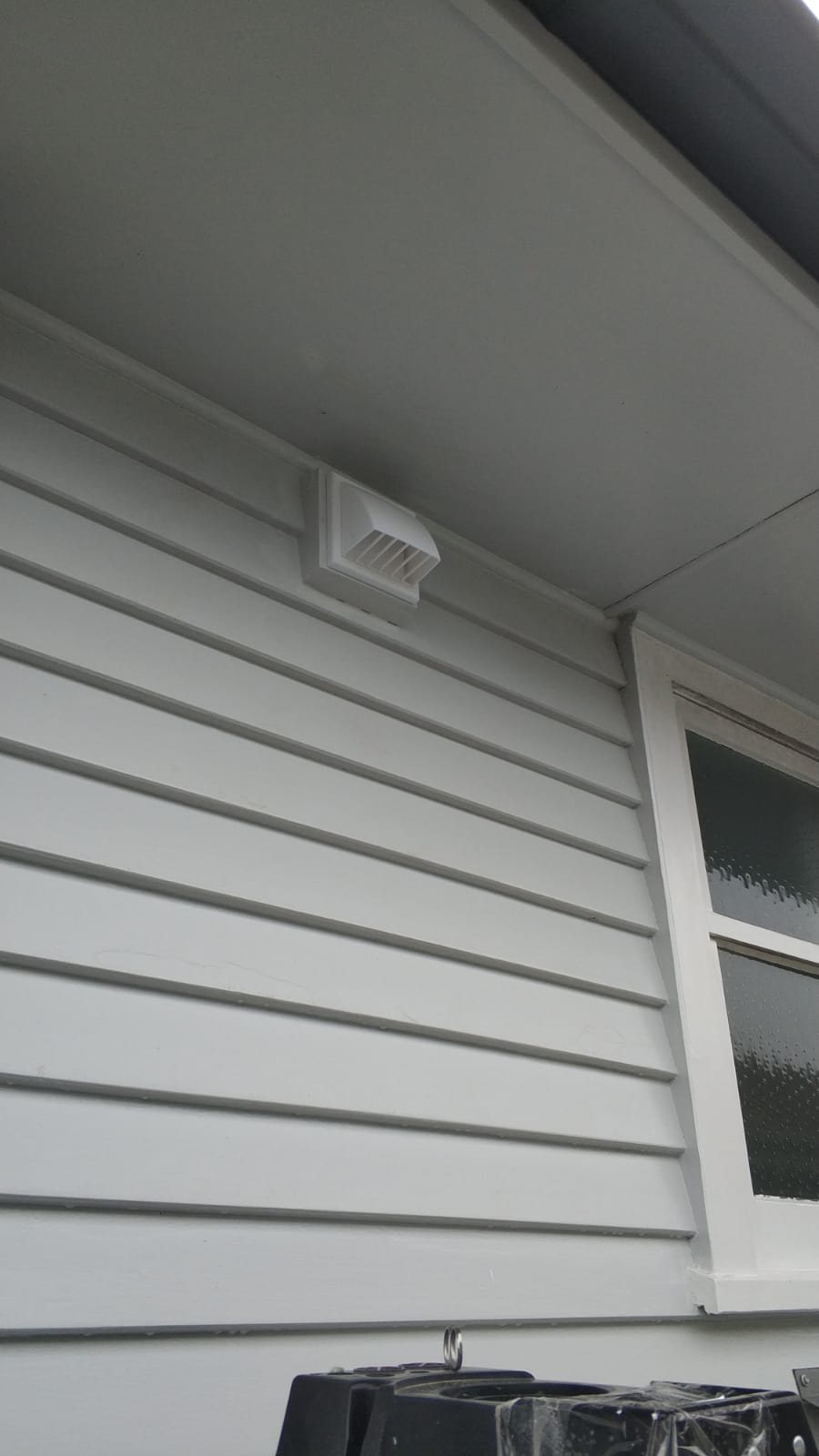

I've just measured where the exhaust will be coming out the wall and it's actually just 10cm or so below the eave/soffit and I have quite wide eaves.

It's also in a very sheltered side of the house, this means whatever waterproofing method I use it probably won't even get wet which is quite reassuring.

HTPC / Home automation (home assistant) enthusiast.

kiwijunglist

2983 posts

Uber Geek
+1 received by user: 135

ID Verified

#2195855 11-Mar-2019 14:25

Added bracing to wall in laundry

Replaced gibboard with a piece of ply to give the wall and extra bracing more support

Hung dryer on wall

Cut hole straight through wall

Made a scribed box

Wouldn't want to DIY this project again took me 2 days!!

HTPC / Home automation (home assistant) enthusiast.
